Solved Diskpart doesn't list internal disk volumes during Win 11 vhdx creation


chadillac

New member
Local time
7:39 AM
Posts
7
OS
Windows 11 Pro, 21H2, build: 22000.376, Experience Pack 1000.22000.376.0
I'm following this post on creating a Windows 11 vhdx. However, on the part where you "list volume" in diskpart, the only volume (or disks for that matter) that show up is the external USB volume that I am booting from and doesn't list the internal SSD volumes, to which I want to create the vhdx on.

Any ideas?

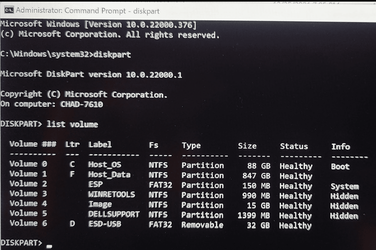

Here's a diskpart list while booted into the Hyper-V Host:

And here is disk management view: Host_Data F: is the destination volume I want to create the vhdx on.

Now on the same machine when booting from the installation media usb, diskpart list volume only has 1 result, which is the one listed as vol 6 in the above screenshot (thought I took a pic of this but I guess not, but it would just show a single volume, the usb volume itself.).


My Computer

System One

  • OS
    Windows 11 Pro, 21H2, build: 22000.376, Experience Pack 1000.22000.376.0
    Computer type
    Laptop
    Manufacturer/Model
    Dell 7573
    CPU
    Intel(R) Core(TM) i7-8550U CPU @ 1.80GHz 1.99 GHz
    Memory
    24GB
    Other Info
    (VHDX) at Boot to Native Boot

NavyLCDR

Well-known member
Power User
VIP
Local time
6:39 AM
Posts
923
OS
Windows 11
Some computers require the Intel Rapid Storage Technology (IRST) driver to be installed to detect their internal drives. When booting from the Windows installation USB flash drive, the IRST driver will not be installed.


My Computers

System One System Two

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    Homebuilt
    CPU
    AMD Ryzen 7 3800XT
    Motherboard
    ASUS ROG Crosshair VII Hero (WiFi)
    Memory
    32GB
    Graphics Card(s)
    EVGA GeForce GTX 1080 Ti
  • Operating System
    Windows 11 Education
    Computer type
    Laptop
    Manufacturer/Model
    Dell Inspiron 7773
    CPU
    Intel i7-8550U
    Memory
    32GB
    Graphics card(s)
    Nvidia Geforce MX150
    Sound Card
    Realtek
    Monitor(s) Displays
    17"
    Screen Resolution
    1920 x 1080
    Hard Drives
    Toshiba 512GB NVMe SSD
    SK Hynix 512GB SATA SSD
    Internet Speed
    Fast!

cereberus

Well-known member
Pro User
VIP
Local time
2:39 PM
Posts
2,048
OS
Windows 10 Pro + others in VHDs
Some computers require the Intel Rapid Storage Technology (IRST) driver to be installed to detect their internal drives. When booting from the Windows installation USB flash drive, the IRST driver will not be installed.
Yep, very common on pcd with nvme drives or optane memory drives - I always add the IRST driver to the WinPe boot.wim file using dism.

Last edited:

My Computer

System One

  • OS
    Windows 10 Pro + others in VHDs
    Computer type
    Laptop
    Manufacturer/Model
    ASUS Vivobook 14
    CPU
    I7
    Motherboard
    Yep, Laptop has one.
    Memory
    16 GB
    Graphics Card(s)
    Integrated Intel Iris XE
    Sound Card
    Realtek built in
    Monitor(s) Displays
    N/A
    Screen Resolution
    1920x1080
    Hard Drives
    1 TB Optane NVME SSD, 1 TB NVME SSD
    PSU
    Yep, got one
    Case
    Yep, got one
    Cooling
    Stella Artois
    Keyboard
    Built in
    Mouse
    Bluetooth , wired
    Internet Speed
    72 Mb/s :-(
    Browser
    Edge mostly
    Antivirus
    Defender
    Other Info
    TPM 2.0

chadillac

New member
Thread Starter
Local time
7:39 AM
Posts
7
OS
Windows 11 Pro, 21H2, build: 22000.376, Experience Pack 1000.22000.376.0
Ok, that makes sense.

I just found Hyper-V manager has a Quick Create VM option that includes a Win 11 Enterprise option that I can use.
