EfI full repair needed help


spartanz1080

Member
Local time
11:12 PM
Posts
71
OS
windows 11
How do I fix this? Nothing wrong with my PC it boots fine and everything is fine its not my OS C drive just a storage drive and it works fine too. I didn't know if it mattered because and I don't want to mess anything up. I think I noticed because the EFI drive used to show up in file explorer. I’m new at this.


My Computer

System One

  • OS
    windows 11

zbook

Well-known member
Power User
VIP
Local time
1:12 AM
Posts
1,235
OS
Windows 10
Open disk management > post images or share links into this thread using one drive, drop box, or google drive
a) Widen these columns: Volume and Status > make sure that no characters are cut off
b) Widen these rows: Disk 0, disk 1, disk 2, etc. > make sure that no characters are cut off


Run:



My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation

spartanz1080

Member
Thread Starter
Local time
11:12 PM
Posts
71
OS
windows 11

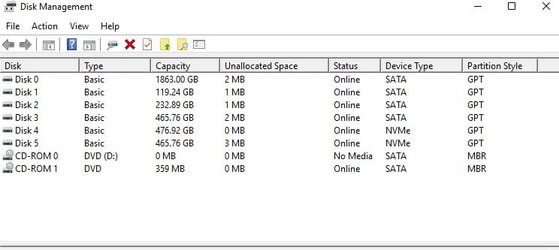

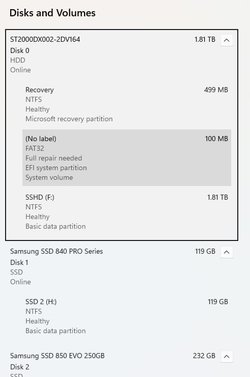

Everything says healthy in here its just in that windows 11 new volume menu it says full repair needed. I swear it used to show up in my file explorer but its not there anymore thats how I noticed it I think and I cannot do anything with it and seen in the third pic. Maybe nothing is wrong as nothing wrong with my computer. But this EFI is not on my C drive its on drive F.disk3.jpg


Attachments

  • disk.jpg
    179.6 KB · Views: 5
  • disk 2.jpg
    disk 2.jpg
    28.5 KB · Views: 5

My Computer

System One

  • OS
    windows 11

zbook

Well-known member
Power User
VIP
Local time
1:12 AM
Posts
1,235
OS
Windows 10
Can you run the scripts from ten forums or do you need manual commands?

Tuneup plus:

Diskpar info:



Please run:




My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation

zbook

Well-known member
Power User
VIP
Local time
1:12 AM
Posts
1,235
OS
Windows 10
When available please post V2 results.



Download and install: Hard Disk Sentinel (free or trial version)

Post images or share links for results on these tabs:
a) Overview
b) Temperature
c) SMART

For share links please use one drive, drop box, or google drive.


In the left lower corner search type: msconfig > click boot tab > post images or share links into this thread

Last edited:

My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation

zbook

Well-known member
Power User
VIP
Local time
1:12 AM
Posts
1,235
OS
Windows 10
V2 will collect multiple log files.
They can be scanned for computer problems.


My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation

spartanz1080

Member
Thread Starter
Local time
11:12 PM
Posts
71
OS
windows 11
I am not posting anymore results for you I edited my post. Someone here had this same issue and you were in this thread. Maybe it’s specific to this but I want to be safe.



My Computer

System One

  • OS
    windows 11

zbook

Well-known member
Power User
VIP
Local time
1:12 AM
Posts
1,235
OS
Windows 10
What had happened to Disk 5?

It's missing 2 partitions that are typical of UEFI / GPT partitions.

Which operating system is on F:?

If all the cables were detached except disk 0: ST2000DX002-2DV164 would it boot?

What is the dual booting history?


My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation

spartanz1080

Member
Thread Starter
Local time
11:12 PM
Posts
71
OS
windows 11
Disk F was just a storage disk that has games on it. It was not the OS C drive. Disk F had the EFI partition on it not the C drive . It wouldn’t boot from F cuz it’s not the OS drive shouldn’t my EFI be on my C drive not F drive. There is no OS on F
Code:
    Disk 0 : HDD. It has 4 partition(s). Model: ST2000DX002-2DV164
    Disk 1 : SSD. It has 1 partition(s). Model: Samsung SSD 840 PRO Series
    Disk 2 : SSD. It has 1 partition(s). Model: Samsung SSD 850 EVO 250GB
    Disk 3 : SSD. It has 1 partition(s). Model: WDC WDS500G2B0A-00SM50
    Disk 4 : SSD. It has 2 partition(s). Model: INTEL SSDPEKNW512G8
    Disk 5 : SSD. It has 2 partition(s). Model: Samsung SSD 970 EVO 500GB

    The script has found the above 6 storage device(s) in total.

=============================================================================

Drive
Letter   Drive Label   File System Free Space Used Space  Capacity   Free
------ --------------- ----------- ---------- ---------- ---------- -----
                          FAT32      67.03 MB   28.97 MB   96.00 MB  70 %
       Recovery           NTFS      482.75 MB   16.24 MB  499.00 MB  97 %
                          NTFS       75.56 MB  462.43 MB  538.00 MB  14 %
  C                       NTFS       97.91 GB  367.32 GB  465.23 GB  21 %
  D                                       0 B        0 B        0 B
  E    JPOG               CDFS            0 B  358.80 MB  358.80 MB   0 %
  F    SSHD               NTFS      737.06 GB 1125.36 GB 1862.41 GB  40 %
  G    SSD 1              NTFS      156.44 GB  309.32 GB  465.76 GB  34 %
  H    SSD 2              NTFS       65.27 GB   53.97 GB  119.24 GB  55 %
  I    SSD 3              NTFS       56.67 GB  176.22 GB  232.88 GB  24 %
  J    SSD 4              NTFS      361.08 GB  115.84 GB  476.92 GB  76 %

=============================================================================

Microsoft DiskPart version 10.0.22000.1

Copyright (C) Microsoft Corporation.
On computer: DESKTOP-5K1894B

  Disk ###  Status         Size     Free     Dyn  Gpt
  --------  -------------  -------  -------  ---  ---
  Disk 0    Online         1863 GB  1024 KB        *
  Disk 1    Online          119 GB      0 B        *
  Disk 2    Online          232 GB      0 B        *
  Disk 3    Online          465 GB  1024 KB        *
  Disk 4    Online          476 GB      0 B        *
  Disk 5    Online          465 GB  2048 KB        *

  Volume ###  Ltr  Label        Fs     Type        Size     Status     Info
  ----------  ---  -----------  -----  ----------  -------  ---------  --------
  Volume 0     D                       DVD-ROM         0 B  No Media
  Volume 1     E   JPOG         CDFS   DVD-ROM      358 MB  Healthy
  Volume 2     F   SSHD         NTFS   Partition   1862 GB  Healthy
  Volume 3         Recovery     NTFS   Partition    499 MB  Healthy    Hidden
  Volume 4                      FAT32  Partition    100 MB  Healthy    System
  Volume 5     H   SSD 2        NTFS   Partition    119 GB  Healthy
  Volume 6     I   SSD 3        NTFS   Partition    232 GB  Healthy
  Volume 7     G   SSD 1        NTFS   Partition    465 GB  Healthy
  Volume 8     J   SSD 4        NTFS   Partition    476 GB  Healthy
  Volume 9     C                NTFS   Partition    465 GB  Healthy    Boot
  Volume 10                     NTFS   Partition    538 MB  Healthy    Hidden

Disk 0 is now the selected disk.

ST2000DX002-2DV164
Disk ID: {FCAA812D-FEF6-4E14-9D27-1414228DB89C}
Type   : SATA
Status : Online
Path   : 1
Target : 0
LUN ID : 0
Location Path : PCIROOT(0)#PCI(1700)#ATA(C01T00L00)
Current Read-only State : No
Read-only  : No
Boot Disk  : No
Pagefile Disk  : No
Hibernation File Disk  : No
Crashdump Disk  : No
Clustered Disk  : No

  Volume ###  Ltr  Label        Fs     Type        Size     Status     Info
  ----------  ---  -----------  -----  ----------  -------  ---------  --------
  Volume 2     F   SSHD         NTFS   Partition   1862 GB  Healthy
  Volume 3         Recovery     NTFS   Partition    499 MB  Healthy    Hidden
  Volume 4                      FAT32  Partition    100 MB  Healthy    System

  Partition ###  Type              Size     Offset
  -------------  ----------------  -------  -------
  Partition 1    Recovery           499 MB  1024 KB
  Partition 2    System             100 MB   500 MB
  Partition 3    Reserved            16 MB   600 MB
  Partition 4    Primary           1862 GB   616 MB

Partition 1 is now the selected partition.

Partition 1
Type    : de94bba4-06d1-4d40-a16a-bfd50179d6ac
Hidden  : Yes
Required: Yes
Attrib  : 0X8000000000000001
Offset in Bytes: 1048576

  Volume ###  Ltr  Label        Fs     Type        Size     Status     Info
  ----------  ---  -----------  -----  ----------  -------  ---------  --------
* Volume 3         Recovery     NTFS   Partition    499 MB  Healthy    Hidden

Partition 2 is now the selected partition.

Partition 2
Type    : c12a7328-f81f-11d2-ba4b-00a0c93ec93b
Hidden  : Yes
Required: No
Attrib  : 0X8000000000000000
Offset in Bytes: 524288000

  Volume ###  Ltr  Label        Fs     Type        Size     Status     Info
  ----------  ---  -----------  -----  ----------  -------  ---------  --------
* Volume 4                      FAT32  Partition    100 MB  Healthy    System

Partition 3 is now the selected partition.

Partition 3
Type    : e3c9e316-0b5c-4db8-817d-f92df00215ae
Hidden  : Yes
Required: No
Attrib  : 0X8000000000000000
Offset in Bytes: 629145600

There is no volume associated with this partition.

Partition 4 is now the selected partition.

Partition 4
Type    : ebd0a0a2-b9e5-4433-87c0-68b6b72699c7
Hidden  : No
Required: No
Attrib  : 0000000000000000
Offset in Bytes: 645922816

  Volume ###  Ltr  Label        Fs     Type        Size     Status     Info
  ----------  ---  -----------  -----  ----------  -------  ---------  --------
* Volume 2     F   SSHD         NTFS   Partition   1862 GB  Healthy

Disk 1 is now the selected disk.

Samsung SSD 840 PRO Series
Disk ID: {401B7263-8DCB-42F7-9659-5738B25E737D}
Type   : SATA
Status : Online
Path   : 2
Target : 0
LUN ID : 0
Location Path : PCIROOT(0)#PCI(1700)#ATA(C02T00L00)
Current Read-only State : No
Read-only  : No
Boot Disk  : No
Pagefile Disk  : No
Hibernation File Disk  : No
Crashdump Disk  : No
Clustered Disk  : No

  Volume ###  Ltr  Label        Fs     Type        Size     Status     Info
  ----------  ---  -----------  -----  ----------  -------  ---------  --------
  Volume 5     H   SSD 2        NTFS   Partition    119 GB  Healthy

  Partition ###  Type              Size     Offset
  -------------  ----------------  -------  -------
  Partition 1    Primary            119 GB  1024 KB

Partition 1 is now the selected partition.

Partition 1
Type    : ebd0a0a2-b9e5-4433-87c0-68b6b72699c7
Hidden  : No
Required: No
Attrib  : 0000000000000000
Offset in Bytes: 1048576

  Volume ###  Ltr  Label        Fs     Type        Size     Status     Info
  ----------  ---  -----------  -----  ----------  -------  ---------  --------
* Volume 5     H   SSD 2        NTFS   Partition    119 GB  Healthy

Disk 2 is now the selected disk.

Samsung SSD 850 EVO 250GB
Disk ID: {D9542F20-450E-411B-9212-7C36E95660A8}
Type   : SATA
Status : Online
Path   : 3
Target : 0
LUN ID : 0
Location Path : PCIROOT(0)#PCI(1700)#ATA(C03T00L00)
Current Read-only State : No
Read-only  : No
Boot Disk  : No
Pagefile Disk  : No
Hibernation File Disk  : No
Crashdump Disk  : No
Clustered Disk  : No

  Volume ###  Ltr  Label        Fs     Type        Size     Status     Info
  ----------  ---  -----------  -----  ----------  -------  ---------  --------
  Volume 6     I   SSD 3        NTFS   Partition    232 GB  Healthy

  Partition ###  Type              Size     Offset
  -------------  ----------------  -------  -------
  Partition 1    Primary            232 GB  1024 KB

Partition 1 is now the selected partition.

Partition 1
Type    : ebd0a0a2-b9e5-4433-87c0-68b6b72699c7
Hidden  : No
Required: No
Attrib  : 0000000000000000
Offset in Bytes: 1048576

  Volume ###  Ltr  Label        Fs     Type        Size     Status     Info
  ----------  ---  -----------  -----  ----------  -------  ---------  --------
* Volume 6     I   SSD 3        NTFS   Partition    232 GB  Healthy

Disk 3 is now the selected disk.

WDC WDS500G2B0A-00SM50
Disk ID: {C39BD35D-A023-420C-B29E-0767BBF96D82}
Type   : SATA
Status : Online
Path   : 5
Target : 0
LUN ID : 0
Location Path : PCIROOT(0)#PCI(1700)#ATA(C05T00L00)
Current Read-only State : No
Read-only  : No
Boot Disk  : No
Pagefile Disk  : No
Hibernation File Disk  : No
Crashdump Disk  : No
Clustered Disk  : No

  Volume ###  Ltr  Label        Fs     Type        Size     Status     Info
  ----------  ---  -----------  -----  ----------  -------  ---------  --------
  Volume 7     G   SSD 1        NTFS   Partition    465 GB  Healthy

  Partition ###  Type              Size     Offset
  -------------  ----------------  -------  -------
  Partition 1    Primary            465 GB  1024 KB

Partition 1 is now the selected partition.

Partition 1
Type    : ebd0a0a2-b9e5-4433-87c0-68b6b72699c7
Hidden  : No
Required: No
Attrib  : 0000000000000000
Offset in Bytes: 1048576

  Volume ###  Ltr  Label        Fs     Type        Size     Status     Info
  ----------  ---  -----------  -----  ----------  -------  ---------  --------
* Volume 7     G   SSD 1        NTFS   Partition    465 GB  Healthy

Disk 4 is now the selected disk.

INTEL SSDPEKNW512G8
Disk ID: {44F062D6-95D3-48A3-90B5-B9901A0580A5}
Type   : NVMe
Status : Online
Path   : 0
Target : 0
LUN ID : 0
Location Path : PCIROOT(0)#PCI(1B00)#PCI(0000)#NVME(P00T00L00)
Current Read-only State : No
Read-only  : No
Boot Disk  : No
Pagefile Disk  : No
Hibernation File Disk  : No
Crashdump Disk  : No
Clustered Disk  : No

  Volume ###  Ltr  Label        Fs     Type        Size     Status     Info
  ----------  ---  -----------  -----  ----------  -------  ---------  --------
  Volume 8     J   SSD 4        NTFS   Partition    476 GB  Healthy

  Partition ###  Type              Size     Offset
  -------------  ----------------  -------  -------
  Partition 1    Reserved            15 MB    17 KB
  Partition 2    Primary            476 GB    16 MB

Partition 1 is now the selected partition.

Partition 1
Type    : e3c9e316-0b5c-4db8-817d-f92df00215ae
Hidden  : Yes
Required: No
Attrib  : 0000000000000000
Offset in Bytes: 17408

There is no volume associated with this partition.

Partition 2 is now the selected partition.

Partition 2
Type    : ebd0a0a2-b9e5-4433-87c0-68b6b72699c7
Hidden  : No
Required: No
Attrib  : 0000000000000000
Offset in Bytes: 16777216

  Volume ###  Ltr  Label        Fs     Type        Size     Status     Info
  ----------  ---  -----------  -----  ----------  -------  ---------  --------
* Volume 8     J   SSD 4        NTFS   Partition    476 GB  Healthy

Disk 5 is now the selected disk.

Samsung SSD 970 EVO 500GB
Disk ID: {2F4002DF-7B05-4A9E-8DD8-F392B0CAD8AD}
Type   : NVMe
Status : Online
Path   : 0
Target : 0
LUN ID : 0
Location Path : PCIROOT(0)#PCI(1D00)#PCI(0000)#NVME(P00T00L00)
Current Read-only State : No
Read-only  : No
Boot Disk  : Yes
Pagefile Disk  : Yes
Hibernation File Disk  : No
Crashdump Disk  : Yes
Clustered Disk  : No

  Volume ###  Ltr  Label        Fs     Type        Size     Status     Info
  ----------  ---  -----------  -----  ----------  -------  ---------  --------
  Volume 9     C                NTFS   Partition    465 GB  Healthy    Boot
  Volume 10                     NTFS   Partition    538 MB  Healthy    Hidden

  Partition ###  Type              Size     Offset
  -------------  ----------------  -------  -------
  Partition 1    Primary            465 GB  1024 KB
  Partition 2    Recovery           538 MB   465 GB

Partition 1 is now the selected partition.

Partition 1
Type    : ebd0a0a2-b9e5-4433-87c0-68b6b72699c7
Hidden  : No
Required: No
Attrib  : 0000000000000000
Offset in Bytes: 1048576

  Volume ###  Ltr  Label        Fs     Type        Size     Status     Info
  ----------  ---  -----------  -----  ----------  -------  ---------  --------
* Volume 9     C                NTFS   Partition    465 GB  Healthy    Boot

Partition 2 is now the selected partition.

Partition 2
Type    : de94bba4-06d1-4d40-a16a-bfd50179d6ac
Hidden  : Yes
Required: Yes
Attrib  : 0X8000000000000001
Offset in Bytes: 499541606400

  Volume ###  Ltr  Label        Fs     Type        Size     Status     Info
  ----------  ---  -----------  -----  ----------  -------  ---------  --------
* Volume 10                     NTFS   Partition    538 MB  Healthy    Hidden

===============================================================================

Windows Recovery Environment (Windows RE) and system reset configuration
Information:

    Windows RE status:         Enabled
    Windows RE location:       \\?\GLOBALROOT\device\harddisk5\partition2\Recovery\WindowsRE
    Boot Configuration Data (BCD) identifier: 28840d04-a08f-11eb-a1aa-8123078386e0
    Recovery image location:
    Recovery image index:      0
    Custom image location:
    Custom image index:        0

REAGENTC.EXE: Operation Successful.

===============================================================================

Firmware Boot Manager
---------------------
identifier              {fwbootmgr}
displayorder            {bootmgr}
                        {dbf16ed4-9746-11ec-898c-806e6f6e6963}
timeout                 1

Windows Boot Manager
--------------------
identifier              {bootmgr}
device                  partition=\Device\HarddiskVolume2
path                    \EFI\MICROSOFT\BOOT\BOOTMGFW.EFI
description             Windows Boot Manager
locale                  en-US
inherit                 {globalsettings}
flightsigning           Yes
default                 {current}
resumeobject            {28840d01-a08f-11eb-a1aa-8123078386e0}
displayorder            {current}
toolsdisplayorder       {memdiag}
timeout                 30

Firmware Application (101fffff)
-------------------------------
identifier              {dbf16ed4-9746-11ec-898c-806e6f6e6963}
device                  unknown
description             UEFI: General USB Flash Disk 1100, Partition 1

Windows Boot Loader
-------------------
identifier              {current}
device                  partition=C:
path                    \WINDOWS\system32\winload.efi
description             Windows 10
locale                  en-US
inherit                 {bootloadersettings}
recoverysequence        {28840d04-a08f-11eb-a1aa-8123078386e0}
displaymessageoverride  Recovery
recoveryenabled         Yes
isolatedcontext         Yes
flightsigning           Yes
allowedinmemorysettings 0x15000075
osdevice                partition=C:
systemroot              \WINDOWS
resumeobject            {28840d01-a08f-11eb-a1aa-8123078386e0}
nx                      OptIn
bootmenupolicy          Standard

Windows Boot Loader
-------------------
identifier              {28840d04-a08f-11eb-a1aa-8123078386e0}
device                  ramdisk=[\Device\HarddiskVolume11]\Recovery\WindowsRE\Winre.wim,{28840d05-a08f-11eb-a1aa-8123078386e0}
path                    \windows\system32\winload.efi
description             Windows Recovery Environment
locale                  en-US
inherit                 {bootloadersettings}
displaymessage          Recovery
osdevice                ramdisk=[\Device\HarddiskVolume11]\Recovery\WindowsRE\Winre.wim,{28840d05-a08f-11eb-a1aa-8123078386e0}
systemroot              \windows
nx                      OptIn
bootmenupolicy          Standard
winpe                   Yes

Resume from Hibernate
---------------------
identifier              {28840d01-a08f-11eb-a1aa-8123078386e0}
device                  partition=C:
path                    \WINDOWS\system32\winresume.efi
description             Windows Resume Application
locale                  en-US
inherit                 {resumeloadersettings}
recoverysequence        {28840d04-a08f-11eb-a1aa-8123078386e0}
recoveryenabled         Yes
isolatedcontext         Yes
allowedinmemorysettings 0x15000075
filedevice              partition=C:
custom:21000026         partition=C:
filepath                \hiberfil.sys
bootmenupolicy          Standard
debugoptionenabled      No

Windows Memory Tester
---------------------
identifier              {memdiag}
device                  partition=\Device\HarddiskVolume2
path                    \EFI\Microsoft\Boot\memtest.efi
description             Windows Memory Diagnostic
locale                  en-US
inherit                 {globalsettings}
badmemoryaccess         Yes

EMS Settings
------------
identifier              {emssettings}
bootems                 No

Debugger Settings
-----------------
identifier              {dbgsettings}
debugtype               Local

RAM Defects
-----------
identifier              {badmemory}

Global Settings
---------------
identifier              {globalsettings}
inherit                 {dbgsettings}
                        {emssettings}
                        {badmemory}

Boot Loader Settings
--------------------
identifier              {bootloadersettings}
inherit                 {globalsettings}
                        {hypervisorsettings}

Hypervisor Settings
-------------------
identifier              {hypervisorsettings}
hypervisordebugtype     Serial
hypervisordebugport     1
hypervisorbaudrate      115200

Resume Loader Settings
----------------------
identifier              {resumeloadersettings}
inherit                 {globalsettings}

Device options
--------------
identifier              {28840d05-a08f-11eb-a1aa-8123078386e0}
description             Windows Recovery
ramdisksdidevice        partition=\Device\HarddiskVolume11
ramdisksdipath          \Recovery\WindowsRE\boot.sdi


My Computer

System One

  • OS
    windows 11

zbook

Well-known member
Power User
VIP
Local time
1:12 AM
Posts
1,235
OS
Windows 10
Yes, Disk 5 should have an EFI partition.

Please perform the following steps:

Open administrative command prompt and type or copy and paste:

diskpart
sel dis 5
sel par 1
shrink desired=100
create partition EFI
format fs=fat32 label ESP
assign letter=W
exit

bcdboot C:\windows /s W: /f all


My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation

NavyLCDR

Well-known member
Power User
VIP
Local time
11:12 PM
Posts
1,186
OS
Windows 11
Boot from a Windows 11 Installation USB flash drive. On the first screen asking for language and keyboard, click next. In the lower left corner of the next screen, click on Repair your computer. Click Troubleshoot. Click Startup Repair. Click on Windows 11 for the target system.

That is the answer to your question here:


My Computers

System One System Two

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    Homebuilt
    CPU
    AMD Ryzen 7 3800XT
    Motherboard
    ASUS ROG Crosshair VII Hero (WiFi)
    Memory
    32GB
    Graphics Card(s)
    EVGA GeForce GTX 1080 Ti
  • Operating System
    Windows 11 Education
    Computer type
    Laptop
    Manufacturer/Model
    Dell Inspiron 7773
    CPU
    Intel i7-8550U
    Memory
    32GB
    Graphics card(s)
    Nvidia Geforce MX150
    Sound Card
    Realtek
    Monitor(s) Displays
    17"
    Screen Resolution
    1920 x 1080
    Hard Drives
    Toshiba 512GB NVMe SSD
    SK Hynix 512GB SATA SSD
    Internet Speed
    Fast!

spartanz1080

Member
Thread Starter
Local time
11:12 PM
Posts
71
OS
windows 11
I already tried startup repair and it says failed I tried it from the CD and it still says failed can I do the steps zbook said will it delete the F EFI


My Computer

System One

  • OS
    windows 11

NavyLCDR

Well-known member
Power User
VIP
Local time
11:12 PM
Posts
1,186
OS
Windows 11
I already tried startup repair and it says failed I tried it from the CD and it still says failed can I do the steps zbook said will it delete the F EFI
The steps in post #15 will create an EFI system partition on disk 5.


My Computers

System One System Two

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    Homebuilt
    CPU
    AMD Ryzen 7 3800XT
    Motherboard
    ASUS ROG Crosshair VII Hero (WiFi)
    Memory
    32GB
    Graphics Card(s)
    EVGA GeForce GTX 1080 Ti
  • Operating System
    Windows 11 Education
    Computer type
    Laptop
    Manufacturer/Model
    Dell Inspiron 7773
    CPU
    Intel i7-8550U
    Memory
    32GB
    Graphics card(s)
    Nvidia Geforce MX150
    Sound Card
    Realtek
    Monitor(s) Displays
    17"
    Screen Resolution
    1920 x 1080
    Hard Drives
    Toshiba 512GB NVMe SSD
    SK Hynix 512GB SATA SSD
    Internet Speed
    Fast!

zbook

Well-known member
Power User
VIP
Local time
1:12 AM
Posts
1,235
OS
Windows 10

My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation

zbook

Well-known member
Power User
VIP
Local time
1:12 AM
Posts
1,235
OS
Windows 10
Please post images of commands with results.


My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation

Latest Support Threads

Top Bottom
