Fix for TPM issue.

If you have a pc without a TPM module, W11 may not install (in UEFI?).

Here is a link to a fix.

Basically you copy appraiserres.dll file from w10 installation media and overwrite the copy in w11 (making a backup copy of w11 version if course). I have not tried this.

cereberus said:

If you have a pc without a TPM module, W11 may not install (in UEFI?).

Here is a link to a fix.

Basically you copy appraiserres.dll file from w10 installation media and overwrite the copy in w11 (making a backup copy of w11 version if course). I have not tried this.

https://fossbytes.com/solve-tpm-2-0-error-installing-windows-11-fixed/amp/

Click to expand...

Already found this a couple days ago... but your is... prettier.

https://www.elevenforum.com/t/it-looks-like-im-stuck-with-windows-10.19/post-387

You could install a TPM. I get the impression they have a common pinout so I just ordered a cheap Foxconn 20 pin TPM 1.0 for my Gigabyte motherboard to try.

Steve C said:

You could install a TPM. I get the impression they have a common pinout so I just ordered a cheap Foxconn 20 pin TPM 1.0 for my Gigabyte motherboard to try.

Click to expand...

You need TPM 2.0

cereberus said:

https://fossbytes.com/solve-tpm-2-0-error-installing-windows-11-fixed/amp/

Click to expand...

This method causes Windows 11 to hang on “Getting devices ready”
See below:

Matthew Wai said:

is windows 11 better than windows 10 - Windows 10 Help Forums

hi, is windows 11 better than windows 10. thanks.

www.tenforums.com

The above member indicated that the following method had worked like a charm.

How to Fix "This PC can't run Windows 11" Error - All Things How

Unable to install Windows 11 due to 'SecureBoot' and/or 'TPM 2.0' errors? Here's how you enable both, and a quick workaround that nullifies the need for it altogether.

allthings.how

This method causes Windows 11 to hang on “Getting devices ready”
See below:

is windows 11 better than windows 10 - Windows 10 Help Forums

hi, is windows 11 better than windows 10. thanks.

www.tenforums.com

Click to expand...

Yep, swapping the Win11 install.wim into a Win10 ISO works better. (prob. the same as using Dism apply-image)

I just did an upgrade install and the appraiserres.dll method got past the TPM requirement but after that setup crashed.

I think the "install.wim" method is explained in the following article:


The "appraiserres.dll" method, which causes a crash, is described below:

Odd.. I replaced that file and I was able to get past the TPM 2.0 error

BunnyJ said:

Odd.. I replaced that file and I was able to get past the TPM 2.0 error

Click to expand...

Did "Windows Setup" crash/hang afterward?

Matthew Wai said:

Did "Windows Setup" crash/hang afterward?

Click to expand...

No.. I ran into the issue,, replaced the file after I discovered the fix and restarted the update. It just worked and Win 11 was installed.

Weird that some got that to work... I wonder if it was due to Language media (en-GB) donor - but nevertheless not too fussed.

It could be due to a lot of reasons. I did get it to work and frankly,. I was shocked

Hi folks

Another way to install on laptops without TPM etc. Since a lot here are using Virtual machines -- this is how to get to run on a physical laptop - testing on a not too old HP Envy sleekbook laptop with i5 CPU and 250 GB nvme SSD.

@Kari -- points noted -- cheers - we all get carried away at times. !!!

However I've tested these scenarios -- created a Windows Macrium image via Macrium Free from WITHIN the VM on these scenarious - VBOX, VMWare and KVM /QEMU. The VM I have been using was actually Windows workstation rather than W11 Pro but the principle is the same and I was using EFI boot / not secure boot but just bog standard efi boot for all the VM's.

Ensure the VM you are using has standard SATA/ AHCI driver in it. Also add any applications you need -- OK you can do that afterwards but it's easier to do this first in the VM (IMHO) so you don't need to do it again afterwards.

(Added -- If it doesn't an easy way is to add a "physical disk" to whatever VM system you are using - you don't have to do anything with that disk of course - and if testing use a disk that you don't have important data on it). The VM system will then ensure the relevant SATA driver is also added to your VM at ist boot. Then simply power off the VM again after taking the Macrium image).

Then create the stand alone Macrium restore ISO -- From WITHIN the VM you are running on -- you need to do this on EACH VM (VMWare, VBOX, KVM) to ensure the initial drivers are there -- use the PE version not RE one.

Use Rufus to create bootable restore program -- if you've got a 64GB USB device too then my standard 40 GB install took 20GB for the Macrium image and you can add the image to the bootable USB.

Note My VM's were all on an AMD box with R7 graphics - the restores etc were all to the test HP envy sleekbook with INTEL chipset, graphics and CPU.

Boot the device and restore the image to your disk on the laptop.

While still in Macrium do the "Fix windows boot problems"

Now boot laptop. It should work but before the next step you'll probably want to increase the "C" size from probably a small amount most people have when messing around with VM's.

After it boots - reboot again with stand alone partition manger -- :


Use stand alone partition manager - I use GPARTED but any will do to increase size of "C" partition.

Now re-boot the restored system.

You'll get a boot but there will be a slew of things that need updating.

so load up or point to any recent Windows 10 image - I'm using the latest standard release which I created on to a Win2GO external disk but any current recent W10 image is fine.

Go through the device manager and update all the things with Unknown device - choose browse "This PC" and choose the Windows 10 image -->system32>DriverStore.

All fixed !!!"

I haven't tested for HOME - but I never use or have any interest in HOME edition - perhaps someone running a HOME VM could test this method to see if it works too.

If anybody can try this with a HYPER-V image I'll be very interested -- it's worked OK on VMWare and VBOX as well as KVM/QEMU.

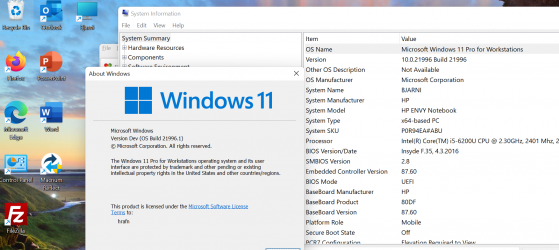

Here's system specs of laptop !! Converted from a VM running on AMD system to INTEL laptop and after updating drivers etc as posted in the thread.


To get decent system info - ignore if you know that already - create a "Dummy" .nfo file - doesn't have to have anything in it - then after saving browse to it with windows explorer and double click. You'll get message "can't open .nfo file" or similar then a popup window will open with the system info. I'm sure there's a more elegant way of getting this but I don't know it - if anybody does please post. !!! Knowledge is never wasted. !!

@Brink @z3r010
once somebody has tested whether this works also for converting a VM created under HYPER-V) perhaps this can go in tutorial - Create Physical Machine from Virtual (V2P conversion)

Cheers
jimbo

I have devised a simple way round the TPM problem.

Problem is my laptop does not have a TPM but is still a pretty good spec.

I tried the appraiserres.dll method plus others here and none worked. I could not see anyway to install it natively.

I even tried the dism method and that fell over with an 'unspecified' error.

Then I had a lightbulb moment.

So, my method is easy if you use HyperV.

1) install W11 (gen 2 as I wanted UEFI) in HyperV from W10. HyperV allows you to emulate a TPM. It installed and worked fine.


2) close down HyperV and attach the VHDX file natively in Windows.

3) Clone VHDX file using Macrium Reflect (C drive only as I wanted to dual boot W10 and W11) to unallocated space. Reflect assigned drive letter D to cloned partition.

3) create boot entry

bcdboot d:\windows

4) Reboot pc and select W11

I believe you could do similar with vmare or virtualbox if hard disk is in vhdx format.

Also good !!! if you want to dual boot -- it shows though the principle of converting a VM to run on a physical machine is fine.

I did mine on not dual booting and not using virtual disk formats - but for those that want to your method looks very good and easy.

Anyway it's good to know that VM's on HYPER-V can be made to work on "Real hardware" !!

(How do we award reps on this Forum BTW !!! - this suggestion deserves one).

Cheers
jimbo

jimbo45 said:

Also good !!! if you want to dual boot -- it shows though the principle of converting a VM to run on a physical machine is fine.

I did mine on not dual booting and not using virtual disk formats - but for those that want to your method looks very good and easy.

Anyway it's good to know that VM's on HYPER-V can be made to work on "Real hardware" !!

(How do we award reps on this Forum BTW !!! - this suggestion deserves one).

Cheers
jimbo

Click to expand...

Hello, @jimbo45.

To add rep... Hover over the 'Like' button, bottom right of post, then make you selection. Rep is in descending order, from left to right (Left being the highest).

Take care.

If you have Windows PE, try booting into it, mounting the W11 ISO, and running “/sources/setup.exe”.

cereberus said:

I have devised a simple way round the TPM problem.

Problem is my laptop does not have a TPM but is still a pretty good spec.

I tried the appraiserres.dll method plus others here and none worked. I could not see anyway to install it natively.

I even tried the dism method and that fell over with an 'unspecified' error.

Then I had a lightbulb moment.

So, my method is easy if you use HyperV.

1) install W11 (gen 2 as I wanted UEFI) in HyperV from W10. HyperV allows you to emulate a TPM. It installed and worked fine.


2) close down HyperV and attach the VHDX file natively in Windows.

3) Clone VHDX file using Macrium Reflect (C drive only as I wanted to dual boot W10 and W11) to unallocated space. Reflect assigned drive letter D to cloned partition.

3) create boot entry

bcdboot d:\windows

4) Reboot pc and select W11

I believe you could do similar with vmare or virtualbox if hard disk is in vhdx format.

Click to expand...

Ingenious!

For those on a new AMD build...

https://www.tenforums.com/chillout-room/181263-last-one-post-wins-191-a-post2248751.html#post2248751

Ghot said:

For those on a new AMD build...

https://www.tenforums.com/chillout-room/181263-last-one-post-wins-191-a-post2248751.html#post2248751

Click to expand...

Thanks and I just figured that bit out. I also have an Asus motherboard so I had to enable that.
