Using AOMEI partition assistant pro, version 10.8.1
I have just cloned my previous SATA SSD system disk to a 1TB M.2 2280 NVMe PCIe4.0 SSD disk

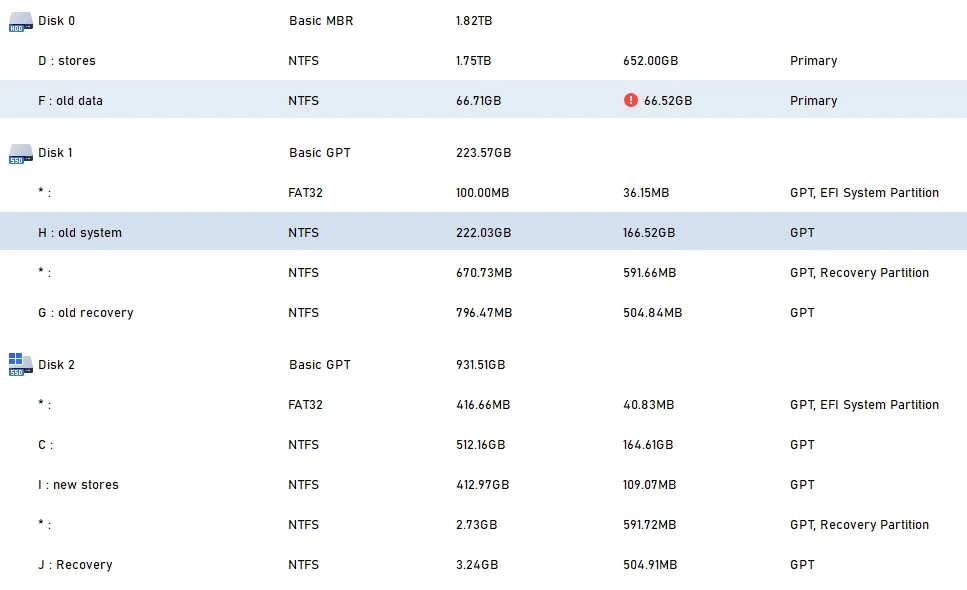

see <partition table.jpg> attached

The new volume C is 512.16GB - more than double the size of the old SATA SSD, with the remaining space on the disk as a new volume for data.

The previous (SATA) ssd system 224GB disk has
  1. a "GPT recovery partition" 670.73 MB, of which 591.55MB are used, and
  2. a second partition which used to be called recovery 796.47MB of which 504.84MB are in use.

Now on the new (M2 2280) system disk, I have
  1. a "GPT recovery partition" 2.73GB of which only 591.72 MB are used, and
  2. a second partition called recovery 3.24 GB of which only 504.91 MB are used
Instead of 1467.2MB i now have 5.97 GB in these partitions, but the contents have not increased dramatically
Should I shrink the "GPT recovery" and "recovery" partition on the new disk to the old much smaller sizes?

thanks in advance


Attachments

  • partition table.webp
    partition table.webp
    25.8 KB · Views: 1

My Computers

System One System Two

  • OS
    windows 11 (and windows 10)
    Computer type
    Laptop
    Manufacturer/Model
    HP envy x360
    CPU
    ryzen5 5500
    Motherboard
    888a
    Memory
    16gb
    Graphics Card(s)
    radeon
    Sound Card
    AMD realtek
    Monitor(s) Displays
    AMD
    Screen Resolution
    1920x1080 60Hz
    Hard Drives
    ssd 476Gb (~512000000000 bytes)
    Keyboard
    DE
    Mouse
    wireless
    Internet Speed
    1201Mbps WLAN , wan (DSL/VDSL2) 70/12 Mbps
    Browser
    various
    Antivirus
    avast
    Other Info
    almost new
  • Operating System
    windows 11 Version 10.0.26100 Build 26100
    Computer type
    PC/Desktop
    Manufacturer/Model
    custom
    CPU
    intel core i3 14100
    Motherboard
    gigabyte z790s ddr4 (u3e1)
    Memory
    2x16 Gb ddr4 2133
    Graphics card(s)
    Intel UHD Graphics 730 (Gigabyte) {on board]
    Sound Card
    Realtek High Definition Audio (on board)
    Monitor(s) Displays
    DELL P2419H
    Hard Drives
    TOSHIBA DT01ACA200
    KINGSTON SHFS37A240G (SSD)
    Internet Speed
    Gbit
That is normal as that software clones partitions proportionately, especially when cloning to a larger drive. It resizes partitions to occupy the full capacity of the target disk. During the cloning process, AOMEI offers options to either automatically resize partitions to fit the entire target disk or to manually adjust partition sizes. You must have picked the automatic option.
