Deleted boot partition


paul_53

Member
Local time
5:11 AM
Posts
17
OS
Windows 11
I don’t know how I’ve managed this but somehow I’ve managed to delete the boot partition and obviously now Windows won’t boot up. I’ve tried using the installation disc to do a repair but that doesn’t work. I’ve tried all of the options. The only one I haven’t used is the cmd prompt option but to be honest I wouldn’t know what to do with that anyway.

The actual windows installation is still on the machine and I was wondering if I can rebuild the boot partition from that.

I know I could do a fresh install but I’m hoping that is a last resort. That part isn’t the problem it’s the fact that I have Microsoft Flight Simulator installed (albeit on a separate drive). That takes hours to put back on.

Hopefully there is a solution. Any help on this will greatly appreciated

Thanks Paul


My Computer

System One

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom built
    CPU
    AMD Ryzen 7 78003xd
    Motherboard
    MSI Pro B650M-A
    Memory
    DDR 5 6000mhz 32gb
    Graphics Card(s)
    RTX 4070 12gb
    Hard Drives
    2 x name drives
    Browser
    Edge
    Antivirus
    Total AV
Boot to the Media Creation Tool (MCT) (Windows 11 iso) > command prompt > type:


diskpart
lis dis
lis vol
sel dis 0
det dis
lis par
sel dis 1
det dis
lis par

Post images or share links.


My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation
diskpart
sel dis V (change V to the disk # for the Windows disk)
sel par W (change W to the windows partition #)
shrink desired=100
create par EFI
format fs=fat32 label="EFI"
assign letter=T
exit


bcdboot C:\Windows /s T: /f UEFI

(sometimes in Windows RE the Windows drive may have letter D: then use command bcdboot D:\Windows /s T: /f UEFI)

Reboot

(Had waited for your reply to post #2)
(Heading to bed)

Post images or share links displaying disk management:



My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation
The Bcdedit | find "osdevice" command can be used to find out the drive letter of the Windows installed partition, the output of the Bcdedit command is similar to this osdevice partition=D:. The drive letter after partition= is the drive letter of the Windows partition.


My Computer

System One

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    HP Pavilion
    CPU
    AMD Ryzen 7 5700G
    Motherboard
    Erica6
    Memory
    Micron Technology DDR4-3200 16GB
    Graphics Card(s)
    NVIDIA GeForce RTX 3060
    Sound Card
    Realtek ALC671
    Monitor(s) Displays
    Samsung SyncMaster U28E590
    Screen Resolution
    3840 x 2160
    Hard Drives
    SAMSUNG MZVLQ1T0HALB-000H1
Thank you all for responding so quickly. I realised after I had posted that I hadn’t detailed the drives so here goes:-

1gb nvme drive for windows
2gb nvme drive for MSFS 2020
2gb Samsung ssd drive for flight simulator stuff
2gb Samsung drive for anything else

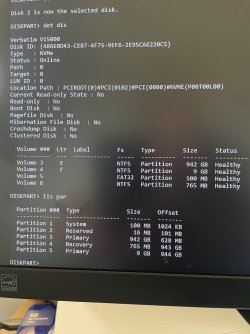

I’ve attached a screenshot of some of the results after following the first posters instructions and I’m wondering if my build has any bearing on the the instructions.

Sorry to be such a numpty but there’s only so much my old head can cope with:-)


Attachments

  • IMG_0008.jpeg
    585.1 KB · Views: 2

My Computer

System One

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom built
    CPU
    AMD Ryzen 7 78003xd
    Motherboard
    MSI Pro B650M-A
    Memory
    DDR 5 6000mhz 32gb
    Graphics Card(s)
    RTX 4070 12gb
    Hard Drives
    2 x name drives
    Browser
    Edge
    Antivirus
    Total AV
This is also a good guide that you can follow at your leisure if needed,



My Computers

System One System Two

  • OS
    Win 11 Home & 🐥.
    Computer type
    Laptop
    Manufacturer/Model
    ACER Nitro AN16-41
    CPU
    AMD Ryzen™ 7 7735HS Processor 3.2Ghz
    Motherboard
    RB Sierra_PEH (FP7)
    Memory
    32 GB DDR5 4800MHz
    Graphics Card(s)
    NVIDIA GeForce RTX 4060 8GB GDDR6
    Monitor(s) Displays
    16" QHD+ 165Hz 16:10 IPS Technology
    Screen Resolution
    1920 X 1200
    Hard Drives
    Samsung 990 PRO 2TB
    PSU
    330 Watts
    Mouse
    Lenovo Bluetooth.
    Internet Speed
    500 Mbps
    Browser
    Edge
    Antivirus
    Defender
  • Operating System
    Windows 11
    Computer type
    Laptop
    Manufacturer/Model
    ACER NITRO
    CPU
    AMD Ryzen 7 5800H / 3.2 GHz
    Motherboard
    CZ Scala_CAS (FP6)
    Memory
    32 GB DDR4 SDRAM 3200 MHz
    Graphics card(s)
    NVIDIA GeForce RTX 3060 6 GB GDDR6 SDRAM
    Sound Card
    Realtek Audio. NVIDIA High Definition Audio
    Monitor(s) Displays
    15.6" LED backlight 1920 x 1080 (Full HD) 144 Hz
    Screen Resolution
    1920 x 1080 (Full HD)
    Hard Drives
    Samsung 970 Evo Plus 2TB NVMe M.2
    PSU
    180 Watt, 19.5 V
    Mouse
    Lenovo Bluetooth
    Internet Speed
    500 Mbps
    Browser
    Edge
    Antivirus
    Defender
I’ve attached a photo of the windows disc and partitions


Attachments

  • IMG_2689.jpeg
    950.9 KB · Views: 1

My Computer

System One

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom built
    CPU
    AMD Ryzen 7 78003xd
    Motherboard
    MSI Pro B650M-A
    Memory
    DDR 5 6000mhz 32gb
    Graphics Card(s)
    RTX 4070 12gb
    Hard Drives
    2 x name drives
    Browser
    Edge
    Antivirus
    Total AV
On another pc, install Macrium Reflect (trial version will be adequate).

Create a Macrium Rescue usb flash drive

Boot from it and select link "fix windows boot problems"


My Computer

System One

  • OS
    Windows 10 Pro + others in VHDs
    Computer type
    Laptop
    Manufacturer/Model
    ASUS Vivobook 14
    CPU
    I7
    Motherboard
    Yep, Laptop has one.
    Memory
    16 GB
    Graphics Card(s)
    Integrated Intel Iris XE
    Sound Card
    Realtek built in
    Monitor(s) Displays
    N/A
    Screen Resolution
    1920x1080
    Hard Drives
    1 TB Optane NVME SSD, 1 TB NVME SSD
    PSU
    Yep, got one
    Case
    Yep, got one
    Cooling
    Stella Artois
    Keyboard
    Built in
    Mouse
    Bluetooth , wired
    Internet Speed
    72 Mb/s :-(
    Browser
    Edge mostly
    Antivirus
    Defender
    Other Info
    TPM 2.0
Unfortunately I haven’t got access to another pc


My Computer

System One

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom built
    CPU
    AMD Ryzen 7 78003xd
    Motherboard
    MSI Pro B650M-A
    Memory
    DDR 5 6000mhz 32gb
    Graphics Card(s)
    RTX 4070 12gb
    Hard Drives
    2 x name drives
    Browser
    Edge
    Antivirus
    Total AV
I think you mean the System partition.

If you have deleted it, then there should be unallocated space where it was previously.

You could create an esp ( aka system ) partition from that unallocated space and populate it using bcdboot command.


My Computers

System One System Two

  • OS
    Win7
    Computer type
    PC/Desktop
    CPU
    i5-8400
    Motherboard
    gigabyte b365m ds3h
    Memory
    2x8gb 3200mhz
    Monitor(s) Displays
    benq gw2480
    PSU
    bequiet pure power 11 400CM
    Cooling
    cryorig m9i
  • Operating System
    win7
    Computer type
    PC/Desktop
    CPU
    pentium g5400
    Motherboard
    gigabyte b365m ds3h
    Memory
    1x8gb 2400
    PSU
    xfx pro 450
"somehow I’ve managed to delete the boot partition"




Power on the computer > post images or share links displaying any error messages or codes

Boot to the MCT > command prompt > type

Code:
bcdedit
bcdedit | find "osdevice"
diskpart
sel dis 2
det dis
lis par
sel par 1
det par
sel par 2
det par
sel par 3
det par
sel par 4
det par

Post images or share links.


My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation
If you have deleted it, then there should be unallocated space where it was previously.
It looks like their ESP partition still exists, I should imagine they've somehow corrupted their BCD store.

@paul_53 What does output does the following command produce?

Code:
bcdedit /enum


My Computer

System One

  • OS
    Windows 11, Windows 10, Linux Fedora Cinnamon
zbook, I followed your instruction and Windows now boots up and I have a boot file where the old one was thank you very much (y)

I now have an old problem back though :rolleyes:

I can hear windows boot up with its annoying little tune, but all I have is a black screen? If I restart the pc and go into the MB settings and restart from there its fine?? What I noticed is that the lights on the flightstick will come on then flash off then back on, thats when I know I'm going to get the black screen?


My Computer

System One

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom built
    CPU
    AMD Ryzen 7 78003xd
    Motherboard
    MSI Pro B650M-A
    Memory
    DDR 5 6000mhz 32gb
    Graphics Card(s)
    RTX 4070 12gb
    Hard Drives
    2 x name drives
    Browser
    Edge
    Antivirus
    Total AV
See what happens in safe mode:



Post images or share links.


And report what happens after refreshing the video: click: windows key + ctrl + shift + b


My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation
