Getting "This drive is in use." from old OS Drive when trying to format it


Blake81

New member
Local time
5:32 AM
Posts
2
OS
Win 11 Pro

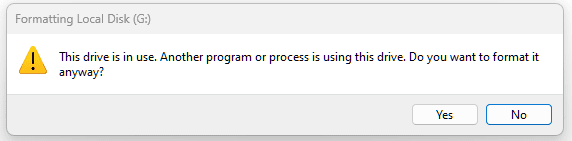

So, I recently moved my Win11 22H2 (OS Build 22621.2134) from its original SSD to a new NVMe using AOMEI Backupper to make a copy of it. But, as I was trying to format the SSD where the OS copy is, I get this error:


Which is weird, considering that nothing should be running from there anymore. So I ran ProcMon to see if there was indeed something running from the old OS, and I found nothing running from it.

My worry is that I've heard rumors of the Boot sector not properly copying from one drive to another when you clone it, and I'm afraid that if I just ignore the message, I'll mess up my boot sequence.

So, anyone knows what might be causing this? Or is this something related to that boot issue I heard about?

Thanks in advance.


My Computer

System One

  • OS
    Win 11 Pro
I don't know.

However, an obvious thing to try is disconnecting or removing the old drive. If the PC boots from the new NVME drive, then you're good to proceed with formatting the old drive.

For my own use, I have an external USB dock for 2.5" and 3.5" drives, plus an external enclosure for M.2 drives. That avoids the issue of having two boot drives installed in the same PC.


My Computers

System One System Two

  • OS
    Windows 11 22631.2861
    Computer type
    PC/Desktop
    Manufacturer/Model
    homebuilt
    CPU
    Amd Threadripper 7970X
    Motherboard
    Gigabyte TRX50 Aero D
    Memory
    128GB (4 X 32) Kingston DDR5 5200 (RDIMM)
    Graphics Card(s)
    Gigabyte RTX 4090 OC
    Sound Card
    none (USB to speakers), Realtek
    Monitor(s) Displays
    Philips 27E1N8900 OLED
    Screen Resolution
    3840 X 2160 @ 60Hz
    Hard Drives
    Crucial T700 2TB M.2 NVME SSD
    WD 4TB Blue SATA SSD
    Seagate 18TB IronWolf Pro
    PSU
    eVGA SuperNOVA 1600 GT
    Case
    Lian Li 011 Dynamic Evo XL
    Cooling
    Alphacool Eisbaer Pro Aurora 360, with 3 Phanteks T30 fans
    Keyboard
    Logitech K120 (wired)
    Mouse
    Logitech M500s (wired)
    Internet Speed
    1200 Mbps
  • Operating System
    windows 11 22631.2861
    Computer type
    PC/Desktop
    Manufacturer/Model
    homebuilt
    CPU
    Intel I9-13900K
    Motherboard
    Asus RoG Strix Z690-E
    Memory
    64GB G.Skill DDR5-6000
    Graphics card(s)
    Gigabyte RTX 3090 ti
    Sound Card
    built in Realtek
    Monitor(s) Displays
    Asus PA329C
    Screen Resolution
    3840 X 2160 @60Hz
    Hard Drives
    WDC SN850 1TB
    8 TB Seagate Ironwolf
    4TB Seagate Ironwolf
    PSU
    eVGA SuperNOVA 1300 GT
    Case
    Lian Li 011 Dynamic Evo
    Cooling
    Corsair iCUE H150i ELITE CAPELLIX Liquid CPU Cooler
    Mouse
    Logitech M500s (wired)
    Keyboard
    Logitech K120 (wired)
Agree with @bobkn , try disconnecting the old drive and see if the computer boots.
My worry is that I've heard rumors of the Boot sector not properly copying from one drive to another when you clone it, and I'm afraid that if I just ignore the message, I'll mess up my boot sequence.
You can do DISKPART List Partitions from an admistrator's command prompt. That will show you if you have the right partitions on the new disk.
Which is weird, considering that nothing should be running from there anymore. So I ran ProcMon to see if there was indeed something running from the old OS, and I found nothing running from it.
Also, perform a Safe Boot on Windows, then see if can format disk, without background programs running.
Yes, I would check the new disk has the correct partitions first before re-formatting the old disk.


My Computers

System One System Two

  • OS
    Windows 11
    Computer type
    PC/Desktop
    CPU
    AMD Ryzen 5 5600
    Motherboard
    MSI B550-A Pro
    Memory
    16 GB
    Graphics Card(s)
    Sapphire Radeon RX 6500XT (8 GB version)
    Monitor(s) Displays
    BenQ Mobuiz EX2710Q QHD, Iiyama ProLite X23377HDS
    Hard Drives
    MSI Spatium M461 4TB
  • Operating System
    Windows 11
    Computer type
    Laptop
    Manufacturer/Model
    Acer A114
    CPU
    Intel Celeron N4020
look in msinfo32 for boot device.

The other disk is probably in use by mysterious functions. Quite often happens to hot swappers and is a bit annoying.

If it lets you format it, then it is not essential to your current os. It asks "do you want to format it anyway".


My Computers

System One System Two

  • OS
    Win7
    Computer type
    PC/Desktop
    CPU
    i5-8400
    Motherboard
    gigabyte b365m ds3h
    Memory
    2x8gb 3200mhz
    Monitor(s) Displays
    benq gw2480
    PSU
    bequiet pure power 11 400CM
    Cooling
    cryorig m9i
  • Operating System
    win7
    Computer type
    PC/Desktop
    CPU
    pentium g5400
    Motherboard
    gigabyte b365m ds3h
    Memory
    1x8gb 2400
    PSU
    xfx pro 450
I think I remember @jumanji saying that if you clone a drive internally then it also clones the drive's ID so that will confuse Windows if you don't remove the original drive, after shutting down, and just booting with the newly cloned drive only. I think I'm right :unsure:


My Computers

System One System Two

  • OS
    Win 11 Home & 🐥.
    Computer type
    Laptop
    Manufacturer/Model
    ACER Nitro AN16-41
    CPU
    AMD Ryzen™ 7 7735HS Processor 3.2Ghz
    Motherboard
    RB Sierra_PEH (FP7)
    Memory
    32 GB DDR5 4800MHz
    Graphics Card(s)
    NVIDIA GeForce RTX 4060 8GB GDDR6
    Monitor(s) Displays
    16" QHD+ 165Hz 16:10 IPS Technology
    Screen Resolution
    1920 X 1200
    Hard Drives
    Samsung 990 PRO 2TB
    PSU
    330 Watts
    Mouse
    Lenovo Bluetooth.
    Internet Speed
    500 Mbps
    Browser
    Edge
    Antivirus
    Defender
  • Operating System
    Windows 11
    Computer type
    Laptop
    Manufacturer/Model
    ACER NITRO
    CPU
    AMD Ryzen 7 5800H / 3.2 GHz
    Motherboard
    CZ Scala_CAS (FP6)
    Memory
    32 GB DDR4 SDRAM 3200 MHz
    Graphics card(s)
    NVIDIA GeForce RTX 3060 6 GB GDDR6 SDRAM
    Sound Card
    Realtek Audio. NVIDIA High Definition Audio
    Monitor(s) Displays
    15.6" LED backlight 1920 x 1080 (Full HD) 144 Hz
    Screen Resolution
    1920 x 1080 (Full HD)
    Hard Drives
    Samsung 970 Evo Plus 2TB NVMe M.2
    PSU
    180 Watt, 19.5 V
    Mouse
    Lenovo Bluetooth
    Internet Speed
    500 Mbps
    Browser
    Edge
    Antivirus
    Defender
if you clone a drive internally then it also clones the drive's ID
I presume you mean disk id.
If it is an all sector clone, then it will. If there is a clash, Windows automatically changes the second disk id when it is brought online.
Cloning that is performed by most popular tools does not do that ( unless you specifically select all sector or forensic)


My Computers

System One System Two

  • OS
    Win7
    Computer type
    PC/Desktop
    CPU
    i5-8400
    Motherboard
    gigabyte b365m ds3h
    Memory
    2x8gb 3200mhz
    Monitor(s) Displays
    benq gw2480
    PSU
    bequiet pure power 11 400CM
    Cooling
    cryorig m9i
  • Operating System
    win7
    Computer type
    PC/Desktop
    CPU
    pentium g5400
    Motherboard
    gigabyte b365m ds3h
    Memory
    1x8gb 2400
    PSU
    xfx pro 450
Boy, so many answers. Lots of things to test. I can say I did not do a sector-by-sector copy, I just "cloned" it the same way I once did when I cloned my old Win7 to make the Win11 upgrade (I wasn't sure if that was gonna work, so I cloned the OS and upgraded the clone to Win10 then Win11 right away).

I'll try unplugging the Drive and seeing if the PC still boots.


My Computer

System One

  • OS
    Win 11 Pro
I believe Windows will detect that Windows is installed on the drive and therefore consider it a System drive, so won't allow formatting.
