System View Reliability History in Windows 11


  • Staff

This tutorial will show you how to view reliability history for your Windows 11 device.

The Reliability Monitor provides a system stability overview and details about events that impact reliability. It calculates the Stability Index shown in the System Stability Chart.

Reliability Monitor maintains up to a year of history for system stability and reliability events. The System Stability Chart displays a rolling graph organized by date.

The top half of the System Stability Chart displays a graph of the Stability Index. In the lower half of the chart, five rows track Reliability Events that either contribute to the stability measurement for the system or provide related information about software installation and removal. When one or more Reliability Events of each type are detected, an icon appears in the column for that date.
  • For Software Installs and Uninstalls, an Information icon indicates a successful event of that type occurred, or a Warning icon indicates a failure of that type occurred.
  • For all other Reliability Event types, an Error icon indicates a failure of that type occurred.
If more than 30 days of data are available, you can use the scroll bar at the bottom of the System Stability Chart to find dates outside the visible range.

Based on data collected, each date in the System Stability Chart includes a graph point showing that day's System Stability Index rating. The System Stability Index is a number from 1 (least stable) to 10 (most stable) and is a weighted measurement derived from the number of specified failures seen over a rolling historical period. Reliability Events in the System Stability Report describe the specific failures. For more information about interpreting the System Stability report, see Use Reliability Monitor to Troubleshoot.
  • Recent failures are weighted more heavily than past failures, allowing an improvement over time to be reflected in an ascending System Stability Index once a reliability issue has been resolved.
  • Days when the system is powered off or in a sleep state are not used when calculating the System Stability Index.
  • If there is not enough data to calculate a steady System Stability Index, the graphed line will be dotted. When enough data has been recorded to generate a steady System Stability Index, the graphed line will be solid.
  • If there are any significant changes to the system time, an Information icon will appear on the graph for each day on which the system time was adjusted.
References:



Here's How:

1 Open the Control Panel (icons view), and click/tap on the Security and Maintenance icon.

2 Expand open Maintenance, and click/tap on the View reliability history link to open Reliability Monitor (perfmon /rel). (see screenshot below)


3 Reliability Monitor will now start generating the report. (see screenshot below)

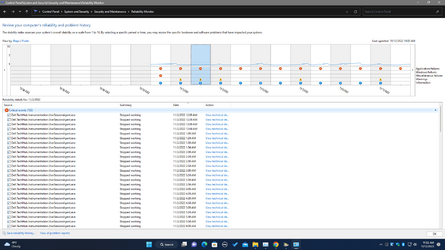

7 After a short moment, you will see the reliability and problem history for your Windows device. (see screenshots below)

8 You can select how to View by (ex: "Days" or "Weeks") the history line graph.

9 You can click/tap on the back and forward arrow buttons to scroll through the history line graph.

10 You can click/tap on View all problem reports at the bottom to see them all at once instead of on the line graph.

11 You can click/tap on a problem in the timeline to its details at the bottom.

12 You can click/tap View technical details for a problem source to see more details about it.

13 You can click/tap on Save reliability history at the bottom to save the reliability history as an .xml file to a location you select.





That's it,
Shawn Brink




Attachments

  • Reliability_Monitor.png
    10.7 KB · Views: 139
Last edited:
The linked microsoft docs article
says 'Applies To: Windows Server 2008, Windows Vista' (and nothing else)

I checked it on a W10 and a W11 machine, and as far as I can tell, everything is as this tutorial says. Just a curious remark.


My Computer

System One

  • OS
    Windows 10 Pro
Hello @Haydon, :-)

I couldn't find updated reference material from Microsoft other than those back from Vista. It still applies, but it would be nice for newer info applying specifically for W11.


My Computers

System One System Two

  • OS
    Windows 11 Pro for Workstations
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom self build
    CPU
    Intel i7-8700K 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    64 GB (4x16GB) G.SKILL TridentZ RGB DDR4 3600 MHz (F4-3600C18D-32GTZR)
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING (11GB GDDR5X)
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    2 x Samsung Odyssey G75 27"
    Screen Resolution
    2560x1440
    Hard Drives
    1TB Samsung 990 PRO M.2,
    4TB Samsung 990 PRO M.2,
    8TB WD MyCloudEX2Ultra NAS
    PSU
    Seasonic Prime Titanium 850W
    Case
    Thermaltake Core P3 wall mounted
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master 3
    Internet Speed
    1 Gbps Download and 35 Mbps Upload
    Browser
    Google Chrome
    Antivirus
    Microsoft Defender and Malwarebytes Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Galaxy S23 Plus phone
  • Operating System
    Windows 11 Pro
    Computer type
    Laptop
    Manufacturer/Model
    HP Spectre x360 2in1 14-eu0098nr (2024)
    CPU
    Intel Core Ultra 7 155H 4.8 GHz
    Memory
    16 GB LPDDR5x-7467 MHz
    Graphics card(s)
    Integrated Intel Arc
    Sound Card
    Poly Studio
    Monitor(s) Displays
    14" 2.8K OLED multitouch
    Screen Resolution
    2880 x 1800
    Hard Drives
    2 TB PCIe NVMe M.2 SSD
    Internet Speed
    Intel Wi-Fi 7 BE200 (2x2) and Bluetooth 5.4
    Browser
    Chrome and Edge
    Antivirus
    Windows Defender and Malwarebytes Premium
Yeah, thanks! I take this opportunity to say that your tutorials drive me to learn things out of curiosity (y) which is different from learning things out of concern that they might go wrong (n)


My Computer

System One

  • OS
    Windows 10 Pro
@Brink
My reliability reporting is turned off in Maintenance (see screen attached) I may have disabled this in W10 and migrated to W11, services is on Auto, I don't remember how I disabled this. How to turn it on again?
Thanks
Hello Frank, :-)

It looks like it's most likely from using option 1 or 2 below to turn it off, but you can use the same to turn it back on if so.



My Computers

System One System Two

  • OS
    Windows 11 Pro for Workstations
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom self build
    CPU
    Intel i7-8700K 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    64 GB (4x16GB) G.SKILL TridentZ RGB DDR4 3600 MHz (F4-3600C18D-32GTZR)
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING (11GB GDDR5X)
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    2 x Samsung Odyssey G75 27"
    Screen Resolution
    2560x1440
    Hard Drives
    1TB Samsung 990 PRO M.2,
    4TB Samsung 990 PRO M.2,
    8TB WD MyCloudEX2Ultra NAS
    PSU
    Seasonic Prime Titanium 850W
    Case
    Thermaltake Core P3 wall mounted
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master 3
    Internet Speed
    1 Gbps Download and 35 Mbps Upload
    Browser
    Google Chrome
    Antivirus
    Microsoft Defender and Malwarebytes Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Galaxy S23 Plus phone
  • Operating System
    Windows 11 Pro
    Computer type
    Laptop
    Manufacturer/Model
    HP Spectre x360 2in1 14-eu0098nr (2024)
    CPU
    Intel Core Ultra 7 155H 4.8 GHz
    Memory
    16 GB LPDDR5x-7467 MHz
    Graphics card(s)
    Integrated Intel Arc
    Sound Card
    Poly Studio
    Monitor(s) Displays
    14" 2.8K OLED multitouch
    Screen Resolution
    2880 x 1800
    Hard Drives
    2 TB PCIe NVMe M.2 SSD
    Internet Speed
    Intel Wi-Fi 7 BE200 (2x2) and Bluetooth 5.4
    Browser
    Chrome and Edge
    Antivirus
    Windows Defender and Malwarebytes Premium

My Computers

System One System Two

  • OS
    Windows 11 Home 22H2 build: 22621.1928
    Computer type
    Laptop
    Manufacturer/Model
    Acer/Aspire5 515-54G-70AG
    CPU
    Intel i7-10510U CPU 1.8 GHZ
    Motherboard
    Intel Comet Lake-U PCH-LP Premium, firmware version 3.2
    Memory
    8 GB 1333.3 MHz Dual channel
    Graphics Card(s)
    Intel UHD + NVIDIA GeForce MX250
    Sound Card
    RealTek ALC255 chipset
    Monitor(s) Displays
    Full HD TN 16"
    Screen Resolution
    1920x1080 220 NITS
    Hard Drives
    SATA mechanical 1TB TOSHIBA HDWL110 X1UGPHELT 5600 rpm
    PSU
    Murata battery AP18C4k (31CP5/81/68) Li-Polymer Battery Pack, full capacity 46620 mWh 11.4V
    Case
    Polycarbonate with a metal panel lid
    Cooling
    1 fan
    Keyboard
    US
    Mouse
    Precision Trackpad
    Internet Speed
    15 mb/s
    Browser
    Edge
    Antivirus
    Windows Defender
    Other Info
    2022 Intel diplay driver: gfx_win_101.3413_101.2111.exe
  • Operating System
    Windows 11 Home 23H2 build 22631.3235
    Computer type
    Laptop
    Manufacturer/Model
    Asus Vivobook K3502Z S15 15" OLED
    CPU
    Intel 12th Gen. i7 12700H, 14 cores, 2.3 GHz (24M Cache, up to 4.7 GHz, 6P+8E cores)
    Motherboard
    Alder Lake-H, 1700-4700 MHz clock rate
    Memory
    8GB LPDDR4 on board + 8GB LPDDR4 3200 MHz in Dual Channel.
    Graphics card(s)
    Intel Iris Xe supports up to 4096 x 2304 @ 120Hz
    Sound Card
    Harman Kardon - DTS
    Monitor(s) Displays
    OLED 15.6inch 2.8K (2880 x 1620)
    Screen Resolution
    16:9 aspect ratio 0.2ms response time 120Hz refresh rate, 550nits
    Hard Drives
    512GB M.2 NVMe Gen4 PCIe 4.0 SSD, Micron_2450_MTFDKBA512TFK
    PSU
    90-Watt USB charger (Thunderbolt4)
    Case
    Metal lid, plastic case
    Cooling
    1 fan
    Mouse
    Precision Trackpad
    Keyboard
    With backlight
    Internet Speed
    ISP provides 15 mb/s WIFI LTE (4G), laptop WIFI 6 adapter.
    Browser
    Edge
    Antivirus
    Windows Defender
    Other Info
    BIOS American Megatrends International, LLC. K3502ZA.307, 08/09/2022. Network adapter: Intel Wi-Fi 6E AX211 160 MHz
@Brink thank you so much for this guide. Is there any way to easily export all data directly from the Reliability Monitor? All I know to do is go though each instance and view technical details--copy data to clipboard for each instance. Attached is a screenshot showing over 110 critical error instances in one day. So going one by one would be more painful and tedious than a clean reinstall or image recovery.

Any way to export ALL events and details to save for debugging?

I have saved reliability history, but it only shows a tree xml view of events, and not the data included in the "technical details" of the logs.


Attachments

  • Screenshot (3).png
    Screenshot (3).png
    80.2 KB · Views: 68

My Computer

System One

  • OS
    Windows 11 Home, Version 22H2 Build 22621.819
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell XPS 8950
    CPU
    Intel(R) Core(TM) i7-12700, 2100 Mhz
    Motherboard
    Dell BaseBoard Product 0R6PCT
    Memory
    16GB DDR5, 1x16GB, at 4400MHz;
    Graphics Card(s)
    AMD Radeon RX 6700XT
    Sound Card
    Realtek Audio (Integrated is my guess)
    Monitor(s) Displays
    Samsung 23" LS24F352FFHNXZA Old HDMI
    Screen Resolution
    1920x1080 60Hz
    Hard Drives
    Kioxia KBG50ZNS256G 256 GB,
    Raid w/
    ST1000DM010-2EP102
    1.0 TB Spinning Non SSD
    PSU
    750 W
    Case
    "750W Night Sky Bezel Chassis"
    Cooling
    Basis Fan, not upgraded to Increased Air or Water Cooling
    Keyboard
    Dell Wireless
    Mouse
    Logitech M310 Wireless USB w/ dongle
    Internet Speed
    ATT Fiber 300Mb
    Browser
    Prefer Chrome, but use Edge. I'm open to suggestions on this.
    Antivirus
    Windows Defender
    Other Info
    Killer E3100G 2.5 Gigabit Ethernet Controller
    Killer(R) Wi-Fi 6E AX1675x 160MHz Wireless Network Adapter (210NGW)
    w/ bluetooth

    Bios 1.7 Dell -- w/errors of not started in past event log.
Hello @ddbbmm190010,

I'm not aware of a way to export all history at once either so far. :(


My Computers

System One System Two

  • OS
    Windows 11 Pro for Workstations
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom self build
    CPU
    Intel i7-8700K 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    64 GB (4x16GB) G.SKILL TridentZ RGB DDR4 3600 MHz (F4-3600C18D-32GTZR)
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING (11GB GDDR5X)
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    2 x Samsung Odyssey G75 27"
    Screen Resolution
    2560x1440
    Hard Drives
    1TB Samsung 990 PRO M.2,
    4TB Samsung 990 PRO M.2,
    8TB WD MyCloudEX2Ultra NAS
    PSU
    Seasonic Prime Titanium 850W
    Case
    Thermaltake Core P3 wall mounted
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master 3
    Internet Speed
    1 Gbps Download and 35 Mbps Upload
    Browser
    Google Chrome
    Antivirus
    Microsoft Defender and Malwarebytes Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Galaxy S23 Plus phone
  • Operating System
    Windows 11 Pro
    Computer type
    Laptop
    Manufacturer/Model
    HP Spectre x360 2in1 14-eu0098nr (2024)
    CPU
    Intel Core Ultra 7 155H 4.8 GHz
    Memory
    16 GB LPDDR5x-7467 MHz
    Graphics card(s)
    Integrated Intel Arc
    Sound Card
    Poly Studio
    Monitor(s) Displays
    14" 2.8K OLED multitouch
    Screen Resolution
    2880 x 1800
    Hard Drives
    2 TB PCIe NVMe M.2 SSD
    Internet Speed
    Intel Wi-Fi 7 BE200 (2x2) and Bluetooth 5.4
    Browser
    Chrome and Edge
    Antivirus
    Windows Defender and Malwarebytes Premium
Hello, thank you for this tutorial @Brink

I am running Windows 11 Home 23H2 on my HP laptop

Is there a way to reset the Reliability Monitor?

Thank you


My Computer

System One

  • OS
    Windows 11 Home
    Computer type
    Laptop
    Manufacturer/Model
    HP Envy 17
    CPU
    Intel Core i7 1260P
    Motherboard
    Intel Integrated SoC
    Memory
    32 GB
    Graphics Card(s)
    Intel Iris Xᵉ Graphics
    Sound Card
    Realtek Audio
    Monitor(s) Displays
    17" 4K UHD IPS
    Screen Resolution
    3840 x 2160
    Hard Drives
    1 TB PCIe NVMe
    Internet Speed
    1 Gbit / 100 Mbps
    Browser
    MS Edge

My Computer

System One

  • OS
    Windows 11
    Computer type
    Laptop
    Manufacturer/Model
    HP / Spectre x360 Convertible 13
    CPU
    i5-8250U
    Motherboard
    83B9 56.50
    Memory
    8GB
    Graphics Card(s)
    Intel(R) UHD Graphics 620
    Sound Card
    Realtek High Definition Audio(SST)
    Screen Resolution
    1920 x 1080
    Hard Drives
    Toshiba 256GB SSD
    Internet Speed
    500Mbps
    Browser
    Firefox, Edge
    Antivirus
    Windows Defender
I use the batch file from here,


Download the zip file and extract it to the desktop. Right click the batch file and select 'run as administrator'.
You should see it working,






My Computers

System One System Two

  • OS
    Win 11 Pro & 🐥.
    Computer type
    Laptop
    Manufacturer/Model
    ASUS VivoBook
    CPU
    AMD Ryzen 7 3700U with Radeon Vega Mobile Gfx
    Motherboard
    ASUSTeK COMPUTER INC. X509DA (FP5)
    Memory
    12GB
    Graphics Card(s)
    RX Vega 10 Graphics
    Monitor(s) Displays
    Generic PnP Monitor (1920x1080@60Hz)
    Screen Resolution
    1920x1080@60Hz
    Hard Drives
    Samsung 980 1 TB PCIe 3.0 NVMe M.2
    Internet Speed
    25 Mbps
    Browser
    Edge
    Antivirus
    Defender
  • Operating System
    Windows 11
    Computer type
    Laptop
    Manufacturer/Model
    ACER NITRO
    CPU
    AMD Ryzen 7 5800H / 3.2 GHz
    Motherboard
    CZ Scala_CAS (FP6)
    Memory
    16 GB (2 x 8 GB) DDR4 SDRAM 3200 MHz
    Graphics card(s)
    NVIDIA GeForce RTX 3060 6 GB GDDR6 SDRAM
    Sound Card
    Realtek Audio. NVIDIA High Definition Audio
    Monitor(s) Displays
    15.6" LED backlight 1920 x 1080 (Full HD) 144 Hz
    Screen Resolution
    1920 x 1080 (Full HD)
    Hard Drives
    Samsung 970 Evo Plus 2TB NVMe M.2
    PSU
    180 Watt, 19.5 V
    Mouse
    Lenovo Bluetooth
    Internet Speed
    25 Mbps
    Browser
    Edge
    Antivirus
    Defender
Any way to export ALL events and details to save for debugging?


The reliability monitor data is similar to event viewer data.

The V2 log collector will create a text file of each system and application events with only a 30 day look back


The events can then be scanned using: edit > select all > edit > find >

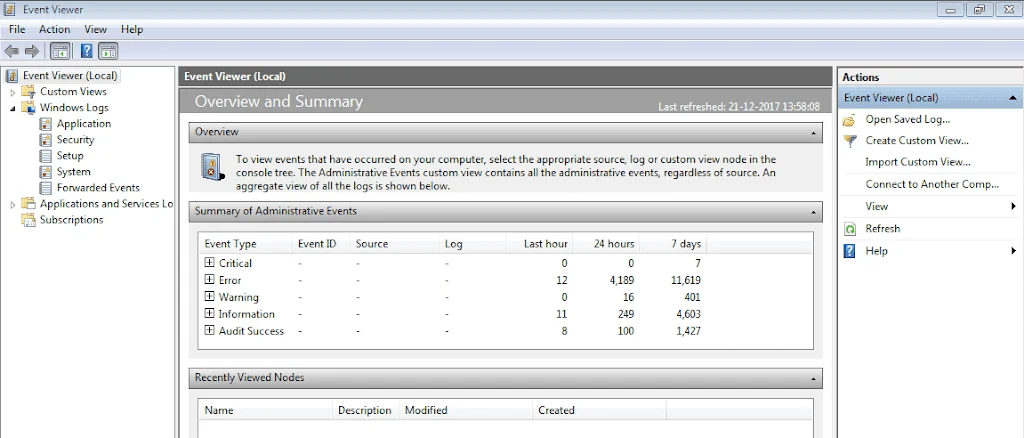

Alternatively the event viewer can be scanned:

Chkdsk: Read Chkdsk Log in Event Viewer in Windows 10



Click tab to sort.


My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation

My Computers

System One System Two

  • OS
    Windows 11 Pro for Workstations
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom self build
    CPU
    Intel i7-8700K 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    64 GB (4x16GB) G.SKILL TridentZ RGB DDR4 3600 MHz (F4-3600C18D-32GTZR)
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING (11GB GDDR5X)
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    2 x Samsung Odyssey G75 27"
    Screen Resolution
    2560x1440
    Hard Drives
    1TB Samsung 990 PRO M.2,
    4TB Samsung 990 PRO M.2,
    8TB WD MyCloudEX2Ultra NAS
    PSU
    Seasonic Prime Titanium 850W
    Case
    Thermaltake Core P3 wall mounted
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master 3
    Internet Speed
    1 Gbps Download and 35 Mbps Upload
    Browser
    Google Chrome
    Antivirus
    Microsoft Defender and Malwarebytes Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Galaxy S23 Plus phone
  • Operating System
    Windows 11 Pro
    Computer type
    Laptop
    Manufacturer/Model
    HP Spectre x360 2in1 14-eu0098nr (2024)
    CPU
    Intel Core Ultra 7 155H 4.8 GHz
    Memory
    16 GB LPDDR5x-7467 MHz
    Graphics card(s)
    Integrated Intel Arc
    Sound Card
    Poly Studio
    Monitor(s) Displays
    14" 2.8K OLED multitouch
    Screen Resolution
    2880 x 1800
    Hard Drives
    2 TB PCIe NVMe M.2 SSD
    Internet Speed
    Intel Wi-Fi 7 BE200 (2x2) and Bluetooth 5.4
    Browser
    Chrome and Edge
    Antivirus
    Windows Defender and Malwarebytes Premium

My Computers

System One System Two

  • OS
    Win 11 Pro & 🐥.
    Computer type
    Laptop
    Manufacturer/Model
    ASUS VivoBook
    CPU
    AMD Ryzen 7 3700U with Radeon Vega Mobile Gfx
    Motherboard
    ASUSTeK COMPUTER INC. X509DA (FP5)
    Memory
    12GB
    Graphics Card(s)
    RX Vega 10 Graphics
    Monitor(s) Displays
    Generic PnP Monitor (1920x1080@60Hz)
    Screen Resolution
    1920x1080@60Hz
    Hard Drives
    Samsung 980 1 TB PCIe 3.0 NVMe M.2
    Internet Speed
    25 Mbps
    Browser
    Edge
    Antivirus
    Defender
  • Operating System
    Windows 11
    Computer type
    Laptop
    Manufacturer/Model
    ACER NITRO
    CPU
    AMD Ryzen 7 5800H / 3.2 GHz
    Motherboard
    CZ Scala_CAS (FP6)
    Memory
    16 GB (2 x 8 GB) DDR4 SDRAM 3200 MHz
    Graphics card(s)
    NVIDIA GeForce RTX 3060 6 GB GDDR6 SDRAM
    Sound Card
    Realtek Audio. NVIDIA High Definition Audio
    Monitor(s) Displays
    15.6" LED backlight 1920 x 1080 (Full HD) 144 Hz
    Screen Resolution
    1920 x 1080 (Full HD)
    Hard Drives
    Samsung 970 Evo Plus 2TB NVMe M.2
    PSU
    180 Watt, 19.5 V
    Mouse
    Lenovo Bluetooth
    Internet Speed
    25 Mbps
    Browser
    Edge
    Antivirus
    Defender
Back
Top Bottom
