Installation and Upgrade Clean Install Windows 11


  • Staff

This tutorial will show you step by step on how to clean install Windows 11 at boot on your PC with or without an Internet connection and setup with a local account or Microsoft account.

Windows 11 has all the power and security of Windows 10 with a redesigned and refreshed look. It also comes with new tools, sounds, and apps. Every detail has been considered. All of it comes together to bring you a refreshing experience on your PC.

A clean install of Windows 11 will wipe out everything on the drive you select to install Windows 11 on giving you a completely new default installation of Windows 11.

References:

If you’d like to see if your current PC meets the minimum requirements, download and run the PC Health Check app.


It is required to be connected to the Internet if you want to set up a Microsoft account during Windows Setup.

It is not required to be connected to the Internet if you want to set up a local account during Windows Setup.


If you set up a Microsoft account during Windows Setup, it will get linked to OneDrive to backup and sync your files by default. You can either set up a local account instead to avoid this, or stop the backup and sync your files to OneDrive when the installation is complete.

If you set up a Microsoft account during Windows Setup, your user profile folder in the "C:\Users" folder will be named with the first 5 characters of the email address used for your Microsoft account. If you want to specify the name of your user profile folder in the "C:\Users" folder, then you will need to set up a local account during Windows Setup instead of a Microsoft account so your user profile folder will have the same name you enter as the local account name. When Windows 11 has finished installing, you can switch to a Microsoft account from the local account (if wanted) without the user profile folder name getting changed.




Here's How:

1 If you have not already, you will need to create a bootable Windows 11 installation USB that supports UEFI mode.

2 It is recommended to temporarily disconnect all non OS hard drives until Windows installation has finished for the following reasons:
  • To avoid you mistakenly deleting or formatting the wrong disk or drive.
  • To prevent Windows Setup from installing the boot configuration files (bootloader) to a different connected hard drive instead of on the disk Windows will be installed on.
3 Boot to the UEFI firmware settings for your motherboard, and enable UEFI or disable Legacy BIOS (CSM) mode.

Usually it will be set to UEFI mode by default if supported. You may need to read your PC's or motherboard's manual for its specific instructions on how to change this setting.


4 Boot from the Windows 11 installation USB flash drive on your computer.

5 Select your language, time and currency format, and keyboard or input method preferences, and click/tap on Next. (see screenshot below)


6 Perform an available action below: (see screenshots below)
  • Click/tap on the Install Now button to start Windows Setup for the installation.
  • Select (dot) Install Windows 11, check I agree everything will be deleted including files, apps, an settings, and click/tap on Next.

Starting with Windows 11 build 26040 (Canary), Microsoft is refreshing Windows OS Media Setup with a much cleaner and more modern design. All of the same features will continue to be supported in the bare-metal (clean) OS installation experience, including unattended support, but will now be consistent with the current upgrade and installation experience available for the devices already running the Windows OS.




7 Enter your Windows 11 product key, and click/tap on Next. (see screenshot below)

The product key you enter will determine which edition of Windows 11 gets installed, and is required to activate Windows 11 unless you activate with a digital license instead. If you don't enter a product key and click/tap on I don't have a product key, you will be able to select the Windows 11 edition you want to install at step 8 below, but Windows 11 will not be activated.

You can enter an official Windows 7, Windows 8.1, or Windows 10 retail product key (OEM keys will not work) not currently used to activate Windows on another PC, and click/tap on Next to activate Windows 11.

⚠️ Free Activation from Windows 7/8 key or upgrade to Windows 10/11 Ends

If you do not have a product key available right now, click/tap on the I don't have a product key link, select the Windows 11 edition you want to install at step 8. You will be able to manually activate Windows 11 with your product key when you want later after the Windows 11 installation has finished.

If you want to activate with a digital license linked to your Microsoft account, click/tap on the I don't have a product key link, select the Windows 11 edition you want to install at step 8, and add your linked Microsoft account at step 20 .

You will not be asked to enter a product key if installing Windows 11 Enterprise. You will need to manually activate later after installation has finished.

If this is an OEM PC that has a valid product key embedded in its UEFI firmware chip, then you will not be prompted to enter a product key. Windows 11 will automatically use the embedded product key if its valid for the edition being installed. If needed, you can change the product key after installation has finished.



8 If you clicked on I don't have a product key in step 7 above, then select the Windows 11 edition you want to install, and click/tap on Next. (see screenshots below)


9 Check the I accept the Microsoft Software License Terms box, and click/tap on Next. (see screenshot below)

If you only have the keyboard available, you can press the Space + + keys to check the box.



10 Click/tap on the Custom: Install Windows only (advanced) option. (see screenshot below)


11 Perform one of the following actions to select a drive or disk to install Windows 11 on: (see screenshots below)

If RAID is enabled in UEFI/BIOS, Windows Setup may not see any drive(s) available to select to install on.

In this situation, you could either disable RAID in BIOS/UEFI or select to "Add driver" to install the RAID driver from your OEM/motherboard manufacturer's chipset.

AMD Quick Start Guide- Chapter 5: Install AMD-RAID Drivers (PDF)

Intel Support - Installing the Operating System onto a RAID Volume—F6 Install Method

If no drives can be found during Windows 11 or Windows 10 installation (Intel 11th Generation processors)


  • Delete all partitions on the Drive # (ex: Drive 0) you want to install Windows 11 until that Drive # shows only as one Unallocated Space, select the unallocated space, and click/tap on Next.
  • Select a Primary or unallocated partition on a drive you want to install Windows 11, Delete the partition/volume if not already unallocated, click/tap on OK to confirm, and click/tap on Next.

12 The installation of Windows 11 will now begin. (see screenshots below)

During the installation process, your screen may flash and the computer will restart a few times.



13 Select your country or region (ex: "United States"), and click/tap on Yes. (see screenshot below)

If you would like to set up this PC to have an OOBE (Out-of-box Experience) so another user/owner can pick up at this step to finish setting up Windows on the PC with their own account and preferences the next time the PC it turned on, then:

1. Press the Shift + F10 keys when you see the screenshot below to open a command prompt.
2. Type C:\Windows\System32\shutdown -s -t 0 -f into the command prompt, and press Enter to shut down Windows.




14 Select the keyboard layout (ex: "US") you want, and click/tap on Yes. (see screenshot below)


15 Select Add layout or Skip depending on if you want to add a second keyboard layout or not. (see screenshot below)


16 Windows Setup will now check for an Internet connection. If an Internet connection is not detected, it will prompt you to connect and select an Ethernet network and/or setup and connect to a Wi-Fi network (if available), and click/tap on Next. (see screenshots below)

Starting with a Windows 11 build 25987 (Canary) ISO, when you need to connect to a network and there is no Wi-Fi drivers, you will be given an option to press an Install Drivers button to install drivers you have previously downloaded.


It is required to have an Internet connection if you want to set up a Microsoft account, or work or school account.

Whether you have an Internet connection or not, you will still be able to set up a local account (if wanted) when you get to step 21.

If installing a Windows 11 Pro or Education edition and you currently do not have an Internet connection available, click/tap on I don't have Internet, and go to step 21D to set up a local account. I don't have Internet is not available by default for the Home edition unless you use either command below first. (see bottom screenshot)

If you don't have an Internet connection and none of the above worked for you, then press the Shift + F10 keys to open a command prompt. Copy and paste the OOBE\BYPASSNRO command into the command prompt, and press Enter. This will restart the computer, and take you back to step 13. You should then be able to click/tap on I don't have internet when you get back to this step, and go to step 21D to set up a local account. (see bottom screenshot)

If the OOBE\BYPASSNRO command doesn't work for you, then copy and paste the MSOOBE\BYPASSNRO command into the command prompt, and press Enter. This will restart the computer, and take you back to step 13. You should then be able to click/tap on I don't have internet when you get back to this step, and go to step 21D to set up a local account. (see bottom screenshot)



17 Type a name you want for the PC, and click/tap on Next. (see screenshot below)

You can always rename the PC at anytime if needed.

Your PC name cannot have more then 15 characters.

Your PC name cannot have spaces or any of the following special characters: " /\ [] : | <> + + ; , ?



18 Perform an action below for which type of account you want to set up: (see screenshot below)

You will not see this step if installing a Windows 11 Home edition. You will see step 19 instead.


  • Click/tap on Set up for personal use, click/tap on Next, and go to step 19 to set up a Microsoft account or local account on your personal PC.
  • Click/tap on Set up for work or school, click/tap on Next, and go to step 22 to set up a work or school account on your PC to join a domain.

19 Click/tap on Sign in, and go to the step below depending on if your want to set up a local account or Microsoft account to sign in to Windows 11 with. (see screenshot below)

This account will be an administrator account on the PC.



20 Set Up Windows 11 with a Microsoft Account

For more details about a Microsoft account, see: Microsoft account | Microsoft Docs


A) Type in the email address for your Microsoft account, and click/tap on Next. (see screenshot below)​

If you do not have a Microsoft account and would like to use one, click/tap on the Create one link to create a new Microsoft account.



B) Type in the password for your Microsoft account, and click/tap on Sign in. (see screenshot below)​


C) If you have two-step verification turned on for your Microsoft account, select how (ex: email or text) you would like to get a code sent to you. (see screenshots below)​


D) Provide any other required information based on how you selected to get a code, and click/tap on Send code. (see screenshot below)​


E) Enter the code you received from Microsoft, and click/tap on Verify. (see screenshot below)​


F) Select Set up as new device, and click/tap on Next. (see screenshots below)​

You may need to click/tap on a View more options link first to see the Set up as new device option.

You can select to restore your settings, preferences, Microsoft Store apps, and synced OneDrive files from another device instead of setting up as a new device.




G) Click/tap on Create PIN. (see screenshot below)​


H) Enter a PIN you want to use to sign in with, and click/tap on OK. (see screenshot below)​


I) Turn On (default) or Off the privacy settings you want, and click/tap on Accept when finished. (see screenshots below)​

You will be able to change these privacy settings at anytime in Windows 11.



J) Check all the ways you plan to use this device, and click/tap on Accept. (see screenshot below)​

Click/tap on Skip instead if you do not want to select (check) any device usages.

You can change your device usage options at any time in Windows 11.



K) Scan the QR code with your Android phone to link it if wanted, and click/tap on Continue. (see screenshot below)​


Click/tap on Skip instead if you do not want to link an Android phone.

This option is only available starting with Windows 11 build 22567.



L) If prompted (no longer asked), click/tap on the Only save files to this PC (recommended) link or Next depending on if you want to use OneDrive or not. (see screenshot below)​

This is for backing up and syncing your account's personal Desktop, Documents, Pictures, Music, and/or Videos folders to your online (cloud) OneDrive.

When you back up a folder its contents get moved to your account's OneDrive folder on the PC to then be synced with your online OneDrive.

⚠️ If you set up a Microsoft account during Windows Setup, it will get linked to OneDrive to backup and sync your files by default. You can either set up a local account instead to avoid this, or stop the backup and sync your files to OneDrive when the installation is complete.




M) If prompted to "Try premium Office apps for free with Microsoft 365", click/tap on Decline or Continue for what you want. (see screenshot below)​


N) If prompted to "Get 100 GB more cloud storage" for OneDrive, click/tap on Decline or Continue for what you want. (see screenshot below)​


O) Go to step 23.​


21 Set Up Windows 11 with a Local Account

For more details about a local account, see: Local account | Microsoft Docs:

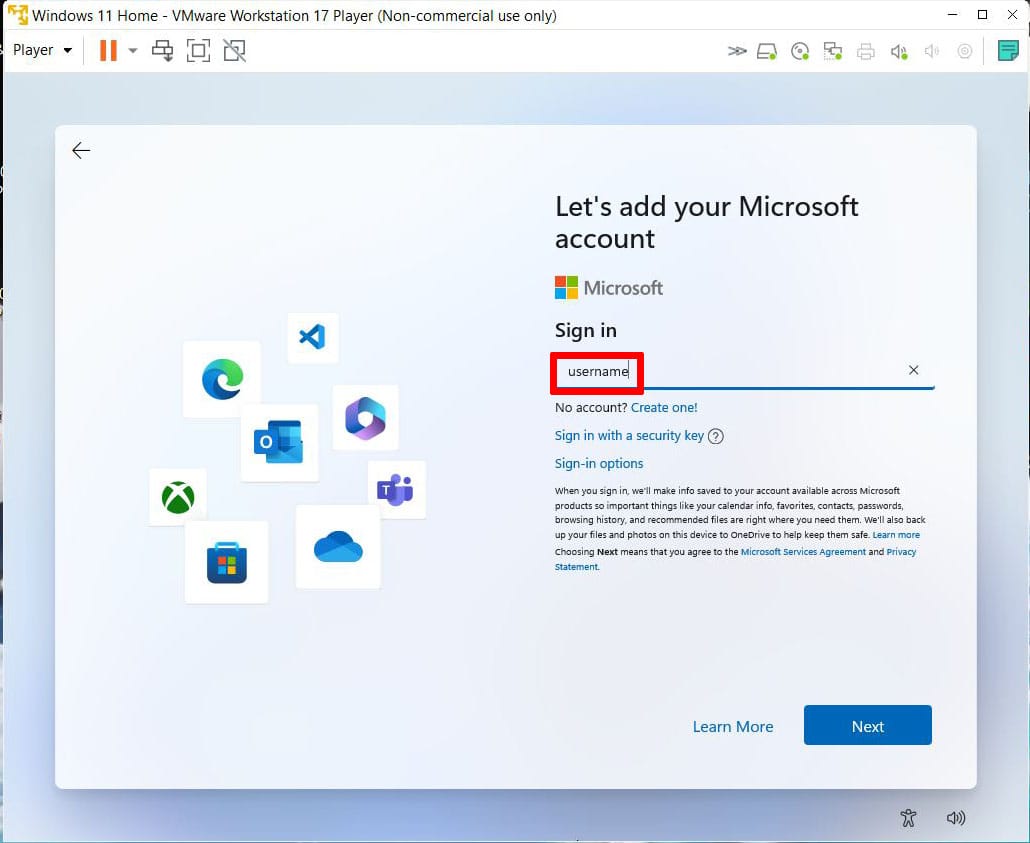

A) Enter this specific fake email address ("fake@fake.com"), and click/tap on Next. (see screenshot below)​

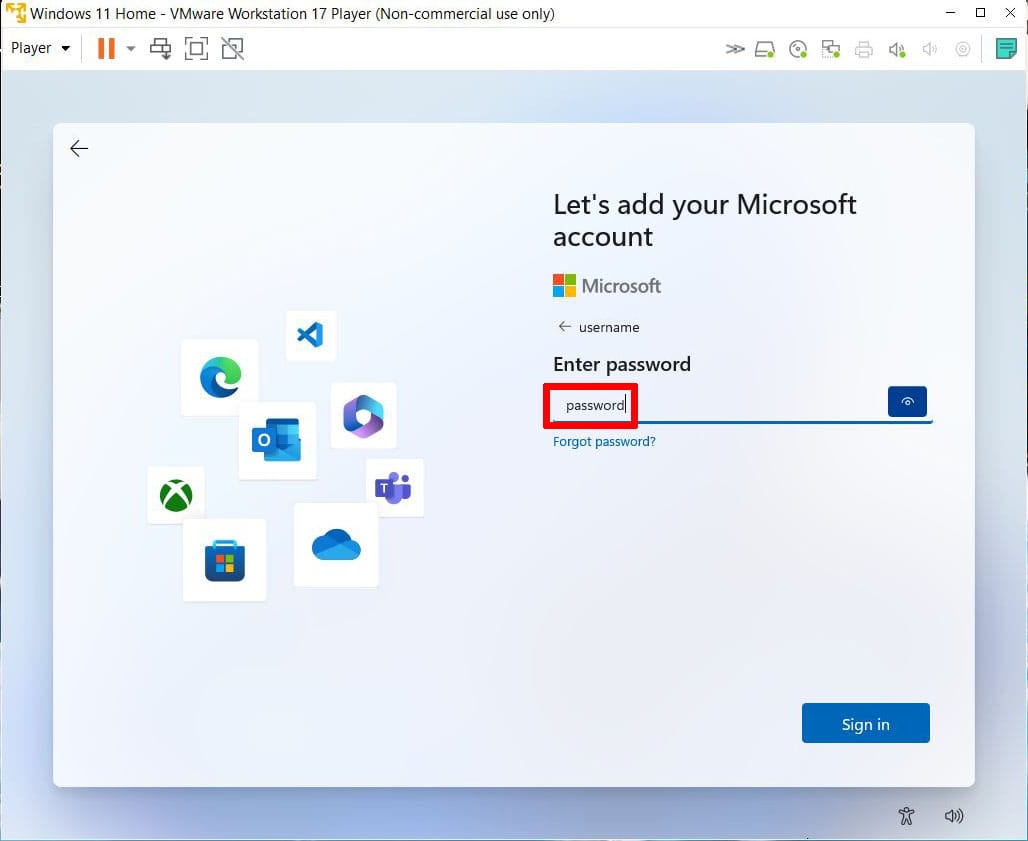

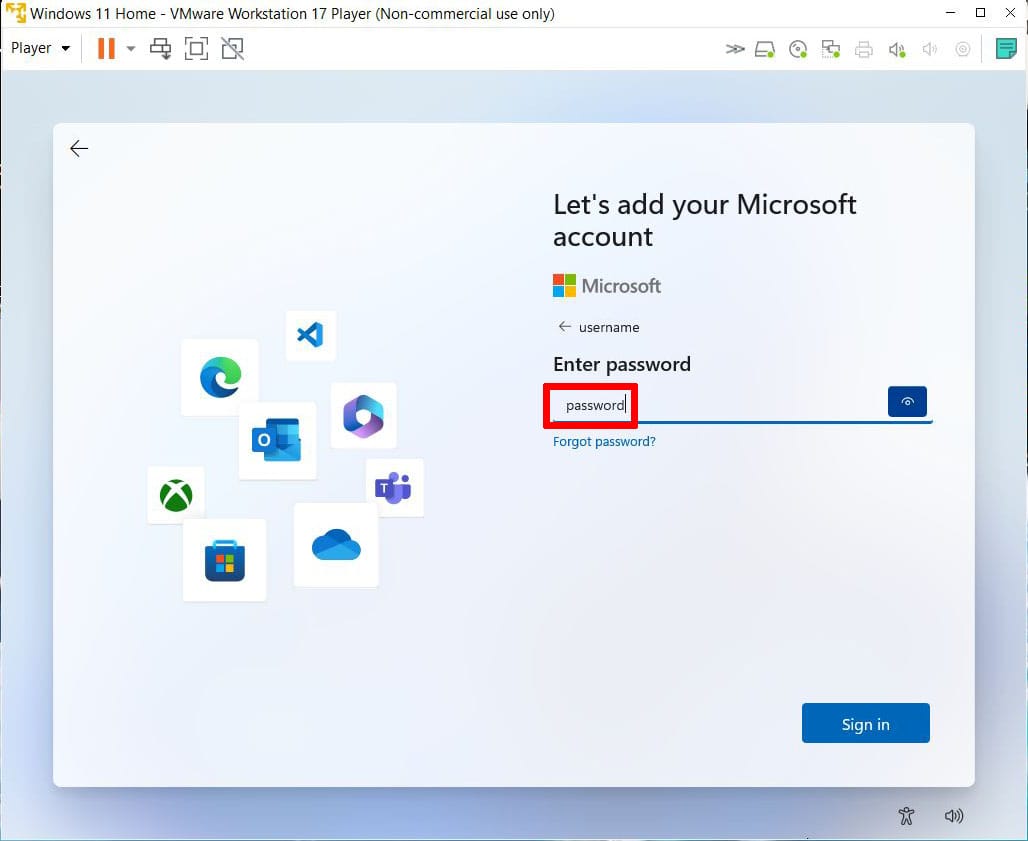

B) Enter a fake password, and click/tap on Sign in. (see screenshot below)​

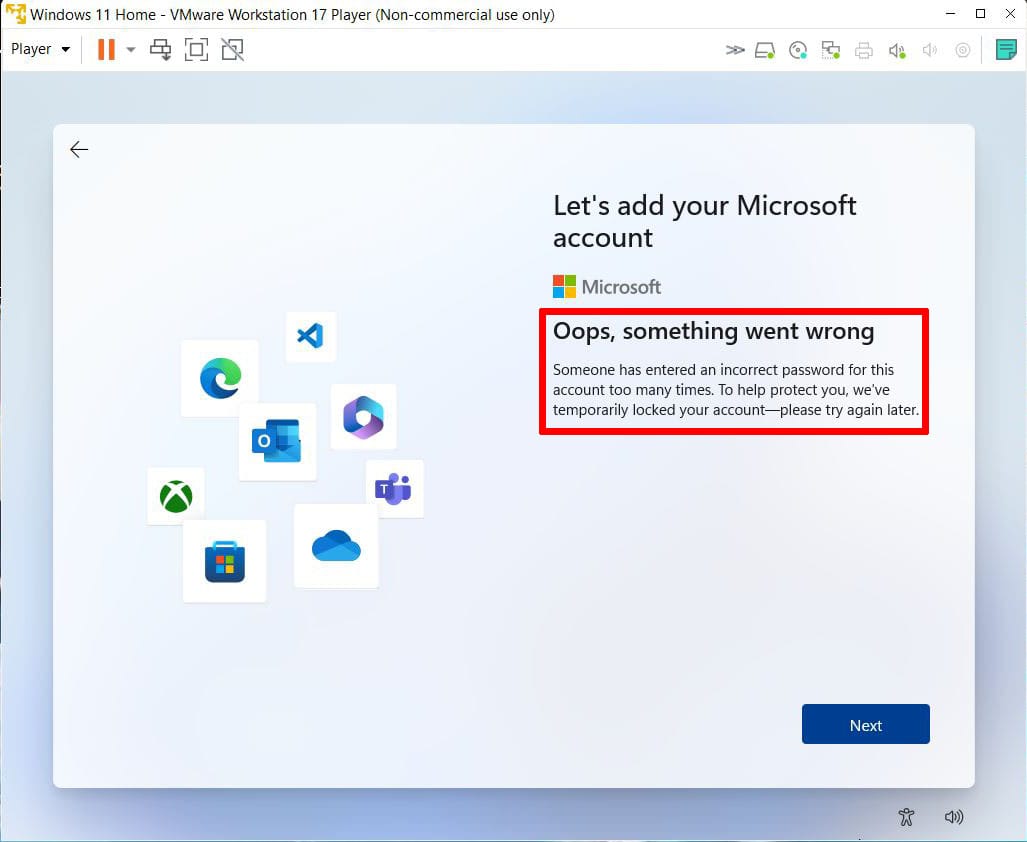

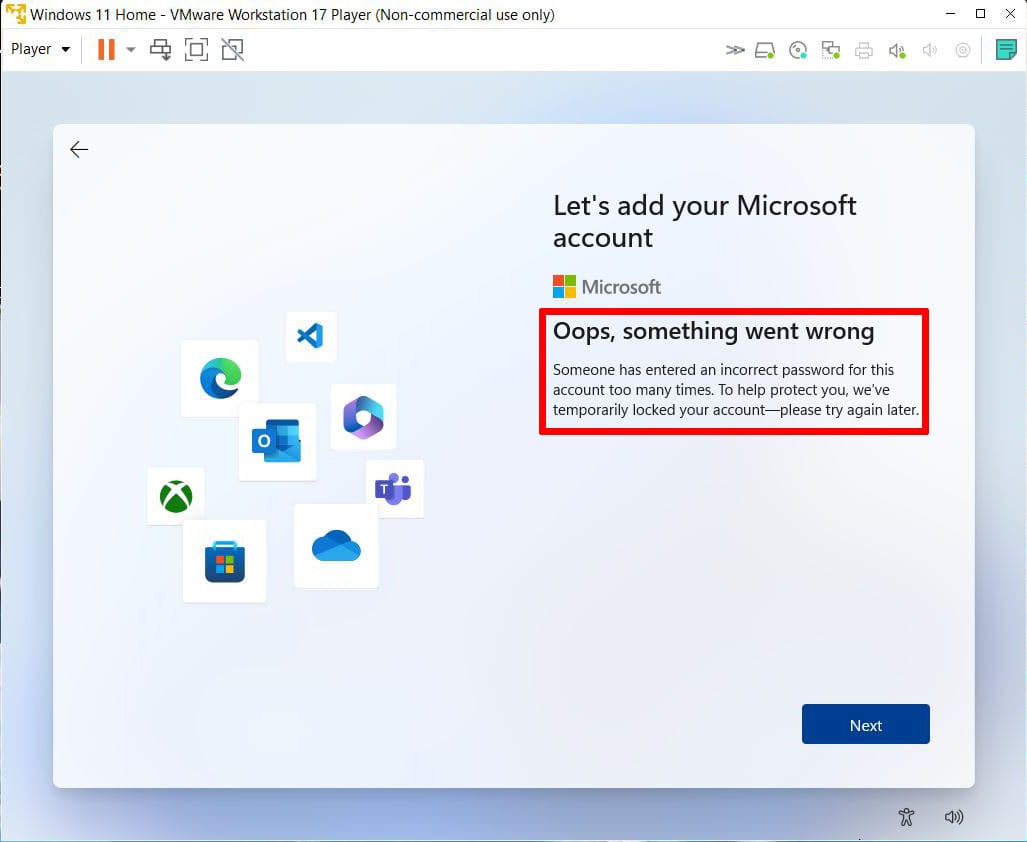

C) Click/tap on Next when you see Oops, something went wrong. (see screenshot below)​

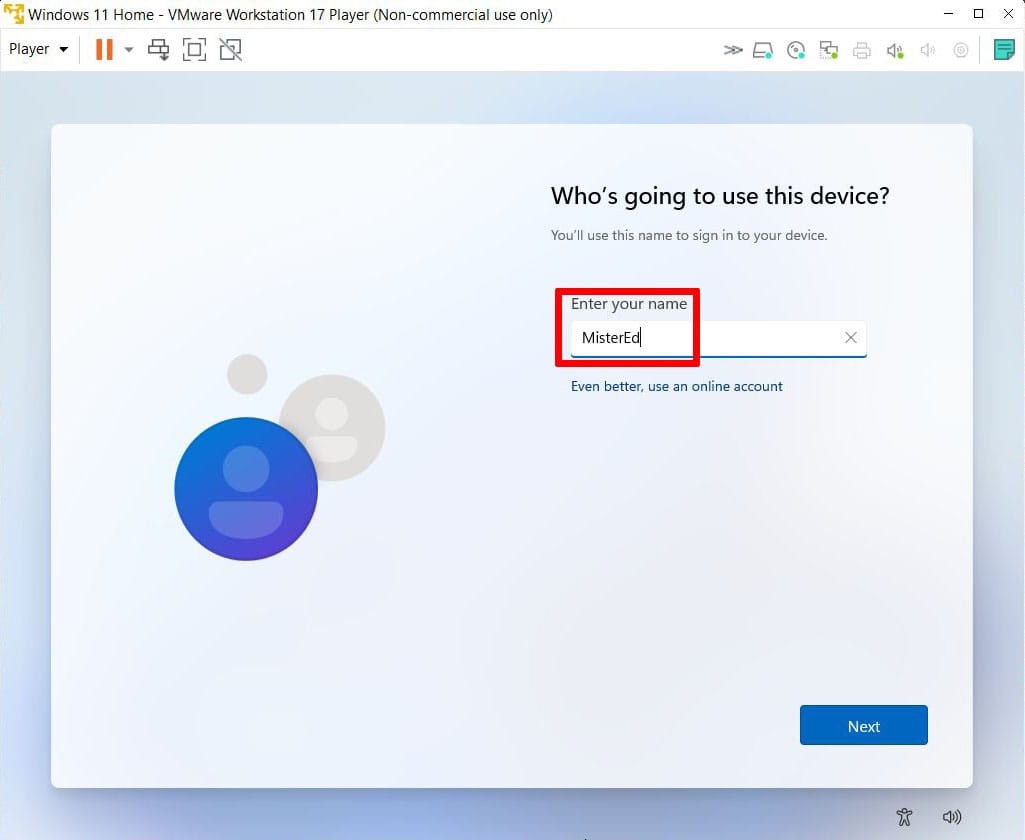

D) Enter a user name you want for this local account, and click/tap on Next. (see screenshot below)​


E) Enter a password you want for this local account, and click/tap on Next. (see screenshot below)​

If you do not want this local account to have a password, leave the password field empty, click/tap on Next, and go to step J below.



F) Enter the password again to confirm, and click/tap on Next. (see screenshot below)​


G) Select a security question (1 of 3) you want from the drop menu, type your answer, and click/tap on Next. (see screenshot below)​


H) Select a security question (2 of 3) you want from the drop menu, type your answer, and click/tap on Next. (see screenshot below)​


I) Select a security question (3 of 3) you want from the drop menu, type your answer, and click/tap on Next. (see screenshot below)​


J) Turn On (default) or Off the privacy settings you want, and click/tap on Accept when finished. (see screenshots below)​

You will be able to change these privacy settings at anytime in Windows 11.



O) Go to step 23.​


22 Set Up Windows 11 with a Work or School Account

A) Type in the email address for your work or school account, and click/tap on Next. (see screenshot below)​


B) Type in the password for your work or school account, and click/tap on Sign in. (see screenshot below)​


C) Turn On (default) or Off the privacy settings you want, and click/tap on Accept when finished. (see screenshots below)​

You will be able to change these privacy settings at anytime in Windows 11.



D) Windows Setup will check for updates. (see screenshot below)​


E) If prompted to use Windows Hello with your account, click/tap on OK. (see screenshot below)​


F) If your organization requires additional security information, click/tap on Next, and follow any other given instructions to verify. (see screenshot below)​


G) When finished, go to step 23.​


23 When the clean install has finished, you will be on your desktop in Windows 11 with the Start menu open. (see screenshot below)


24 Make sure the correct time zone, date, and time is set.

25 Check for and install any available Windows Updates.

26 Install any needed drivers for your devices.


That's it,
Shawn Brink




Attachments

  • Windows_11_banner.png
    5.6 KB · Views: 10,167
  • Windows_11_flag.png
    2.6 KB · Views: 399
Last edited:
What's the MS method? And what's happening to this board? I'm unable to remove these quotes....frustrating.
Well an upgrade from a activated windows version to a new version gets the hardware registered in the server. You can even use the windows official upgrade site in lieu of WU to upgrade your version.

It offers different methods to do it but the upgrade assistant and media creation tool are very popular and easy to use.



My Computers

System One System Two

  • OS
    Windows 11 Pro
    Computer type
    PC/Desktop
    Manufacturer/Model
    Self Built
    CPU
    Intel Core i9 13900k, Intel UHD 770 integrated
    Motherboard
    MSI MEG Z790 ACE
    Memory
    32gb G.Skill Trident Z5 6600
    Graphics Card(s)
    Gigabyte RTX 4090 Gaming OC
    Sound Card
    EVGA Nu Audio, Razer Kraken V3 Pro, Realtek Onboard
    Monitor(s) Displays
    LG 38GN950-B, Benq EX3415R nano IPS monitors
    Screen Resolution
    3840x1600, 3440X1440
    Hard Drives
    Samsung 970 Pro, Samsung 850 Pro, Crucial MX500, WD Black SN700, WD Black 8tb HD
    PSU
    EVGA Supernova G2 1300w
    Case
    Thermaltake Level 20 XT
    Cooling
    ARCTIC Liquid Freezer III 420 ARGB in push/pull, Antec Prism X 120mm ARGB Fans x 15
    Keyboard
    Razer Huntsman Elite V1
    Mouse
    Corsair Dark Core Pro SE on an Asus ROG Balteus Qi pad
    Internet Speed
    450Mbps cable primary, 6Mbps secondary vdsl
    Browser
    Chrome primary, FF-Edge-IE secondary
    Antivirus
    Norton 360 Premium
    Other Info
    I sit on a Secret Lab Titan XL 2020 chair.😍
  • Operating System
    Windows 11 Pro
    Computer type
    Laptop
    Manufacturer/Model
    2021 HP Omen
    CPU
    AMD Ryzen 7 5800H
    Motherboard
    factory
    Memory
    16gb ddr 3200
    Graphics card(s)
    Nvidia RTX 3060 Mobile
    Sound Card
    onboard B&O
    Monitor(s) Displays
    15.6" 144hz IPS
    Screen Resolution
    1920x1080
    Hard Drives
    Hynix 512gb nvme ssd, WD Black SN850 2TB nvme ssd
    PSU
    factory
    Case
    factory
    Cooling
    factory with ARCTIC MX-6
    Mouse
    touchpad and Logitech wireless mouse
    Keyboard
    4 zone rgb
    Internet Speed
    WiFi 6, 1gb ethernet
    Browser
    Chrome primary, FF-IE and Edge secondary
    Antivirus
    Norton 360 Premium
I redid all of my VMs in February 2023. I installed Windows 11 Pro in various editions using my Windows 7 retail keys from my TechNet license from over a decade ago and set up all VMs as local login only, not Microsoft logins. All were activated as normal.

Yes, literally just over a month ago. Give it a shot, @Steve C - worse that will happen is that it doesn't activate. But since you have it as a digital license attached to your Microsoft account, I'd bet that it won't have an issue.

Also - Try Win 11 direct install, and don't even try to enter a key, just skip it and see if it picks it up from your digital license first.


My Computers

System One System Two

  • OS
    Windows 11 23H2 Current build
    Computer type
    PC/Desktop
    Manufacturer/Model
    HomeBrew
    CPU
    AMD Ryzen 9 3950X
    Motherboard
    MSI MEG X570 GODLIKE
    Memory
    4 * 32 GB - Corsair Vengeance 3600 MHz
    Graphics Card(s)
    EVGA GeForce RTX 3080 Ti XC3 ULTRA GAMING (12G-P5-3955-KR)
    Sound Card
    Realtek® ALC1220 Codec
    Monitor(s) Displays
    2x Eve Spectrum ES07D03 4K Gaming Monitor (Matte) | Eve Spectrum ES07DC9 4K Gaming Monitor (Glossy)
    Screen Resolution
    3x 3840 x 2160
    Hard Drives
    3x Samsung 980 Pro NVMe PCIe 4 M.2 2 TB SSD (MZ-V8P2T0B/AM) } 3x Sabrent Rocket NVMe 4.0 1 TB SSD (USB)
    PSU
    PC Power & Cooling’s Silencer Series 1050 Watt, 80 Plus Platinum
    Case
    Fractal Design Define 7 XL Dark ATX Full Tower Case
    Cooling
    NZXT KRAKEN Z73 73.11 CFM Liquid CPU Cooler (3x 120 mm push top) + Air 3x 140mm case fans (pull front) + 1x 120 mm (push back) and 1 x 120 mm (pull bottom)
    Keyboard
    SteelSeries Apex Pro Wired Gaming Keyboard
    Mouse
    Logitech MX Master 3S | MX Master 3 for Business
    Internet Speed
    AT&T LightSpeed Gigabit Duplex Ftth
    Browser
    Nightly (default) + Firefox (stable), Chrome, Edge
    Antivirus
    Defender + MB 5 Beta
  • Operating System
    ChromeOS Flex Dev Channel (current)
    Computer type
    Laptop
    Manufacturer/Model
    Dell Latitude E5470
    CPU
    Intel(R) Core(TM) i5-6300U CPU @ 2.40GHz, 2501 Mhz, 2 Core(s), 4 Logical Processor(s)
    Motherboard
    Dell
    Memory
    16 GB
    Graphics card(s)
    Intel(R) HD Graphics 520
    Sound Card
    Intel(R) HD Graphics 520 + RealTek Audio
    Monitor(s) Displays
    Dell laptop display 15"
    Screen Resolution
    1920 * 1080
    Hard Drives
    Toshiba 128GB M.2 22300 drive
    INTEL Cherryville 520 Series SSDSC2CW180A 180 GB SATA III SSD
    PSU
    Dell
    Case
    Dell
    Cooling
    Dell
    Mouse
    Logitech MX Master 3S (shared w. Sys 1) | Dell TouchPad
    Keyboard
    Dell
    Internet Speed
    AT&T LightSpeed Gigabit Duplex Ftth
Well an upgrade from a activated windows version to a new version gets the hardware registered in the server. You can even use the windows official upgrade site in lieu of WU to upgrade your version.

It offers different methods to do it but the upgrade assistant and media creation tool are very popular and easy to use.

Here's an interesting experience of mine.

I'm not sure when this happened. But when I first got my Lenovo laptop just slightly over 2 years ago. I installed CrystalDiskinfo and a few other utilities. It had showed my C drive which is an NVMe drive and my D drive which is an HDD in that order.

Since then, I upgraded to Win11 and also did a fresh/clean install of W11. I also used Lenovos' technician's USB to reinstall Windows 10 which included "destroying" all the partitions on C and E. The USB was sent to my by a Lenovo tech.

Now, when I go and open CrystalInfo or Computer [Disk] Management, the D (HDD) is drive 0 and appears first whilst C (NVMe) appears as Disk 1. It's one of those little things that drive my OCD behavior crazy.

And let's not forget how W10/W11 loves to install OneDrive and move your Document, Desktop, and other folders inside OneDrive's directory if you're not extremely careful. What a PIA that was to resolve.


My Computer

System One

  • OS
    Windows 11
    Computer type
    Laptop
    Manufacturer/Model
    Lenovo
    Graphics Card(s)
    NVIDA 1650 Ti
    Monitor(s) Displays
    Lenovo C32q-20
My motherboard starts numbering the hard drives with Disk 0, Disk 1, etc. The SSDs are numbered after that.
However, once I removed the hard drives it started numbering the SSDs with Disk 0, Disk 1, etc.

When I first set up my computer it had 1 SSD and 2 HDDs. The HDDs were Disk 0 & Disk 1 while the SSD was Disk 2

1 DM.jpg


Now for the same computer I removed the HDDs and added another SSD. The SSDs are now Disk 0 and Disk 1.

2 DM.jpg


My Computers

System One System Two

  • OS
    Windows 11 Pro 23H2
    Computer type
    Laptop
    Manufacturer/Model
    ASUS TUF Gaming A15 (2022)
    CPU
    AMD Ryzen 7 6800H with Radeon 680M GPU (486MB RAM)
    Memory
    Micron DDR5-4800 (2400MHz) 16GB (2 x 8GB)
    Graphics Card(s)
    NVIDIA RTX 3060 Laptop (6GB RAM)
    Sound Card
    n/a
    Monitor(s) Displays
    15.6-inch
    Screen Resolution
    1920x1080 300Hz
    Hard Drives
    2 x Samsung 980 (1TB M.2 NVME SSD)
    PSU
    n/a
    Mouse
    Wireless Mouse M510
    Internet Speed
    1200Mbps/250Mbps
    Browser
    Firefox
    Antivirus
    Malwarebytes
  • Operating System
    Windows 11 Pro 23H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom build
    CPU
    AMD Ryzen 7 3700X
    Motherboard
    ASUS PRIME X370-PRO
    Memory
    G.SKILL Flare X 32GB (2x16GB) DDR4
    Graphics card(s)
    ASUS ROG-STRIX-RTX3060TI-08G-V2-GAMING (RTX 3060-Ti, 8GB RAM)
    Monitor(s) Displays
    Samsung S23A300B (23-in LED)
    Screen Resolution
    1080p 60Hz
    Hard Drives
    2TB XPG SX8200 Pro (M2. PCIe SSD) || 2TB Intel 660P (M2. PCIe SSD) ||
    PSU
    Corsair RM750x (750 watts)
    Case
    Cooler Master MasterCase 5
    Cooling
    Corsair H60 AIO water cooler
    Mouse
    Logitech K350 (wireless)
    Keyboard
    Logitech M510 (wireless)
    Internet Speed
    1200 Mbps down / 200 Mbps up
    Browser
    Firefox, Edge, Chrome
    Antivirus
    Malwarebytes (Premium)
    Other Info
    ASUS Blu-ray Burner BW-16D1HT (SATA) || Western Digital Elements 12TB USB 3.0 external hard drive used with Acronis True Image backup software || HP OfficeJet Pro 6975 Printer/Scanner
My motherboard starts numbering the hard drives with Disk 0, Disk 1, etc. The SSDs are numbered after that.
However, once I removed the hard drives it started numbering the SSDs with Disk 0, Disk 1, etc.

When I first set up my computer it had 1 SSD and 2 HDDs. The HDDs were Disk 0 & Disk 1 while the SSD was Disk 2
Correct. From what I read, Windows prioritizes HDD first starting as Disk 0.

And that's how it appears now (after manual installation). But I know for a fact it wasn't this way when it came from the factory. Perhaps Lenovo did some registry tweaking so as not to confuse the consumer.

Recently, I upgraded to Windows 11 Pro. Now I see two (healthy) partitions when I only had one. Since my NVMe is only 500GB,
I'm assuming on partition is the Lenovo partition Windows (11 or 10) and the other is Windows 11 (Pro)?

I'd like to free up that extra space. Any idea?


Attachments

  • 2023-04-03 211900.png
    2023-04-03 211900.png
    12.8 KB · Views: 38

My Computer

System One

  • OS
    Windows 11
    Computer type
    Laptop
    Manufacturer/Model
    Lenovo
    Graphics Card(s)
    NVIDA 1650 Ti
    Monitor(s) Displays
    Lenovo C32q-20
Don't worry about the extra partitions that the Windows setup created. If you try to change things you might mess up and make your computer unbootable. Besides the extra partitions aren't really that big so you would't gain much anyways. If you need more space it is better to just replace the drive with a bigger one.

Here is the original 500GB M.2 NVME SSD for the desktop computer mentioned in my last post. It has Windows 10 Pro on it.
Note I replaced the original 500GB SSD + 1TB HDD with a 2TB SSD. I replaced the 2TB HDD with a 2TB SSD.
The 1st 2TB SSD has Windows + programs. The 2nd 2TB SSD is for data.

3 DM.jpg


Here are the two 1TB M.2 NVME SSDs in my laptop. Note that the boot drive has a lot more partitions. It has Windows 11 Home on it.
Note I replaced the original 500GB SSD with 2 x 1TB SSDs.
The 1st 1TB SSD has Windows + programs. The 2nd 1TB SSD is for data.

4 DM.jpg

Last edited:

My Computers

System One System Two

  • OS
    Windows 11 Pro 23H2
    Computer type
    Laptop
    Manufacturer/Model
    ASUS TUF Gaming A15 (2022)
    CPU
    AMD Ryzen 7 6800H with Radeon 680M GPU (486MB RAM)
    Memory
    Micron DDR5-4800 (2400MHz) 16GB (2 x 8GB)
    Graphics Card(s)
    NVIDIA RTX 3060 Laptop (6GB RAM)
    Sound Card
    n/a
    Monitor(s) Displays
    15.6-inch
    Screen Resolution
    1920x1080 300Hz
    Hard Drives
    2 x Samsung 980 (1TB M.2 NVME SSD)
    PSU
    n/a
    Mouse
    Wireless Mouse M510
    Internet Speed
    1200Mbps/250Mbps
    Browser
    Firefox
    Antivirus
    Malwarebytes
  • Operating System
    Windows 11 Pro 23H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom build
    CPU
    AMD Ryzen 7 3700X
    Motherboard
    ASUS PRIME X370-PRO
    Memory
    G.SKILL Flare X 32GB (2x16GB) DDR4
    Graphics card(s)
    ASUS ROG-STRIX-RTX3060TI-08G-V2-GAMING (RTX 3060-Ti, 8GB RAM)
    Monitor(s) Displays
    Samsung S23A300B (23-in LED)
    Screen Resolution
    1080p 60Hz
    Hard Drives
    2TB XPG SX8200 Pro (M2. PCIe SSD) || 2TB Intel 660P (M2. PCIe SSD) ||
    PSU
    Corsair RM750x (750 watts)
    Case
    Cooler Master MasterCase 5
    Cooling
    Corsair H60 AIO water cooler
    Mouse
    Logitech K350 (wireless)
    Keyboard
    Logitech M510 (wireless)
    Internet Speed
    1200 Mbps down / 200 Mbps up
    Browser
    Firefox, Edge, Chrome
    Antivirus
    Malwarebytes (Premium)
    Other Info
    ASUS Blu-ray Burner BW-16D1HT (SATA) || Western Digital Elements 12TB USB 3.0 external hard drive used with Acronis True Image backup software || HP OfficeJet Pro 6975 Printer/Scanner
Don't worry about the extra partitions that the Windows setup created. If you try to change things you might mess up and make your computer unbootable. Besides the extra partitions aren't really that big so you would't gain much anyways. If you need more space it is better to just replace the drive with a bigger one.

Here is the original 500GB M.2 NVME SSD for the desktop computer mentioned in my last post. It has Windows 10 Pro on it.
Note I replaced the original 500GB SSD + 1TB HDD with a 2TB SSD. I replaced the 2TB HDD with a 2TB SSD.
The 1st 2TB SSD has Windows + programs. The 2nd 2TB SSD is for data.

Here are the two 1TB M.2 NVME SSDs in my laptop. Note that the boot drive has a lot more partitions. It has Windows 11 Home on it.
Note I replaced the original 500GB SSD with 2 x 1TB SSDs.
The 1st 1TB SSD has Windows + programs. The 2nd 1TB SSD is for data
Thanks for the reassurance. I'll leave things be. I just don't like it how a partition et al is created without me knowing or giving a warning in advance. My old HP 2011 laptop has three partitions, but aside from the main boot C drive and the recovery partition, the other partition is tiny.

I'm keeping my fingers crossed that this year RAM and GPUs (12GB) drop a lot so I can return to using a desktop where I can install my other HDDs and add a large NVMe like yours and SSDs to my existing Coolmster PC case. I'll probably wait until USB 4 becomes popular and the mobos have the next version of Thunderbolt. This way, my next PC will likely outlive me.


My Computer

System One

  • OS
    Windows 11
    Computer type
    Laptop
    Manufacturer/Model
    Lenovo
    Graphics Card(s)
    NVIDA 1650 Ti
    Monitor(s) Displays
    Lenovo C32q-20
I've just built a new PC and installed Windows 11 today which was quick and slick. I easily activated Windows 11 Pro based on a Windows 8 retail key I bought 11 years ago as follows:
1. Skipped inserting a product key on installing W11
2. Installed W11 as an admin user using my current MS account
3. W11 wasn't activated as expected. I ran the Troubleshooter, indicated a hardware change then selected the name of my previous PC. W11 then activated in a few seconds.


My Computer

System One

  • OS
    Windows 11 Pro
    Computer type
    PC/Desktop
    Manufacturer/Model
    Self build
    CPU
    Core i7-13700K
    Motherboard
    Asus TUF Gaming Plus WiFi Z790
    Memory
    64 GB Kingston Fury Beast DDR5
    Graphics Card(s)
    Gigabyte GeForce RTX 2060 Super Gaming OC 8G
    Sound Card
    Realtek S1200A
    Monitor(s) Displays
    Viewsonic VP2770
    Screen Resolution
    2560 x 1440
    Hard Drives
    Kingston KC3000 2TB NVME SSD & SATA HDDs & SSD
    PSU
    EVGA SuperNova G2 850W
    Case
    Nanoxia Deep Silence 1
    Cooling
    Noctua NH-D14
    Keyboard
    Microsoft Digital Media Pro
    Mouse
    Logitech Wireless
    Internet Speed
    50 Mb / s
    Browser
    Chrome
    Antivirus
    Defender
I've just built a new PC and installed Windows 11 today which was quick and slick. I easily activated Windows 11 Pro based on a Windows 8 retail key I bought 11 years ago as follows:
1. Skipped inserting a product key on installing W11
2. Installed W11 as an admin user using my current MS account
3. W11 wasn't activated as expected. I ran the Troubleshooter, indicated a hardware change then selected the name of my previous PC. W11 then activated in a few seconds.
Did you "inadvertently" install OneDrive and now have all your personal folders and Desktop residing in your OneDrive directory?


My Computer

System One

  • OS
    Windows 11
    Computer type
    Laptop
    Manufacturer/Model
    Lenovo
    Graphics Card(s)
    NVIDA 1650 Ti
    Monitor(s) Displays
    Lenovo C32q-20
Did you "inadvertently" install OneDrive and now have all your personal folders and Desktop residing in your OneDrive directory?
I do have OneDrive but only for selected folders and not the desktop. Activation was easy since all my PCs appear as devices in my MS account.


My Computer

System One

  • OS
    Windows 11 Pro
    Computer type
    PC/Desktop
    Manufacturer/Model
    Self build
    CPU
    Core i7-13700K
    Motherboard
    Asus TUF Gaming Plus WiFi Z790
    Memory
    64 GB Kingston Fury Beast DDR5
    Graphics Card(s)
    Gigabyte GeForce RTX 2060 Super Gaming OC 8G
    Sound Card
    Realtek S1200A
    Monitor(s) Displays
    Viewsonic VP2770
    Screen Resolution
    2560 x 1440
    Hard Drives
    Kingston KC3000 2TB NVME SSD & SATA HDDs & SSD
    PSU
    EVGA SuperNova G2 850W
    Case
    Nanoxia Deep Silence 1
    Cooling
    Noctua NH-D14
    Keyboard
    Microsoft Digital Media Pro
    Mouse
    Logitech Wireless
    Internet Speed
    50 Mb / s
    Browser
    Chrome
    Antivirus
    Defender
I do have OneDrive but only for selected folders and not the desktop. Activation was easy since all my PCs appear as devices in my MS account.
I think activation is easy for everyone. Despite [other] installation challenges, activation has never been an issue with me. The OneDrive bs and W11 is something I never expected and I somehow missed preventing it from being installed. Sadly, my "fresh install" W11 images contain OneDrive.

It's nearing the "usual" time to "wipe" my drive and reinstall Windows.

I think this time I won't use my own images instead I'll use my Lenovo's OEM USB which will take about 2 hours to wipe partitions and reinstall everything from scratch. That way, I won't have to mess with OneDrive. Besides, almost 70% of PC users remain hooked on W10.


My Computer

System One

  • OS
    Windows 11
    Computer type
    Laptop
    Manufacturer/Model
    Lenovo
    Graphics Card(s)
    NVIDA 1650 Ti
    Monitor(s) Displays
    Lenovo C32q-20
I think activation is easy for everyone. Despite [other] installation challenges, activation has never been an issue with me. The OneDrive bs and W11 is something I never expected and I somehow missed preventing it from being installed. Sadly, my "fresh install" W11 images contain OneDrive.

It's nearing the "usual" time to "wipe" my drive and reinstall Windows.

I think this time I won't use my own images instead I'll use my Lenovo's OEM USB which will take about 2 hours to wipe partitions and reinstall everything from scratch. That way, I won't have to mess with OneDrive. Besides, almost 70% of PC users remain hooked on W10.
I find OneDrive very useful for sharing selected files between PCs


My Computer

System One

  • OS
    Windows 11 Pro
    Computer type
    PC/Desktop
    Manufacturer/Model
    Self build
    CPU
    Core i7-13700K
    Motherboard
    Asus TUF Gaming Plus WiFi Z790
    Memory
    64 GB Kingston Fury Beast DDR5
    Graphics Card(s)
    Gigabyte GeForce RTX 2060 Super Gaming OC 8G
    Sound Card
    Realtek S1200A
    Monitor(s) Displays
    Viewsonic VP2770
    Screen Resolution
    2560 x 1440
    Hard Drives
    Kingston KC3000 2TB NVME SSD & SATA HDDs & SSD
    PSU
    EVGA SuperNova G2 850W
    Case
    Nanoxia Deep Silence 1
    Cooling
    Noctua NH-D14
    Keyboard
    Microsoft Digital Media Pro
    Mouse
    Logitech Wireless
    Internet Speed
    50 Mb / s
    Browser
    Chrome
    Antivirus
    Defender
I find OneDrive very useful for sharing selected files between PCs
I understand. I don't trust Microsoft in the sense I've lost all my emails a few times already on some of my Microsoft accounts over the years. I don't like that I have to login to Microsoft to access my PC. I rarely save anything on the Cloud because as we have seen, being hacked or breached is inevitable. Even with Edge, my data isn't synched.

For those who don't want to install OneDrive during installation (I'm not sure if Windows Home is excluded) here is what you don't want to miss:

xgjhqit1vz-png.58048


My Computer

System One

  • OS
    Windows 11
    Computer type
    Laptop
    Manufacturer/Model
    Lenovo
    Graphics Card(s)
    NVIDA 1650 Ti
    Monitor(s) Displays
    Lenovo C32q-20
I found another way to bypasss logging in with a Microsoft account when installing Windows 11.
The advantage is that I can leave the network connected the whole time.

When it asks to log into a Microsoft account I enter
Username: username
Password: password

After I hit Next I get an error message. It then says that account account is blocked. It then allows me to enter a local account.

Through experimentation I found I can't just use any random username. It has to be one that probably already exists.

Here are screenshots where I used that workaround:

View attachment 52170

View attachment 52171

View attachment 52172

View attachment 52173
I use

no@thankyou.com
password

Might have to try username and password method. . lol


My Computers

System One System Two

  • OS
    Windows 11 Pro x64 23H2 v22631.3447
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built Myself in 2013
    CPU
    AMD Ryzen 1800X 8-Core @ 3.60GHz
    Motherboard
    Asus Crosshair VI Hero
    Memory
    16GB G.Skill Trident Z RGB Series
    Graphics Card(s)
    AMD Radeon RX 580 8GB GDDR5
    Sound Card
    On Board
    Monitor(s) Displays
    Samsung 27" , PLANAR 22", eMachine 22"
    Screen Resolution
    1920 X 1080
    Hard Drives
    ~~~~~~~~~~~~~~~~~~~~~~~~~~
    ~ P34A60 512GB NVMe PCIe Gen3x4 M.2
    ~ 3TB WD Red HDD (extra storage)
    ~ SanDisk 250GB SSD
    ~ 2 X 1TB HDD
    ~~~~~~~~~~
    PSU
    Corsair RM850 Fully Modular (850watts)
    Case
    NZXT Phantom 630 CA-PH630-W1
    Cooling
    CORSAIR iCUE H100i RGB PRO XT
    Keyboard
    Logitech K860
    Mouse
    Logitech MX Master
    Internet Speed
    752Mbps (Download) / 537Mbps (Upload)
    Browser
    Firefox
    Antivirus
    Malwarebytes
    Other Info
    *This is my Main Computer That I use*
  • Operating System
    Windows 10 Pro x64
    Computer type
    PC/Desktop
    Manufacturer/Model
    Asus
    CPU
    AMD A10-5700 APU @ 3.40Ghz
    Motherboard
    Asus CM1745
    Memory
    8GB
    Graphics card(s)
    AMD Radeon R7 350x GDDR5 4 GB
    Sound Card
    On Board
    Monitor(s) Displays
    Dual Monitor Setup ONN 22" Monitors
    Screen Resolution
    1920 X 1080
    Hard Drives
    ~~~~~~~~
    250GB SSD

    500GB HDD
    ~~~~~~~~
    PSU
    350Watt PSU
    Cooling
    Air Cooling
    Mouse
    MX Master
    Keyboard
    Microsoft Ergonomic 4000
    Internet Speed
    752Mbps (Download) / 537Mbps (Upload)
    Browser
    Firefox
    Antivirus
    Malwarebytes
    Other Info
    *Computer for Weather Software*
I use

no@thankyou.com
password

Might have to try username and password method. . lol
There is nothing special about Username and Password. I just use it because it is so easy to remember. In any case it confuses Windows and lets me create a local account.

I don't know why somebody wants to install Windows 11 without the Internet connected. During the setup Windows needs to do some updates from the Internet. After all you have to eventually connect to the Internet. You might as well give Windows a head start.


My Computers

System One System Two

  • OS
    Windows 11 Pro 23H2
    Computer type
    Laptop
    Manufacturer/Model
    ASUS TUF Gaming A15 (2022)
    CPU
    AMD Ryzen 7 6800H with Radeon 680M GPU (486MB RAM)
    Memory
    Micron DDR5-4800 (2400MHz) 16GB (2 x 8GB)
    Graphics Card(s)
    NVIDIA RTX 3060 Laptop (6GB RAM)
    Sound Card
    n/a
    Monitor(s) Displays
    15.6-inch
    Screen Resolution
    1920x1080 300Hz
    Hard Drives
    2 x Samsung 980 (1TB M.2 NVME SSD)
    PSU
    n/a
    Mouse
    Wireless Mouse M510
    Internet Speed
    1200Mbps/250Mbps
    Browser
    Firefox
    Antivirus
    Malwarebytes
  • Operating System
    Windows 11 Pro 23H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom build
    CPU
    AMD Ryzen 7 3700X
    Motherboard
    ASUS PRIME X370-PRO
    Memory
    G.SKILL Flare X 32GB (2x16GB) DDR4
    Graphics card(s)
    ASUS ROG-STRIX-RTX3060TI-08G-V2-GAMING (RTX 3060-Ti, 8GB RAM)
    Monitor(s) Displays
    Samsung S23A300B (23-in LED)
    Screen Resolution
    1080p 60Hz
    Hard Drives
    2TB XPG SX8200 Pro (M2. PCIe SSD) || 2TB Intel 660P (M2. PCIe SSD) ||
    PSU
    Corsair RM750x (750 watts)
    Case
    Cooler Master MasterCase 5
    Cooling
    Corsair H60 AIO water cooler
    Mouse
    Logitech K350 (wireless)
    Keyboard
    Logitech M510 (wireless)
    Internet Speed
    1200 Mbps down / 200 Mbps up
    Browser
    Firefox, Edge, Chrome
    Antivirus
    Malwarebytes (Premium)
    Other Info
    ASUS Blu-ray Burner BW-16D1HT (SATA) || Western Digital Elements 12TB USB 3.0 external hard drive used with Acronis True Image backup software || HP OfficeJet Pro 6975 Printer/Scanner
There is nothing special about Username and Password. I just use it because it is so easy to remember. In any case it confuses Windows and lets me create a local account.

I don't know why somebody wants to install Windows 11 without the Internet connected. During the setup Windows needs to do some updates from the Internet. After all you have to eventually connect to the Internet. You might as well give Windows a head start.
I use it just to create a local account


My Computers

System One System Two

  • OS
    Windows 11 Pro x64 23H2 v22631.3447
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built Myself in 2013
    CPU
    AMD Ryzen 1800X 8-Core @ 3.60GHz
    Motherboard
    Asus Crosshair VI Hero
    Memory
    16GB G.Skill Trident Z RGB Series
    Graphics Card(s)
    AMD Radeon RX 580 8GB GDDR5
    Sound Card
    On Board
    Monitor(s) Displays
    Samsung 27" , PLANAR 22", eMachine 22"
    Screen Resolution
    1920 X 1080
    Hard Drives
    ~~~~~~~~~~~~~~~~~~~~~~~~~~
    ~ P34A60 512GB NVMe PCIe Gen3x4 M.2
    ~ 3TB WD Red HDD (extra storage)
    ~ SanDisk 250GB SSD
    ~ 2 X 1TB HDD
    ~~~~~~~~~~
    PSU
    Corsair RM850 Fully Modular (850watts)
    Case
    NZXT Phantom 630 CA-PH630-W1
    Cooling
    CORSAIR iCUE H100i RGB PRO XT
    Keyboard
    Logitech K860
    Mouse
    Logitech MX Master
    Internet Speed
    752Mbps (Download) / 537Mbps (Upload)
    Browser
    Firefox
    Antivirus
    Malwarebytes
    Other Info
    *This is my Main Computer That I use*
  • Operating System
    Windows 10 Pro x64
    Computer type
    PC/Desktop
    Manufacturer/Model
    Asus
    CPU
    AMD A10-5700 APU @ 3.40Ghz
    Motherboard
    Asus CM1745
    Memory
    8GB
    Graphics card(s)
    AMD Radeon R7 350x GDDR5 4 GB
    Sound Card
    On Board
    Monitor(s) Displays
    Dual Monitor Setup ONN 22" Monitors
    Screen Resolution
    1920 X 1080
    Hard Drives
    ~~~~~~~~
    250GB SSD

    500GB HDD
    ~~~~~~~~
    PSU
    350Watt PSU
    Cooling
    Air Cooling
    Mouse
    MX Master
    Keyboard
    Microsoft Ergonomic 4000
    Internet Speed
    752Mbps (Download) / 537Mbps (Upload)
    Browser
    Firefox
    Antivirus
    Malwarebytes
    Other Info
    *Computer for Weather Software*
I wish I had known to be a little more savvy when I set up my Microsoft account it would ahve stopped a lot of the nonsense surrounding the issue. By the by I had to have a grin when I read no@thankyou.com LOL!!


My Computer

System One

  • OS
    Windows 11 Pro 22H2 (OS Build 22621.2361)
    Computer type
    Laptop
    Manufacturer/Model
    Asus Vivo notebook X712P
    CPU
    i7 -10510U
    Motherboard
    Asus
    Memory
    Samsung 16GB DDR4 2666 MHz
    Graphics Card(s)
    On board Intel CPU graphics
    Sound Card
    N/a
    Monitor(s) Displays
    Generic
    Hard Drives
    Samsung 970 Pro NMe
    PSU
    N/A
    Case
    N/A
    Cooling
    Asus in built
    Keyboard
    Generic
    Mouse
    Logitec Wireless
    Internet Speed
    50MB max
    Browser
    Brave
    Antivirus
    ESET Smart Security
Brink,

Wouldn't it be helpful to include, in the Step 7 list about not needing a product key, a comment about reinstallations not requiring one to be entered?


All the best,
Denis


My Computer

System One

  • OS
    Windows 11 Home x64 Version 23H2 Build 22631.3447
Brink,

Wouldn't it be helpful to include, in the Step 7 list about not needing a product key, a comment about reinstallations not requiring one to be entered?


All the best,
Denis

Hello Denis, :alien:

Did you mean for clean installing on an OEM device for reinstallations?


My Computers

System One System Two

  • OS
    Windows 11 Pro for Workstations
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom self build
    CPU
    Intel i7-8700K 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    64 GB (4x16GB) G.SKILL TridentZ RGB DDR4 3600 MHz (F4-3600C18D-32GTZR)
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING (11GB GDDR5X)
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    2 x Samsung Odyssey G75 27"
    Screen Resolution
    2560x1440
    Hard Drives
    1TB Samsung 990 PRO M.2,
    4TB Samsung 990 PRO M.2,
    8TB WD MyCloudEX2Ultra NAS
    PSU
    Seasonic Prime Titanium 850W
    Case
    Thermaltake Core P3 wall mounted
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master 3
    Internet Speed
    1 Gbps Download and 35 Mbps Upload
    Browser
    Google Chrome
    Antivirus
    Microsoft Defender and Malwarebytes Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Galaxy S23 Plus phone
  • Operating System
    Windows 11 Pro
    Computer type
    Laptop
    Manufacturer/Model
    HP Spectre x360 2in1 14-eu0098nr (2024)
    CPU
    Intel Core Ultra 7 155H 4.8 GHz
    Memory
    16 GB LPDDR5x-7467 MHz
    Graphics card(s)
    Integrated Intel Arc
    Sound Card
    Poly Studio
    Monitor(s) Displays
    14" 2.8K OLED multitouch
    Screen Resolution
    2880 x 1800
    Hard Drives
    2 TB PCIe NVMe M.2 SSD
    Internet Speed
    Intel Wi-Fi 7 BE200 (2x2) and Bluetooth 5.4
    Browser
    Chrome and Edge
    Antivirus
    Windows Defender and Malwarebytes Premium
Back
Top Bottom
