Moving Windows 11 intact to an OEM computer


Winuser

Well-known member
Pro User
VIP
Local time
1:17 AM
Posts
4,462
Visit site
OS
Windows 11
I really have no issues I can find in more than seven years of doing it :wink:
It has always worked for me. IMHO, unless one is having problems or their OCD kicks in if they don't, a clean install is not needed.


My Computers

System One System Two

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    PowerSpec B746
    CPU
    Intel Core i7-10700K
    Motherboard
    ASRock Z490 Phantom Gaming 4/ax
    Memory
    16GB (8GB PC4-19200 DDR4 SDRAM x2)
    Graphics Card(s)
    NVIDIA GeForce GTX 1050 TI
    Sound Card
    Realtek Audio
    Monitor(s) Displays
    Samsung SAM0A87 Samsung SAM0D32
    Screen Resolution
    1920 x 1080
    Hard Drives
    NVMe WDC WDS100T2B0C-00PXH0 1TB
    Samsung SSD 860 EVO 1TB
    PSU
    750 Watts (62.5A)
    Case
    PowerSpec/Lian Li ATX 205
    Keyboard
    Logitech K270
    Mouse
    Logitech M185
    Browser
    Microsoft Edge and Firefox
    Antivirus
    ESET Internet Security
  • Operating System
    Windows 11 Dev
    Computer type
    Laptop
    Manufacturer/Model
    HP Envy x360 15-ds1083cl
    CPU
    AMD Ryzen 7 4700U 2.0GHZ
    Memory
    16 MB DDR 4-2666
    Graphics card(s)
    AMD Radeon
    Monitor(s) Displays
    15.6"
    Screen Resolution
    1920x1080
    Hard Drives
    PCIe NVMe M.2 512GB
    Browser
    Firefox, Edge and Edge Canary
    Antivirus
    ESET Internet Security

glasskuter

Well-known member
Pro User
VIP
Local time
12:17 AM
Posts
3,320
Location
Paris in the Lone Star State of Texas
Visit site
OS
Windows 11 Pro 22H2 22621.1105
Under what conditions is the IRST driver needed?

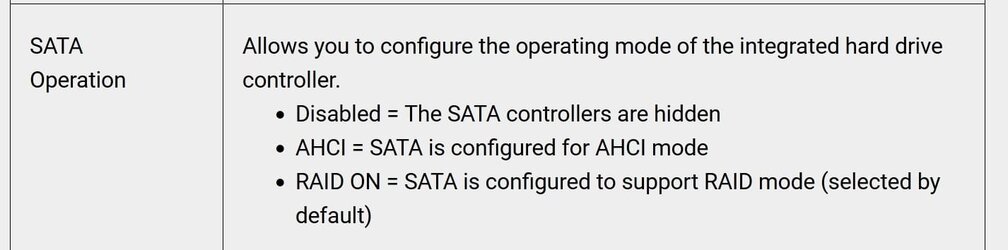

For workstation systems equipped with raid, Intel IRST F6 preboot driver requirement has been around for quite some time. I've used workstation systems for over 10 years and my old Dell 4th gen and my 10th gen cpu requires it, as did another Dell workstation that I sold. But it is not Dell specific as I have run into the situation in the past with some HPs as well.

Beginning with Intel 11th generation CPU, Intel uses a different technology and this driver has to be loaded on all systems, not just workstations.
Here's the article from Dell but Asus, Lenovo, and HP have similar articles. Intel 11th and 12th Generation Processors, No Drives Can Be Found During Windows 10 and Windows 11 Installation | Dell Bulgaria
(NOTE: This article mentions Windows retail, but I can attest these drivers have to be pre-loaded when using an iso created by media creation tool as well. As of my last Windows 11 clean install (in Nov.), this boot-start driver was not included as an "in the box with Windows" package. It may well be by now)

In a nutshell when installing Windows, you download Intel IRST F6, unzip it, & load drivers onto a flash drive. During the installation process at the point where it says "where do you want to install windows" it won't show any drives. You click 'load driver' and point it to your flash drive to insert the drivers Or the drivers can be injected into the Win PE image boot.wim file if desired
.
I'm looking for the article from Intel regarding the need for this driver specifically with Tiger Lake and Alder Lake CPUs (11th-12 gen). I'll post it when I find it again.


My Computers

System One System Two

  • OS
    Windows 11 Pro 22H2 22621.1105
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Optiplex 7080
    CPU
    i9-10900 10 core 20 threads
    Motherboard
    DELL 0J37VM
    Memory
    32 gb
    Graphics Card(s)
    none-Intel UHD Graphics 630
    Sound Card
    Integrated Realtek
    Monitor(s) Displays
    Benq 27
    Screen Resolution
    2560x1440
    Hard Drives
    256 m.2 2230-256+1 tb hdd
    PSU
    500w
    Case
    MT
    Cooling
    Dell Premium
    Keyboard
    Logitech wired
    Mouse
    Logitech wireless
    Internet Speed
    so slow I'm too embarrassed to tell
    Browser
    Firefox
    Antivirus
    Defender+MWB Premium
  • Operating System
    Windows 10 Pro 21H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Optiplex 9020
    CPU
    i7-4770
    Memory
    24 gb
    Monitor(s) Displays
    Benq 27
    Screen Resolution
    2560x1440
    Hard Drives
    256 gb Toshiba BG4 M.2 NVE SSB and 1 tb hdd
    PSU
    500w
    Case
    MT
    Cooling
    Dell factory
    Mouse
    Logitech wireless
    Keyboard
    Logitech wired
    Internet Speed
    still not telling
    Browser
    Firefox
    Antivirus
    Defender+MWB Premium

Winuser

Well-known member
Pro User
VIP
Local time
1:17 AM
Posts
4,462
Visit site
OS
Windows 11
First, I agree wholeheartedly with NavyLCDR in that I believe that there there is a very high probability that it will simply work.
I agree, I think it will work. I'm surprised I didn't think of it. :cool:


My Computers

System One System Two

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    PowerSpec B746
    CPU
    Intel Core i7-10700K
    Motherboard
    ASRock Z490 Phantom Gaming 4/ax
    Memory
    16GB (8GB PC4-19200 DDR4 SDRAM x2)
    Graphics Card(s)
    NVIDIA GeForce GTX 1050 TI
    Sound Card
    Realtek Audio
    Monitor(s) Displays
    Samsung SAM0A87 Samsung SAM0D32
    Screen Resolution
    1920 x 1080
    Hard Drives
    NVMe WDC WDS100T2B0C-00PXH0 1TB
    Samsung SSD 860 EVO 1TB
    PSU
    750 Watts (62.5A)
    Case
    PowerSpec/Lian Li ATX 205
    Keyboard
    Logitech K270
    Mouse
    Logitech M185
    Browser
    Microsoft Edge and Firefox
    Antivirus
    ESET Internet Security
  • Operating System
    Windows 11 Dev
    Computer type
    Laptop
    Manufacturer/Model
    HP Envy x360 15-ds1083cl
    CPU
    AMD Ryzen 7 4700U 2.0GHZ
    Memory
    16 MB DDR 4-2666
    Graphics card(s)
    AMD Radeon
    Monitor(s) Displays
    15.6"
    Screen Resolution
    1920x1080
    Hard Drives
    PCIe NVMe M.2 512GB
    Browser
    Firefox, Edge and Edge Canary
    Antivirus
    ESET Internet Security

glasskuter

Well-known member
Pro User
VIP
Local time
12:17 AM
Posts
3,320
Location
Paris in the Lone Star State of Texas
Visit site
OS
Windows 11 Pro 22H2 22621.1105
Under what conditions is the IRST driver needed?
@Bree @Winuser
Under what conditions is the IRST driver needed?
For workstation systems equipped with raid, Intel IRST F6 preboot driver requirement has been around for quite some time. I've used workstation systems for over 10 years and my old Dell 4th gen and my 10th gen cpu requires it, as did another Dell workstation that I sold. But it is not Dell specific as I have run into the situation in the past with some HPs as well.

Beginning with Intel 11th generation CPU, Intel uses a different technology and this driver has to be loaded on all systems, not just workstations.
Here's the article from Dell but Asus, Lenovo, and HP have similar articles. Intel 11th and 12th Generation Processors, No Drives Can Be Found During Windows 10 and Windows 11 Installation | Dell Bulgaria
(NOTE: This article mentions Windows retail, but I can attest these drivers have to be pre-loaded when using an iso created by media creation tool as well. As of my last Windows 11 clean install (in Nov.), this boot-start driver was not included as an "in the box with Windows" package. It may well be by now but I highly doubt it since IRST has been required in the past for workstations and MS did not deem to put the driver into their isos)

In a nutshell when installing Windows, you download Intel IRST F6, unzip it, & load drivers onto a flash drive. During the installation process at the point where it says "where do you want to install windows" it won't show any drives. You click 'load driver' and point it to your flash drive to insert the drivers Or the drivers can be injected into the Win PE image boot.wim file if desired
.
I'm looking for the article from Intel regarding the need for this driver specifically with Tiger Lake and Alder Lake CPUs (11th-12 gen). I'll post it when I find it again.

So my argument regarding this thread is chances that this driver exists on the OP's old computer are slim to none and chances his new computer is at least 11th gen( if its Intel) are pretty good.. We do not know as he didn't say. If that be the case, his old drive will not include the needed driver so when he plugs it into the new system, it will not boot.
Now if he's going from Intel to AMD or AMD-AMD it might.


My Computers

System One System Two

  • OS
    Windows 11 Pro 22H2 22621.1105
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Optiplex 7080
    CPU
    i9-10900 10 core 20 threads
    Motherboard
    DELL 0J37VM
    Memory
    32 gb
    Graphics Card(s)
    none-Intel UHD Graphics 630
    Sound Card
    Integrated Realtek
    Monitor(s) Displays
    Benq 27
    Screen Resolution
    2560x1440
    Hard Drives
    256 m.2 2230-256+1 tb hdd
    PSU
    500w
    Case
    MT
    Cooling
    Dell Premium
    Keyboard
    Logitech wired
    Mouse
    Logitech wireless
    Internet Speed
    so slow I'm too embarrassed to tell
    Browser
    Firefox
    Antivirus
    Defender+MWB Premium
  • Operating System
    Windows 10 Pro 21H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Optiplex 9020
    CPU
    i7-4770
    Memory
    24 gb
    Monitor(s) Displays
    Benq 27
    Screen Resolution
    2560x1440
    Hard Drives
    256 gb Toshiba BG4 M.2 NVE SSB and 1 tb hdd
    PSU
    500w
    Case
    MT
    Cooling
    Dell factory
    Mouse
    Logitech wireless
    Keyboard
    Logitech wired
    Internet Speed
    still not telling
    Browser
    Firefox
    Antivirus
    Defender+MWB Premium

Winuser

Well-known member
Pro User
VIP
Local time
1:17 AM
Posts
4,462
Visit site
OS
Windows 11
@glasskuter, do you have a link to the actual driver. I keep finding installer programs and not just the driver.


My Computers

System One System Two

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    PowerSpec B746
    CPU
    Intel Core i7-10700K
    Motherboard
    ASRock Z490 Phantom Gaming 4/ax
    Memory
    16GB (8GB PC4-19200 DDR4 SDRAM x2)
    Graphics Card(s)
    NVIDIA GeForce GTX 1050 TI
    Sound Card
    Realtek Audio
    Monitor(s) Displays
    Samsung SAM0A87 Samsung SAM0D32
    Screen Resolution
    1920 x 1080
    Hard Drives
    NVMe WDC WDS100T2B0C-00PXH0 1TB
    Samsung SSD 860 EVO 1TB
    PSU
    750 Watts (62.5A)
    Case
    PowerSpec/Lian Li ATX 205
    Keyboard
    Logitech K270
    Mouse
    Logitech M185
    Browser
    Microsoft Edge and Firefox
    Antivirus
    ESET Internet Security
  • Operating System
    Windows 11 Dev
    Computer type
    Laptop
    Manufacturer/Model
    HP Envy x360 15-ds1083cl
    CPU
    AMD Ryzen 7 4700U 2.0GHZ
    Memory
    16 MB DDR 4-2666
    Graphics card(s)
    AMD Radeon
    Monitor(s) Displays
    15.6"
    Screen Resolution
    1920x1080
    Hard Drives
    PCIe NVMe M.2 512GB
    Browser
    Firefox, Edge and Edge Canary
    Antivirus
    ESET Internet Security

hsehestedt

Well-known member
Power User
VIP
Local time
12:17 AM
Posts
1,347
Location
Texas, USA
Visit site
OS
Windows 11 Pro 22H2
@glasskuter,

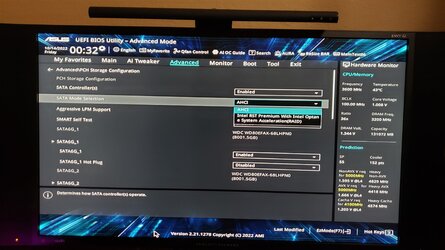

Thanks for the response. What's interesting is that on my system using an ASUS Prime Z590-A motherboard with an Intel i7-11700K CPU, when I boot from a standard, unmodified, retail Windows image, I see all my drives just fine without loading the IRST driver. I just tried it again 5 minutes ago.

In my system I have 2 NVMe SSDs, 2 SATA SSDs, and 2 SATA 8TB HDDs. I see all of them when booting from my unmodified Windows image without the need for the IRST driver.

I'm not using RAID and all my SATA drive interfaces are configured for AHCI, so maybe that's the difference or the reason my system does not seem to need it.

But, just in case I ever do decide to use RAID on this system, maybe I'll just ahead the IRST driver into Windows images so that I don't ever have to worry about loading it manually.

Thanks for shedding some light on this issue.

I think I'll read up on this some more to educate myself further :-)


My Computers

System One System Two

  • OS
    Windows 11 Pro 22H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Home Built
    CPU
    Intel i7-11700K
    Motherboard
    ASUS Prime Z590-A
    Memory
    128GB Crucial Ballistix 3200MHz DRAM
    Graphics Card(s)
    No GPU - CPU graphics only (for now)
    Sound Card
    Realtek (on motherboard)
    Monitor(s) Displays
    HP Envy 32
    Screen Resolution
    2560 x 1440
    Hard Drives
    1 x 1TB NVMe Gen 4 x 4 SSD
    1 x 2TB NVMe Gen 3 x 4 SSD
    2 x 512GB 2.5" SSDs
    2 x 8TB HD
    PSU
    Corsair HX850i
    Case
    Corsair iCue 5000X RGB
    Cooling
    Noctua NH-D15 chromax.black cooler + 10 case fans
    Keyboard
    CODE backlit mechanical keyboard
    Mouse
    Logitech MX Master 3
    Internet Speed
    1Gb Up / 1 Gb Down
    Browser
    Chromium Edge
    Antivirus
    Windows Defender
    Other Info
    Additional options installed:
    WiFi 6E PCIe adapter
    ASUS ThunderboltEX 4 PCIe adapter
  • Operating System
    Dual Boot Windows 11 Pro 22H2 and Windows 10 Pro 22H2
    Computer type
    Laptop
    Manufacturer/Model
    HP Spectre x360 15-BL012DX
    CPU
    Intel i7-7500U
    Memory
    32GB
    Graphics card(s)
    Dual Intel HD 620 and Nvidia GeForce 940MX
    Sound Card
    Built-in Realtek HD Audio
    Monitor(s) Displays
    4k 15-inch
    Screen Resolution
    4k (3840 x 2160)
    Hard Drives
    1TB Seagate FireCuda 510 NVMe SSD
    Internet Speed
    1Gb Up / 1Gb Down
    Browser
    Chromium Edge
    Antivirus
    Windows Defender
    Other Info
    RAM Upgraded from 16GB to 32GB WiFi Upgraded from WiFi 5 to WiFi 6 SSD upgraded from 512GB NVMe SSD to 1TB Seagate FireCuda 510 NVMe SSD

Wynona

Well-known member
Power User
VIP
Local time
12:17 AM
Posts
1,829
Location
Arkansas
Visit site
OS
Windows 11 22621.819
I’ve got 2 desktops. A very old one, with lots of data and installed programs, running Win11 Pro on a full retail licence linked to my account and a newer one, fully Win11 compliant and with a big-enough SSD, running Win11 Pro on an OEM licence in a fresh state not linked but activated. (I can link it if that helps.)
I’d like to copy the intact system from the old computer onto the new SSD computer . Then junk the old computer.
But I’d like to use the new computer’s OEM licence and keep the old computer’s full retail licence unused.
Is that possible? I’ve got several hard disks for a transfer. I use Veeam (free Windows version) to backup the old computer to itself.
Winver:
Old 22000.1098
New 22000.978
Personally, since both computers are windows pro, and since the new one has a large SSD you want to use, I would leave it intact, unregister and reinstall my programs/apps on the new computer, then copy all my data (files and folders) over.

This way you can leave the old computer intact until you get things like you want them, and as a bonus, your new computer would be absolutely clean. Also, your retail version can be used on another computer, although you may have to call Microsoft. (I'm not sure you can unregister Windows 11.)

For me, that would take much less time and effort.


My Computers

System One System Two

  • OS
    Windows 11 22621.819
    Computer type
    PC/Desktop
    Manufacturer/Model
    HP Envy TE01-1xxx
    CPU
    Intel(R) Core(TM) i7-10700 CPU @ 2.90GHz 2.90 GHz
    Motherboard
    16.0GB Dual-Channel Unknown @ 1463MHz (21-21-21-47)
    Memory
    16384 MBytes
    Graphics Card(s)
    Intel UHD Graphics 630
    Sound Card
    Realtek High Definition Audio
    Monitor(s) Displays
    Monitor 1 - Acer 27" Monitor 2 - Acer 27"
    Screen Resolution
    1920 x 1080
    Hard Drives
    WDC PC SN530 SDBPNPZ-512G-1006 (SSD)
    Seagate ST1000DM003-1SB102
    Seagate BUP Slim SCSI Disk Device (SSD)
    PSU
    HP
    Case
    HP
    Cooling
    Standard
    Keyboard
    Logitech Wave K350
    Mouse
    Logitech M705
    Internet Speed
    100 mbps
    Browser
    Firefox
    Antivirus
    Windows Defender
    Other Info
    That's all Folks!
  • Operating System
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    HP
    CPU
    Intel Core i7 (10th gen) 10700
    Motherboard
    Intel
    Memory
    16 GB
    Graphics card(s)
    Intel UHD Graphics 630
    Sound Card
    Built-in
    Monitor(s) Displays
    Acer 27" & Samsung 24"
    Screen Resolution
    1920 x
    Hard Drives
    SSD (512 GB)
    HDD (1 TB)
    Seagate
    PSU
    Intel i7 10th Generation
    Case
    HP
    Cooling
    HP/Intel?
    Mouse
    Logitech M705
    Keyboard
    Logitech Wave K350
    Internet Speed
    50 mbps
    Browser
    Firefox 90.2
    Antivirus
    Windows Defender
    Other Info
    Headphone/Microphone Combo
    SuperSpeed USB Type-A (4 on front)
    HP 3-in-One Card Readr
    SuperSpeed USB Type-C
    DVD Writer

pat100

New member
Thread Starter
Local time
6:17 AM
Posts
3
Visit site
OS
Windows 11
Thanks for the interesting comments and discussion.
I bit the bullet and cloned my old Win11 HD system and data to the new SSD machine.
I used Veeam's free Agent for Windows. Created a backup, moved it to new machine, and restored it via their restoration software on a USB thumb drive.
It was good to move all my customisations and groomed apps like Thunderbird.
Veeam worked well and provided a driver for the SSD. I wasn’t 100% sure what I was doing but crossing my fingers seemed to work.
Windows didn’t make any complaints and shows as Activated. Non-subscription Office 2019 Pro needed reactivating but the website [GETCID.INFO] Microsoft Self-Service Support WebTool gave me the needed confirmation ID so no telephone call was required.


My Computer

System One

  • OS
    Windows 11

glasskuter

Well-known member
Pro User
VIP
Local time
12:17 AM
Posts
3,320
Location
Paris in the Lone Star State of Texas
Visit site
OS
Windows 11 Pro 22H2 22621.1105
@hsehestedt Please do read and straighten me out if I'm crooked.
This is not the original Intel article I read but it states as of 08/22: Intel® RST storage driver supporting Intel 11th generation platforms and later is not yet available inbox with the operating system. Due to this, the driver must be installed during the installation process to recognize drives that are being managed by Intel® RST on the affected platforms.

I've been thinking and reading a lot on this. For all you saying this poster can just image his old installation and restore it to his new computer without issues(assuming he has 10th or 11th gen core processor), please explain to me HOW,without using Macrium Redeploy to insert the drivers, is he going to get the drivers onto his new machine. Macrium recovery media won't even be able to see his disks during recovery unless he creates his recovery media in WinPE and adds his f6 driver to it. Even then, these drivers are not persistant over to the recovered image. All that does is let him recover the image. The backup he will be restoring will not include those drivers so how can the boot process see them?

This may all be moot anyway. He may be running AMD. @pat100 what cpu ARE you running.

do you have a link to the actual driver
I looked at Powerspec to see if they had IRST listed. They don't. Not all 10th generation core cpus use IRST like 11th and 12th gen do. My i9-10900 does. Take a look in device manager to see if it's listed. If it's not, you don't need it.
I got mine from the Dell drivers download page. When I unzipped the .exe file for IRST, it had a folder named F6.
Screenshot 2022-10-13 192217.jpg


My Computers

System One System Two

  • OS
    Windows 11 Pro 22H2 22621.1105
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Optiplex 7080
    CPU
    i9-10900 10 core 20 threads
    Motherboard
    DELL 0J37VM
    Memory
    32 gb
    Graphics Card(s)
    none-Intel UHD Graphics 630
    Sound Card
    Integrated Realtek
    Monitor(s) Displays
    Benq 27
    Screen Resolution
    2560x1440
    Hard Drives
    256 m.2 2230-256+1 tb hdd
    PSU
    500w
    Case
    MT
    Cooling
    Dell Premium
    Keyboard
    Logitech wired
    Mouse
    Logitech wireless
    Internet Speed
    so slow I'm too embarrassed to tell
    Browser
    Firefox
    Antivirus
    Defender+MWB Premium
  • Operating System
    Windows 10 Pro 21H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Optiplex 9020
    CPU
    i7-4770
    Memory
    24 gb
    Monitor(s) Displays
    Benq 27
    Screen Resolution
    2560x1440
    Hard Drives
    256 gb Toshiba BG4 M.2 NVE SSB and 1 tb hdd
    PSU
    500w
    Case
    MT
    Cooling
    Dell factory
    Mouse
    Logitech wireless
    Keyboard
    Logitech wired
    Internet Speed
    still not telling
    Browser
    Firefox
    Antivirus
    Defender+MWB Premium

hsehestedt

Well-known member
Power User
VIP
Local time
12:17 AM
Posts
1,347
Location
Texas, USA
Visit site
OS
Windows 11 Pro 22H2
Due to this, the driver must be installed during the installation process to recognize drives that are being managed by Intel® RST on the affected platforms.
Ahhh, yes. I think that I get it now. I think that your statement helped me to understand. I'm not in front of my desktop now, but I seem to recall a setting in the BIOS to disable that functionality in the BIOS. It was a setting something like to enable IRST or Intel RAID. I'll look for that setting when back in front of that machine later.

Because I knew I would not use that functionality I would have disabled all such settings in the BIOS. That would be why I see all the drives without the need of any such driver.

What's interesting is that as a result of this thread, I installed the IRST driver on my computer a little while ago. There was no mention or complaint that something was not enabled in the BIOS.

Still, I suspect that may be what is going on. I'll respond again once I'm back in front of that machine and have had a chance to look at my BIOS settings.


My Computers

System One System Two

  • OS
    Windows 11 Pro 22H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Home Built
    CPU
    Intel i7-11700K
    Motherboard
    ASUS Prime Z590-A
    Memory
    128GB Crucial Ballistix 3200MHz DRAM
    Graphics Card(s)
    No GPU - CPU graphics only (for now)
    Sound Card
    Realtek (on motherboard)
    Monitor(s) Displays
    HP Envy 32
    Screen Resolution
    2560 x 1440
    Hard Drives
    1 x 1TB NVMe Gen 4 x 4 SSD
    1 x 2TB NVMe Gen 3 x 4 SSD
    2 x 512GB 2.5" SSDs
    2 x 8TB HD
    PSU
    Corsair HX850i
    Case
    Corsair iCue 5000X RGB
    Cooling
    Noctua NH-D15 chromax.black cooler + 10 case fans
    Keyboard
    CODE backlit mechanical keyboard
    Mouse
    Logitech MX Master 3
    Internet Speed
    1Gb Up / 1 Gb Down
    Browser
    Chromium Edge
    Antivirus
    Windows Defender
    Other Info
    Additional options installed:
    WiFi 6E PCIe adapter
    ASUS ThunderboltEX 4 PCIe adapter
  • Operating System
    Dual Boot Windows 11 Pro 22H2 and Windows 10 Pro 22H2
    Computer type
    Laptop
    Manufacturer/Model
    HP Spectre x360 15-BL012DX
    CPU
    Intel i7-7500U
    Memory
    32GB
    Graphics card(s)
    Dual Intel HD 620 and Nvidia GeForce 940MX
    Sound Card
    Built-in Realtek HD Audio
    Monitor(s) Displays
    4k 15-inch
    Screen Resolution
    4k (3840 x 2160)
    Hard Drives
    1TB Seagate FireCuda 510 NVMe SSD
    Internet Speed
    1Gb Up / 1Gb Down
    Browser
    Chromium Edge
    Antivirus
    Windows Defender
    Other Info
    RAM Upgraded from 16GB to 32GB WiFi Upgraded from WiFi 5 to WiFi 6 SSD upgraded from 512GB NVMe SSD to 1TB Seagate FireCuda 510 NVMe SSD

hsehestedt

Well-known member
Power User
VIP
Local time
12:17 AM
Posts
1,347
Location
Texas, USA
Visit site
OS
Windows 11 Pro 22H2
Got it. The screenshot below shows the setting that I was thinking of.

Note that I currently have the SATA mode set to AHCI implying that Intel RST is disabled. I always go through every single line in the BIOS prior to installing an OS and always use standard AHCI for my drives. The entire industry is moving away from RAID so have no need for it and that need will diminish even more in the future as HDD sizes increase.

But this explains why I have not needed the IRST driver. My refusal to use RAID also explains my lack of knowledge on the whole IRST topic. At least that's my excuse and I'm sticking with it :-)



My Computers

System One System Two

  • OS
    Windows 11 Pro 22H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Home Built
    CPU
    Intel i7-11700K
    Motherboard
    ASUS Prime Z590-A
    Memory
    128GB Crucial Ballistix 3200MHz DRAM
    Graphics Card(s)
    No GPU - CPU graphics only (for now)
    Sound Card
    Realtek (on motherboard)
    Monitor(s) Displays
    HP Envy 32
    Screen Resolution
    2560 x 1440
    Hard Drives
    1 x 1TB NVMe Gen 4 x 4 SSD
    1 x 2TB NVMe Gen 3 x 4 SSD
    2 x 512GB 2.5" SSDs
    2 x 8TB HD
    PSU
    Corsair HX850i
    Case
    Corsair iCue 5000X RGB
    Cooling
    Noctua NH-D15 chromax.black cooler + 10 case fans
    Keyboard
    CODE backlit mechanical keyboard
    Mouse
    Logitech MX Master 3
    Internet Speed
    1Gb Up / 1 Gb Down
    Browser
    Chromium Edge
    Antivirus
    Windows Defender
    Other Info
    Additional options installed:
    WiFi 6E PCIe adapter
    ASUS ThunderboltEX 4 PCIe adapter
  • Operating System
    Dual Boot Windows 11 Pro 22H2 and Windows 10 Pro 22H2
    Computer type
    Laptop
    Manufacturer/Model
    HP Spectre x360 15-BL012DX
    CPU
    Intel i7-7500U
    Memory
    32GB
    Graphics card(s)
    Dual Intel HD 620 and Nvidia GeForce 940MX
    Sound Card
    Built-in Realtek HD Audio
    Monitor(s) Displays
    4k 15-inch
    Screen Resolution
    4k (3840 x 2160)
    Hard Drives
    1TB Seagate FireCuda 510 NVMe SSD
    Internet Speed
    1Gb Up / 1Gb Down
    Browser
    Chromium Edge
    Antivirus
    Windows Defender
    Other Info
    RAM Upgraded from 16GB to 32GB WiFi Upgraded from WiFi 5 to WiFi 6 SSD upgraded from 512GB NVMe SSD to 1TB Seagate FireCuda 510 NVMe SSD

glasskuter

Well-known member
Pro User
VIP
Local time
12:17 AM
Posts
3,320
Location
Paris in the Lone Star State of Texas
Visit site
OS
Windows 11 Pro 22H2 22621.1105
SATA mode set to AHCI
That makes sense why in your case the default MS storage controller driver would load.
So how do you interpret the statements from MS (and Dell and all the other manufacturers)?
"Intel 11th and 12th Generation processors use the new Intel Volume Management Device technology. It optimizes the storage devices' data processing effectiveness and power consumption. When you install Windows 10 or Windows 11 Retail, we must load the Intel Rapid Storage Technology (IRST) driver so that you can install Windows. It is normal, not a hardware defect.
If your computer is with the 11th Generation Intel processor, and then you will experience that Windows cannot find any drives when installing Windows 10.

One more question. It has always been my understanding that the speed of nvme drives suffer unless one uses IRST. Is that not correct? It would seem so since the manufacturers set the default sata mode as raid which requires IRST.

OK, that's the last of my questions. I know I'll be having dreams (or nightmares) about IRST tonight.

Here is my bios options. Mine came from Dell set as raid.
Screenshot 2022-10-14 004823.jpg


My Computers

System One System Two

  • OS
    Windows 11 Pro 22H2 22621.1105
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Optiplex 7080
    CPU
    i9-10900 10 core 20 threads
    Motherboard
    DELL 0J37VM
    Memory
    32 gb
    Graphics Card(s)
    none-Intel UHD Graphics 630
    Sound Card
    Integrated Realtek
    Monitor(s) Displays
    Benq 27
    Screen Resolution
    2560x1440
    Hard Drives
    256 m.2 2230-256+1 tb hdd
    PSU
    500w
    Case
    MT
    Cooling
    Dell Premium
    Keyboard
    Logitech wired
    Mouse
    Logitech wireless
    Internet Speed
    so slow I'm too embarrassed to tell
    Browser
    Firefox
    Antivirus
    Defender+MWB Premium
  • Operating System
    Windows 10 Pro 21H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Optiplex 9020
    CPU
    i7-4770
    Memory
    24 gb
    Monitor(s) Displays
    Benq 27
    Screen Resolution
    2560x1440
    Hard Drives
    256 gb Toshiba BG4 M.2 NVE SSB and 1 tb hdd
    PSU
    500w
    Case
    MT
    Cooling
    Dell factory
    Mouse
    Logitech wireless
    Keyboard
    Logitech wired
    Internet Speed
    still not telling
    Browser
    Firefox
    Antivirus
    Defender+MWB Premium

Winuser

Well-known member
Pro User
VIP
Local time
1:17 AM
Posts
4,462
Visit site
OS
Windows 11
please explain to me HOW,without using Macrium Redeploy to insert the drivers, is he going to get the drivers onto his new machine. Macrium recovery media won't even be able to see his disks during recovery unless he creates his recovery media in WinPE and adds his f6 driver to it.
If the new computer is using the Intel driver the solution is easy. Create the Macrium Rescue Media on the new computer and make sure Check for devices missing drivers on boot and Enable Multi Boot (MBR/UEFI) is selected. I just made a new USB Rescue disk and a new version of Windows RE is available.


My Computers

System One System Two

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    PowerSpec B746
    CPU
    Intel Core i7-10700K
    Motherboard
    ASRock Z490 Phantom Gaming 4/ax
    Memory
    16GB (8GB PC4-19200 DDR4 SDRAM x2)
    Graphics Card(s)
    NVIDIA GeForce GTX 1050 TI
    Sound Card
    Realtek Audio
    Monitor(s) Displays
    Samsung SAM0A87 Samsung SAM0D32
    Screen Resolution
    1920 x 1080
    Hard Drives
    NVMe WDC WDS100T2B0C-00PXH0 1TB
    Samsung SSD 860 EVO 1TB
    PSU
    750 Watts (62.5A)
    Case
    PowerSpec/Lian Li ATX 205
    Keyboard
    Logitech K270
    Mouse
    Logitech M185
    Browser
    Microsoft Edge and Firefox
    Antivirus
    ESET Internet Security
  • Operating System
    Windows 11 Dev
    Computer type
    Laptop
    Manufacturer/Model
    HP Envy x360 15-ds1083cl
    CPU
    AMD Ryzen 7 4700U 2.0GHZ
    Memory
    16 MB DDR 4-2666
    Graphics card(s)
    AMD Radeon
    Monitor(s) Displays
    15.6"
    Screen Resolution
    1920x1080
    Hard Drives
    PCIe NVMe M.2 512GB
    Browser
    Firefox, Edge and Edge Canary
    Antivirus
    ESET Internet Security

Winuser

Well-known member
Pro User
VIP
Local time
1:17 AM
Posts
4,462
Visit site
OS
Windows 11
I just thought of something else. My old desktop originally came with the Intel Optane Memory. The very first thing I did was remove the HDD from my new desktop and replaced it with the drive from my old computer. I didn't even start the computer with the original drive. The computer booted to Windows and worked fine. The Optane memory never got used. Later I replace the Optane Memory with a 1TB NVMe drive and used it as drive C: and the old HDD became my data drive.


My Computers

System One System Two

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    PowerSpec B746
    CPU
    Intel Core i7-10700K
    Motherboard
    ASRock Z490 Phantom Gaming 4/ax
    Memory
    16GB (8GB PC4-19200 DDR4 SDRAM x2)
    Graphics Card(s)
    NVIDIA GeForce GTX 1050 TI
    Sound Card
    Realtek Audio
    Monitor(s) Displays
    Samsung SAM0A87 Samsung SAM0D32
    Screen Resolution
    1920 x 1080
    Hard Drives
    NVMe WDC WDS100T2B0C-00PXH0 1TB
    Samsung SSD 860 EVO 1TB
    PSU
    750 Watts (62.5A)
    Case
    PowerSpec/Lian Li ATX 205
    Keyboard
    Logitech K270
    Mouse
    Logitech M185
    Browser
    Microsoft Edge and Firefox
    Antivirus
    ESET Internet Security
  • Operating System
    Windows 11 Dev
    Computer type
    Laptop
    Manufacturer/Model
    HP Envy x360 15-ds1083cl
    CPU
    AMD Ryzen 7 4700U 2.0GHZ
    Memory
    16 MB DDR 4-2666
    Graphics card(s)
    AMD Radeon
    Monitor(s) Displays
    15.6"
    Screen Resolution
    1920x1080
    Hard Drives
    PCIe NVMe M.2 512GB
    Browser
    Firefox, Edge and Edge Canary
    Antivirus
    ESET Internet Security

hsehestedt

Well-known member
Power User
VIP
Local time
12:17 AM
Posts
1,347
Location
Texas, USA
Visit site
OS
Windows 11 Pro 22H2
That makes sense why in your case the default MS storage controller driver would load.
So how do you interpret the statements from MS (and Dell and all the other manufacturers)?
"Intel 11th and 12th Generation processors use the new Intel Volume Management Device technology. It optimizes the storage devices' data processing effectiveness and power consumption. When you install Windows 10 or Windows 11 Retail, we must load the Intel Rapid Storage Technology (IRST) driver so that you can install Windows. It is normal, not a hardware defect.
If your computer is with the 11th Generation Intel processor, and then you will experience that Windows cannot find any drives when installing Windows 10.

One more question. It has always been my understanding that the speed of nvme drives suffer unless one uses IRST. Is that not correct? It would seem so since the manufacturers set the default sata mode as raid which requires IRST.

OK, that's the last of my questions. I know I'll be having dreams (or nightmares) about IRST tonight.

Here is my bios options. Mine came from Dell set as raid.
View attachment 42272
That's really interesting. I'm not sure how to interpret that. I wonder if some of the big OEMs simply have some sort of workaround in place. I very vaguely recall seeing some statement from ASUS in some marketing info that sounded vaguely like it might relate to this. I may go on a research expedition to look further into this whole topic.

As for NVMe performance, I wish I knew about that before yesterday because I installed IRST yesterday. I could have performed some before and after tests. However, I have a pretty good feel for the performance of my NVMe drives, so I may do some of the same familiar tasks that involve large file copies today and see if there is any noticeable difference.


My Computers

System One System Two

  • OS
    Windows 11 Pro 22H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Home Built
    CPU
    Intel i7-11700K
    Motherboard
    ASUS Prime Z590-A
    Memory
    128GB Crucial Ballistix 3200MHz DRAM
    Graphics Card(s)
    No GPU - CPU graphics only (for now)
    Sound Card
    Realtek (on motherboard)
    Monitor(s) Displays
    HP Envy 32
    Screen Resolution
    2560 x 1440
    Hard Drives
    1 x 1TB NVMe Gen 4 x 4 SSD
    1 x 2TB NVMe Gen 3 x 4 SSD
    2 x 512GB 2.5" SSDs
    2 x 8TB HD
    PSU
    Corsair HX850i
    Case
    Corsair iCue 5000X RGB
    Cooling
    Noctua NH-D15 chromax.black cooler + 10 case fans
    Keyboard
    CODE backlit mechanical keyboard
    Mouse
    Logitech MX Master 3
    Internet Speed
    1Gb Up / 1 Gb Down
    Browser
    Chromium Edge
    Antivirus
    Windows Defender
    Other Info
    Additional options installed:
    WiFi 6E PCIe adapter
    ASUS ThunderboltEX 4 PCIe adapter
  • Operating System
    Dual Boot Windows 11 Pro 22H2 and Windows 10 Pro 22H2
    Computer type
    Laptop
    Manufacturer/Model
    HP Spectre x360 15-BL012DX
    CPU
    Intel i7-7500U
    Memory
    32GB
    Graphics card(s)
    Dual Intel HD 620 and Nvidia GeForce 940MX
    Sound Card
    Built-in Realtek HD Audio
    Monitor(s) Displays
    4k 15-inch
    Screen Resolution
    4k (3840 x 2160)
    Hard Drives
    1TB Seagate FireCuda 510 NVMe SSD
    Internet Speed
    1Gb Up / 1Gb Down
    Browser
    Chromium Edge
    Antivirus
    Windows Defender
    Other Info
    RAM Upgraded from 16GB to 32GB WiFi Upgraded from WiFi 5 to WiFi 6 SSD upgraded from 512GB NVMe SSD to 1TB Seagate FireCuda 510 NVMe SSD

Latest Support Threads

Top Bottom
