System volume is in a separate drive from the boot+main drive C:


dchrist

Member
Local time
11:39 PM
Posts
1
OS
Windows 11
Over the course of last few years, many painful reinstalls of operating systems and losing data, I want to understand and fix this problem I have: my NVMe 2 TB disk (disk 3) partition contains the boot and everything I need (data, apps, etc), however, my 500 GB SSD (disk 0) has the system partition in F:

I have a problem if the 500 GB SSD is disconnected, on startup at the boot prompt after choosing Windows as usual, my PC will show error and just not work.

I was wondering if it would be possible to somehow partition some space in disk 3, and copy and paste the System volume in F: there too. That way, my NVMe drive can be completely independent and not need the 500 GB SSD (F:) in order to startup.

I had found this useful thread which helped determined which was my boot and system drive.

Please do help how to do this safely, or if I have gotten any information wrong, I have attached images below


Below showed me disk 3 the boot disk

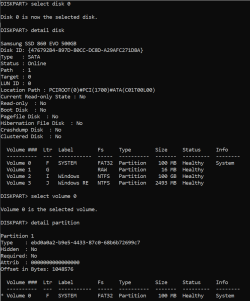

Below shows me disk 0 volume 0 is the System partition

Windows Build/Version
23H2

My Computer

System One

  • OS
    Windows 11
    Computer type
    PC/Desktop
    CPU
    Intel i7-10700k
    Motherboard
    MSI MPG Z490 GAMING PLUS
    Memory
    Klevv BOLT X 32 GB (2 x 16 GB) DDR4-3600
    Graphics Card(s)
    NVIDIA GeForce RTX 3080 TI 12 GB
    Hard Drives
    Kingston Fury Renegade 2 TB M.2
    Samsung 970 Evo Plus 1 TB M.2
    Samsung 860 Evo 500 GB
    Samsung 860 Evo 500 GB
    PSU
    be quiet! Straight Power 11 1200 W 80+ Platinum Certified Fully Modular ATX Power Supply
    Cooling
    NZXT Kraken X63 98.17 CFM Liquid CPU Cooler
The best 'safe' way I've found that works for me is to first disconnect any drive except the one intended to be the Boot/System/C: drive, fully install Windows then add back in other drives as needed. It's not a big issue with Notebooks as most don't accept 2 drives. It also helps for the BIOS to correctly identify the connection of the drive, I prefer the only drive be shown as Drive 0 but newer boards have other types of connections available than just SATA. My 'learning' came with a motherboard whose BIOS showed the drive as AHCI/RAID and having 2 drives installed Windows automatically set up RAID 0 and later removal of a drive broke the boot process, forced reinstalling with only one drive connected.


My Computers

System One System Two

  • OS
    Win11 Pro RTM
    Computer type
    Laptop
    Manufacturer/Model
    Dell Vostro 3400
    CPU
    Intel Core i5 11th Gen. 2.40GHz
    Memory
    12GB
    Hard Drives
    256GB SSD NVMe
  • Operating System
    Windows 11 Pro RTM x64
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Vostro 5890
    CPU
    Intel Core i5 10th Gen. 2.90GHz
    Memory
    16GB
    Graphics card(s)
    Onboard, no VGA, using a DisplayPort-to-VGA adapter
    Monitor(s) Displays
    24" Dell
    Hard Drives
    512GB SSD NVMe, 2TB WDC HDD
    Browser
    Firefox, Edge
    Antivirus
    Windows Defender/Microsoft Security
Agree. ALWAYS disconnect all drives except the one you are installing Windows on if you want the end result to be correct.
