Very long pause before bios post screen quandary


Ghot

Well-known member
Pro User
VIP
Local time
11:09 PM
Posts
3,129
Location
PA, USA
OS
Win 11 Home ♦♦♦22000.778

My Computers

System One System Two

  • OS
    Win 11 Home ♦♦♦22000.778
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot® [May 2020]
    CPU
    AMD Ryzen 7 3700X
    Motherboard
    Asus Pro WS X570-ACE
    Memory
    G.Skill (F4-3200C14D-16GTZKW)
    Graphics Card(s)
    EVGA RTX 2070 (08G-P4-2171-KR)
    Sound Card
    (onboard) Realtek ALC1220P / ALC S1220A
    Monitor(s) Displays
    Dell U3011 30"
    Screen Resolution
    2560 x 1600
    Hard Drives
    2x Samsung 860 EVO 500GB,
    WD 4TB Black FZBX - SATA III,
    WD 8TB Black FZBX - SATA III,
    LG GH22LS30 CD/DVD Burner
    PSU
    PC Power & Cooling 750W Quad EPS12V
    Case
    COOLER MASTER ATCS 840 Full Tower
    Cooling
    CM Hyper 212 EVO (push/pull)
    Keyboard
    Ducky DK9008 Shine II Blue LED
    Mouse
    Logitech Optical M-100
    Internet Speed
    100/100
    Browser
    Firefox (latest)
    Antivirus
    Bitdefender Internet Security (latest)
    Other Info
    Speakers: Klipsch Pro Media 2.1
  • Operating System
    Windows XP Pro 32bit w/SP3
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot®
    CPU
    AMD Athlon 64 X2 5000+ (OC'd @ 3.2Ghz)
    Motherboard
    ASUS M2N32-SLI Deluxe Wireless Edition
    Memory
    TWIN2X2048-6400C4DHX (2 x 1GB, DDR2 800)
    Graphics card(s)
    EVGA 256-P2-N758-TR GeForce 8600GT SSC
    Sound Card
    Onboard
    Monitor(s) Displays
    ViewSonic G90FB Black 19" Professional (CRT)
    Screen Resolution
    up to 2048 x 1536
    Hard Drives
    WD 36GB 10,000rpm Raptor SATA
    Seagate 80GB 7200rpm SATA
    Lite-On LTR-52246S CD/RW
    Lite-On LH-18A1P CD/DVD Burner
    PSU
    PC Power & Cooling Silencer 750 Quad EPS12V
    Case
    Generic Beige case, 80mm fans
    Cooling
    ZALMAN 9500A 92mm CPU Cooler
    Mouse
    Logitech Optical M-BT96a
    Keyboard
    Logitech Classic Keybooard 200
    Internet Speed
    100/100
    Browser
    Firefox 3.x ??
    Antivirus
    Symantec (Norton)
    Other Info
    Still assembled, still runs. Haven't turned it on for 13 years?

    http://www.xtremesystems.org/forums/showthread.php?183088-5000-B-E-on-M2N32-SLI-Dlx-Overclocked&p=2891724#post2891724

RubberDuck

Member
Thread Starter
Local time
11:09 PM
Posts
88
OS
Windows 11
Drive 0 and drive 4 are MBR and have an active partition.
Drive 0 seems to be a data drive so it should not be active
Drive 4 seems that once was a boot able drive. It's now a backup drive so it should not be active.
If for some reason the computer is trying to boot from those drives it takes some time to find out that there is no OS and to look for another drive.
Make it simple as possible. My suggestion is to detach (SATA or power cable) from all drives leaving on only the NVMe and check if it is the first drive on the boot priority list on BIOS.
A problematic drive can delay the boot for minutes.
Report

Thanks Megahertz, I've been busy and just now getting back to this let me. I'll reformat that drive. Nothing on it that's very important, Or not backed up elsewhere.


My Computer

System One

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    HP Pavilion Gaming 790-0077c
    CPU
    I7 8700
    Motherboard
    Berks Form factor: ATX, 36.45 x 24.88 cm (15.35 x 9.79 in)
    Memory
    16gb
    Graphics Card(s)
    MSI 1050t
    Sound Card
    Creative SoundBlaster AE-9
    Monitor(s) Displays
    Twin Samsung 27" curved
    Screen Resolution
    1920 x 1080
    Hard Drives
    512Gb and 1Tb

Megahertz

Wish to be flying
Member
VIP
Local time
12:09 AM
Posts
79
Location
Brazil
OS
Windows 7 HP 64 - Windows 11 Pro - Lubuntu
Thanks Megahertz, I've been busy and just now getting back to this let me. I'll reformat that drive. Nothing on it that's very important, Or not backed up elsewhere.
You don't need to format the partition.
With a good disk tool like MiniTool partition:
- On drive 0 volume E: set it to non active
- On drive 4 you can delete the System reserved and the Recovery partition and expand the G: partition


My Computers

System One System Two

  • OS
    Windows 7 HP 64 - Windows 11 Pro - Lubuntu
    Computer type
    PC/Desktop
    Manufacturer/Model
    custom build
    CPU
    i5 6600K - 800MHz to 4400MHz
    Motherboard
    GA-Z170-HD3P
    Memory
    4+4G GSkill DDR4 3000
    Graphics Card(s)
    IG - Intel 530
    Monitor(s) Displays
    Samsung 226BW
    Screen Resolution
    1680x1050
    Hard Drives
    (1) -1 SM951 – 128GB M.2 AHCI PCIe SSD drive for Windows 7 and Lubuntu
    (2) -1 WD SATA 3 - 1T for Data
    (3) -1 WD SATA 3 - 1T for backup
    (4) -1 BX500 SSD - 128G for Win 10
    PSU
    Thermaltake 450W TR2 gold
    Keyboard
    Old and good Chicony mechanical keyboard
    Mouse
    Logitech mX performance - 9 buttons (had to disable some)
    Internet Speed
    350 Mb/s
    Browser
    Firefox 64
  • Operating System
    Windows 7 Pro
    Computer type
    Laptop
    Manufacturer/Model
    Asus Q550LF
    CPU
    i7-4500U 800- 3000MHz
    Motherboard
    Asus Q550LF
    Memory
    (4+4)G DDR3 1600
    Graphics card(s)
    IG intel 4400 + NVIDIA GeForce GT 745M
    Sound Card
    Realtek
    Monitor(s) Displays
    LG Display LP156WF4-SPH1
    Screen Resolution
    1920 x 1080
    Hard Drives
    BX500 120G SSD for Windows and programs
    & 1T HDD for data
    Internet Speed
    350 Mb/s
    Browser
    Firefox 64

RubberDuck

Member
Thread Starter
Local time
11:09 PM
Posts
88
OS
Windows 11
You don't need to format the partition.
With a good disk tool like MiniTool partition:
- On drive 0 volume E: set it to non active
- On drive 4 you can delete the System reserved and the Recovery partition and expand the G: partition
I set the volume on E: to non active
I deleted the System Reserved and Recovery partitions and extended the G: partition.

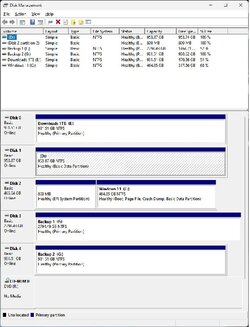

This is the way it looks now. I do know and understanding what you had me do. You would think
it would change the way it boots ,but it hasn't. In the bios the only drive in the boot order list is the C:
drive.

Does that 529 MB on Disk 2 to the left of the EFI System affect anything? There is one final thing I
haven't tried yet. I'm going to clone the NVMe drive to the D: drive. Then pull the NVMe drive completely
out of the machine and boot from the cloned drive. I have disabled the NVMe drive in bios and
booted from another disk with no improvement , but I haven't tried totally removing the NVMe drive.

I may not get to that today, but I am anxious to try that. If that makes no difference I'm stripping the machine down
to the point that it was when I received it,

Thank for the help and ideas. If nothing else I've learned much and acquired a much faster method of backup.


Attachments

  • Untitled.jpg
    57.8 KB · Views: 3

My Computer

System One

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    HP Pavilion Gaming 790-0077c
    CPU
    I7 8700
    Motherboard
    Berks Form factor: ATX, 36.45 x 24.88 cm (15.35 x 9.79 in)
    Memory
    16gb
    Graphics Card(s)
    MSI 1050t
    Sound Card
    Creative SoundBlaster AE-9
    Monitor(s) Displays
    Twin Samsung 27" curved
    Screen Resolution
    1920 x 1080
    Hard Drives
    512Gb and 1Tb

Megahertz

Wish to be flying
Member
VIP
Local time
12:09 AM
Posts
79
Location
Brazil
OS
Windows 7 HP 64 - Windows 11 Pro - Lubuntu
The two partitions on the left of C: sims to be Recovery partitions, one old and one active.
- Run reagentc /info to find out witch one is the active recovery partition
- Assign a letter to the last one and see what on it.


My Computers

System One System Two

  • OS
    Windows 7 HP 64 - Windows 11 Pro - Lubuntu
    Computer type
    PC/Desktop
    Manufacturer/Model
    custom build
    CPU
    i5 6600K - 800MHz to 4400MHz
    Motherboard
    GA-Z170-HD3P
    Memory
    4+4G GSkill DDR4 3000
    Graphics Card(s)
    IG - Intel 530
    Monitor(s) Displays
    Samsung 226BW
    Screen Resolution
    1680x1050
    Hard Drives
    (1) -1 SM951 – 128GB M.2 AHCI PCIe SSD drive for Windows 7 and Lubuntu
    (2) -1 WD SATA 3 - 1T for Data
    (3) -1 WD SATA 3 - 1T for backup
    (4) -1 BX500 SSD - 128G for Win 10
    PSU
    Thermaltake 450W TR2 gold
    Keyboard
    Old and good Chicony mechanical keyboard
    Mouse
    Logitech mX performance - 9 buttons (had to disable some)
    Internet Speed
    350 Mb/s
    Browser
    Firefox 64
  • Operating System
    Windows 7 Pro
    Computer type
    Laptop
    Manufacturer/Model
    Asus Q550LF
    CPU
    i7-4500U 800- 3000MHz
    Motherboard
    Asus Q550LF
    Memory
    (4+4)G DDR3 1600
    Graphics card(s)
    IG intel 4400 + NVIDIA GeForce GT 745M
    Sound Card
    Realtek
    Monitor(s) Displays
    LG Display LP156WF4-SPH1
    Screen Resolution
    1920 x 1080
    Hard Drives
    BX500 120G SSD for Windows and programs
    & 1T HDD for data
    Internet Speed
    350 Mb/s
    Browser
    Firefox 64

AddRAM

R.I.P.
Power User
VIP
Local time
11:09 PM
Posts
689
Location
Mandalore
OS
Windows 11 Pro
I would get rid of all 3 of those Recovery partitions on Disk 2, they are useless.
Has your boot time been fixed yet ?
And please rename C: to Windows 11 :)

It also seems your EFI partition has grown a lot in space, it should only be 100 MB, am I correct Luiz ?
And I made my Recovery partition 1000 MB on purpose, so you can ignore that.

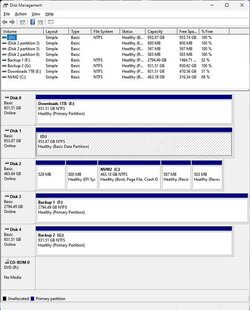

Mine: DM.jpg


My Computers

System One System Two

  • OS
    Windows 11 Pro
    Computer type
    PC/Desktop
    Manufacturer/Model
    Skylake Special X299
    CPU
    Intel Core i9 9900X
    Motherboard
    Asus ROG Strix X299-E Gaming II
    Memory
    GSkill Trident Z RGB 32GB 3600 16-16-16-36 (F4-3600C16Q-32GTZR)
    Graphics Card(s)
    EVGA RTX 3080 12GB FTW3 Ultra Gaming (12G-P5-4877-KL)
    Sound Card
    Supreme FX
    Monitor(s) Displays
    Asus PG279Q
    Screen Resolution
    2560 x 1440 165Hz
    Hard Drives
    Samsung 980 Pro 500GB x2, Seagate Barracuda 4TB x2, Western Digital Black 4TB x1
    PSU
    EVGA 1200 P2, EVGA Black Custom Braided Cables
    Case
    Thermaltake View 31 Tempered Glass Limited Edition
    Cooling
    Corsair H115i, Thermal Grizzly Kryonaut
    Keyboard
    Logitech G910 Orion Spark
    Mouse
    Logitech G700s, Asus ROG GX860 Buzzard
    Internet Speed
    Verizon Fios Quantum Gateway 75/75
    Browser
    Edge
    Antivirus
    Windows Defender, Malwarebytes 4.5.2
    Other Info
    Thermaltake Riing Duo 14 x3, Thermaltake Riing Plus 14 x2, Corsair HS70 Pro Wireless Headset
  • Operating System
    Windows 10 Pro
    Computer type
    PC/Desktop
    Manufacturer/Model
    Skylake Special Z170
    CPU
    Intel Core i7 6700K
    Motherboard
    Asus Sabertooth Z170 Mark 1
    Memory
    GSkill Trident Z RGB 16GB 3600 16-16-16-36 (F4-3600C16D-16GTZR)
    Graphics card(s)
    EVGA GTX 980 Ti SC x2, EVGA Pro SLI Bridge
    Sound Card
    Realtek High Definition
    Monitor(s) Displays
    AOC G2460PG
    Screen Resolution
    1920 x 1080 144Hz
    Hard Drives
    Samsung 870 Evo 500GB, Seagate Barracuda 4TB x2
    PSU
    EVGA 1000 P2, EVGA White Custom Braided Cables
    Case
    Corsair Vengeance C70 Gunmetal Black
    Cooling
    Corsair H100i v2, Corsair ML120 x2, Thermal Grizzly Kryonaut
    Mouse
    Logitech G500s
    Keyboard
    Logitech G910 Orion Spectrum
    Internet Speed
    Verizon Fios Quantum Gateway 75/75
    Browser
    Edge
    Antivirus
    Windows Defender, Malwarebytes 4.5.2
    Other Info
    Corsair SP120 x4, LG Blu-ray Drive, Durabrand HT-395 100 Watt Dolby Digital Amp

Megahertz

Wish to be flying
Member
VIP
Local time
12:09 AM
Posts
79
Location
Brazil
OS
Windows 7 HP 64 - Windows 11 Pro - Lubuntu
My recovery partition I made 850M to prevent windows creating a new one every time it needs more space.


My Computers

System One System Two

  • OS
    Windows 7 HP 64 - Windows 11 Pro - Lubuntu
    Computer type
    PC/Desktop
    Manufacturer/Model
    custom build
    CPU
    i5 6600K - 800MHz to 4400MHz
    Motherboard
    GA-Z170-HD3P
    Memory
    4+4G GSkill DDR4 3000
    Graphics Card(s)
    IG - Intel 530
    Monitor(s) Displays
    Samsung 226BW
    Screen Resolution
    1680x1050
    Hard Drives
    (1) -1 SM951 – 128GB M.2 AHCI PCIe SSD drive for Windows 7 and Lubuntu
    (2) -1 WD SATA 3 - 1T for Data
    (3) -1 WD SATA 3 - 1T for backup
    (4) -1 BX500 SSD - 128G for Win 10
    PSU
    Thermaltake 450W TR2 gold
    Keyboard
    Old and good Chicony mechanical keyboard
    Mouse
    Logitech mX performance - 9 buttons (had to disable some)
    Internet Speed
    350 Mb/s
    Browser
    Firefox 64
  • Operating System
    Windows 7 Pro
    Computer type
    Laptop
    Manufacturer/Model
    Asus Q550LF
    CPU
    i7-4500U 800- 3000MHz
    Motherboard
    Asus Q550LF
    Memory
    (4+4)G DDR3 1600
    Graphics card(s)
    IG intel 4400 + NVIDIA GeForce GT 745M
    Sound Card
    Realtek
    Monitor(s) Displays
    LG Display LP156WF4-SPH1
    Screen Resolution
    1920 x 1080
    Hard Drives
    BX500 120G SSD for Windows and programs
    & 1T HDD for data
    Internet Speed
    350 Mb/s
    Browser
    Firefox 64

AddRAM

R.I.P.
Power User
VIP
Local time
11:09 PM
Posts
689
Location
Mandalore
OS
Windows 11 Pro
1 other thing, when you clone a drive, the newly cloned drive may still think it is the original drive.
Look in Device Manager, click on Disk drives, does it list the new drive properly ?
You have to right click on it and choose the Properties tab in Device Manager.
What does it say it is ?
If it`s correct you can leave it alone.
If not you simply right click on the drive again, and choose uninstall device, and reboot.
After the reboot, it should be showing the correct name and size of the drive.

Example of mine in Device Manager, I have 2 980 Pro 500GB`s, the 2nd one in the list is still unallocated.

Device Manager.jpg


My Computers

System One System Two

  • OS
    Windows 11 Pro
    Computer type
    PC/Desktop
    Manufacturer/Model
    Skylake Special X299
    CPU
    Intel Core i9 9900X
    Motherboard
    Asus ROG Strix X299-E Gaming II
    Memory
    GSkill Trident Z RGB 32GB 3600 16-16-16-36 (F4-3600C16Q-32GTZR)
    Graphics Card(s)
    EVGA RTX 3080 12GB FTW3 Ultra Gaming (12G-P5-4877-KL)
    Sound Card
    Supreme FX
    Monitor(s) Displays
    Asus PG279Q
    Screen Resolution
    2560 x 1440 165Hz
    Hard Drives
    Samsung 980 Pro 500GB x2, Seagate Barracuda 4TB x2, Western Digital Black 4TB x1
    PSU
    EVGA 1200 P2, EVGA Black Custom Braided Cables
    Case
    Thermaltake View 31 Tempered Glass Limited Edition
    Cooling
    Corsair H115i, Thermal Grizzly Kryonaut
    Keyboard
    Logitech G910 Orion Spark
    Mouse
    Logitech G700s, Asus ROG GX860 Buzzard
    Internet Speed
    Verizon Fios Quantum Gateway 75/75
    Browser
    Edge
    Antivirus
    Windows Defender, Malwarebytes 4.5.2
    Other Info
    Thermaltake Riing Duo 14 x3, Thermaltake Riing Plus 14 x2, Corsair HS70 Pro Wireless Headset
  • Operating System
    Windows 10 Pro
    Computer type
    PC/Desktop
    Manufacturer/Model
    Skylake Special Z170
    CPU
    Intel Core i7 6700K
    Motherboard
    Asus Sabertooth Z170 Mark 1
    Memory
    GSkill Trident Z RGB 16GB 3600 16-16-16-36 (F4-3600C16D-16GTZR)
    Graphics card(s)
    EVGA GTX 980 Ti SC x2, EVGA Pro SLI Bridge
    Sound Card
    Realtek High Definition
    Monitor(s) Displays
    AOC G2460PG
    Screen Resolution
    1920 x 1080 144Hz
    Hard Drives
    Samsung 870 Evo 500GB, Seagate Barracuda 4TB x2
    PSU
    EVGA 1000 P2, EVGA White Custom Braided Cables
    Case
    Corsair Vengeance C70 Gunmetal Black
    Cooling
    Corsair H100i v2, Corsair ML120 x2, Thermal Grizzly Kryonaut
    Mouse
    Logitech G500s
    Keyboard
    Logitech G910 Orion Spectrum
    Internet Speed
    Verizon Fios Quantum Gateway 75/75
    Browser
    Edge
    Antivirus
    Windows Defender, Malwarebytes 4.5.2
    Other Info
    Corsair SP120 x4, LG Blu-ray Drive, Durabrand HT-395 100 Watt Dolby Digital Amp

RubberDuck

Member
Thread Starter
Local time
11:09 PM
Posts
88
OS
Windows 11
I cleaned the C Drive up and renamed to Windows 11. I have not resized the EFI partition to 100 MB. Is that safe? The boot time has not changed at all. I don't have a cloned drive. When (if) I clone the C: Drive I will remove the existing NVMe drive to see if the boot time changes with just the SDD sata drive installed.

When i look in device manager all drives are properly named. All are present.


Attachments

  • Untitled.jpg
    57.9 KB · Views: 4

My Computer

System One

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    HP Pavilion Gaming 790-0077c
    CPU
    I7 8700
    Motherboard
    Berks Form factor: ATX, 36.45 x 24.88 cm (15.35 x 9.79 in)
    Memory
    16gb
    Graphics Card(s)
    MSI 1050t
    Sound Card
    Creative SoundBlaster AE-9
    Monitor(s) Displays
    Twin Samsung 27" curved
    Screen Resolution
    1920 x 1080
    Hard Drives
    512Gb and 1Tb

AddRAM

R.I.P.
Power User
VIP
Local time
11:09 PM
Posts
689
Location
Mandalore
OS
Windows 11 Pro
Your 1st sentence mentions a clone and then you "Transferred" windows to the NVME does it not ?
Leave the EFI partition alone for now.

You also don`t have to remove the NVME drive to test the SSD, just disable it in the Bios.
Hit F5 to save and exit the Bios. Then I would reboot the PC and double check and make sure the SSD is the only bootable drive listed, then see if you still have a boot delay issue.

Last edited:

My Computers

System One System Two

  • OS
    Windows 11 Pro
    Computer type
    PC/Desktop
    Manufacturer/Model
    Skylake Special X299
    CPU
    Intel Core i9 9900X
    Motherboard
    Asus ROG Strix X299-E Gaming II
    Memory
    GSkill Trident Z RGB 32GB 3600 16-16-16-36 (F4-3600C16Q-32GTZR)
    Graphics Card(s)
    EVGA RTX 3080 12GB FTW3 Ultra Gaming (12G-P5-4877-KL)
    Sound Card
    Supreme FX
    Monitor(s) Displays
    Asus PG279Q
    Screen Resolution
    2560 x 1440 165Hz
    Hard Drives
    Samsung 980 Pro 500GB x2, Seagate Barracuda 4TB x2, Western Digital Black 4TB x1
    PSU
    EVGA 1200 P2, EVGA Black Custom Braided Cables
    Case
    Thermaltake View 31 Tempered Glass Limited Edition
    Cooling
    Corsair H115i, Thermal Grizzly Kryonaut
    Keyboard
    Logitech G910 Orion Spark
    Mouse
    Logitech G700s, Asus ROG GX860 Buzzard
    Internet Speed
    Verizon Fios Quantum Gateway 75/75
    Browser
    Edge
    Antivirus
    Windows Defender, Malwarebytes 4.5.2
    Other Info
    Thermaltake Riing Duo 14 x3, Thermaltake Riing Plus 14 x2, Corsair HS70 Pro Wireless Headset
  • Operating System
    Windows 10 Pro
    Computer type
    PC/Desktop
    Manufacturer/Model
    Skylake Special Z170
    CPU
    Intel Core i7 6700K
    Motherboard
    Asus Sabertooth Z170 Mark 1
    Memory
    GSkill Trident Z RGB 16GB 3600 16-16-16-36 (F4-3600C16D-16GTZR)
    Graphics card(s)
    EVGA GTX 980 Ti SC x2, EVGA Pro SLI Bridge
    Sound Card
    Realtek High Definition
    Monitor(s) Displays
    AOC G2460PG
    Screen Resolution
    1920 x 1080 144Hz
    Hard Drives
    Samsung 870 Evo 500GB, Seagate Barracuda 4TB x2
    PSU
    EVGA 1000 P2, EVGA White Custom Braided Cables
    Case
    Corsair Vengeance C70 Gunmetal Black
    Cooling
    Corsair H100i v2, Corsair ML120 x2, Thermal Grizzly Kryonaut
    Mouse
    Logitech G500s
    Keyboard
    Logitech G910 Orion Spectrum
    Internet Speed
    Verizon Fios Quantum Gateway 75/75
    Browser
    Edge
    Antivirus
    Windows Defender, Malwarebytes 4.5.2
    Other Info
    Corsair SP120 x4, LG Blu-ray Drive, Durabrand HT-395 100 Watt Dolby Digital Amp

RubberDuck

Member
Thread Starter
Local time
11:09 PM
Posts
88
OS
Windows 11
OK, my bad, when you said you "Moved" the info to the new drive, I assumed you did a clone.
Leave the EFI partition alone for now.
Gotcha. What I was referring to about a clone drive was I might clone the C: Drive (NVMe) on a sata SDD drive and see if the boot time is quicker.
If feel if I can't solve the issue as it is there may be no solution. That long pause might be permanent.


My Computer

System One

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    HP Pavilion Gaming 790-0077c
    CPU
    I7 8700
    Motherboard
    Berks Form factor: ATX, 36.45 x 24.88 cm (15.35 x 9.79 in)
    Memory
    16gb
    Graphics Card(s)
    MSI 1050t
    Sound Card
    Creative SoundBlaster AE-9
    Monitor(s) Displays
    Twin Samsung 27" curved
    Screen Resolution
    1920 x 1080
    Hard Drives
    512Gb and 1Tb

AddRAM

R.I.P.
Power User
VIP
Local time
11:09 PM
Posts
689
Location
Mandalore
OS
Windows 11 Pro
Well, do you still have the original hard drive with Windows on it ?
The drive that gave you no issues at all booting up ?
Did you format it yet ?


My Computers

System One System Two

  • OS
    Windows 11 Pro
    Computer type
    PC/Desktop
    Manufacturer/Model
    Skylake Special X299
    CPU
    Intel Core i9 9900X
    Motherboard
    Asus ROG Strix X299-E Gaming II
    Memory
    GSkill Trident Z RGB 32GB 3600 16-16-16-36 (F4-3600C16Q-32GTZR)
    Graphics Card(s)
    EVGA RTX 3080 12GB FTW3 Ultra Gaming (12G-P5-4877-KL)
    Sound Card
    Supreme FX
    Monitor(s) Displays
    Asus PG279Q
    Screen Resolution
    2560 x 1440 165Hz
    Hard Drives
    Samsung 980 Pro 500GB x2, Seagate Barracuda 4TB x2, Western Digital Black 4TB x1
    PSU
    EVGA 1200 P2, EVGA Black Custom Braided Cables
    Case
    Thermaltake View 31 Tempered Glass Limited Edition
    Cooling
    Corsair H115i, Thermal Grizzly Kryonaut
    Keyboard
    Logitech G910 Orion Spark
    Mouse
    Logitech G700s, Asus ROG GX860 Buzzard
    Internet Speed
    Verizon Fios Quantum Gateway 75/75
    Browser
    Edge
    Antivirus
    Windows Defender, Malwarebytes 4.5.2
    Other Info
    Thermaltake Riing Duo 14 x3, Thermaltake Riing Plus 14 x2, Corsair HS70 Pro Wireless Headset
  • Operating System
    Windows 10 Pro
    Computer type
    PC/Desktop
    Manufacturer/Model
    Skylake Special Z170
    CPU
    Intel Core i7 6700K
    Motherboard
    Asus Sabertooth Z170 Mark 1
    Memory
    GSkill Trident Z RGB 16GB 3600 16-16-16-36 (F4-3600C16D-16GTZR)
    Graphics card(s)
    EVGA GTX 980 Ti SC x2, EVGA Pro SLI Bridge
    Sound Card
    Realtek High Definition
    Monitor(s) Displays
    AOC G2460PG
    Screen Resolution
    1920 x 1080 144Hz
    Hard Drives
    Samsung 870 Evo 500GB, Seagate Barracuda 4TB x2
    PSU
    EVGA 1000 P2, EVGA White Custom Braided Cables
    Case
    Corsair Vengeance C70 Gunmetal Black
    Cooling
    Corsair H100i v2, Corsair ML120 x2, Thermal Grizzly Kryonaut
    Mouse
    Logitech G500s
    Keyboard
    Logitech G910 Orion Spectrum
    Internet Speed
    Verizon Fios Quantum Gateway 75/75
    Browser
    Edge
    Antivirus
    Windows Defender, Malwarebytes 4.5.2
    Other Info
    Corsair SP120 x4, LG Blu-ray Drive, Durabrand HT-395 100 Watt Dolby Digital Amp

AddRAM

R.I.P.
Power User
VIP
Local time
11:09 PM
Posts
689
Location
Mandalore
OS
Windows 11 Pro
I see in your UEFI BIOS Boot order screen that it shows two drives in the order you might expect to boot them from, right? I would disable the one you DO NOT want to boot from leaving just your NVMe drive as a boot source.
This is exactly what I do. If I ever had to use my Macrium Rescue stick, I would bring it up using the Boot Menu.


My Computers

System One System Two

  • OS
    Windows 11 Pro
    Computer type
    PC/Desktop
    Manufacturer/Model
    Skylake Special X299
    CPU
    Intel Core i9 9900X
    Motherboard
    Asus ROG Strix X299-E Gaming II
    Memory
    GSkill Trident Z RGB 32GB 3600 16-16-16-36 (F4-3600C16Q-32GTZR)
    Graphics Card(s)
    EVGA RTX 3080 12GB FTW3 Ultra Gaming (12G-P5-4877-KL)
    Sound Card
    Supreme FX
    Monitor(s) Displays
    Asus PG279Q
    Screen Resolution
    2560 x 1440 165Hz
    Hard Drives
    Samsung 980 Pro 500GB x2, Seagate Barracuda 4TB x2, Western Digital Black 4TB x1
    PSU
    EVGA 1200 P2, EVGA Black Custom Braided Cables
    Case
    Thermaltake View 31 Tempered Glass Limited Edition
    Cooling
    Corsair H115i, Thermal Grizzly Kryonaut
    Keyboard
    Logitech G910 Orion Spark
    Mouse
    Logitech G700s, Asus ROG GX860 Buzzard
    Internet Speed
    Verizon Fios Quantum Gateway 75/75
    Browser
    Edge
    Antivirus
    Windows Defender, Malwarebytes 4.5.2
    Other Info
    Thermaltake Riing Duo 14 x3, Thermaltake Riing Plus 14 x2, Corsair HS70 Pro Wireless Headset
  • Operating System
    Windows 10 Pro
    Computer type
    PC/Desktop
    Manufacturer/Model
    Skylake Special Z170
    CPU
    Intel Core i7 6700K
    Motherboard
    Asus Sabertooth Z170 Mark 1
    Memory
    GSkill Trident Z RGB 16GB 3600 16-16-16-36 (F4-3600C16D-16GTZR)
    Graphics card(s)
    EVGA GTX 980 Ti SC x2, EVGA Pro SLI Bridge
    Sound Card
    Realtek High Definition
    Monitor(s) Displays
    AOC G2460PG
    Screen Resolution
    1920 x 1080 144Hz
    Hard Drives
    Samsung 870 Evo 500GB, Seagate Barracuda 4TB x2
    PSU
    EVGA 1000 P2, EVGA White Custom Braided Cables
    Case
    Corsair Vengeance C70 Gunmetal Black
    Cooling
    Corsair H100i v2, Corsair ML120 x2, Thermal Grizzly Kryonaut
    Mouse
    Logitech G500s
    Keyboard
    Logitech G910 Orion Spectrum
    Internet Speed
    Verizon Fios Quantum Gateway 75/75
    Browser
    Edge
    Antivirus
    Windows Defender, Malwarebytes 4.5.2
    Other Info
    Corsair SP120 x4, LG Blu-ray Drive, Durabrand HT-395 100 Watt Dolby Digital Amp

glasskuter

Well-known member
Power User
VIP
Local time
10:09 PM
Posts
1,849
Location
The Lone Star State of Texas
OS
Windows 11 Pro 21H2 22000.778

My Computers

System One System Two

  • OS
    Windows 11 Pro 21H2 22000.778
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Optiplex 7080
    CPU
    i9-10900
    Memory
    32 gb
    Monitor(s) Displays
    Benq 27
    Screen Resolution
    2560x1440
    Hard Drives
    256 m.2 2230-256+1 tb hdd
    PSU
    500w
    Case
    MT
    Cooling
    Dell Premium
    Keyboard
    Logitech wired
    Mouse
    Logitech wireless
    Browser
    Firefox
    Antivirus
    Defender+MWB Premium
  • Operating System
    Windows 10 Pro 21H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Optiplex 9020
    CPU
    i7-4770
    Memory
    24 gb
    Screen Resolution
    2560x1440
    Hard Drives
    256 gb Toshiba BG4 M.2 NVE SSB and 1 tb hdd
    PSU
    500w
    Case
    MT
    Cooling
    standard
    Mouse
    Logitech wireless
    Keyboard
    Logitech wired
    Antivirus
    Defender+MWB Premium

RubberDuck

Member
Thread Starter
Local time
11:09 PM
Posts
88
OS
Windows 11
I'll never buy another HP. I'm building the next PC.


My Computer

System One

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    HP Pavilion Gaming 790-0077c
    CPU
    I7 8700
    Motherboard
    Berks Form factor: ATX, 36.45 x 24.88 cm (15.35 x 9.79 in)
    Memory
    16gb
    Graphics Card(s)
    MSI 1050t
    Sound Card
    Creative SoundBlaster AE-9
    Monitor(s) Displays
    Twin Samsung 27" curved
    Screen Resolution
    1920 x 1080
    Hard Drives
    512Gb and 1Tb

Ghot

Well-known member
Pro User
VIP
Local time
11:09 PM
Posts
3,129
Location
PA, USA
OS
Win 11 Home ♦♦♦22000.778

My Computers

System One System Two

  • OS
    Win 11 Home ♦♦♦22000.778
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot® [May 2020]
    CPU
    AMD Ryzen 7 3700X
    Motherboard
    Asus Pro WS X570-ACE
    Memory
    G.Skill (F4-3200C14D-16GTZKW)
    Graphics Card(s)
    EVGA RTX 2070 (08G-P4-2171-KR)
    Sound Card
    (onboard) Realtek ALC1220P / ALC S1220A
    Monitor(s) Displays
    Dell U3011 30"
    Screen Resolution
    2560 x 1600
    Hard Drives
    2x Samsung 860 EVO 500GB,
    WD 4TB Black FZBX - SATA III,
    WD 8TB Black FZBX - SATA III,
    LG GH22LS30 CD/DVD Burner
    PSU
    PC Power & Cooling 750W Quad EPS12V
    Case
    COOLER MASTER ATCS 840 Full Tower
    Cooling
    CM Hyper 212 EVO (push/pull)
    Keyboard
    Ducky DK9008 Shine II Blue LED
    Mouse
    Logitech Optical M-100
    Internet Speed
    100/100
    Browser
    Firefox (latest)
    Antivirus
    Bitdefender Internet Security (latest)
    Other Info
    Speakers: Klipsch Pro Media 2.1
  • Operating System
    Windows XP Pro 32bit w/SP3
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot®
    CPU
    AMD Athlon 64 X2 5000+ (OC'd @ 3.2Ghz)
    Motherboard
    ASUS M2N32-SLI Deluxe Wireless Edition
    Memory
    TWIN2X2048-6400C4DHX (2 x 1GB, DDR2 800)
    Graphics card(s)
    EVGA 256-P2-N758-TR GeForce 8600GT SSC
    Sound Card
    Onboard
    Monitor(s) Displays
    ViewSonic G90FB Black 19" Professional (CRT)
    Screen Resolution
    up to 2048 x 1536
    Hard Drives
    WD 36GB 10,000rpm Raptor SATA
    Seagate 80GB 7200rpm SATA
    Lite-On LTR-52246S CD/RW
    Lite-On LH-18A1P CD/DVD Burner
    PSU
    PC Power & Cooling Silencer 750 Quad EPS12V
    Case
    Generic Beige case, 80mm fans
    Cooling
    ZALMAN 9500A 92mm CPU Cooler
    Mouse
    Logitech Optical M-BT96a
    Keyboard
    Logitech Classic Keybooard 200
    Internet Speed
    100/100
    Browser
    Firefox 3.x ??
    Antivirus
    Symantec (Norton)
    Other Info
    Still assembled, still runs. Haven't turned it on for 13 years?

    http://www.xtremesystems.org/forums/showthread.php?183088-5000-B-E-on-M2N32-SLI-Dlx-Overclocked&p=2891724#post2891724

AddRAM

R.I.P.
Power User
VIP
Local time
11:09 PM
Posts
689
Location
Mandalore
OS
Windows 11 Pro
1.21 Gigawatts

Doc, what the hell is a Gigawatt ?

:lmao:


My Computers

System One System Two

  • OS
    Windows 11 Pro
    Computer type
    PC/Desktop
    Manufacturer/Model
    Skylake Special X299
    CPU
    Intel Core i9 9900X
    Motherboard
    Asus ROG Strix X299-E Gaming II
    Memory
    GSkill Trident Z RGB 32GB 3600 16-16-16-36 (F4-3600C16Q-32GTZR)
    Graphics Card(s)
    EVGA RTX 3080 12GB FTW3 Ultra Gaming (12G-P5-4877-KL)
    Sound Card
    Supreme FX
    Monitor(s) Displays
    Asus PG279Q
    Screen Resolution
    2560 x 1440 165Hz
    Hard Drives
    Samsung 980 Pro 500GB x2, Seagate Barracuda 4TB x2, Western Digital Black 4TB x1
    PSU
    EVGA 1200 P2, EVGA Black Custom Braided Cables
    Case
    Thermaltake View 31 Tempered Glass Limited Edition
    Cooling
    Corsair H115i, Thermal Grizzly Kryonaut
    Keyboard
    Logitech G910 Orion Spark
    Mouse
    Logitech G700s, Asus ROG GX860 Buzzard
    Internet Speed
    Verizon Fios Quantum Gateway 75/75
    Browser
    Edge
    Antivirus
    Windows Defender, Malwarebytes 4.5.2
    Other Info
    Thermaltake Riing Duo 14 x3, Thermaltake Riing Plus 14 x2, Corsair HS70 Pro Wireless Headset
  • Operating System
    Windows 10 Pro
    Computer type
    PC/Desktop
    Manufacturer/Model
    Skylake Special Z170
    CPU
    Intel Core i7 6700K
    Motherboard
    Asus Sabertooth Z170 Mark 1
    Memory
    GSkill Trident Z RGB 16GB 3600 16-16-16-36 (F4-3600C16D-16GTZR)
    Graphics card(s)
    EVGA GTX 980 Ti SC x2, EVGA Pro SLI Bridge
    Sound Card
    Realtek High Definition
    Monitor(s) Displays
    AOC G2460PG
    Screen Resolution
    1920 x 1080 144Hz
    Hard Drives
    Samsung 870 Evo 500GB, Seagate Barracuda 4TB x2
    PSU
    EVGA 1000 P2, EVGA White Custom Braided Cables
    Case
    Corsair Vengeance C70 Gunmetal Black
    Cooling
    Corsair H100i v2, Corsair ML120 x2, Thermal Grizzly Kryonaut
    Mouse
    Logitech G500s
    Keyboard
    Logitech G910 Orion Spectrum
    Internet Speed
    Verizon Fios Quantum Gateway 75/75
    Browser
    Edge
    Antivirus
    Windows Defender, Malwarebytes 4.5.2
    Other Info
    Corsair SP120 x4, LG Blu-ray Drive, Durabrand HT-395 100 Watt Dolby Digital Amp

BobD

Member
VIP
Local time
1:09 PM
Posts
48
Location
S.E. of Melbourne, Australia
OS
Windows 11 Pro
If you can and as a test, disconnect ALL usb devices and then try booting. Of course, if you have a wireless mouse then leave the usb receiver plugged in. If the machine boots better then try adding the usb devices one by one and test. In the BIOS / EFI some machines have a setting to delay detection of usb devices and leave it to Windoze.

Every usb device you have connected has to be detected and initialised. Some BIOS get hung up on this. Windoze can do it better or in the background after booting.


My Computers

System One System Two

  • OS
    Windows 11 Pro
    Computer type
    PC/Desktop
    CPU
    Intel i5-12600K
    Motherboard
    ASUS Prime Z690M-Plus D4
    Memory
    32GB
    Graphics Card(s)
    Gigabyte Geforce GTX 1650 OC
    Monitor(s) Displays
    Samsung 27 inch Display LU28R55
    Screen Resolution
    3840 x 2160
    Hard Drives
    Samsung 980 Pro NVMe 500GB, 980 NVMe 500GB, Seagate Barracuda NVMe 1TB, Seagate ST5000 5000GB
    PSU
    Antec HCG850-Gold
    Case
    Fractal Design Define Mini C modded
    Cooling
    Cooler Master MA610P
    Keyboard
    HAVIT mechanical keyboard HV-KB390L TKL
    Internet Speed
    100 x 20 megabits fibre
    Browser
    Edge
    Antivirus
    Microsoft
    Other Info
    Intel ethernet 1219-V 1GHz
    Intel Wi-Fi 6E AX211
    ASUS router RT-AX86U with Wi-Fi 6
  • Operating System
    Win 11 Pro
    Computer type
    Laptop
    Manufacturer/Model
    MSI SUMMIT E16 FLIP EVO A11MT-013AU
    CPU
    Intel i7-1195G7
    Memory
    16 GB
    Graphics card(s)
    Iris Xe graphics
    Sound Card
    Realtek High Definition Audio
    Monitor(s) Displays
    16" 120Hz Pen Touch panel
    Screen Resolution
    2560 x 1600 (16 x 10)
    Hard Drives
    Samsung NVMe PCIe4 980 500GB
    PSU
    Delta Electronics ADP-65SD B, HP 1HE08AA
    Keyboard
    Full Keyboard with TK
    Browser
    Edge
    Antivirus
    Microsoft
    Other Info
    Killer Wi-Fi 6E 1675x (210NGW)
    MSI Pen
    Web Cam with Windows Hello Face
    Fingerprint Reader

Megahertz

Wish to be flying
Member
VIP
Local time
12:09 AM
Posts
79
Location
Brazil
OS
Windows 7 HP 64 - Windows 11 Pro - Lubuntu
My suggestion is to rebuild the EFI partition. You must have a Win 10 or 11 installation drive to boot from.
Boot from the Win 10 or 11 installation drive. On the first screen launch a CMD window (Shift+F10). (simultaneously press the Shift + F10 keys on your keyboard when the installation wizard shows up).

diskpart
list vol (- take note which drive letter (may not be C: ) your Windows partition is assigned)
list disk (- take note the disk number -n- of the drive containing your EFI system partition
select disk n (- replace n with the drive identified above)
list par (- take note which partition - m- is the EFI System partition)
select part m (- replace m with the partition number identified above)
del part override
create part EFI size=100
format fs=FAT32 quick
assign letter=S
exit
bcdboot C:\Windows /s S: /f UEFI (- note may need to change C: to the drive letter identified with list vol)
exit


My Computers

System One System Two

  • OS
    Windows 7 HP 64 - Windows 11 Pro - Lubuntu
    Computer type
    PC/Desktop
    Manufacturer/Model
    custom build
    CPU
    i5 6600K - 800MHz to 4400MHz
    Motherboard
    GA-Z170-HD3P
    Memory
    4+4G GSkill DDR4 3000
    Graphics Card(s)
    IG - Intel 530
    Monitor(s) Displays
    Samsung 226BW
    Screen Resolution
    1680x1050
    Hard Drives
    (1) -1 SM951 – 128GB M.2 AHCI PCIe SSD drive for Windows 7 and Lubuntu
    (2) -1 WD SATA 3 - 1T for Data
    (3) -1 WD SATA 3 - 1T for backup
    (4) -1 BX500 SSD - 128G for Win 10
    PSU
    Thermaltake 450W TR2 gold
    Keyboard
    Old and good Chicony mechanical keyboard
    Mouse
    Logitech mX performance - 9 buttons (had to disable some)
    Internet Speed
    350 Mb/s
    Browser
    Firefox 64
  • Operating System
    Windows 7 Pro
    Computer type
    Laptop
    Manufacturer/Model
    Asus Q550LF
    CPU
    i7-4500U 800- 3000MHz
    Motherboard
    Asus Q550LF
    Memory
    (4+4)G DDR3 1600
    Graphics card(s)
    IG intel 4400 + NVIDIA GeForce GT 745M
    Sound Card
    Realtek
    Monitor(s) Displays
    LG Display LP156WF4-SPH1
    Screen Resolution
    1920 x 1080
    Hard Drives
    BX500 120G SSD for Windows and programs
    & 1T HDD for data
    Internet Speed
    350 Mb/s
    Browser
    Firefox 64

RubberDuck

Member
Thread Starter
Local time
11:09 PM
Posts
88
OS
Windows 11
My suggestion is to rebuild the EFI partition. You must have a Win 10 or 11 installation drive to boot from.
Boot from the Win 10 or 11 installation drive. On the first screen launch a CMD window (Shift+F10). (simultaneously press the Shift + F10 keys on your keyboard when the installation wizard shows up).

diskpart
list vol (- take note which drive letter (may not be C: ) your Windows partition is assigned)
list disk (- take note the disk number -n- of the drive containing your EFI system partition
select disk n (- replace n with the drive identified above)
list par (- take note which partition - m- is the EFI System partition)
select part m (- replace m with the partition number identified above)
del part override
create part EFI size=100
format fs=FAT32 quick
assign letter=S
exit
bcdboot C:\Windows /s S: /f UEFI (- note may need to change C: to the drive letter identified with list vol)
exit
I will try this and report back. I've been out of pocket for a couple of days and I am anxious to try it. I still think this has something do do with the UEFI. Thanks, I'll be back.


My Computer

System One

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    HP Pavilion Gaming 790-0077c
    CPU
    I7 8700
    Motherboard
    Berks Form factor: ATX, 36.45 x 24.88 cm (15.35 x 9.79 in)
    Memory
    16gb
    Graphics Card(s)
    MSI 1050t
    Sound Card
    Creative SoundBlaster AE-9
    Monitor(s) Displays
    Twin Samsung 27" curved
    Screen Resolution
    1920 x 1080
    Hard Drives
    512Gb and 1Tb
Top Bottom
