Very long pause before bios post screen quandary

AddRAM · Jun 11, 2022

I just think you need to do a proper clean install and be done with it.
Buy a Samsung 870 EVO 500GB for windows, you`ll be done an hour after you get it :)

870 EVO SATA 2.5" SSD 500GB Memory & Storage - MZ-77E500B/AM | Samsung US

Discover the latest features and innovations available in the 870 EVO SATA 2.5 inches SSD 500GB. Find the perfect Memory & Storage for you!

www.samsung.com

AddRAM · Jun 11, 2022

The 1TB is only $99.99, but I would never get a drive that big for the OS on a desktop.

870 EVO SATA 2.5" SSD 1TB Memory & Storage - MZ-77E1T0B/AM | Samsung US

RubberDuck · Jun 11, 2022

AddRAM said:
I just think you need to do a proper clean install and be done with it.
Buy a Samsung 870 EVO 500GB for windows, you`ll be done an hour after you get it :)

870 EVO SATA 2.5" SSD 500GB Memory & Storage - MZ-77E500B/AM | Samsung US

Discover the latest features and innovations available in the 870 EVO SATA 2.5 inches SSD 500GB. Find the perfect Memory & Storage for you!

www.samsung.com

I'm sure you are totally correct about buying a drive. I will try this one last thing. For me, it's a learning experience thing also.
I'll probably just do a clean install on the existing NVMe drive. Then recover what I need from a backup.

RubberDuck · Jun 12, 2022

Megahertz said:
My suggestion is to rebuild the EFI partition. You must have a Win 10 or 11 installation drive to boot from.
Boot from the Win 10 or 11 installation drive. On the first screen launch a CMD window (Shift+F10). (simultaneously press the Shift + F10 keys on your keyboard when the installation wizard shows up).

diskpart
list vol (- take note which drive letter (may not be C: ) your Windows partition is assigned)
list disk (- take note the disk number -n- of the drive containing your EFI system partition
select disk n (- replace n with the drive identified above)
list par (- take note which partition - m- is the EFI System partition)
select part m (- replace m with the partition number identified above)
del part override
create part EFI size=100
format fs=FAT32 quick
assign letter=S
exit
bcdboot C:\Windows /s S: /f UEFI (- note may need to change C: to the drive letter identified with list vol)
exit

Performed this action. It deleted and created the EFI partition as specified and there is now a 100 mb EFI partition where the 800 mb partition
previously resided. It didn't affect the way the pc booted in any way. Nor did it affect the pause it takes before the bios posts.
The one thing different between what the pc came setup new and now is the addition of the NVMe drive I boot from.

My next move is to acquire another sata drive and install Windows 11 on it. I will also remove the NVMe drive completely. If that doesn't change anything I'm going to sell the problem ...err pc to someone else and build s new one .

Thanks for all the help and education surrounding this unique issue.

Ghot · Jun 12, 2022

RubberDuck said:
Performed this action. It deleted and created the EFI partition as specified and there is now a 100 mb EFI partition where the 800 mb partition
previously resided. It didn't affect the way the pc booted in any way. Nor did it affect the pause it takes before the bios posts.
The one thing different between what the pc came setup new and now is the addition of the NVMe drive I boot from.

My next move is to acquire another sata drive and install Windows 11 on it. I will also remove the NVMe drive completely. If that doesn't change anything I'm going to sell the problem ...err pc to someone else and build s new one .

Thanks for all the help and education surrounding this unique issue.

I built you a comp... no charge.

Decent, but not for overclocking:

Part List - Intel Core i7-12700, GeForce RTX 2060 SUPER, NZXT H510i ATX Mid Tower - PCPartPicker

Part List - Intel Core i7-12700, GeForce RTX 2060 SUPER, NZXT H510i ATX Mid Tower

pcpartpicker.com

No messing around:

Part List - Intel Core i9-12900K, GeForce RTX 3080 Ti, NZXT H510i ATX Mid Tower - PCPartPicker

Part List - Intel Core i9-12900K, GeForce RTX 3080 Ti, NZXT H510i ATX Mid Tower

pcpartpicker.com

zbook · Jun 12, 2022

Please post images or share links of the BIOS settings:
UEFI native (without CSM)
UEFI hybrid (with CSM)

Open task manager > click startup tab > post an image or share link into this thread

RubberDuck · Jun 12, 2022

Ghot said:
I built you a comp... no charge.

Decent, but not for overclocking:

Part List - Intel Core i7-12700, GeForce RTX 2060 SUPER, NZXT H510i ATX Mid Tower - PCPartPicker

Part List - Intel Core i7-12700, GeForce RTX 2060 SUPER, NZXT H510i ATX Mid Tower

pcpartpicker.com

No messing around:

Part List - Intel Core i9-12900K, GeForce RTX 3080 Ti, NZXT H510i ATX Mid Tower - PCPartPicker

Part List - Intel Core i9-12900K, GeForce RTX 3080 Ti, NZXT H510i ATX Mid Tower

pcpartpicker.com

I appreciate the thought, but that's half the fun is the building. My needs are not for overclocking or gaming. Not even that much for Hi Rez
video. I'm in it for sound. High as possible sample rates with few errors. Windows is kinda bad at that right now and I doubt seriously they will look at the sound side at any point. I'm sure they will design a well rounded tab for the folder the music is in. Anywho, The name of the game is low to no latency. High sample rates are nothing if the clock synchronization is causing errors. With the prices so high right now it will probably take me a few months to put what I want together. Thanks for all the help and if I change my mind and buy a prebuilt pc you will be the first person I contact.

RubberDuck · Jun 12, 2022

zbook said:
Please post images or share links of the BIOS settings:
UEFI native (without CSM)
UEFI hybrid (with CSM)

Open task manager > click startup tab > post an image or share link into this thread

Here is a capture of the Startup tab in Task Manager. I will post pics of the bios settings in a few minutes. I have disabled everything the
the startup tab and booted a couple of times like that. No improvement. I have also tried booting using legacy methods (with CSM) and the result was as I expected. No boot at all.

RubberDuck · Jun 12, 2022

RubberDuck said:
Here is a capture of the Startup tab in Task Manager. I will post pics of the bios settings in a few minutes. I have disabled everything the
the startup tab and booted a couple of times like that. No improvement. I have also tried booting using legacy methods (with CSM) and the result was as I expected. No boot at all.

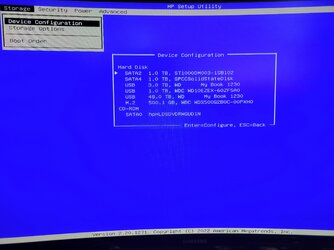

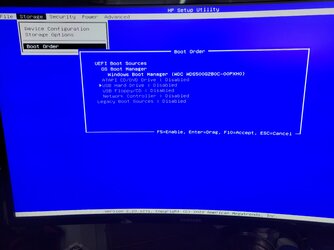

Here is the bios. I assume this is what you are wanting to see. Not much in the bios to see.

zbook · Jun 12, 2022

When available please reboot > open task manager > click startup tab > post an image or share link of the full box

Ghot · Jun 12, 2022

RubberDuck said:
I appreciate the thought, but that's half the fun is the building. My needs are not for overclocking or gaming. Not even that much for Hi Rez
video. I'm in it for sound. High as possible sample rates with few errors. Windows is kinda bad at that right now and I doubt seriously they will look at the sound side at any point. I'm sure they will design a well rounded tab for the folder the music is in. Anywho, The name of the game is low to no latency. High sample rates are nothing if the clock synchronization is causing errors. With the prices so high right now it will probably take me a few months to put what I want together. Thanks for all the help and if I change my mind and buy a prebuilt pc you will be the first person I contact.

Those aren't pre-built.
Those are DIY :)

In fact, you can probably tell they'tr DIY, cause I forgot the power supplies. LOL

Here... I added them in...

PC Builder - Intel Core i7-12700, GeForce RTX 2060 SUPER, NZXT H510i ATX Mid Tower - PCPartPicker

PC Builder - Intel Core i7-12700, GeForce RTX 2060 SUPER, NZXT H510i ATX Mid Tower

pcpartpicker.com

PC Builder - Intel Core i9-12900K, GeForce RTX 3080 Ti, NZXT H510i ATX Mid Tower - PCPartPicker

PC Builder - Intel Core i9-12900K, GeForce RTX 3080 Ti, NZXT H510i ATX Mid Tower

pcpartpicker.com

zbook · Jun 12, 2022

RubberDuck said:
Here is a capture of the Startup tab in Task Manager.

Where?

Winuser · Jun 12, 2022

RubberDuck said:
f that doesn't change anything I'm going to sell the problem ...err pc to someone else and build s new one .

Can you do an RMA and get another motherboard?

RubberDuck · Jun 12, 2022

Ghot said:
Those aren't pre-built.
Those are DIY/ :)

My mistake. You are absolutely correct. They most definitely....DIY. I remember the first one I built. Had a screaming fast AMD Athlon processor. Matter of fact I still have it and it works.

Ghot · Jun 12, 2022

RubberDuck said:
My mistake. You are absolutely correct. They most definitely....DIY. I remember the first one I built. Had a screaming fast AMD Athlon processor. Matter of fact I still have it and it works.

I still have mine also. It works as well.

From the way back machine... duh... I already posted it for my 2nd computer system. LOL

But if we're gonna go for truly ancient... HP Vectra VA (original Pentium Pro)
Still works.

zbook · Jun 12, 2022

Had you posted the task manager startup box?

RubberDuck · Jun 12, 2022

zbook said:
Had you posted the task manager startup box?

I thought I did. If not here it is.

zbook · Jun 12, 2022

Please make a free backup image using Macrium and save the image to another disk drive or the cloud.

Backup and Restore with Macrium Reflect

How to Create and Restore a System Image Backup with Macrium Reflect

www.tenforums.com

Clean install Windows 10 without any drivers or applications.

Clean Install Windows 10

How to Clean Install Windows 10

www.tenforums.com

Reboot and post a new task manager.

Calab · Jun 18, 2022

Silly question, but I didn't see it mentioned...

After the firmware update, did you RESET the BIOS settings to defaults?

I would disconnect everything I could, including hard drives. Reset the BIOS settings. Finally, time how long it takes to get to the NO HDD DETECTED error message. If that is a long time, it's a BIOS setting issue.

RubberDuck · Jun 22, 2022

Please make a free backup image using Macrium and save the image to another disk drive or the cloud.

Backup and Restore with Macrium Reflect
How to Create and Restore a System Image Backup with Macrium Reflect

www.tenforums.com

Clean install Windows 10 without any drivers or applications.

I want to do this , but it will have to wait. We are dong so traveling and I don't want to rush the task.

Silly question, but I didn't see it mentioned...

After the firmware update, did you RESET the BIOS settings to defaults?

I would disconnect everything I could, including hard drives. Reset the BIOS settings. Finally, time how long it takes to get to the NO HDD DETECTED error message. If that is a long time, it's a BIOS setting issue.

Yes Bob, I have done that several times. Not a silly question at all. I guess i failed to mention it. I am anxious to try that.
