Help with motherboard cable?

Hi, my front panel LED cable is too short. I'm wondering where I can get a cable extender for it?

The cable head has measurements of:
6mm width
6mm height with the 2 ridges
5mm height without ridges
4mm between holes

Thank you, its much appreciated =)

That is a rare bird, I don't remember ever seeing one. Your easiest option would be to cut it about 2" from the plug and add some extra wire. It is low voltage so there is no danger.

XEmberX said:

Hi, my front panel LED cable is too short. I'm wondering where I can get a cable extender for it?

The cable head has measurements of:
6mm width
6mm height with the 2 ridges
5mm height without ridges
4mm between holes

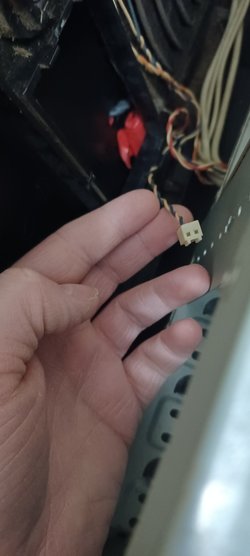

Thank you, its much appreciated =)View attachment 24502

Click to expand...

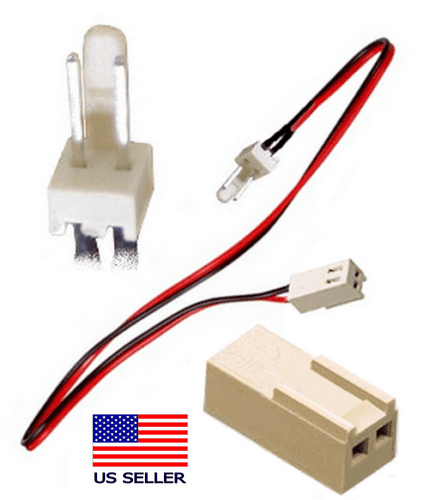

2-Pin M/F Fan Extension Power Cable 8" | eBay









For an official source... this is the company you want.
Only problem is... they have... everything, so finding the one you want is hard.
I would suggest just emailing them a picture.

The easiest way is to cut it in the middle and splice with extra wire that you can find. It is just an LED wire. There is no risk involved.

badrobot said:

The easiest way is to cut it in the middle and splice with extra wire that you can find. It is just an LED wire. There is no risk involved.

Click to expand...

This is true. But that's cheating. :)


DigiKey will have the connector. They have 2255 "pages" of female rectangular connectors.

Here. Just scroll down to rectangular connectors.

See ya in a week or two.

CONTACT US​

1-800-344-4539​

218-681-6674​

If there's a connector they don't have... it's made out of wood, in Japan, and it's for joinery.

Ah, I forgot to mention that I also need that cable to connect to this connection ( I don't currently have a black power LED cable ) :If I get this:
I can connect the LED cable to one of the black cables above?

I've also contacted DigiKey now too.

XEmberX said:

Ah, I forgot to mention that I also need that cable to connect to this connection ( I don't currently have a black power LED cable ) :View attachment 24526If I get this:

2-Pin M/F Fan Extension Power Cable 8" | eBay

Find many great new & used options and get the best deals for 2-Pin M/F Fan Extension Power Cable 8" at the best online prices at eBay! Free shipping for many products!

www.ebay.com

I can connect the LED cable to one of the black cables above?

I've also contacted DigiKey now too.

Click to expand...

I'm confused. This last post (6) shows connectors for both the power and HDD LEDs. (Very typical of what I've gotten with every case I've bought over many years.) What is the cable in your first post for?

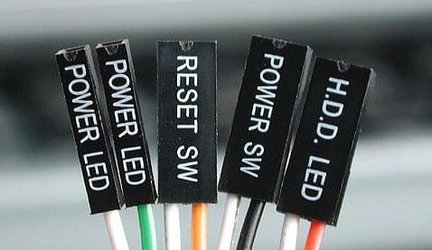

The attached image shows a typical front panel header. Your 2 pin one doesn't go on it. Some front panel headers have had pins for a speaker to play beep codes during POST, but that may be out-of-date now.

bobkn said:

I'm confused. This last post (6) shows connectors for both the power and HDD LEDs. (Very typical of what I've gotten with every case I've bought over many years.) What is the cable in your first post for?

The attached image shows a typical front panel header. Your 2 pin one doesn't go on it. Some front panel headers have had pins for a speaker to play beep codes during POST, but that may be out-of-date now.

View attachment 24533

Click to expand...

Yup, that's correct that the motherboard takes the typical HDD, Power LED, reset/power black cables.

However, with the LED cable on the first post it's missing the cable that connects the white LED rectangular cable to the black typical ones to the motherboard. The rectangular cable is too short & needs another cable to attach it to the motherboard.

XEmberX said:

Yup, that's correct that the motherboard takes the typical HDD, Power LED, reset/power black cables.

However, with the LED cable on the first post it's missing the cable that connects the white LED rectangular cable to the black typical ones to the motherboard. The rectangular cable is too short & needs another cable to attach it to the motherboard.

Click to expand...

Looking back over your second post (6), I'm even more confused. Are the connectors in the image ones that you have, or not?

You could clear things up by providing the make and model number of your PC's case, and the motherboard. Please help us to help you.

Looking back at the first post, I assume the case isn't new, because it looks like it's dusty. A random thought: are you changing a motherboard into an appliance PC (the sort made by Dell, HP, etc.)? That would make it likelier that there'd be proprietary things in the case.

@XEmberX


As other have mentioned. You can just cut the wires and add some extra wire.
A place like Home Depot or most hardware stores will have wire that's the same gauge (thickness).

Just get a small roll of wire and some electrical tape.

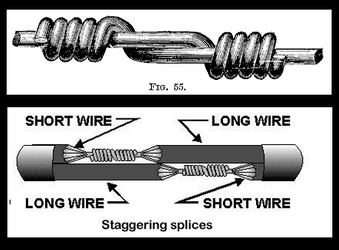

Make staggered Western Union splices and cover them with electrical tape.

Thanks for the replies!

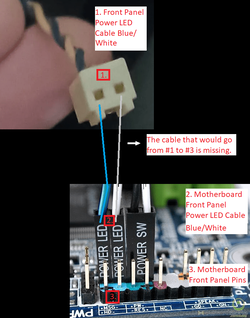

Here is a diagram of what I'm hoping to do.

My desktop is a Raidmax Scorpio 868, and the motherboard is a b450m bazooka max wifi.

I've bought some 1 pin Jumper cables, not sure if it'd work though. Amazon Cables

XEmberX said:

Thanks for the replies!

Here is a diagram of what I'm hoping to do.
View attachment 24620
My desktop is a Raidmax Scorpio 868, and the motherboard is a b450m bazooka max wifi.

I've bought some 1 pin Jumper cables, not sure if it'd work though. Amazon Cables

Click to expand...

yeah, those jumpers will work. I used some of those to hook up a relay switch to the motherboard for voice command powering on and off.

badrobot said:

yeah, those jumpers will work. I used some of those to hook up a relay switch to the motherboard for voice command powering on and off.

Click to expand...

Oh, sweet! Thanks for letting me know. I'll make a new thread when I receive them in a while to show the progress of what Ive done.

Thanks again everyone. =)

XEmberX said:

Oh, sweet! Thanks for letting me know. I'll make a new thread when I receive them in a while to show the progress of what Ive done.

Thanks again everyone. =)

Click to expand...

XEmberX said:

Hi, my front panel LED cable is too short. I'm wondering where I can get a cable extender for it?

Click to expand...

Something like this should work... Amazon.com: Phobya Extension Cable, 2-Pin, 30cm : Electronics

You can also Google "2 pin fan extension cables" to see if something better pops up. Those extensions cables can be found for cheap.

Thank you both. The one Ghot linked to was a bit expensive for me. I think that'd work Dru, I also searched on google for 2 pin fan extension cables & came up with this: 2 pin JST to 2 pin Dupont Molex 2.54 Fan extender cable 90cm 3d printer Prusa i3 : Amazon.co.uk: Business, Industry & Science

The Amazon one was out of stock, but there was also this one from AliExpress:


Would that work?

@XEmberX​

The one I listed is for the whole "set" of front panel wire extensions.

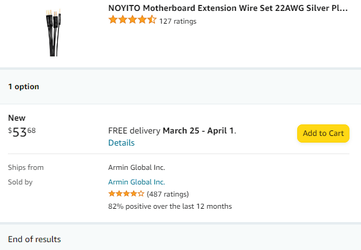

And it was $9

Yeah, either of those will work, you just need to find a place that sells them. You might also look in your area; perhaps some local Ma & Pa PC shops :). Shouldn't be that expensive.

Ghot said:

@XEmberX​

The one I listed is for the whole "set" of front panel wire extensions.
And it was $9

Click to expand...

Must be because I'm in Canada. Thank you though. ^^


I bought the Aliexpress one. Thanks =)

XEmberX said:

Must be because I'm in Canada. Thank you though. ^^

View attachment 24715
I bought the Aliexpress one. Thanks =)

Click to expand...

That's horrible even for Canada. Glad you found one on AliExpress.
