Solved Secure boot update HowTo

john1955 · Feb 11, 2026

I just got KB5077181 yesterday and it included this comment

[Secure Boot] With this update, Windows quality updates include a broad set of targeting data that identifies devices and their ability to receive new Secure Boot certificates. Devices will receive the new certificates only after they show sufficient successful update signals, which helps ensures a safe and phased rollout.

johnpd · Feb 11, 2026

Brink said:
Most should eventually get it automatically via Windows Update. Old systems may not.

OK. I see in the link you provided that MS says "In the coming months, messages about the certificate update status will be available in the Windows Security App to help consumers track the certificate updates more closely." I hope they let us know ASAP where this can be found. It also mentions that in some cases a "firmware update" may be required ahead of time. That could be the kicker especially for older computers.

JohnD

oldandintheway · Feb 11, 2026

In regedit,status says "in progress". Confidence level at REG SZ says "under observation-more data needed". Will the update complete? Just leave my computer on? Visit Windows Update? I apologize; I am not tech savvy even at a beginner level.

garlin · Feb 11, 2026

The current update process can be deliberately slow. Technically it could finish in a few seconds, but it's not in a rush. Check back in 12 hours.

RH247a · Mar 7, 2026

My registry has some strange items that make me think I need to wait on Windows 11 to decide when OR else I need to do a Bios update. Anyone got some input on the below?

HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\SecureBoot\Servicing

(Default) REG_SZ (Value not set)

BucketHash REG_SZ 8b2aa1b8355ba442156f75edbf7362202d55f37b48f8982fe5e59b0c2fe9b8b7

ConfidenceLevel REG_SZ Under Observation - More Data Needed

ConfidenceUpdateType REG_DWORD 0x00000000 (0)

LastParsedBucketDataVersion REG_DWORD 0x00000006 (6)

UEFICA2023Status REG_SZ NotStarted

WindowsUEFICA2023Capable REG_DWORD 0x00000000 (0)

garlin · Mar 7, 2026

RH247a said:
My registry has some strange items that make me think I need to wait on Windows 11 to decide when OR else I need to do a Bios update. Anyone got some input on the below?

HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\SecureBoot\Servicing

(Default) REG_SZ (Value not set)
BucketHash REG_SZ 8b2aa1b8355ba442156f75edbf7362202d55f37b48f8982fe5e59b0c2fe9b8b7
ConfidenceLevel REG_SZ Under Observation - More Data Needed
ConfidenceUpdateType REG_DWORD 0x00000000 (0)
LastParsedBucketDataVersion REG_DWORD 0x00000006 (6)
UEFICA2023Status REG_SZ NotStarted
WindowsUEFICA2023Capable REG_DWORD 0x00000000 (0)

The Secure Boot update task is rolling out Confidence Buckets, which uses telemetry data to group your PC into a "bucket" of similar PC's which all share the same motherboard model and BIOS version. Based on the success/failure rates of early adopters, it tries to guess whether someone else with an identical PC will meet the same fate as those who have already tried updating their certs.

"More Data Needed" implies they haven't found enough PC's that match your motherboard and specific BIOS version, to make a decision. The update process might go smoothly, or it might fail from a lack of vendor support. Since they don't have enough results, everyone in your shared bucket will be held back until more data is available.

Rather than trying to decipher the reg keys, you should run a dedicated script to get a better idea if your PC can be updated.

garlin's PowerShell scripts for updating Secure Boot CA 2023

Code:

Check_UEFI-CA2023.ps1 -Verbose

XxXxX · Mar 8, 2026

RH247a said:
My registry has some strange items that make me think I need to wait on Windows 11 to decide when OR else I need to do a Bios update. Anyone got some input on the below?

HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\SecureBoot\Servicing

(Default) REG_SZ (Value not set)

BucketHash REG_SZ 8b2aa1b8355ba442156f75edbf7362202d55f37b48f8982fe5e59b0c2fe9b8b7

ConfidenceLevel REG_SZ Under Observation - More Data Needed

ConfidenceUpdateType REG_DWORD 0x00000000 (0)

LastParsedBucketDataVersion REG_DWORD 0x00000006 (6)

UEFICA2023Status REG_SZ NotStarted

WindowsUEFICA2023Capable REG_DWORD 0x00000000 (0)

please try Part One of the HowTo, page 1 post #1.
but give it about 10/15 minute between the TWO restarts

then check the registry to see if there is any change
before moving on to Part Two of the HowTo.

best of luck Steve ..

kraft_mk · Mar 16, 2026

Thank you for your support - it is highly appreciated.

A few days ago, I successfully changed my boot from unsecured to secure and imported certificates from 2023 and 2025, reaching the “in progress” status.

Yesterday, I somehow messed everything up and decided to reset and delete all certificates from the UEFI BIOS to try again.
Now, my Dell Latitude E5440 (Windows 10 Pro) won’t boot in secure mode, though I can boot in unsecured mode. I have tried everything to boot in secure mode, including loading defaults and resetting the BIOS.

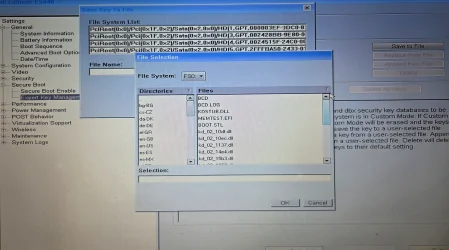

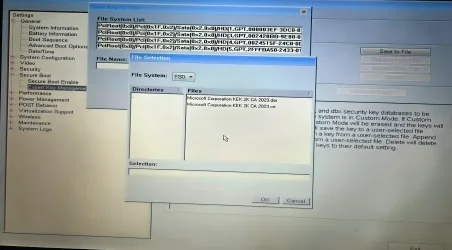

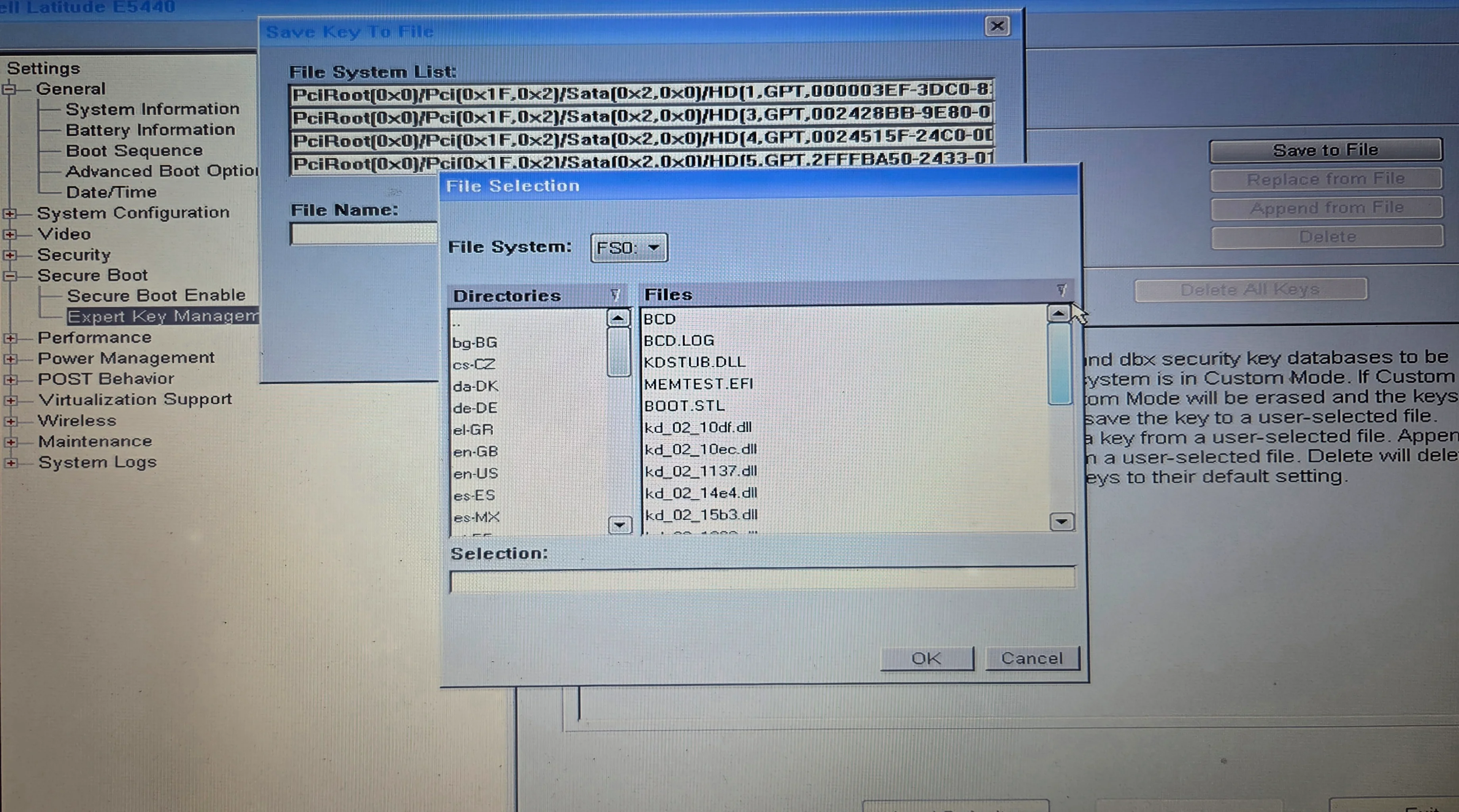

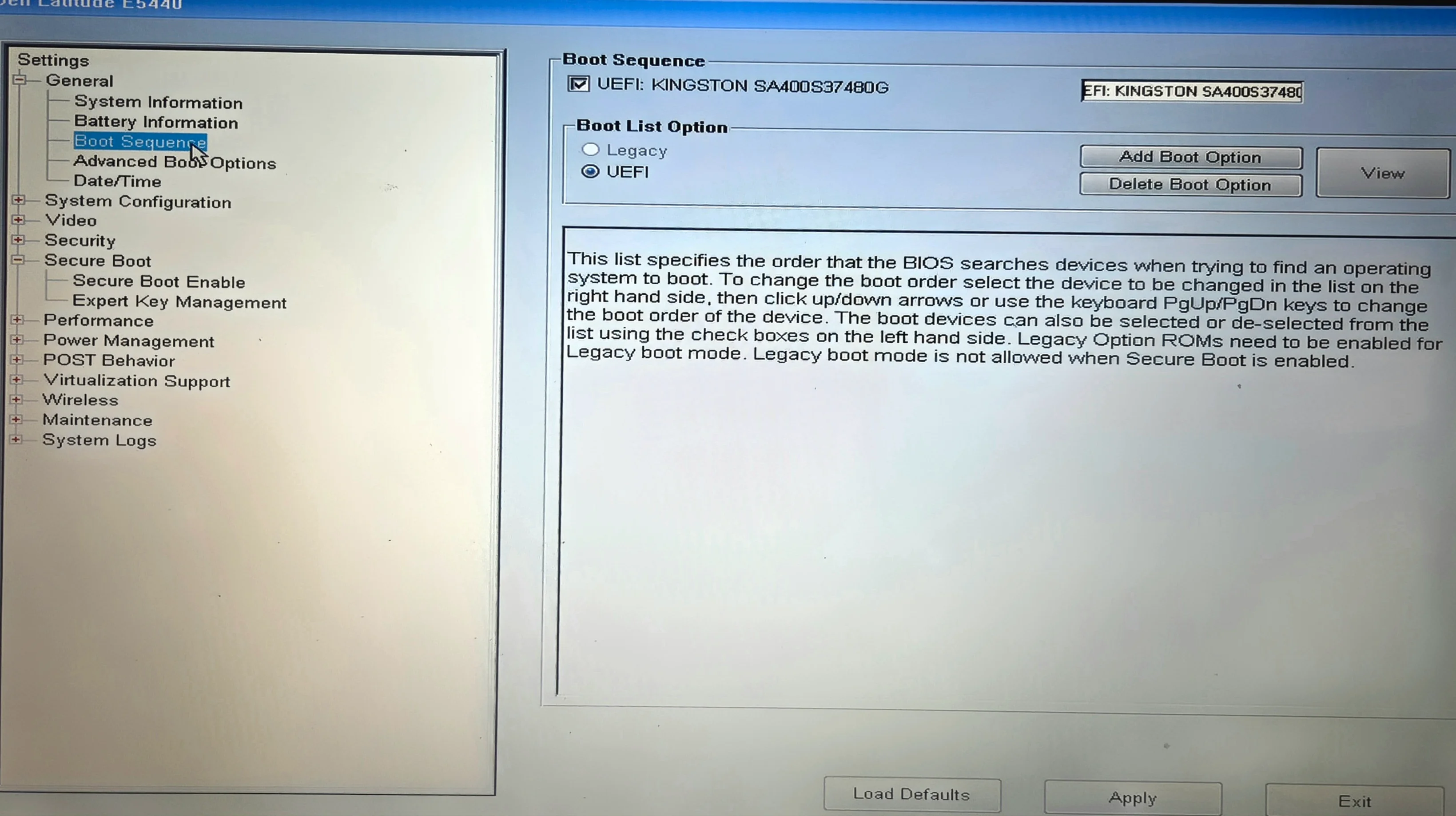

This is my BIOS menu and the current EFI and Microsoft certificates that are available there. What should I do now?

*I can boot in unsecured mode only.
*Dell Latitude E5440
*Bios ver: Dell Inc. A24, 13/06/2019
*Window 10 PRO: ver 10.0.19045 Build 19045. (UEFI installation)

Thank you!

garlin · Mar 16, 2026

I presume since you've reset UEFI to factory defaults, the UEFI CA 2023 cert isn't present in the DB.

1. Copy the old boot file back:

Code:

mountvol S: /s
copy C:\Windows\Boot\EFI\bootmgfw.efi S:\EFI\Microsoft\Boot\bootmgfw.efi

2. Shutdown Windows. Enable Secure Boot.

3. Restart Windows.

This Dell's last BIOS update was Dec. 2019, which is too old to support the CA 2023 certs. It may be possible to replace the certs in Setup Mode (when no certs are installed), with a new set of MS certs.

kraft_mk · Mar 16, 2026

garlin said:
I presume since you've reset UEFI to factory defaults, the UEFI CA 2023 cert isn't present in the DB.

1. Copy the old boot file back:

Code:

mountvol S: /s copy C:\Windows\Boot\EFI\bootmgfw.efi S:\EFI\Microsoft\Boot\bootmgfw.efi

2. Shutdown Windows. Enable Secure Boot.

3. Restart Windows.

This Dell's last BIOS update was Dec. 2019, which is too old to support the CA 2023 certs. It may be possible to replace the certs in Setup Mode (when no certs are installed), with a new set of MS certs.

Sir, you are a gentleman and a scholar, thank you!

Per your instructions, I managed to boot into secure mode again immediately.

Status after PART A two restarts: "True"
Registry UEFICA2023Status: "InProgress".

I am now trying to reach the registry UEFICA2023Status to "Updated" by repeating PART B only, via elevated CMD and PowerShell. (So far I never managed to get this to "updated".)

I don’t know if this is related, but in the last few months there have been huge numbers of totally random crashes in older Dell laptop series. Internet is flooded with this problem and mine (2015 Dell e5440 latitude) laptop is one of them.

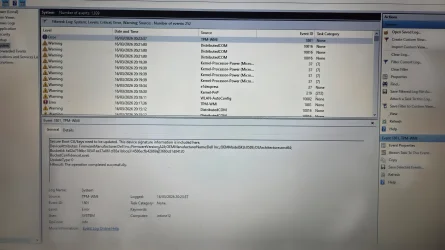

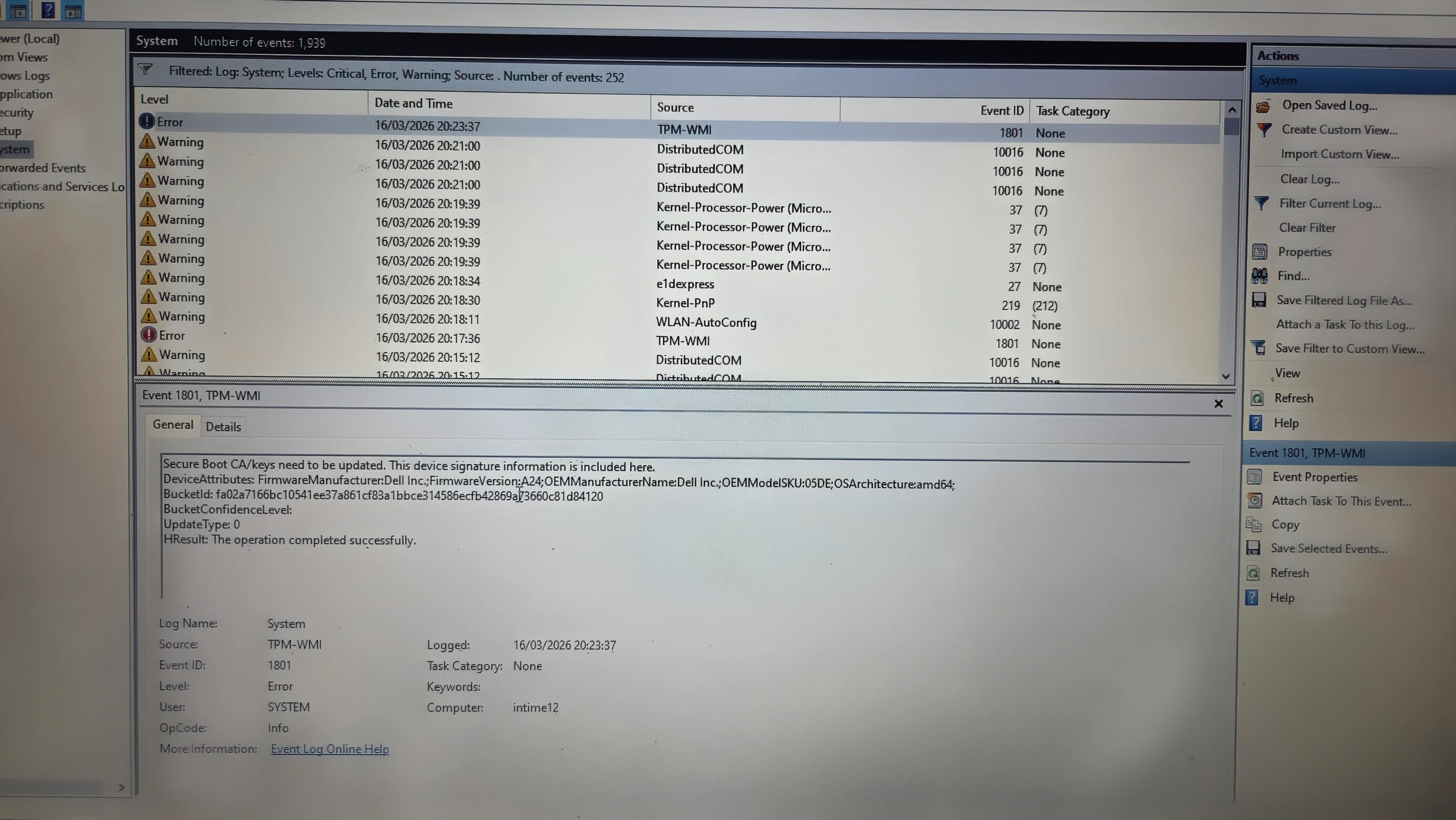

Every time it randomly crashes, Event Viewer reports the following error.
Error: TPM-WMI (Event ID) 1801
Secure Boot CA/keys need to be updated. This device signature information is included here:
DeviceAttributes: FirmwareManufacturerDell Inc.; FirmwareVersion:A24; OEMManufacturerNameDell Inc.; OEMModelSKU:05DE; OSArchitecture:amd64
BucketId: fa02a7166bc10541ee37a861cf83a1bbce314586ecfb42869a/3660c81d84120
BucketConfidenceLevel:
UpdateType:

HResult: The operation completed successfully. (?!!)

I am 90% sure that none of the drivers or any hardware issue is crashing the OS.
I am hoping to fix this error event "TPM-WMI (Event ID) 1801", with this update.
I don’t know if this is important, but KEK 2K CA 2023 (.der & .crt) can be found in my BIOS → EFI → Key Management → Certificates folders.

This is what I am trying to fix, am I wrong?

Thank you again!

garlin · Mar 16, 2026

Please run the check script from this thread. Thanks.
garlin's PowerShell scripts for updating Secure Boot CA 2023

Code:

Check_UEFI-CA2023.ps1 -Verbose

kraft_mk · Mar 16, 2026

garlin said:
Please run the check script from this thread. Thanks.
garlin's PowerShell scripts for updating Secure Boot CA 2023

Code:

Check_UEFI-CA2023.ps1 -Verbose

Windows PowerShell
Copyright (C) Microsoft Corporation. All rights reserved.
Try the new cross-platform PowerShell Into the Pandaverse
PS C:\Windows\system32> cd C:\SB
PS C:\SB> .\Check_UEFI-CA2023.ps1 -Verbose
Windows 10 22H2 (19045.6466)

Secure Boot: ON
Virtualization Based Security: OFF
BitLocker on (C:) OFF

BIOS Firmware
-------------
Dell Inc. Latitude E5440
Version: A24
Date: 2019-06-13

Factory Default UEFI PK Cert
----------------------------
(NONE)

UEFI PK Cert
------------
Dell Inc. UEFI Platform Key
Manual update of [KEK CA 2023] is REQUIRED.

Factory Default UEFI KEK Certs
------------------------------
(NONE)

UEFI KEK Certs
--------------
Microsoft Corporation KEK CA 2011

Factory Default UEFI DB Certs
-----------------------------
(NONE)

UEFI DB Certs
-------------
Microsoft Corporation UEFI CA 2011
Microsoft Windows Production PCA 2011
Microsoft Option ROM UEFI CA 2023
Microsoft UEFI CA 2023
Windows UEFI CA 2023

Factory Default UEFI DBX Certs
------------------------------
(NONE)
Get-SecureBootUEFI : Variable is currently undefined: 0xC0000100
At C:\SB\Check_UEFI-CA2023.ps1:1115 char:62
+ ... gnatures: {1}' -f $Tab4, (Get-SecureBootUEFI -Name dbxDefault | Get-U ...
+ ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
+ CategoryInfo : ResourceUnavailable: (Microsoft.Secur...BootUefiCommand:GetSecureBootUefiCommand) [Get-S
ecureBootUEFI], StatusException
+ FullyQualifiedErrorId : GetFWVarFailed,Microsoft.SecureBoot.Commands.GetSecureBootUefiCommand

UEFI DBX Certs
--------------
Microsoft Windows PCA 2010
Windows BootMgr SVN is MISSING.
EFI_CERT_SHA256_GUID Signatures: 13

EFI Files
---------
Disk 0: Windows Boot Manager [Production PCA 2011] is ALLOWED.
bootmgfw.efi File version: 26100.1004

Registry: WindowsUEFICA2023Capable = 1
[Windows UEFI CA 2023] in UEFI DB.

REQUIRED ACTION
===============

Run the command:
Update_UEFI-CA2023.ps1 -Revoke

Finish the UEFI steps to manually add the [KEK CA 2023] cert, if the script provided instructions.

PS C:\SB>

garlin · Mar 16, 2026

This is what I suspected, you're missing the critical KEK CA 2023.

1. Make sure your UEFI is in Custom Mode.

2. From that same UEFI menu, you see "Append from file" (grayed out). Use this sub-menu to add one of the two "KEK CA 2023" cert files. Both files are identical, but some BIOS'es are picky about the filename's extension.

kraft_mk · Mar 16, 2026

Your help is so appreciated. I cannot thank you enough.

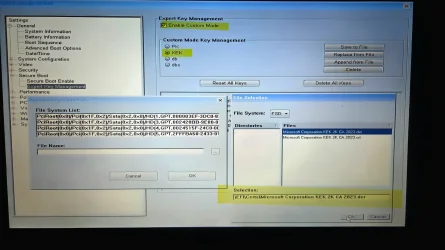

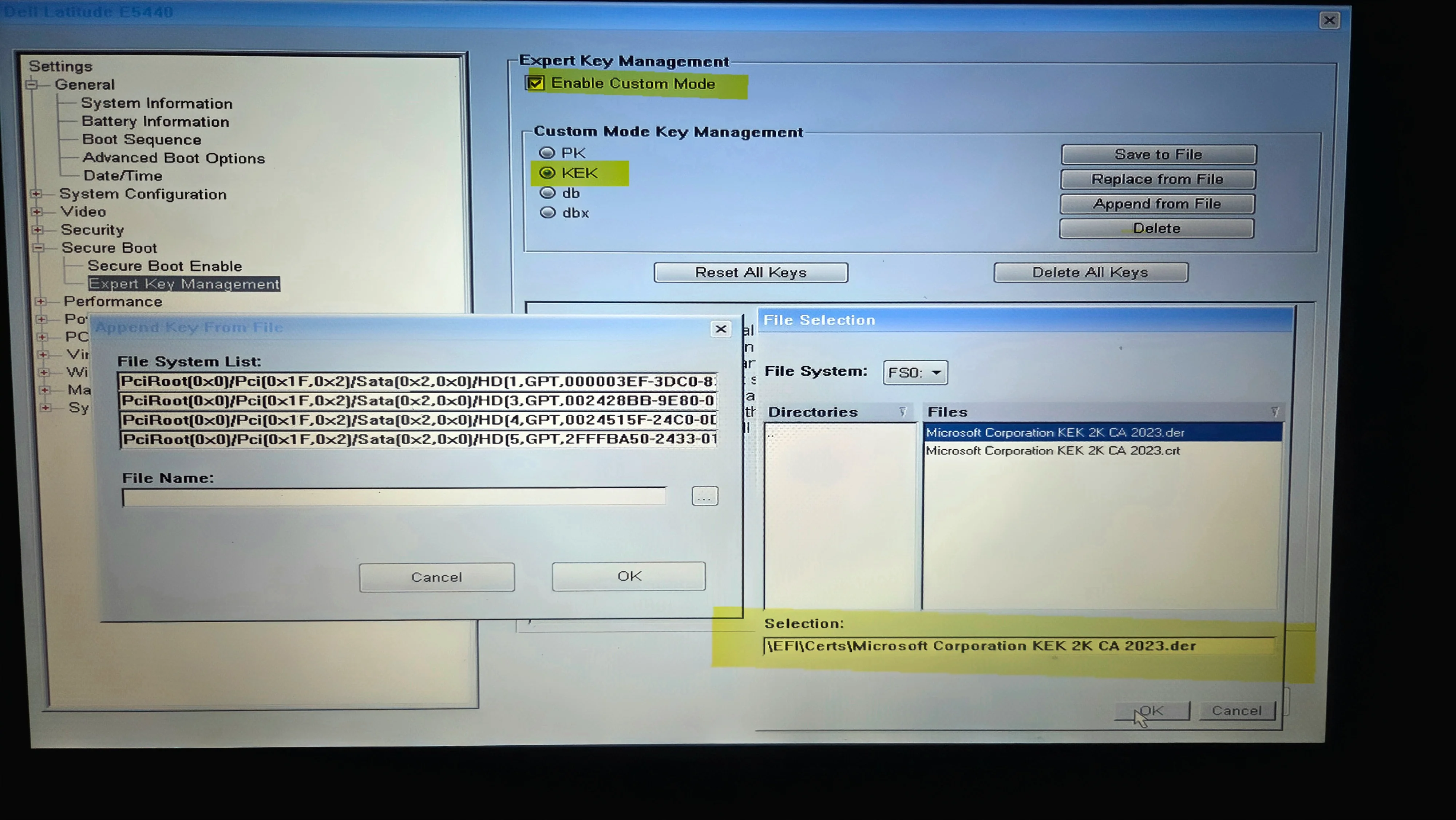

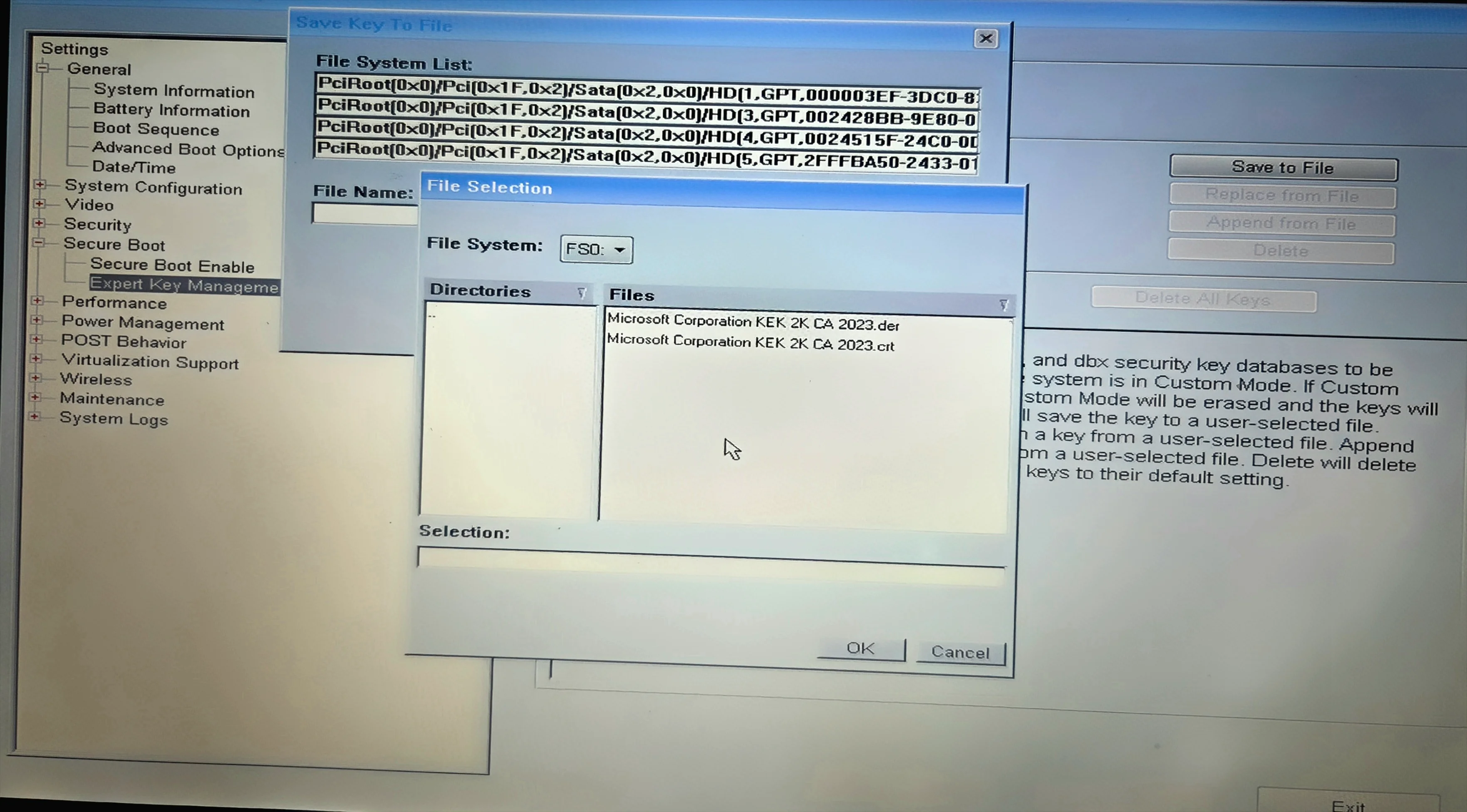

In BIOS mode: Secure Boot → Expert Key Management Enabled → Custom Mode

Selection: KEK -> Append from File
DIR: EFI/CERTS/
a) File name: Microsoft Corporation KEK 2K CA 2003.der
b) File name: Microsoft Corporation KEK 2K CA 2003.cer

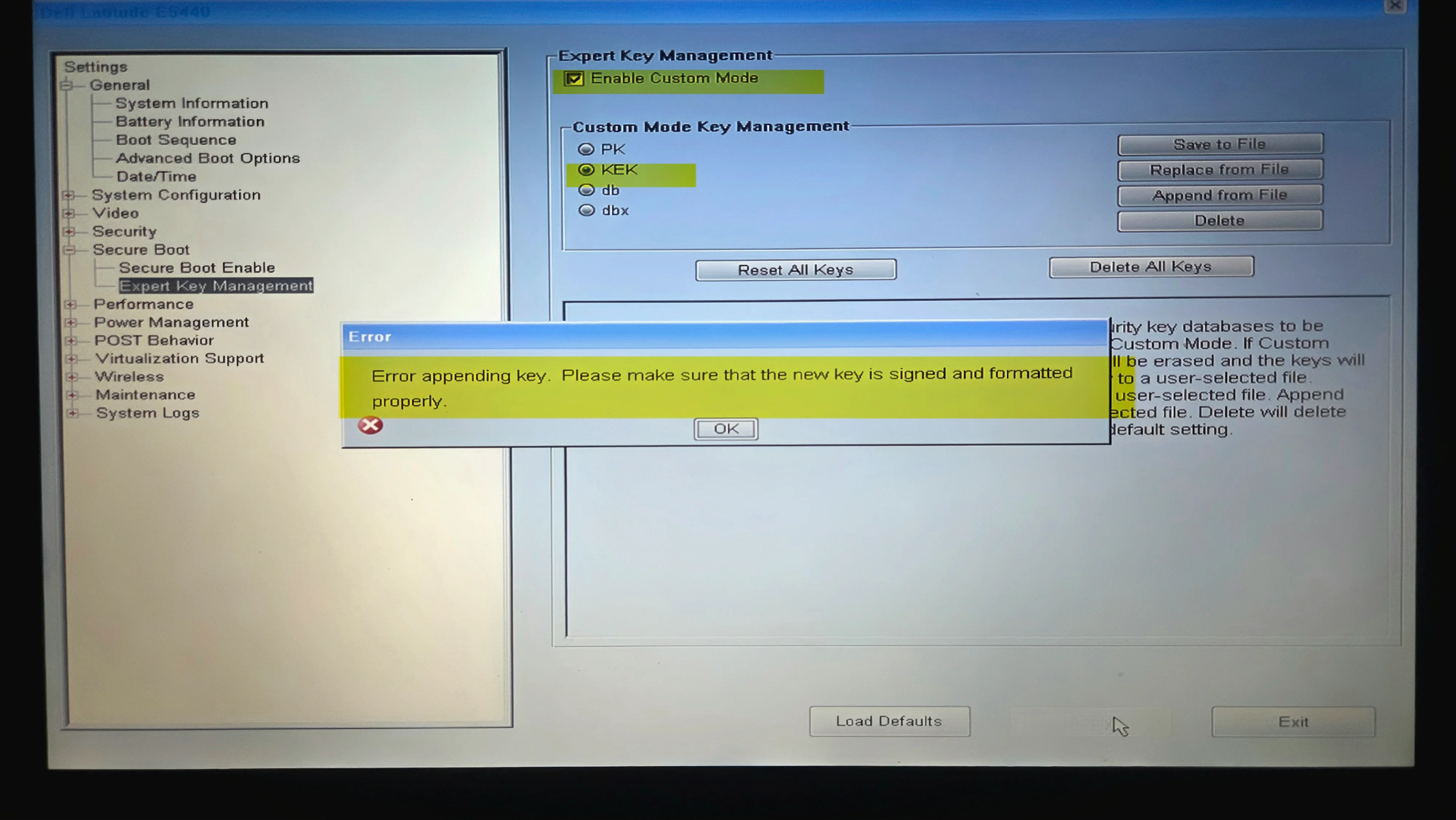

I tried both of them and received the following error: “Error appending key. Please make sure that the new key is signed and formatted properly.”

garlin · Mar 16, 2026

That's what I was afraid of.
Some Dell BIOS'es have this funky signing requirement, and they don't accept .DER or .CRT formatted files.

You can try Reset All Keys, this wipes all the keys out and leaves UEFI in Setup Mode. The update script might be able to write the Windows OEM Devices certs into place. Windows OEM Devices is a drop-in replacement designed for this situation.

Code:

powershell -ep bypass -f Update_UEFI-CA2023.ps1

kraft_mk · Mar 16, 2026

Just to clarify that these are the correct steps:
1. In BIOS mode: Secure Boot → Expert Key Management Enabled → Custom Mode
A. Delete all keys.
B. Then reset all keys.
2. Reboot into BIOS and disable Secure Boot.
3. Boot into Windows 10 and copy the old boot file back (as you instructed me previously).
4. Reboot into BIOS and re-enable Secure Boot.
5A. Apply or Skip (?) PART 1 and PART 2
5B. Run PowerShell as Administrator and execute this command for the Update_UEFI-CA2023.ps1 script:
"powershell -ep bypass -f Update_UEFI-CA2023.ps1"

Is this OK?

garlin · Mar 16, 2026

Yep. Then re-run the check script to see if you end up with a KEK CA 2023 installed.

kraft_mk · Mar 16, 2026

*5A. Apply or Skip?

garlin · Mar 16, 2026

Don't run the Option 1 or 2 steps. That assumes you have a supported BIOS. If you run the check script when UEFI is in Setup Mode, it will instruct you to use the upgrade script.

kraft_mk · Mar 16, 2026

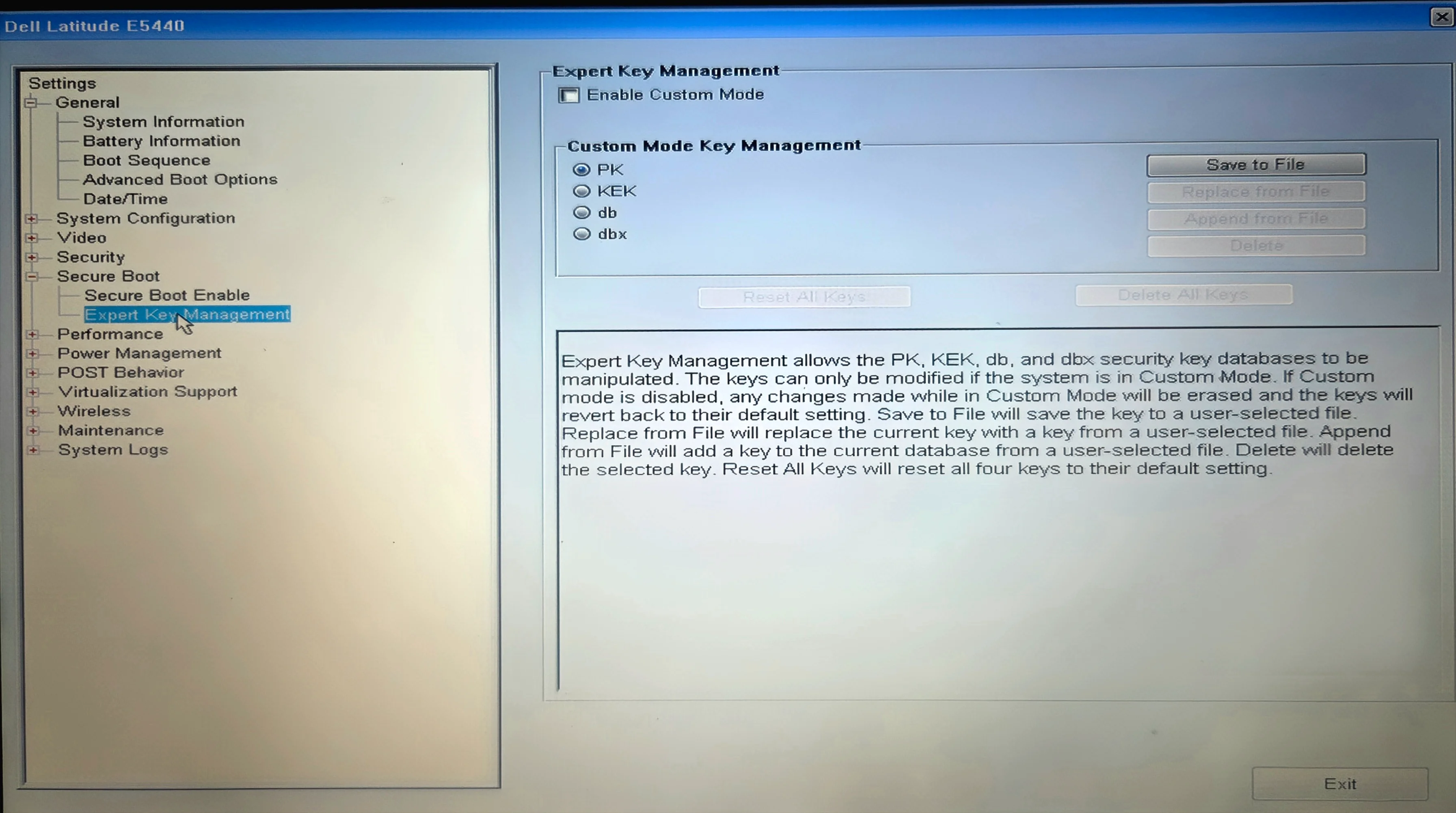

1. In BIOS, I deleted all keys, both "one-by- one" and also using the Delete All Keys" option. – Restart.
2. In BIOS, I reset all keys, using the "Reset All Keys" option. – Restart.
3. In BIOS, I loaded all defaults. – Restart.

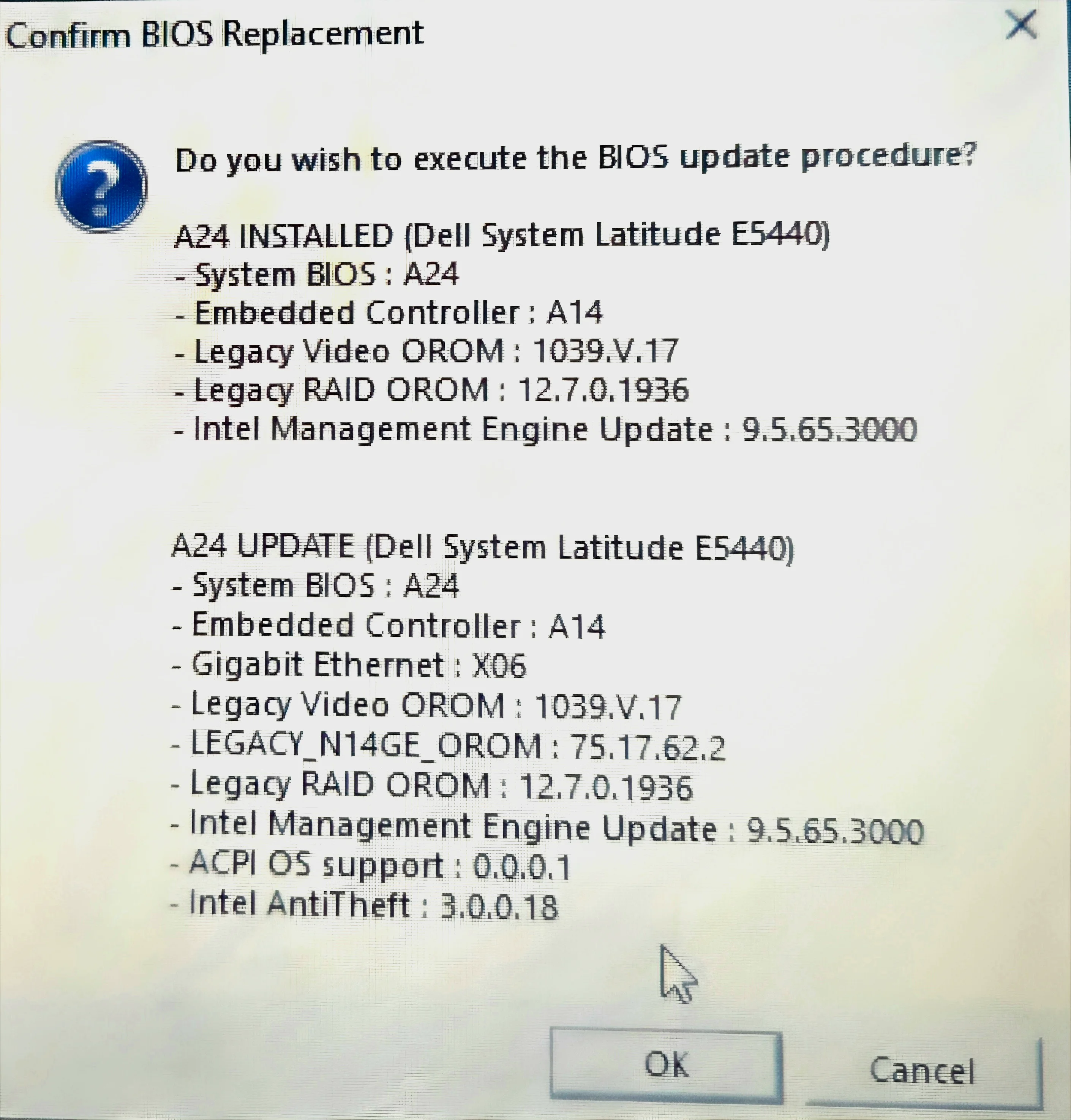

4. I even re-flashed the BIOS. – Restart.
5. I disabled Secure Boot, booted into W10PRO, copied the old boot file back (as you previously instructed), restart - then re-enabled Secure Boot. – Restart.

*******

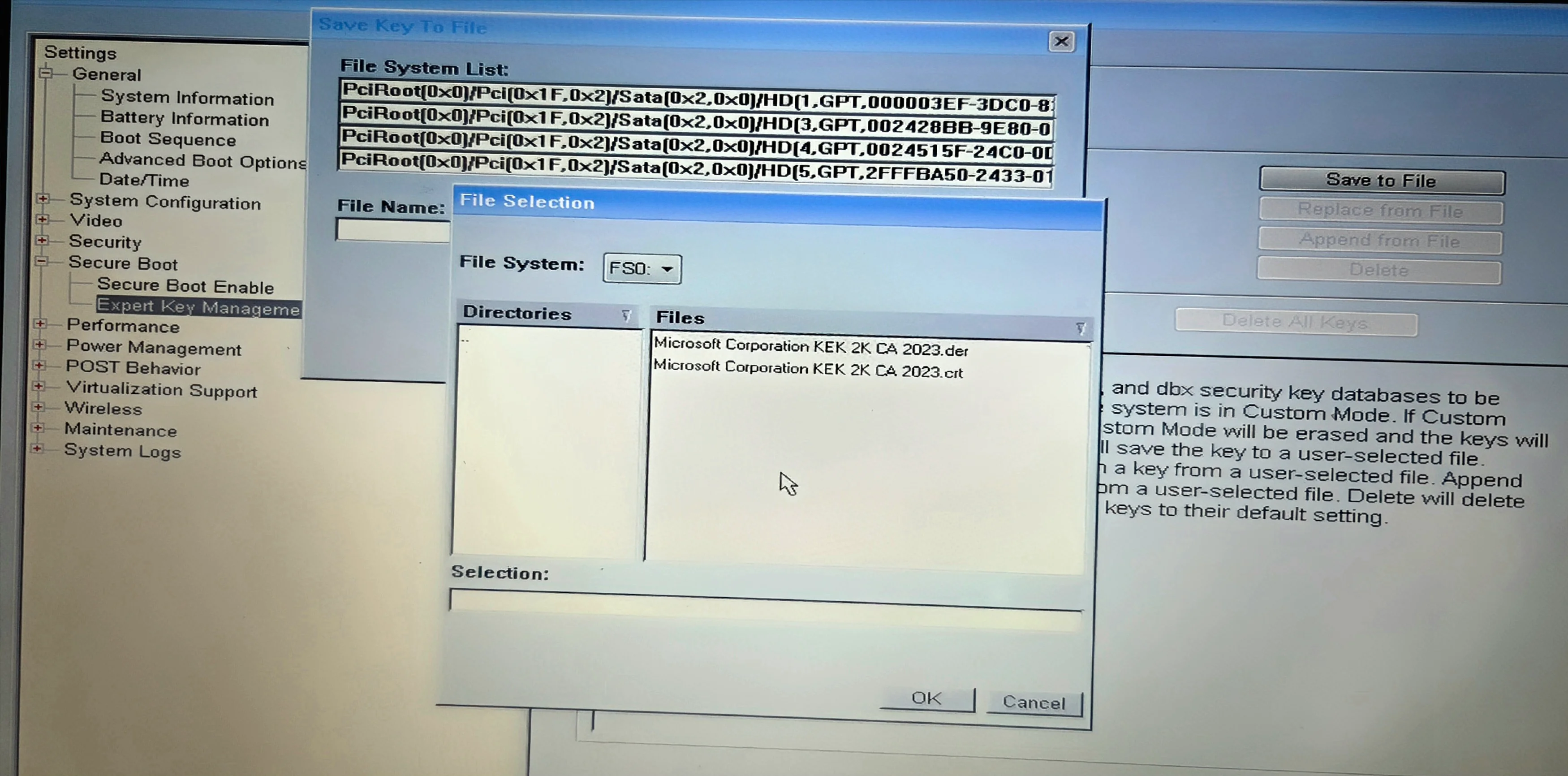

**At this point, I checked in BIOS whether
EFI/CERTS/"Microsoft Corporation KEK 2K CA 2003.der" and "Microsoft Corporation KEK 2K CA 2003.cer" were still listed as options under “Append from File.
**Yes, they were still there. Did nothing - just restart.
*********

What do I do next?

A. Run "powershell -ep bypass -f Update_UEFI-CA2023.ps1" or
B. Run "Check_UEFI-CA2023.ps1 -Verbose" or
C. Both in what order?

Thanks!
