Upgrading windows 10 pc to windows 11 issues


Chandler_bing

Member
Local time
11:33 PM
Posts
1
OS
Windows 10 pro
Ok, I'm new to this forum and have already been told my motherboard and processor is not compatible with windows 11. By my PC builder and the "PC health check".
UNSUPPORTED PC.jpg
However I have had some conflicting advice that I can still upgrade this PC to windows 11. IS this still possible without completing a format of my main drive and a fresh install?
Currently on version 22H2 (OS build 19045.3803)
This PC cost me over £3400 back in 2015. Not expecting much. I have however upgraded the graphics card and swapped out a few drives.
Hope someone can be of some assistance. Thanks in advance.


My Computer

System One

  • OS
    Windows 10 pro
    Computer type
    PC/Desktop
    Manufacturer/Model
    Chillblast fusion- Intel(R) Core(TM) i7-4930K CPU @ 3.40GHz 3.40 GHz
    CPU
    Intel(R) Core(TM) i7-4930K CPU @ 3.40GHz 3.40 GHz
    Motherboard
    Asus X79 Deluxe Motherboard
    Memory
    32GB Corsair Vengeance Pro 2400MHz DDR3 Memory (4 x 8GB sticks)
    Graphics Card(s)
    Nvidia Quadro P2000
    Sound Card
    built in off motherboard
    Monitor(s) Displays
    3 x 24" 4k monitors
    Screen Resolution
    3840 x 2160
    Hard Drives
    main drive Samsung SSD 860 pro 512GB, swap drive - SSD 580 EVO 120 GB, plus 2 drives set up as raid one Seagate 3000GB 7200rpm Hard Disk - 6Gbps
    PSU
    Corsair HX 1050 Modular 1050W PSU
    Case
    Corsair Obsidian 650D Midi Tower Case
    Cooling
    Corsair Hydro Series H100i Extreme Performance Liquid CPU Cooler
    Keyboard
    AIRES back-lit
    Mouse
    Trackball - Kensigton
    Internet Speed
    150 Mbps down - 28Mbps up
    Browser
    Chrome, firefox and edge.
    Antivirus
    Norton 360
    Other Info
    Intel Core i7 4930K 6-cored Processor 3.4GHz (Overclocked to up to 4.5GHz)
I've done 3 Notebooks from 2013 and 2014 plus a Desktop from 2013 using the single-file tweak. However, there is no guarantee they will stay that way in the future against which I did it on hardware-cloned drives, just change the drive to get back to Win10.


My Computers

System One System Two

  • OS
    Win11 Pro RTM
    Computer type
    Laptop
    Manufacturer/Model
    Dell Vostro 3400
    CPU
    Intel Core i5 11th Gen. 2.40GHz
    Memory
    12GB
    Hard Drives
    256GB SSD NVMe
  • Operating System
    Windows 11 Pro RTM x64
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Vostro 5890
    CPU
    Intel Core i5 10th Gen. 2.90GHz
    Memory
    16GB
    Graphics card(s)
    Onboard, no VGA, using a DisplayPort-to-VGA adapter
    Monitor(s) Displays
    24" Dell
    Hard Drives
    512GB SSD NVMe, 2TB WDC HDD
    Browser
    Firefox, Edge
    Antivirus
    Windows Defender/Microsoft Security
Like Berton, I've successfully run Windows 11 on several non-compliant machines (physical and virtual) and I've used the one-file method (appraiserres.dll) successfully as many times as I've installed/re-installed 11. No hitches so far at all. We know MS could pull the rug out at any time, so we're prepared. Meanwhile, most of us are upgrading our hardware as it becomes possible for us. I'm now running W11 on two fully compliant physical systems, but I ran for over two years on non-compliant hardware. No, you don't need to format and go fresh. There are a bunch of threads here about how to upgrade from 10 to 11 without suffering.


My Computers

System One System Two

  • OS
    11 Pro 23H2 22631.3447
    Computer type
    PC/Desktop
    Manufacturer/Model
    Lenovo ThinkCentre M920S SFF
    CPU
    i7-9700 @ 3.00GHz
    Motherboard
    Lenovo 3132
    Memory
    32GBDDR4 @ 2666MHz
    Graphics Card(s)
    Intel HD 630 Graphics onboard
    Sound Card
    Realtek HD Audio
    Monitor(s) Displays
    LG E2442
    Screen Resolution
    1920x1080
    Hard Drives
    1 x Samsung 970 EVO PLUS 500GB NVMe SSD, 1 x WD_BLACK SN770
    250GB NVMe SSD (OS and programs), 1 x WD_BLACK SN770
    500GB NVMe SSD (Data)
    Case
    Lenovo SFF
    Keyboard
    Cherry Stream TKL JK-8600US-2 Wired
    Mouse
    LogiTech M510 wireless
    Internet Speed
    Fast (for fixed wireless!)
    Browser
    Chrome, sometimes Firefox
    Antivirus
    Malwarebytes Premium & Defender (working together beautifully!)
  • Operating System
    11 Pro 23H2 22631.3527
    Computer type
    PC/Desktop
    Manufacturer/Model
    Lenovo ThinkCentre M920S SFF
    CPU
    i5-8400 @ 2.80GHz
    Motherboard
    Lenovo 3132
    Memory
    32GB DDR4 @ 2600MHz
    Graphics card(s)
    Intel HD 630 Graphics onboard
    Sound Card
    Realtek High Definition Audio onboard
    Monitor(s) Displays
    LG FULL HD (1920x1080@59Hz)
    Screen Resolution
    1920 x 1080
    Hard Drives
    1 x Samsung 970 EVO PLUS NVMe; 1 x Samsung 980 NVMe SSD
    Case
    Lenovo Think Centre SFF
    Mouse
    LogiTech M510 wireless
    Keyboard
    Cherry Stream TKL JK-8600US-2 Wired
    Internet Speed
    Fast (for fixed wireless!)
    Browser
    Chrome
    Antivirus
    Malwarebytes Premium and MS Defender, beautiful together
Heck I'm running 11 on my 775 Build. I get the updates as well


My Computers

System One System Two

  • OS
    WiN11 Pro
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom 775 System
    CPU
    Xeon E5450 3.0GHZ (OC 3.7GHZ)
    Motherboard
    ASUS PQ5-EM
    Memory
    8GB (2GBX4)
    Graphics Card(s)
    AMD R5 430 2GB
    Sound Card
    Onboard
    Monitor(s) Displays
    ASUS 24"
    Screen Resolution
    1080p
    Hard Drives
    1TB|750GB USB, 3 SSDs 2 240GB 1 128GB, 750GB HDD
    PSU
    650WATT Rosewill
    Case
    Rosewill with side Window
    Cooling
    5 Fans and a big HSK for cpu
    Keyboard
    Rosewill RGB
    Mouse
    Rosewill RGB
    Internet Speed
    AT&T 150MB DL\UP
    Browser
    FireFox
    Antivirus
    Defender
    Other Info
    I'm lucky to even be here after 6yrs from my car accident
  • Operating System
    WiN10 LTSC
    Computer type
    Laptop
    Manufacturer/Model
    Hp 8460p
    CPU
    i7 2670QM 2.20GHZ
    Motherboard
    Hp 161C
    Memory
    8GB (2X4GB) DUAL Channel
    Graphics card(s)
    Intel HD Graphics 3000
    Sound Card
    Intel high Def (basically onboard)
    Screen Resolution
    1366x768
    Hard Drives
    OS 128GB l Storage (caddy) 320GB
    PSU
    AC (IDK the watts)
    Browser
    Firefox
    Antivirus
    Defender
    Other Info
    A USB 3.0 in the Express Card Slot
Just download iso through rufus to apply bypass and run setup from usb in win 10 for in place upgrade


My Computer

System One

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    -
    CPU
    4770k
    Motherboard
    Asus Maximus Formula VI
    Memory
    16 gb Kingston
    Graphics Card(s)
    2070 super
  • Like
Reactions: WAI
Thanks, WAI. Just read your system specs. We're lucky to have you here 6 years after your accident. Thanks for your contributions.


My Computers

System One System Two

  • OS
    11 Pro 23H2 22631.3447
    Computer type
    PC/Desktop
    Manufacturer/Model
    Lenovo ThinkCentre M920S SFF
    CPU
    i7-9700 @ 3.00GHz
    Motherboard
    Lenovo 3132
    Memory
    32GBDDR4 @ 2666MHz
    Graphics Card(s)
    Intel HD 630 Graphics onboard
    Sound Card
    Realtek HD Audio
    Monitor(s) Displays
    LG E2442
    Screen Resolution
    1920x1080
    Hard Drives
    1 x Samsung 970 EVO PLUS 500GB NVMe SSD, 1 x WD_BLACK SN770
    250GB NVMe SSD (OS and programs), 1 x WD_BLACK SN770
    500GB NVMe SSD (Data)
    Case
    Lenovo SFF
    Keyboard
    Cherry Stream TKL JK-8600US-2 Wired
    Mouse
    LogiTech M510 wireless
    Internet Speed
    Fast (for fixed wireless!)
    Browser
    Chrome, sometimes Firefox
    Antivirus
    Malwarebytes Premium & Defender (working together beautifully!)
  • Operating System
    11 Pro 23H2 22631.3527
    Computer type
    PC/Desktop
    Manufacturer/Model
    Lenovo ThinkCentre M920S SFF
    CPU
    i5-8400 @ 2.80GHz
    Motherboard
    Lenovo 3132
    Memory
    32GB DDR4 @ 2600MHz
    Graphics card(s)
    Intel HD 630 Graphics onboard
    Sound Card
    Realtek High Definition Audio onboard
    Monitor(s) Displays
    LG FULL HD (1920x1080@59Hz)
    Screen Resolution
    1920 x 1080
    Hard Drives
    1 x Samsung 970 EVO PLUS NVMe; 1 x Samsung 980 NVMe SSD
    Case
    Lenovo Think Centre SFF
    Mouse
    LogiTech M510 wireless
    Keyboard
    Cherry Stream TKL JK-8600US-2 Wired
    Internet Speed
    Fast (for fixed wireless!)
    Browser
    Chrome
    Antivirus
    Malwarebytes Premium and MS Defender, beautiful together
  • Like
Reactions: WAI
As was noted, yes, it is possible to run Win 11 on what is technically unsupported hardware. Below are two links that should help you.

Personally, I have installed Win 11 on literally dozens of computers that were not technically supported by Windows 11 and have NEVER had one that didn't work. I'm sure that there will be the rare exception, but generally speaking, if it can run Win 10, it can run Win 11.

Some will tell you that it is possible that future versions may not work, but I find it unliklly that Microsoft will pull out the rug from under you on a system where it is already working. After all, they want you running Windows. If you are going to have a problem with Windows working on your hardware, it's more likely to be with Win 12 rather than any release of Win 11. Of course, bear in mind that I could be wrong, so proceed knowing that things can change.

BTW, one of my systems uses the same CPU that you have. That system runs Win 11 Pro for me and serves as a general purpose file server, backup destination for my other PCs, and a Plex Server, and win 11 runs 100% flawlessly on that system.




My Computers

System One System Two

  • OS
    Win11 Pro 23H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Home Built
    CPU
    Intel i7-11700K
    Motherboard
    ASUS Prime Z590-A
    Memory
    128GB Crucial Ballistix 3200MHz DRAM
    Graphics Card(s)
    No GPU - CPU graphics only (for now)
    Sound Card
    Realtek (on motherboard)
    Monitor(s) Displays
    HP Envy 32
    Screen Resolution
    2560 x 1440
    Hard Drives
    1 x 1TB NVMe Gen 4 x 4 SSD
    1 x 2TB NVMe Gen 3 x 4 SSD
    2 x 512GB 2.5" SSDs
    2 x 8TB HD
    PSU
    Corsair HX850i
    Case
    Corsair iCue 5000X RGB
    Cooling
    Noctua NH-D15 chromax.black cooler + 10 case fans
    Keyboard
    CODE backlit mechanical keyboard
    Mouse
    Logitech MX Master 3
    Internet Speed
    1Gb Up / 1 Gb Down
    Browser
    Edge
    Antivirus
    Windows Defender
    Other Info
    Additional options installed:
    WiFi 6E PCIe adapter
    ASUS ThunderboltEX 4 PCIe adapter
  • Operating System
    Win11 Pro 23H2
    Computer type
    Laptop
    Manufacturer/Model
    Lenovo ThinkBook 13x Gen 2
    CPU
    Intel i7-1255U
    Memory
    16 GB
    Graphics card(s)
    Intel Iris Xe Graphics
    Sound Card
    Realtek® ALC3306-CG codec
    Monitor(s) Displays
    13.3-inch IPS Display
    Screen Resolution
    WQXGA (2560 x 1600)
    Hard Drives
    2 TB 4 x 4 NVMe SSD
    PSU
    USB-C / Thunderbolt 4 Power / Charging
    Mouse
    Buttonless Glass Precision Touchpad
    Keyboard
    Backlit, spill resistant keyboard
    Internet Speed
    1Gb Up / 1Gb Down
    Browser
    Edge
    Antivirus
    Windows Defender
    Other Info
    WiFi 6e / Bluetooth 5.1 / Facial Recognition / Fingerprint Sensor / ToF (Time of Flight) Human Presence Sensor
I second using the Rufus method of creating installation mediate to install on incompatible hardware.
.
HOW TO MAKE INSTALLATION MEDIA USING RUFUS

1. Go here, scroll down to "Download Windows 11 Disk Image". Select Windows 11 Multi-edition ISO from the dropdown arrow. Click Download now.
Download Windows 11

2. Go here. Download the portable edition of Rufus filename rufus-4.3p.exe. Rufus - Create bootable USB drives the easy way

3. Insert a known good 8 gb or larger usb flash drive. Any name brand should work. (Some of the cheap unbranded ones can prove not to be bootable)

4. Open Rufus by double clicking on the file you downloaded.

Screenshot 1-
Select the flash drive you want to use. (RED)
Click SELECT browse to where your iso is saved, and select the ISO image you downloaded. (Orange)
Verify the iso image shows in the box (Blue arrow)
Press START.

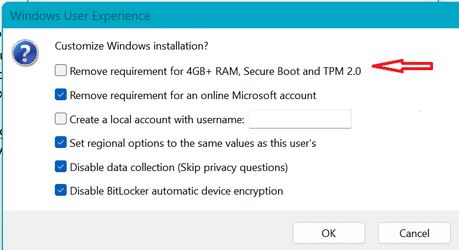

Screenshot 2 This screenshot was made for another user.
In your case Check only Boxes 1-4-5-6 Click OK.




Click Ok and Rufus will burn the iso to the flash drive.
To upgrade disable any third party AV. Open the Rufus created drive and Run the setup.exe file


Attachments

  • Screenshot 2023-12-24 004237.png
    Screenshot 2023-12-24 004237.png
    15.4 KB · Views: 3

My Computers

System One System Two

  • OS
    Windows 11 Pro 23H2 22631.3447
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Optiplex 7080
    CPU
    i9-10900 10 core 20 threads
    Motherboard
    DELL 0J37VM
    Memory
    32 gb
    Graphics Card(s)
    none-Intel UHD Graphics 630
    Sound Card
    Integrated Realtek
    Monitor(s) Displays
    Benq 27
    Screen Resolution
    2560x1440
    Hard Drives
    1tb Solidigm m.2 +256gb ssd+512 gb usb m.2 sata
    PSU
    500w
    Case
    MT
    Cooling
    Dell Premium
    Keyboard
    Logitech wired
    Mouse
    Logitech wireless
    Internet Speed
    so slow I'm too embarrassed to tell
    Browser
    Firefox
    Antivirus
    Defender+MWB Premium
  • Operating System
    Windows 10 Pro 22H2 19045.3930
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Optiplex 9020
    CPU
    i7-4770
    Memory
    24 gb
    Monitor(s) Displays
    Benq 27
    Screen Resolution
    2560x1440
    Hard Drives
    256 gb Toshiba BG4 M.2 NVE SSB and 1 tb hdd
    PSU
    500w
    Case
    MT
    Cooling
    Dell factory
    Mouse
    Logitech wireless
    Keyboard
    Logitech wired
    Internet Speed
    still not telling
    Browser
    Firefox
    Antivirus
    Defender+MWB Premium


My Computers

System One System Two

  • OS
    Windows 7 HP 64 - Windows 11 Pro - Lubuntu
    Computer type
    PC/Desktop
    Manufacturer/Model
    custom build
    CPU
    i5 6600K - 800MHz to 4400MHz
    Motherboard
    GA-Z170-HD3P
    Memory
    4+4G GSkill DDR4 3000
    Graphics Card(s)
    IG - Intel 530
    Monitor(s) Displays
    Samsung 226BW
    Screen Resolution
    1680x1050
    Hard Drives
    (1) -1 SM951 – 128GB M.2 AHCI PCIe SSD drive for Win 11
    (2) -1 WD SATA 3 - 1T for Data
    (3) -1 WD SATA 3 - 1T for backup
    (4) -1 BX500 SSD - 128G for Windows 7 and Lubuntu
    PSU
    Thermaltake 450W TR2 gold
    Keyboard
    Old and good Chicony mechanical keyboard
    Mouse
    Logitech mX performance - 9 buttons (had to disable some)
    Internet Speed
    500 Mb/s
    Browser
    Firefox 64
  • Operating System
    Windows 7 Pro
    Computer type
    Laptop
    Manufacturer/Model
    Asus Q550LF
    CPU
    i7-4500U 800- 3000MHz
    Motherboard
    Asus Q550LF
    Memory
    (4+4)G DDR3 1600
    Graphics card(s)
    IG intel 4400 + NVIDIA GeForce GT 745M
    Sound Card
    Realtek
    Monitor(s) Displays
    LG Display LP156WF4-SPH1
    Screen Resolution
    1920 x 1080
    Hard Drives
    BX500 120G SSD for Windows and programs
    & 1T HDD for data
    Internet Speed
    350 Mb/s
    Browser
    Firefox 64

Latest Support Threads

Back
Top Bottom
