Secure Boot?

Disposable

Member
Local time
1:11 PM
Posts
15
I run Windows 10 64 bit with 32 gig ram latest build 21H1 19043.1081.
My MOBO is a Micro-Star B450M Pro-VDH MAX 8.0
AMD B.A0-AMD AGESA COMBO AM4V2PI 1.1.0.0

The Desktop PC this belongs to is less tan a year old, an 8 core: AMD Ryzen 7 1700X Eight-Core Processor 3.40 GHz

I have been into the BIOS and found ftpm and enabled 2.0 and UEFI is enabled But I cannot find the secure boot setting anywhere? Is there another name for this setting I have looked under Boot and Security and all other tabs in that section.

So my question is how do I find secure boot on this setup?

Last edited:

My Computer

System One

  • Operating System
    Windows 10 Pro
    Computer type
    PC/Desktop
    Manufacturer/Model
    Home Build
    CPU
    AMD Ryzen 7 1700X Eight-Core Processor 3.40 GHz
    Motherboard
    Micro-Star. has both UEFI / Secure Boot and tpm 2.0
    Memory
    32 Gig
    Graphics Card(s)
    3.40 gigahertz AMD Ryzen 7 1700X Eight-Core
    Sound Card
    On Board
    Monitor(s) Displays
    twin 24 inch hd Acer.
    Screen Resolution
    1920x1080
    Hard Drives
    I ter main OS drive internal/ 3 ter backup drive internal + 2 ter external drive.
    PSU
    ample.
    Case
    No idea?
    Cooling
    Fans 4.
    Keyboard
    Logitech Solar Panel powered.
    Mouse
    Goji
    Internet Speed
    Ample.
    Browser
    Opera
    Antivirus
    Defender

dupek

Member
Local time
8:11 AM
Posts
35
Do not worry about the secure boot. In my cmos is grey out. As long as you get the tpm enable, you are OK.


My Computer

System One

  • Operating System
    win 11

Disposable

Member
Thread Starter
Local time
1:11 PM
Posts
15
Not according to the Health Check App? Still says I can't run Windows 11?


My Computer

System One

  • Operating System
    Windows 10 Pro
    Computer type
    PC/Desktop
    Manufacturer/Model
    Home Build
    CPU
    AMD Ryzen 7 1700X Eight-Core Processor 3.40 GHz
    Motherboard
    Micro-Star. has both UEFI / Secure Boot and tpm 2.0
    Memory
    32 Gig
    Graphics Card(s)
    3.40 gigahertz AMD Ryzen 7 1700X Eight-Core
    Sound Card
    On Board
    Monitor(s) Displays
    twin 24 inch hd Acer.
    Screen Resolution
    1920x1080
    Hard Drives
    I ter main OS drive internal/ 3 ter backup drive internal + 2 ter external drive.
    PSU
    ample.
    Case
    No idea?
    Cooling
    Fans 4.
    Keyboard
    Logitech Solar Panel powered.
    Mouse
    Goji
    Internet Speed
    Ample.
    Browser
    Opera
    Antivirus
    Defender

badrobot

Well-known member
MVP
Member
VIP
Local time
8:11 AM
Posts
367
Location
Toronto, CANADA
it is usually under Security tab.


My Computers

System One System Two

  • Operating System
    Windows 10/11 Pro
    Computer type
    PC/Desktop
    CPU
    i7-4790K
    Motherboard
    ASRock Xtreme6 Z97
    Memory
    16GB Corsair Vengeance Pro
    Graphics Card(s)
    MSI R9 290
    Monitor(s) Displays
    LG Ultrawide 34"
    Screen Resolution
    3440x1440
    Hard Drives
    Samsung M.2
    PSU
    Thermaltake 475 Watts 80 Bronze
    Case
    Thermaltake Commander I Snow Edition
    Cooling
    Deep Cool Archer Air Cooler
    Internet Speed
    1Gbps
    Browser
    Chrome
    Antivirus
    "Moderna"
  • Operating System
    Windows 10 Pro
    Computer type
    PC/Desktop
    CPU
    AMD Ryzen 9 3900X
    Motherboard
    MSI MPG Gaming Edge Wifi (X570)
    Memory
    32GB Adata XPG DDR4
    Graphics card(s)
    ASUS GTX 1070 8GB ROG Strix
    Monitor(s) Displays
    LG Ultrawide 34"
    Screen Resolution
    3440x1440
    Hard Drives
    Main Boot Drive : 512GB Adata XPG RGB Gen3x4 NVMe M.2 SSD
    PSU
    EVGA 600 Watts Gold
    Case
    Deepcool Genome II
    Cooling
    Deepcool Fryzen
    Mouse
    Logitech G402
    Keyboard
    Armageddon MKA-5R RGB-Hornet
    Internet Speed
    1Gbps
    Browser
    Chrome
    Antivirus
    Moderna :)

johnlgalt

Antidisestablishmentarianistentarianist
Power User
VIP
Local time
8:11 AM
Posts
1,922
Location
3rd Rock
On my MSI MMEG X570 GODLIKE, I had to change from CSM to UEFI, then Change Secure boot type to customer and then use the item that said something along the lines of "configure" or "Pre-load keys" and let it do it's thing and then reboot the machine and then go back into the UEFI FW settings and then I was able to change from Custom to Standard, and then also it would allow Secure Boot to be enabled.

I can't reboot currently, but I;'ll try too within the next half hour or so to get some pics to see if they can help.

Also, though, if your drives are MBR instead of GPT, the mobo might disable changing Secure boot, too. I think.


My Computers

System One System Two

  • Operating System
    Windows 10 Pro X64
    Computer type
    PC/Desktop
    Manufacturer/Model
    HomeBrew
    CPU
    AMD Ryzen 9 3950X
    Motherboard
    MSI MEG X570 GODLIKE
    Memory
    4 * Corsair Vengeance 32 GB 3600 MHz
    Graphics Card(s)
    eVGA GeForce GTX 970 SSC ACX 2.0 (04G-P4-3979-KB)
    Sound Card
    Realtek® ALC1220 Codec
    Monitor(s) Displays
    2 * Lenovo LT2323pwA Widescreeen
    Screen Resolution
    2* 1920*1080
    Hard Drives
    3x Sabrent Rocket PCIe Gen4 NVMe M.2 1 TB SSD (SB-ROCKET-NVMe4-1TB)
    SanDisk Ultra SDSSDHII-960G-G25 960 GB SATA III SSD
    Crucial MX100 CT256MX100SSD1 256GB SATA III SSD
    2 * Seagate Barracuda 7200.12 ST31000528AS 1TB 7200 RPM --> RAID1
    PSU
    PC Power & Cooling’s Silencer Series 1050 Watt, 80 Plus Platinum
    Case
    Fractal Design Define 7 XL Dark ATX Full Tower Case
  • Operating System
    Windows 10 x64 Pro build 21H1
    Computer type
    Laptop
    Manufacturer/Model
    Dell Latitude E5470
    CPU
    Intel(R) Core(TM) i5-6300U CPU @ 2.40GHz, 2501 Mhz, 2 Core(s), 4 Logical Processor(s)
    Motherboard
    Dell
    Memory
    16 GB
    Graphics card(s)
    Intel(R) HD Graphics 520
    Sound Card
    Intel(R) HD Graphics 520 + RealTek Audio
    Monitor(s) Displays
    Dell laptop display 15"
    Screen Resolution
    1920 * 1080
    Hard Drives
    Toshiba 128GB M.2 22300 drive
    INTEL Cherryvill 520 Series SSDSC2CW180A 180 GB SATA III SSD
    PSU
    Dell
    Case
    Dell
    Cooling
    Dell
    Mouse
    Logitech MX Master (shared) | Dell TouchPad
    Keyboard
    Dell
    Internet Speed
    AT&T LightSpeed Gigabit Duplex
    Browser
    Edge Chromium | Chrome | Firefox Nightly | Brave
    Antivirus
    Defender + MB4

jbcarreon123

C:\>sudo apt install chrome
Member
VIP
Local time
8:11 PM
Posts
681
Location
Quezon City, Philippines
Some on the Security tab - but some others on the Boot tab.


My Computer

System One

  • Operating System
    Windows 10, Windows 10 Ghost Spectre, Windows 11 (multi-boot)
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Vostro 270s
    CPU
    Core i3 2100 3.2Ghz
    Memory
    4gb DDR3-1333
    Graphics Card(s)
    iGPU
    Sound Card
    Realtek
    Monitor(s) Displays
    HP Compaq LA2006x
    Screen Resolution
    900p
    Internet Speed
    10MBit/s
    Browser
    Chrome, FFox and my homemade browser IE11-based
    Antivirus
    WD
    Other Info
    Second-hand PC,
    No TPM, having WDDM 1.2, unsupported CPU.
    Installed Windows 11 using the registry hack..
    Clean installed even Windows 10

BunnyJ

Python Programmer
Power User
VIP
Local time
8:11 AM
Posts
2,692
Location
Oak Ridge, TN(The Secret City)
Secure boot should be under "Boot" on cmos.
it is on mine.. but keep in mind not all BIOS's are the same.. YMMV


My Computer

System One

  • Operating System
    Windows 11 Home
    Computer type
    PC/Desktop
    Manufacturer/Model
    Banna Junior 7K - X Series
    CPU
    Ryzen 7 2700X
    Motherboard
    Asus Crosshair VII Hero, X470
    Memory
    Gskill 32GB, 16GBX2 PC3000
    Graphics Card(s)
    GeForce GTX TITAN X 12GB
    Sound Card
    On motherboard
    Monitor(s) Displays
    Viotek 32" Curved, ViewSonic 27"
    Screen Resolution
    1080P
    Hard Drives
    Primary Samsung 256 SSD
    PSU
    EVGA BQ 700w 80+ Bronze
    Case
    NZXT 510
    Cooling
    Stock AMD cooler
    Keyboard
    Corsair
    Mouse
    Amazon Generic with Cord
    Internet Speed
    Download: 240.78 mbps Upload: 12.02 mbps Ping: 15ms
    Browser
    Firefox and Edge
    Antivirus
    Defender

Devlin1888

"RockHardSemi"
Member
VIP
Local time
1:11 PM
Posts
230
Location
Scotland

Enable Secure Boot

Precautionary notice: If you haven't had this enabled before, your OS will not boot if your boot disk partition style is not GPT.


  1. Enter the BIOS:
    1. Reboot system and press Del repeatedly at system start.
    2. If that does not work, go in Windows, hold the "Shift" key and select Restart from the Start Menu. After restart, the Advanced Startup menu options will appear. Go to Troubleshoot > Advanced options > UEFI Firmware Settings and press Restart.
  2. Switch to "Advanced Mode" if the BIOS is in "Easy Mode".
  3. If you want to enable Secure Boot: "Advanced"-> "Settings"-> "Windows OS Configuration"-> look for "Windows 8/8.1 Feature" or "Windows 10 WHQL Support" and set it to "UEFI".
  4. Save and exit.
  5. Enter BIOS.
  6. Go to "Advanced"-> "Settings"-> "Windows OS Configuration"->Secure Boot-> set "Secure Boot" to Enabled.
  7. Save and exit.
This guide i believe is based on MSI boards for secure boot, Not sure if it'll help but thought id post it anyway, Found on another site


My Computer

System One

  • Operating System
    Windows 11 Education Build 22483.1011 Developer Build
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom
    CPU
    i7 10700k@5.2
    Motherboard
    Gigabyte Gaming X Z490
    Memory
    16GB Viper Steel Series 3200mhz
    Graphics Card(s)
    Gigabyte RTX2070 Super X OC Windforce
    Monitor(s) Displays
    ASUS TUF Gaming 3840X2160 Benq Gl2250 1920x1080
    Screen Resolution
    4K/1600/1440/1080
    Hard Drives
    M.2 - ADATA SX8200 Pro 1TB
    SSD - Samsung 860 evo
    PSU
    Corsair 650w
    Case
    NZXT S340 Elite
    Cooling
    Cooler Master Hyper 212 RGB Black Edition
    Keyboard
    Razer Ornata Chroma
    Mouse
    Steel Series Rival 710
    Internet Speed
    50mbs
    Browser
    Opera GX
    Antivirus
    Windows Defender

FreeBooter

Active member
Member
VIP
Local time
3:11 PM
Posts
179
Type msinfo32 into Start Menu from System Information --> Secure Boot State check to see if Secure Boot is enabled (On).


My Computer

System One

  • Operating System
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    HP Pavilion
    CPU
    AMD Ryzen 7 5700G
    Motherboard
    HP Pavilion Gaming Desktop TG01-2019nt
    Memory
    Micron Technology DDR4-3200 16GB
    Graphics Card(s)
    NVIDIA GeForce RTX 3060
    Sound Card
    Realtek ALC671
    Monitor(s) Displays
    Samsung SyncMaster U28E590
    Screen Resolution
    3840 x 2160
    Hard Drives
    SAMSUNG MZVLQ1T0HALB-000H1

Gramps

Member
VIP
Local time
8:11 AM
Posts
37

Enable Secure Boot


This guide i believe is based on MSI boards for secure boot, Not sure if it'll help but thought id post it anyway, Found on another site
I have an MSI board and it is exactly the steps I followed.


My Computer

System One

  • Operating System
    Windows 11
    Computer type
    PC/Desktop
    CPU
    I8700k
    Motherboard
    MSI Z370A Pro
    Memory
    32 gb
    Graphics Card(s)
    1070ti
    Sound Card
    On-board realtech

Ghot

Well-known member
Power User
VIP
Local time
8:11 AM
Posts
1,259
Location
PA, USA
I run Windows 10 64 bit with 32 gig ram latest build 21H1 19043.1081.
My MOBO is a Micro-Star B450M Pro-VDH MAX 8.0
AMD B.A0-AMD AGESA COMBO AM4V2PI 1.1.0.0

The Desktop PC this belongs to is less tan a year old, an 8 core: AMD Ryzen 7 1700X Eight-Core Processor 3.40 GHz

I have been into the BIOS and found ftpm and enabled 2.0 and UEFI is enabled But I cannot find the secure boot setting anywhere? Is there another name for this setting I have looked under Boot and Security and all other tabs in that section.

So my question is how do I find secure boot on this setup?

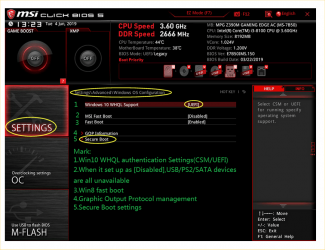

It looks like it's under: Settings > Advanced > Windows OS Configuration





My Computers

System One System Two

  • Operating System
    Win 10 Home 10.0.22000.282 (x64)
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot® [May 2020]
    CPU
    AMD Ryzen 7 3700X
    Motherboard
    Asus Pro WS X570-ACE
    Memory
    G.Skill (F4-3200C14D-16GTZKW)
    Graphics Card(s)
    EVGA RTX 2070 (08G-P4-2171-KR)
    Sound Card
    (onboard) Realtek ALC1220P / ALC S1220A
    Monitor(s) Displays
    Dell U3011 30"
    Screen Resolution
    2560 x 1600
    Hard Drives
    Samsung 860 EVO 500GB,
    WD 4TB Black FZBX - SATA III,
    WD 8TB Black FZBX - SATA III,
    LG GH22LS30 CD/DVD Burner
    PSU
    PC Power & Cooling 750W Quad EPS12V
    Case
    COOLER MASTER ATCS 840 Full Tower
    Cooling
    CM Hyper 212 EVO (push/pull)
    Keyboard
    Ducky DK9008 Shine II Blue LED
    Mouse
    Logitech Optical M-100
    Internet Speed
    100/100
    Browser
    Firefox (latest)
    Antivirus
    Bitdefender Internet Security 2020
    Other Info
    Speakers: Klipsch Pro Media 2.1
  • Operating System
    Windows XP Pro 32bit w/SP3
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot®
    CPU
    AMD Athlon 64 X2 5000+ (OC'd @ 3.2Ghz)
    Motherboard
    ASUS M2N32-SLI Deluxe Wireless Edition
    Memory
    TWIN2X2048-6400C4DHX (2 x 1GB, DDR2 800)
    Graphics card(s)
    EVGA 256-P2-N758-TR GeForce 8600GT SSC
    Sound Card
    Onboard
    Monitor(s) Displays
    ViewSonic G90FB Black 19" Professional (CRT)
    Screen Resolution
    up to 2048 x 1536
    Hard Drives
    WD 36GB 10,000rpm Raptor SATA
    Seagate 80GB 7200rpm SATA
    Lite-On LTR-52246S CD/RW
    Lite-On LH-18A1P CD/DVD Burner
    PSU
    PC Power & Cooling Silencer 750 Quad EPS12V
    Case
    Generic Beige case, 80mm fans
    Cooling
    ZALMAN 9500A 92mm CPU Cooler
    Mouse
    Logitech Optical M-BT96a
    Keyboard
    Logitech Classic Keybooard 200
    Internet Speed
    100/100
    Browser
    Firefox 3.x ??
    Antivirus
    Symantec (Norton)
    Other Info
    Still assembled, still runs. Haven't turned it on for 13 years?

    http://www.xtremesystems.org/forums/showthread.php?183088-5000-B-E-on-M2N32-SLI-Dlx-Overclocked&p=2891724#post2891724

Disposable

Member
Thread Starter
Local time
1:11 PM
Posts
15
Thanks to all of you for your help! I think I have enabled Secure Boot, but how do I check now that Microsoft have removed the Health Check App?


My Computer

System One

  • Operating System
    Windows 10 Pro
    Computer type
    PC/Desktop
    Manufacturer/Model
    Home Build
    CPU
    AMD Ryzen 7 1700X Eight-Core Processor 3.40 GHz
    Motherboard
    Micro-Star. has both UEFI / Secure Boot and tpm 2.0
    Memory
    32 Gig
    Graphics Card(s)
    3.40 gigahertz AMD Ryzen 7 1700X Eight-Core
    Sound Card
    On Board
    Monitor(s) Displays
    twin 24 inch hd Acer.
    Screen Resolution
    1920x1080
    Hard Drives
    I ter main OS drive internal/ 3 ter backup drive internal + 2 ter external drive.
    PSU
    ample.
    Case
    No idea?
    Cooling
    Fans 4.
    Keyboard
    Logitech Solar Panel powered.
    Mouse
    Goji
    Internet Speed
    Ample.
    Browser
    Opera
    Antivirus
    Defender

Gramps

Member
VIP
Local time
8:11 AM
Posts
37
Thanks to all of you for your help! I think I have enabled Secure Boot, but how do I check now that Microsoft have removed the Health Check App?
Right click Start, then Run. Type in msinfo32 and hit enter. System Info window will open and the secure boot status will be listed on the right.


My Computer

System One

  • Operating System
    Windows 11
    Computer type
    PC/Desktop
    CPU
    I8700k
    Motherboard
    MSI Z370A Pro
    Memory
    32 gb
    Graphics Card(s)
    1070ti
    Sound Card
    On-board realtech

Disposable

Member
Thread Starter
Local time
1:11 PM
Posts
15
Thanks! All enabled OK!


My Computer

System One

  • Operating System
    Windows 10 Pro
    Computer type
    PC/Desktop
    Manufacturer/Model
    Home Build
    CPU
    AMD Ryzen 7 1700X Eight-Core Processor 3.40 GHz
    Motherboard
    Micro-Star. has both UEFI / Secure Boot and tpm 2.0
    Memory
    32 Gig
    Graphics Card(s)
    3.40 gigahertz AMD Ryzen 7 1700X Eight-Core
    Sound Card
    On Board
    Monitor(s) Displays
    twin 24 inch hd Acer.
    Screen Resolution
    1920x1080
    Hard Drives
    I ter main OS drive internal/ 3 ter backup drive internal + 2 ter external drive.
    PSU
    ample.
    Case
    No idea?
    Cooling
    Fans 4.
    Keyboard
    Logitech Solar Panel powered.
    Mouse
    Goji
    Internet Speed
    Ample.
    Browser
    Opera
    Antivirus
    Defender

A Guy

Righteous Dude
Power User
VIP
Local time
5:11 AM
Posts
555
Location
No matter where you go, there you are

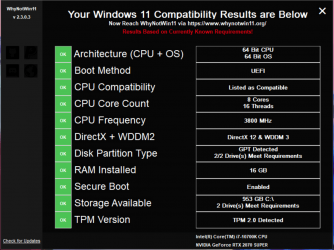

The 3rd party tool regularly updates


A Guy


My Computers

System One System Two

  • Operating System
    Windows 10 Home x64
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom
    CPU
    INTEL Core i5-11400
    Motherboard
    ASUS PRIME H570-PLUS
    Memory
    KINGSTON HyperX Fury Black DDR4 16GB (2 x 8GB) 3200MHz, CL16
    Graphics Card(s)
    EVGA GeForce GTX 750 Superclocked 1GB 128-Bit GDDR5
    Monitor(s) Displays
    LG 32MA68HY 32" IPS
    Screen Resolution
    1920 x 1080
    Hard Drives
    SAMSUNG 250GB 970 EVO Plus NVMe, M.2 SSD, Crucial 250GB MX500, SEAGATE 500GB Barracuda® 7200.12, SATA 3 Gb/s, 7200 RPM, 16MB cache
    PSU
    CORSAIR RM550x 80 PLUS Gold 550W
    Case
    ANTEC P10 FLUX
    Cooling
    be quiet! Pure Rock 2, 5 x 120 mm Case Fans
    Internet Speed
    480 + Mbps Up/ 12+ Mbps Down
    Browser
    Vivaldi Snapshot
    Antivirus
    Avast
  • Operating System
    Windows 10 Home x64
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom
    CPU
    Intel Core i5-750
    Motherboard
    ASUS P7P55D
    Memory
    Kingston HyperX Fury Black 8GB (2x4GB) DDR3-1600MHz CL8
    Graphics card(s)
    MSI GeForce GT 240 N240GT-MD1G/D5 1 GB DDR5
    Monitor(s) Displays
    LG 32MA68HY 32" IPS
    Screen Resolution
    1980x1040
    Hard Drives
    Samsung Electronics 840 EVO 120GB, SEAGATE 500GB Barracuda® 7200.12, SATA 3 Gb/s, 7200 RPM, 16MB cache
    PSU
    Antec TruePower New TP-550 550W
    Case
    Antec 300
    Cooling
    Cooler Master Hyper 212+, 4 Noctua NF-P12 120mm, 1 Noctua NF-P14 FLX
    Internet Speed
    480+ Mbps Down/12+Mbps Up
    Browser
    Vivaldi Snapshot
    Antivirus
    Avast

Ghot

Well-known member
Power User
VIP
Local time
8:11 AM
Posts
1,259
Location
PA, USA

My Computers

System One System Two

  • Operating System
    Win 10 Home 10.0.22000.282 (x64)
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot® [May 2020]
    CPU
    AMD Ryzen 7 3700X
    Motherboard
    Asus Pro WS X570-ACE
    Memory
    G.Skill (F4-3200C14D-16GTZKW)
    Graphics Card(s)
    EVGA RTX 2070 (08G-P4-2171-KR)
    Sound Card
    (onboard) Realtek ALC1220P / ALC S1220A
    Monitor(s) Displays
    Dell U3011 30"
    Screen Resolution
    2560 x 1600
    Hard Drives
    Samsung 860 EVO 500GB,
    WD 4TB Black FZBX - SATA III,
    WD 8TB Black FZBX - SATA III,
    LG GH22LS30 CD/DVD Burner
    PSU
    PC Power & Cooling 750W Quad EPS12V
    Case
    COOLER MASTER ATCS 840 Full Tower
    Cooling
    CM Hyper 212 EVO (push/pull)
    Keyboard
    Ducky DK9008 Shine II Blue LED
    Mouse
    Logitech Optical M-100
    Internet Speed
    100/100
    Browser
    Firefox (latest)
    Antivirus
    Bitdefender Internet Security 2020
    Other Info
    Speakers: Klipsch Pro Media 2.1
  • Operating System
    Windows XP Pro 32bit w/SP3
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot®
    CPU
    AMD Athlon 64 X2 5000+ (OC'd @ 3.2Ghz)
    Motherboard
    ASUS M2N32-SLI Deluxe Wireless Edition
    Memory
    TWIN2X2048-6400C4DHX (2 x 1GB, DDR2 800)
    Graphics card(s)
    EVGA 256-P2-N758-TR GeForce 8600GT SSC
    Sound Card
    Onboard
    Monitor(s) Displays
    ViewSonic G90FB Black 19" Professional (CRT)
    Screen Resolution
    up to 2048 x 1536
    Hard Drives
    WD 36GB 10,000rpm Raptor SATA
    Seagate 80GB 7200rpm SATA
    Lite-On LTR-52246S CD/RW
    Lite-On LH-18A1P CD/DVD Burner
    PSU
    PC Power & Cooling Silencer 750 Quad EPS12V
    Case
    Generic Beige case, 80mm fans
    Cooling
    ZALMAN 9500A 92mm CPU Cooler
    Mouse
    Logitech Optical M-BT96a
    Keyboard
    Logitech Classic Keybooard 200
    Internet Speed
    100/100
    Browser
    Firefox 3.x ??
    Antivirus
    Symantec (Norton)
    Other Info
    Still assembled, still runs. Haven't turned it on for 13 years?

    http://www.xtremesystems.org/forums/showthread.php?183088-5000-B-E-on-M2N32-SLI-Dlx-Overclocked&p=2891724#post2891724

Disposable

Member
Thread Starter
Local time
1:11 PM
Posts
15
That tool seems to be almost as useful as a wet paper hanky!
msinfo32 shows Secure Boot as being On, and UEFI - But this tool shows Secure Boot and UEFI as being disabled?


My Computer

System One

  • Operating System
    Windows 10 Pro
    Computer type
    PC/Desktop
    Manufacturer/Model
    Home Build
    CPU
    AMD Ryzen 7 1700X Eight-Core Processor 3.40 GHz
    Motherboard
    Micro-Star. has both UEFI / Secure Boot and tpm 2.0
    Memory
    32 Gig
    Graphics Card(s)
    3.40 gigahertz AMD Ryzen 7 1700X Eight-Core
    Sound Card
    On Board
    Monitor(s) Displays
    twin 24 inch hd Acer.
    Screen Resolution
    1920x1080
    Hard Drives
    I ter main OS drive internal/ 3 ter backup drive internal + 2 ter external drive.
    PSU
    ample.
    Case
    No idea?
    Cooling
    Fans 4.
    Keyboard
    Logitech Solar Panel powered.
    Mouse
    Goji
    Internet Speed
    Ample.
    Browser
    Opera
    Antivirus
    Defender

Devlin1888

"RockHardSemi"
Member
VIP
Local time
1:11 PM
Posts
230
Location
Scotland
Mine seems to show everyything as expected on that program, Might be worth rechecking the bios incase you haven't saved itimage_2021-07-02_134606.png


My Computer

System One

  • Operating System
    Windows 11 Education Build 22483.1011 Developer Build
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom
    CPU
    i7 10700k@5.2
    Motherboard
    Gigabyte Gaming X Z490
    Memory
    16GB Viper Steel Series 3200mhz
    Graphics Card(s)
    Gigabyte RTX2070 Super X OC Windforce
    Monitor(s) Displays
    ASUS TUF Gaming 3840X2160 Benq Gl2250 1920x1080
    Screen Resolution
    4K/1600/1440/1080
    Hard Drives
    M.2 - ADATA SX8200 Pro 1TB
    SSD - Samsung 860 evo
    PSU
    Corsair 650w
    Case
    NZXT S340 Elite
    Cooling
    Cooler Master Hyper 212 RGB Black Edition
    Keyboard
    Razer Ornata Chroma
    Mouse
    Steel Series Rival 710
    Internet Speed
    50mbs
    Browser
    Opera GX
    Antivirus
    Windows Defender

Disposable

Member
Thread Starter
Local time
1:11 PM
Posts
15
I can't download the tool, so I only get the online details. But Belarc Advisor (which is very accurate) says I have both Secure Boot and UEFI enabled and working!


My Computer

System One

  • Operating System
    Windows 10 Pro
    Computer type
    PC/Desktop
    Manufacturer/Model
    Home Build
    CPU
    AMD Ryzen 7 1700X Eight-Core Processor 3.40 GHz
    Motherboard
    Micro-Star. has both UEFI / Secure Boot and tpm 2.0
    Memory
    32 Gig
    Graphics Card(s)
    3.40 gigahertz AMD Ryzen 7 1700X Eight-Core
    Sound Card
    On Board
    Monitor(s) Displays
    twin 24 inch hd Acer.
    Screen Resolution
    1920x1080
    Hard Drives
    I ter main OS drive internal/ 3 ter backup drive internal + 2 ter external drive.
    PSU
    ample.
    Case
    No idea?
    Cooling
    Fans 4.
    Keyboard
    Logitech Solar Panel powered.
    Mouse
    Goji
    Internet Speed
    Ample.
    Browser
    Opera
    Antivirus
    Defender
Top Bottom
