Hi folks
If you want a really CHEAP way of using a small footprint device with a 4 bay disc enclosure -- I'd suggest one of these -- about double the size of a 4 bay ICYBOX passive 4 bay enclosure device -- and you don't need to keep fiddling about removing it to dfferent machines.

Icybox -- around 160 USD (minimum == plus tax)

Old HP Microserver GEN8 Proliant -- around between 0 USD and 60 -- !!!!! (I got 2X of these from a local tip recently for "please take them away) !!!!

Much better option -- the server is built as a server so geared for 24/7 operation, 4 Bay so up to 4 X 14 TB discs work in it, switch the DVD to an SSD for the OS via connecting to a SATA connector on the mobo plus use a molex for the power supply.

The "Not allowed to be said by wokes --- In the woodpile" is the boot system. You need to change the boot from the default RAID to AHCI -- do that via the internal BIOS options.

Now you need then to install an OS to the system. Any Linux will do -- but as it's an MBR BIOS device just ensure the appropriate distro is installed to your system -- the AHCI will allow booting from either an internal USB device (whivj you can fit to an internalslot on the mobo) or an SDHC card (preferd option). So simply when installing the OS set the boot loader to /boot on the "internal USB device or the SD card" and have the rest /, /home etc on the SSD device.

There's 2 built in LAN ports, USB3 (after OS boots -- this is an oldish circa 2015 device so USB3 boot wasn't available then) and a slot for a half height card if you want to add a separate graphics card other than the built in VGA port (which does actually give better than 640 X 480 classic VGA !!! -- in any case just run it headless -- solves the problem.

Anyway here's one of these boxes I'm running now (Cost 0.00 USD) -- OS, 0.00 USD, HDD's- OK you have to have those, SSD for /home etc -- have loads of spares.

I don't need now to switch stuff around between machines -- just connect to this NAS and backups etc etc all OK .

Too many people throw out a huge load of serviceable equipment that can still work great even in high tech environments.



Also great for hosting W11b VM's !!

Cheers

Jimbo

Last edited:

My Computer

System One

  • OS
    Windows XP,7,10,11 Linux Arch Linux
    Computer type
    PC/Desktop
    CPU
    2 X Intel i7
Hi folks
If you want a really CHEAP way of using a small footprint device with a 4 bay disc enclosure -- I'd suggest one of these -- about double the size of a 4 bay ICYBOX passive 4 bay enclosure device -- and you don't need to keep fiddling about removing it to dfferent machines.

Icybox -- around 160 USD (minimum == plus tax)

Old HP Microserver GEN8 Proliant -- around between 0 USD and 60 -- !!!!! (I got 2X of these from a local tip recently for "please take them away) !!!!

Much better option -- the server is built as a server so geared for 24/7 operation, 4 Bay so up to 4 X 14 TB discs work in it, switch the DVD to an SSD for the OS via connecting to a SATA connector on the mobo plus use a molex for the power supply.

The "Not allowed to be said by wokes --- In the woodpile" is the boot system. You need to change the boot from the default RAID to AHCI -- do that via the internal BIOS options.

Now you need then to install an OS to the system. Any Linux will do -- but as it's an MBR BIOS device just ensure the appropriate distro is installed to your system -- the AHCI will allow booting from either an internal USB device (whivj you can fit to an internalslot on the mobo) or an SDHC card (preferd option). So simply when installing the OS set the boot loader to /boot on the "internal USB device or the SD card" and have the rest /, /home etc on the SSD device.

There's 2 built in LAN ports, USB3 (after OS boots -- this is an oldish circa 2015 device so USB3 boot wasn't available then) and a slot for a half height card if you want to add a separate graphics card other than the built in VGA port (which does actually give better than 640 X 480 classic VGA !!! -- in any case just run it headless -- solves the problem.

Anyway here's one of these boxes I'm running now (Cost 0.00 USD) -- OS, 0.00 USD, HDD's- OK you have to have those, SSD for /home etc -- have loads of spares.

I don't need now to switch stuff around between machines -- just connect to this NAS and backups etc etc all OK .

Too many people throw out a huge load of serviceable equipment that can still work great even in high tech environments.

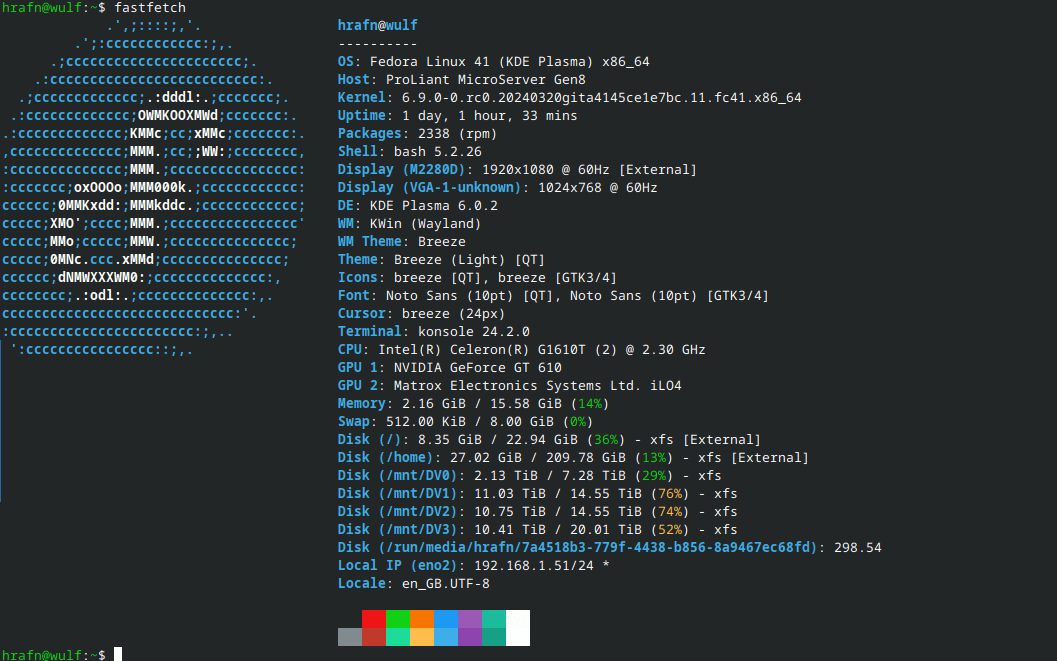

View attachment 91324


Also great for hosting W11b VM's !!

Cheers

Jimbo
Not sure where the environmentally concerned connection here comes from - if a guy is going to use it as you say "Much better option -- the server is built as a server so geared for 24/7 operation" isn't that contradicting your headline?


My Computer

System One

  • OS
    Windows 10 Pro + others in VHDs
    Computer type
    Laptop
    Manufacturer/Model
    ASUS Vivobook 14
    CPU
    I7
    Motherboard
    Yep, Laptop has one.
    Memory
    16 GB
    Graphics Card(s)
    Integrated Intel Iris XE
    Sound Card
    Realtek built in
    Monitor(s) Displays
    N/A
    Screen Resolution
    1920x1080
    Hard Drives
    1 TB Optane NVME SSD, 1 TB NVME SSD
    PSU
    Yep, got one
    Case
    Yep, got one
    Cooling
    Stella Artois
    Keyboard
    Built in
    Mouse
    Bluetooth , wired
    Internet Speed
    72 Mb/s :-(
    Browser
    Edge mostly
    Antivirus
    Defender
    Other Info
    TPM 2.0
Only a couple comments, I have a Gigabyte GA770T-USB3 motherboard running Win10, originally got it shortly after Win7 came out late 2009 and it supports USB 3, manual is copyrighted 2010. I have a 2-bay NAS device with 2 x 4TB HDDs connected to my Wireless Router running as RAID 1 for 4TB total capacity and it doesn't move around, any computer Wired or Wireless that can connect to the LAN can Map a folder on the drive.
