WD_BLACK 4TB SN850X NVMe Read/Write Speeds?

logicmethod · Sep 30, 2023

WD_BLACK 1TB SN850X NVMe Internal Gaming SSD Solid State Gen4 PCIe, M.2 2280, Up to 7,300 MB/s - WDS100T2XHE

Just wondering if this is below manufacturer average to get under the 7000 for my read speeds.. so far I am happy with the drive and the 4TB's I do see some perforamce gains compare to my factory drive loading times opening ms office/regular browser and loading times in games.

bobkn · Sep 30, 2023

Have you selected "NVME SSD" in CrystalDiskMark's Settings? It matters.

You could also try the Peak Performance profile, if you want the highest numbers. I haven't been able to run any profiles other than the Default one, though. It doesn't run through the tests properly.

logicmethod · Sep 30, 2023

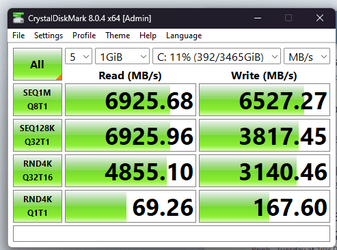

Thanks @bobkn Yeap NVME SSD was selected below is results with peak performance, same results since this is a laptop im thinking maybe due to heat i wont get consistent 7000 speeds

pparks1 · Sep 30, 2023

i mean you are pretty much there. That's 95% of rated "up to" speed. As long as you weren't getting like 2400MB/sec I think you are fine.

Ghot · Oct 1, 2023

WD_BLACK 1TB SN850X

The specs for your laptop say PCIe 3.0, which is probably what is causing the speed difference.
The SN850X is a PCIe 4.0 SSD.
Considering that you're running a PCIe 4.0 drive on a 3.0 motherboard, I'd say you're getting great speeds.

https://id.store.asus.com/rog/90nr08y2-m003k0-fa507re-r7r5b7g-o.html

SIW2 · Oct 1, 2023

Ghot:
The specs for your laptop say PCIe 3.0, which is probably what is causing the speed difference.

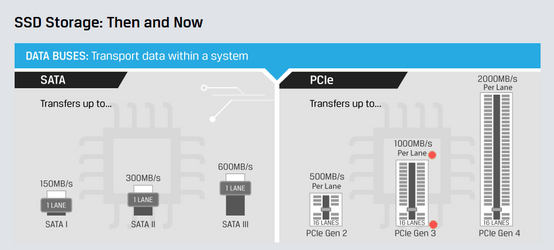

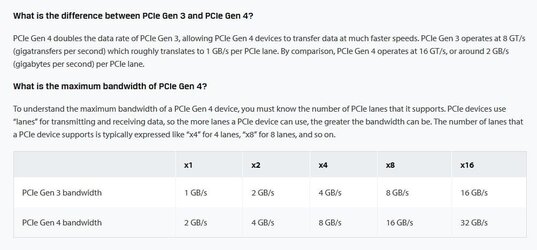

How is he getting 6900 seq read over pcie 3.0 ? 4 x pcie 3.0 theoretical max is 4gb .

pcie 3.0 x1 ~1gb theoretical in practice more like 880-890mb if you are lucky.

pcie 4.0 x1 ~2gb theoretical

rnd4k doesnt look any better than gen3 nvme disks. Is it just that particular nvme or do all gen4 perform similarly on the bottom row ?

Ghot · Oct 1, 2023

SIW2 said:
How is he getting 6900 over pcie 3.0 ? 4 x pcie 3.0 theoretical max is 4gb .

bobkn · Oct 1, 2023

Ghot said:
WD_BLACK 1TB SN850X

(snip)

The specs for your laptop say PCIe 3.0, which is probably what is causing the speed difference.
The SN850X is a PCIe 4.0 SSD.
Considering that you're running a PCIe 4.0 drive on a 3.0 motherboard, I'd say you're getting great speeds.

https://id.store.asus.com/rog/90nr08y2-m003k0-fa507re-r7r5b7g-o.html

I think that data rate would be impossible for a PCI-E 3.0 X4 drive.

The Ryzen 7 6800H provides PCI-E 4.0 lanes. That doesn't prove that the laptop has a PCI-E 4.0 M.2 slot available, but it's suggestive.

Maybe the factory M.2 drives were PCI-E 3.0 to save a few pennies. (Wouldn't save much at the moment, at least at retail.)

SIW2 · Oct 1, 2023

Ghot said:
View attachment 72667

View attachment 72668

Yes, I know.

You just confirmed my post.

You said :

Ghot:
The specs for your laptop say PCIe 3.0, which is probably what is causing the speed difference.

which cannot be the case because the seq read speed he posted is 6900. Cant get that using pcie 3.0 x4

Ghot · Oct 1, 2023

SIW2 said:
Yes, I know.

You just confirmed my post.

The 6800H has 20 PCIe lanes with 16 usable.
But I can't find the PCIe lanes that the motherboard or chipset supports.

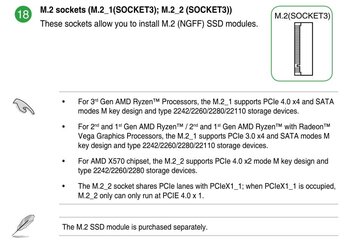

For example... this is my now old motherboard and CPU... (X570 chipset)

SIW2 · Oct 1, 2023

Maybe the factory M.2 drives were PCI-E 3.0 to save a few pennies. (Wouldn't save much at the moment, at least at retail.)

Maybe they are trying to keep the heat down. If the user replaces it with a disk that kicks out a lot more heat then that is the users problem.

SIW2 · Oct 1, 2023

The Ryzen 7 6800H provides PCI-E 4.0 lanes. That doesn't prove that the laptop has a PCI-E 4.0 M.2 slot available

The 6900 seq read can't be from pcie 3.0

elementary my dear Watson.

Ghot · Oct 1, 2023

@SIW2

I dunno... maybe the 4 is the most lanes the M.2 slot uses?

SIW2 · Oct 1, 2023

yes x4 is the maximum for any nvme disks I have ever heard of.

Not everybody knows they will work with less than 4. I have an x1 pcie to nvme adapter, works fine.

Ghot · Oct 1, 2023

SIW2 said:
yes x4 is the maximum for any nvme disks I have ever heard of.

Not everybody knows they will work with less than 4.

I just checked the ASUS motherboard manuals for the most expensive, newest motherboards.
They all seem to top out at PCIe X.0 x4

Also, the OP's laptop does support PCIe 4.0, it just came with a PCIe 3.0 drive (factory).

bobkn · Oct 1, 2023

Ghot said:
I just checked the ASUS motherboard manuals for the most expensive, newest motherboards.
They all seem to top out at PCIe X.0 x4

Also, the OP's laptop does support PCIe 4.0, it just came with a PCIe 3.0 drive (factory).

If you refer to their desktop motherboards, some of the ones that take Gen12 and Gen13 CPUs (I can never recall their "lake" series) have a single PCI-E 5.0 X4 M.2 slot (which gets its lanes from the CPU). If that slot is populated (regardless of the PCI-E generation of the M.2 drive), the X16 graphics slot falls back to X8.

My Z690-E board is an example (with an I9-13900K CPU).

Ghot · Oct 1, 2023

I took an old man nap after dinner. I can see that that was a mistake. LOL

Scannerman · Oct 13, 2023

If any of my PCs could generate speeds like that I don't know if I'd be bragging or complaining. lol There's a reason why the manufacturer's use terminology like "up to" and that's always assuming you're running under optimum conditions. :::sigh::: I feel old. I can't relate to these numbers.
