Solved What are These Unknown Drives Under Optimise Drives


Steve C

Steve C

Well-known member
Power User
VIP
Local time
12:26 PM
Posts
499
OS
Windows 11 Pro

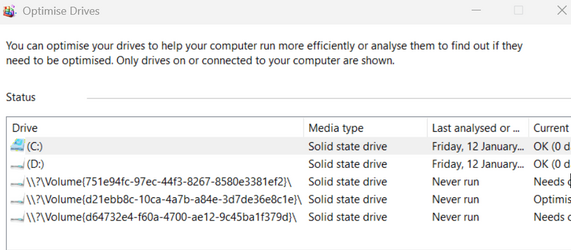

What are these drives listed as \\?\Volume... under the Optimise Drives listing and how to remove them?
unknown drives.png


My Computer

System One

  • OS
    Windows 11 Pro
    Computer type
    PC/Desktop
    Manufacturer/Model
    Self build
    CPU
    Core i7-13700K
    Motherboard
    Asus TUF Gaming Plus WiFi Z790
    Memory
    64 GB Kingston Fury Beast DDR5
    Graphics Card(s)
    Gigabyte GeForce RTX 2060 Super Gaming OC 8G
    Sound Card
    Realtek S1200A
    Monitor(s) Displays
    Viewsonic VP2770
    Screen Resolution
    2560 x 1440
    Hard Drives
    Kingston KC3000 2TB NVME SSD & SATA HDDs & SSD
    PSU
    EVGA SuperNova G2 850W
    Case
    Nanoxia Deep Silence 1
    Cooling
    Noctua NH-D14
    Keyboard
    Microsoft Digital Media Pro
    Mouse
    Logitech Wireless
    Internet Speed
    50 Mb / s
    Browser
    Chrome
    Antivirus
    Defender
Do they show in Disk Management? My drive that starts with \\ is a NAS drive attached to my Router.


My Computers

System One System Two

  • OS
    Win11 Pro RTM
    Computer type
    Laptop
    Manufacturer/Model
    Dell Vostro 3400
    CPU
    Intel Core i5 11th Gen. 2.40GHz
    Memory
    12GB
    Hard Drives
    256GB SSD NVMe
  • Operating System
    Windows 11 Pro RTM x64
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Vostro 5890
    CPU
    Intel Core i5 10th Gen. 2.90GHz
    Memory
    16GB
    Graphics card(s)
    Onboard, no VGA, using a DisplayPort-to-VGA adapter
    Monitor(s) Displays
    24" Dell
    Hard Drives
    512GB SSD NVMe, 2TB WDC HDD
    Browser
    Firefox, Edge
    Antivirus
    Windows Defender/Microsoft Security

My Computer

System One

  • OS
    Windows 11 Pro
    Computer type
    PC/Desktop
    Manufacturer/Model
    Self build
    CPU
    Core i7-13700K
    Motherboard
    Asus TUF Gaming Plus WiFi Z790
    Memory
    64 GB Kingston Fury Beast DDR5
    Graphics Card(s)
    Gigabyte GeForce RTX 2060 Super Gaming OC 8G
    Sound Card
    Realtek S1200A
    Monitor(s) Displays
    Viewsonic VP2770
    Screen Resolution
    2560 x 1440
    Hard Drives
    Kingston KC3000 2TB NVME SSD & SATA HDDs & SSD
    PSU
    EVGA SuperNova G2 850W
    Case
    Nanoxia Deep Silence 1
    Cooling
    Noctua NH-D14
    Keyboard
    Microsoft Digital Media Pro
    Mouse
    Logitech Wireless
    Internet Speed
    50 Mb / s
    Browser
    Chrome
    Antivirus
    Defender

My Computer

System One

  • OS
    Windows 11 Pro
    Computer type
    PC/Desktop
    Manufacturer/Model
    Self build
    CPU
    Core i7-13700K
    Motherboard
    Asus TUF Gaming Plus WiFi Z790
    Memory
    64 GB Kingston Fury Beast DDR5
    Graphics Card(s)
    Gigabyte GeForce RTX 2060 Super Gaming OC 8G
    Sound Card
    Realtek S1200A
    Monitor(s) Displays
    Viewsonic VP2770
    Screen Resolution
    2560 x 1440
    Hard Drives
    Kingston KC3000 2TB NVME SSD & SATA HDDs & SSD
    PSU
    EVGA SuperNova G2 850W
    Case
    Nanoxia Deep Silence 1
    Cooling
    Noctua NH-D14
    Keyboard
    Microsoft Digital Media Pro
    Mouse
    Logitech Wireless
    Internet Speed
    50 Mb / s
    Browser
    Chrome
    Antivirus
    Defender
These aren't appearing on my Windows 11 machine, however, it seems that they're symbolic links to storage volumes. If you run a registry query on the following:

Rich (BB code):
reg query "HKEY_CURRENT_USER\Software\Microsoft\Windows\CurrentVersion\Explorer\MountPoints2\CPC\Volume" /s >> %userprofile%\Desktop\Volumes.txt

Could you please post the Volumes.txt file to your next post?

If you examine the Data values of one of the aforementioned keys, then you'll find the corresponding subkey underneath:

Rich (BB code):
HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Enum\STORAGE\Volume

In my example, it was:

Rich (BB code):
HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Enum\STORAGE\Volume\{1b99e70c-f159-11ea-9d13-806e6f6e6963}#000000737C200000


My Computer

System One

  • OS
    Windows 11, Windows 10, Linux Fedora Cinnamon
Not sure but could they be something to do with a backup software such as Macrium and created when creating an image??



My Computers

System One System Two

  • OS
    Win 11 Pro & 🐥.
    Computer type
    Laptop
    Manufacturer/Model
    ASUS VivoBook
    CPU
    AMD Ryzen 7 3700U with Radeon Vega Mobile Gfx
    Motherboard
    ASUSTeK COMPUTER INC. X509DA (FP5)
    Memory
    12GB
    Graphics Card(s)
    RX Vega 10 Graphics
    Monitor(s) Displays
    Generic PnP Monitor (1920x1080@60Hz)
    Screen Resolution
    1920x1080@60Hz
    Hard Drives
    Samsung SSD 970 EVO Plus 2TB NVMe 1.3
    Internet Speed
    25 Mbps
    Browser
    Edge
    Antivirus
    Defender
  • Operating System
    Windows 11
    Computer type
    Laptop
    Manufacturer/Model
    ACER NITRO
    CPU
    AMD Ryzen 7 5800H / 3.2 GHz
    Motherboard
    CZ Scala_CAS (FP6)
    Memory
    32 GB DDR4 SDRAM 3200 MHz
    Graphics card(s)
    NVIDIA GeForce RTX 3060 6 GB GDDR6 SDRAM
    Sound Card
    Realtek Audio. NVIDIA High Definition Audio
    Monitor(s) Displays
    15.6" LED backlight 1920 x 1080 (Full HD) 144 Hz
    Screen Resolution
    1920 x 1080 (Full HD)
    Hard Drives
    Samsung 970 Evo Plus 2TB NVMe M.2
    PSU
    180 Watt, 19.5 V
    Mouse
    Lenovo Bluetooth
    Internet Speed
    25 Mbps
    Browser
    Edge
    Antivirus
    Defender
@Fabler2 What is the output of the below for you?

Rich (BB code):
reg query "HKEY_CURRENT_USER\Software\Microsoft\Windows\CurrentVersion\Explorer\MountPoints2\CPC\Volume" /s >> %userprofile%\Desktop\Volumes.txt

I know that the dfrgui.exe (Drive Optimiser) process enumerates that registry key so I'm wondering if there is something set there which causes the other volumes to be shown?


My Computer

System One

  • OS
    Windows 11, Windows 10, Linux Fedora Cinnamon
They are virtual drives used for games


My Computer

System One

  • OS
    Windows 11 Pro 23H2 (RP channel)
    Computer type
    PC/Desktop
    Manufacturer/Model
    Gigabyte
    CPU
    AMD Ryzen 5900X 12-core
    Motherboard
    X570 Aorus Xtreme
    Memory
    64GB Corsair Platinum RGB 3600MHz CL16
    Graphics Card(s)
    MSI Suprim X 3080 Ti
    Sound Card
    Soundblaster AE-5 Plus
    Monitor(s) Displays
    ASUS TUF Gaming VG289Q
    Screen Resolution
    3840x2160
    Hard Drives
    Samsung 990 Pro 2TB
    Samsung 980 Pro 2TB
    Samsung 970 Evo Plus 1TB
    Samsung 870 Evo 4TB
    Samsung T7 Touch 1TB
    PSU
    Asus ROG Strix 1000W
    Case
    Corsair D750 Airflow
    Cooling
    Noctua NH-D15S
    Keyboard
    Asus ROG Flare
    Mouse
    Logitech G903 with PowerPlay charger
    Internet Speed
    500Mb/sec
    Browser
    Microsoft Edge
    Antivirus
    Windows Defender
Steve C said:
Could be just another bug or 'feature' of the OS due to poor MS software QA which they will probably never fix?
Click to expand...

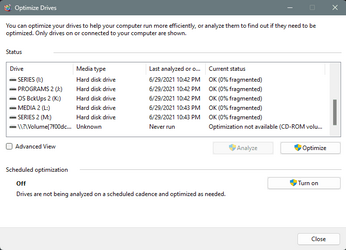

I have one of those... it's my optical drive...



My Computers

System One System Two

  • OS
    Win 11 Home ♦♦♦22631.3527 ♦♦♦♦♦♦♦23H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot® [May 2020]
    CPU
    AMD Ryzen 7 3700X
    Motherboard
    Asus Pro WS X570-ACE (BIOS 4702)
    Memory
    G.Skill (F4-3200C14D-16GTZKW)
    Graphics Card(s)
    EVGA RTX 2070 (08G-P4-2171-KR)
    Sound Card
    Realtek ALC1220P / ALC S1220A
    Monitor(s) Displays
    Dell U3011 30"
    Screen Resolution
    2560 x 1600
    Hard Drives
    2x Samsung 860 EVO 500GB,
    WD 4TB Black FZBX - SATA III,
    WD 8TB Black FZBX - SATA III,
    DRW-24B1ST CD/DVD Burner
    PSU
    PC Power & Cooling 750W Quad EPS12V
    Case
    Cooler Master ATCS 840 Tower
    Cooling
    CM Hyper 212 EVO (push/pull)
    Keyboard
    Ducky DK9008 Shine II Blue LED
    Mouse
    Logitech Optical M-100
    Internet Speed
    300/300
    Browser
    Firefox (latest)
    Antivirus
    Bitdefender Internet Security
    Other Info
    Speakers: Klipsch Pro Media 2.1
  • Operating System
    Windows XP Pro 32bit w/SP3
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot® (not in use)
    CPU
    AMD Athlon 64 X2 5000+ (OC'd @ 3.2Ghz)
    Motherboard
    ASUS M2N32-SLI Deluxe Wireless Edition
    Memory
    TWIN2X2048-6400C4DHX (2 x 1GB, DDR2 800)
    Graphics card(s)
    EVGA 256-P2-N758-TR GeForce 8600GT SSC
    Sound Card
    Onboard
    Monitor(s) Displays
    ViewSonic G90FB Black 19" Professional (CRT)
    Screen Resolution
    up to 2048 x 1536
    Hard Drives
    WD 36GB 10,000rpm Raptor SATA
    Seagate 80GB 7200rpm SATA
    Lite-On LTR-52246S CD/RW
    Lite-On LH-18A1P CD/DVD Burner
    PSU
    PC Power & Cooling Silencer 750 Quad EPS12V
    Case
    Generic Beige case, 80mm fans
    Cooling
    ZALMAN 9500A 92mm CPU Cooler
    Mouse
    Logitech Optical M-BT96a
    Keyboard
    Logitech Classic Keybooard 200
    Internet Speed
    300/300
    Browser
    Firefox 3.x ??
    Antivirus
    Symantec (Norton)
    Other Info
    Still assembled, still runs. Haven't turned it on for 13 years?
x BlueRobot said:
@Fabler2 What is the output of the below for you?

Rich (BB code):
reg query "HKEY_CURRENT_USER\Software\Microsoft\Windows\CurrentVersion\Explorer\MountPoints2\CPC\Volume" /s >> %userprofile%\Desktop\Volumes.txt

I know that the dfrgui.exe (Drive Optimiser) process enumerates that registry key so I'm wondering if there is something set there which causes the other volumes to be shown?
Click to expand...
This,

Code:
HKEY_CURRENT_USER\Software\Microsoft\Windows\CurrentVersion\Explorer\MountPoints2\CPC\Volume\{270c3608-6f55-4edf-8c41-8cf3a6b12723}
    Data    REG_BINARY    D60D00000DF0ADBA41000000080000000000008000000000000000300000000000000000FF2EE703FF0000001600000020A1BE9F1F00000004400000110000000000000000000000000000000000000000005C005C003F005C00530054004F005200410047004500230056006F006C0075006D00650023007B00660035006500360038003600360038002D0036006300380038002D0031003100650064002D0061006100340030002D003800300036006500360066003600650036003900360033007D002300300030003000300030003000360035003100320034003000300030003000300023007B00350033006600350036003300300064002D0062003600620066002D0031003100640030002D0039003400660032002D003000300061003000630039003100650066006200380062007D000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000005C005C003F005C0056006F006C0075006D0065007B00320037003000630033003600300038002D0036006600350035002D0034006500640066002D0038006300340031002D003800630066003300610036006200310032003700320033007D005C0000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000004E005400460053000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000FFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFF0000
    Generation    REG_DWORD    0x1

HKEY_CURRENT_USER\Software\Microsoft\Windows\CurrentVersion\Explorer\MountPoints2\CPC\Volume\{751e94fc-97ec-44f3-8267-8580e3381ef2}
    Data    REG_BINARY    D60D00000DF0ADBA01000000080000000000008000000000000000300000000000000000FF2EE703FF000000160000003662BDDC1E00000004000000110000000000000000000000000000000000000000005C005C003F005C00530054004F005200410047004500230056006F006C0075006D00650023007B00660035006500360038003600360038002D0036006300380038002D0031003100650064002D0061006100340030002D003800300036006500360066003600650036003900360033007D002300300030003000300030003000440031003400380032003000300030003000300023007B00350033006600350036003300300064002D0062003600620066002D0031003100640030002D0039003400660032002D003000300061003000630039003100650066006200380062007D000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000005C005C003F005C0056006F006C0075006D0065007B00370035003100650039003400660063002D0039003700650063002D0034003400660033002D0038003200360037002D003800350038003000650033003300380031006500660032007D005C0000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000004E005400460053000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000FFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFF0000
    Generation    REG_DWORD    0x1

HKEY_CURRENT_USER\Software\Microsoft\Windows\CurrentVersion\Explorer\MountPoints2\CPC\Volume\{befed729-c853-4da8-8882-4da9291c8d64}
    Data    REG_BINARY    D60D00000DF0ADBA01000000080000000000008000000000000000300000000000000000FF2EE703FF0000001600000060318D011F00000004000000110000000000000000000000000000000000000000005C005C003F005C00530054004F005200410047004500230056006F006C0075006D00650023007B00660035006500360038003600360038002D0036006300380038002D0031003100650064002D0061006100340030002D003800300036006500360066003600650036003900360033007D002300300030003000300030003000300030003000370035003000300030003000300023007B00350033006600350036003300300064002D0062003600620066002D0031003100640030002D0039003400660032002D003000300061003000630039003100650066006200380062007D000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000005C005C003F005C0056006F006C0075006D0065007B00620065006600650064003700320039002D0063003800350033002D0034006400610038002D0038003800380032002D003400640061003900320039003100630038006400360034007D005C0000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000004E005400460053000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000FFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFF0000
    Generation    REG_DWORD    0x1

HKEY_CURRENT_USER\Software\Microsoft\Windows\CurrentVersion\Explorer\MountPoints2\CPC\Volume\{d21ebb8c-10ca-4a7b-a84e-3d7de36e8c1e}
    Data    REG_BINARY    D60D00000DF0ADBA0100000008000000000000800000000000000030000000000000000006020200FF00000010000000250F4B5E1E00000004000000110000000000000000000000000000000000000000005C005C003F005C00530054004F005200410047004500230056006F006C0075006D00650023007B00660035006500360038003600360038002D0036006300380038002D0031003100650064002D0061006100340030002D003800300036006500360066003600650036003900360033007D002300300030003000300030003000300030003000300031003000300030003000300023007B00350033006600350036003300300064002D0062003600620066002D0031003100640030002D0039003400660032002D003000300061003000630039003100650066006200380062007D000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000005C005C003F005C0056006F006C0075006D0065007B00640032003100650062006200380063002D0031003000630061002D0034006100370062002D0061003800340065002D003300640037006400650033003600650038006300310065007D005C00000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000046004100540033003200000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000FFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFF0000
    Generation    REG_DWORD    0x1

HKEY_CURRENT_USER\Software\Microsoft\Windows\CurrentVersion\Explorer\MountPoints2\CPC\Volume\{d64732e4-f60a-4700-ae12-9c45ba1f379d}
    Data    REG_BINARY    D60D00000DF0ADBA01000000080000000000008000000000000000300000000000000000FF2EE703FF00000016000000195992C81E00000004000000110000000000000000000000000000000000000000005C005C003F005C00530054004F005200410047004500230056006F006C0075006D00650023007B00660035006500360038003600360038002D0036006300380038002D0031003100650064002D0061006100340030002D003800300036006500360066003600650036003900360033007D002300300030003000300030003000360034004500340033003000300030003000300023007B00350033006600350036003300300064002D0062003600620066002D0031003100640030002D0039003400660032002D003000300061003000630039003100650066006200380062007D000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000005C005C003F005C0056006F006C0075006D0065007B00640036003400370033003200650034002D0066003600300061002D0034003700300030002D0061006500310032002D003900630034003500620061003100660033003700390064007D005C0000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000004E005400460053000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000FFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFF0000
    Generation    REG_DWORD    0x1
Code:


My Computers

System One System Two

  • OS
    Win 11 Pro & 🐥.
    Computer type
    Laptop
    Manufacturer/Model
    ASUS VivoBook
    CPU
    AMD Ryzen 7 3700U with Radeon Vega Mobile Gfx
    Motherboard
    ASUSTeK COMPUTER INC. X509DA (FP5)
    Memory
    12GB
    Graphics Card(s)
    RX Vega 10 Graphics
    Monitor(s) Displays
    Generic PnP Monitor (1920x1080@60Hz)
    Screen Resolution
    1920x1080@60Hz
    Hard Drives
    Samsung SSD 970 EVO Plus 2TB NVMe 1.3
    Internet Speed
    25 Mbps
    Browser
    Edge
    Antivirus
    Defender
  • Operating System
    Windows 11
    Computer type
    Laptop
    Manufacturer/Model
    ACER NITRO
    CPU
    AMD Ryzen 7 5800H / 3.2 GHz
    Motherboard
    CZ Scala_CAS (FP6)
    Memory
    32 GB DDR4 SDRAM 3200 MHz
    Graphics card(s)
    NVIDIA GeForce RTX 3060 6 GB GDDR6 SDRAM
    Sound Card
    Realtek Audio. NVIDIA High Definition Audio
    Monitor(s) Displays
    15.6" LED backlight 1920 x 1080 (Full HD) 144 Hz
    Screen Resolution
    1920 x 1080 (Full HD)
    Hard Drives
    Samsung 970 Evo Plus 2TB NVMe M.2
    PSU
    180 Watt, 19.5 V
    Mouse
    Lenovo Bluetooth
    Internet Speed
    25 Mbps
    Browser
    Edge
    Antivirus
    Defender
I solved this issue.

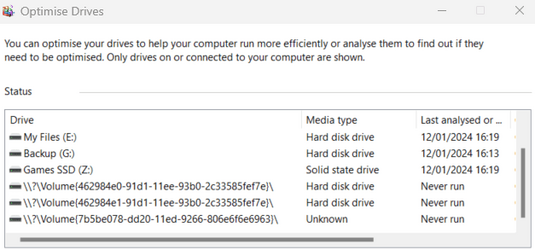

Here are the offending drives as listed under Optimise Drives:
odd drives.png

I ran the command mountvol which showed the current mounted volume IDs for the odd drives in question:

\\?\Volume{462984e0-91d1-11ee-93b0-2c33585fef7e}\ I:\ (USB port in Epson ET-8550 printer)

\\?\Volume{462984e1-91d1-11ee-93b0-2c33585fef7e}\ J:\ (USB port in Epson ET-8550 printer)

\\?\Volume{7b5be078-dd20-11ed-9266-806e6f6e6963}\ H:\ (Blu Ray drive)

Therefore Optimise Drives is detecting the USB ports in my Epson ET-8550 printer and BluRay drive as drives capable of optimisation which is clearly wrong. I assume this is just another epic Microsoft bug which they might to choose to fix if we are lucky. There is nothing more I can do until Microsoft fixes this bug.

I also found the useful utility diskext from Systinternals
DiskExt - Sysinternals

Run diskext from a command window.

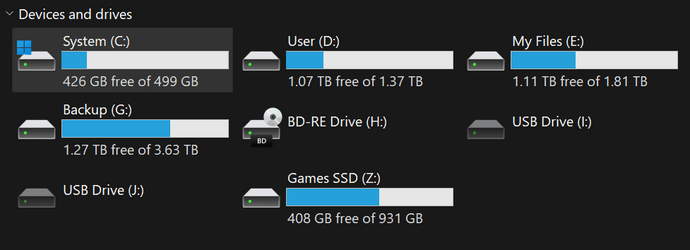

Here are my drives as shown in Explorer.

Last edited:

My Computer

System One

  • OS
    Windows 11 Pro
    Computer type
    PC/Desktop
    Manufacturer/Model
    Self build
    CPU
    Core i7-13700K
    Motherboard
    Asus TUF Gaming Plus WiFi Z790
    Memory
    64 GB Kingston Fury Beast DDR5
    Graphics Card(s)
    Gigabyte GeForce RTX 2060 Super Gaming OC 8G
    Sound Card
    Realtek S1200A
    Monitor(s) Displays
    Viewsonic VP2770
    Screen Resolution
    2560 x 1440
    Hard Drives
    Kingston KC3000 2TB NVME SSD & SATA HDDs & SSD
    PSU
    EVGA SuperNova G2 850W
    Case
    Nanoxia Deep Silence 1
    Cooling
    Noctua NH-D14
    Keyboard
    Microsoft Digital Media Pro
    Mouse
    Logitech Wireless
    Internet Speed
    50 Mb / s
    Browser
    Chrome
    Antivirus
    Defender
Those drives are the hidden partitions, DVD/CD.


My Computer

System One

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell XPS
    CPU
    Intel Core I7-10700
    Motherboard
    Dell XPS 8940
    Memory
    32 GB RAM
    Graphics Card(s)
    NVIDIA Geforce RTX 2070 Super
    Sound Card
    Realtek
    Monitor(s) Displays
    LG 24EN33
    Antivirus
    GData
balloon66 said:
Those drives are the hidden partitions, DVD/CD.
Click to expand...

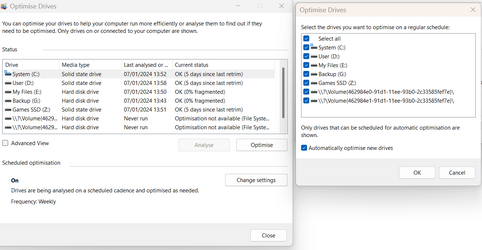

One is the BluRay as posted, the others are definitely the Epson USB ports as I posted. Advanced view in Optimise drives shows two additional drives which are the hidden system partitions you mention


My Computer

System One

  • OS
    Windows 11 Pro
    Computer type
    PC/Desktop
    Manufacturer/Model
    Self build
    CPU
    Core i7-13700K
    Motherboard
    Asus TUF Gaming Plus WiFi Z790
    Memory
    64 GB Kingston Fury Beast DDR5
    Graphics Card(s)
    Gigabyte GeForce RTX 2060 Super Gaming OC 8G
    Sound Card
    Realtek S1200A
    Monitor(s) Displays
    Viewsonic VP2770
    Screen Resolution
    2560 x 1440
    Hard Drives
    Kingston KC3000 2TB NVME SSD & SATA HDDs & SSD
    PSU
    EVGA SuperNova G2 850W
    Case
    Nanoxia Deep Silence 1
    Cooling
    Noctua NH-D14
    Keyboard
    Microsoft Digital Media Pro
    Mouse
    Logitech Wireless
    Internet Speed
    50 Mb / s
    Browser
    Chrome
    Antivirus
    Defender
You must log in or register to reply here.

Similar threads

Removing Dell Recovery and Diagnostics partitions from a Dell Inspiron 5770
Replies
6
Views
451
dbookbinder
dbookbinder
Splitting my encrypted C: drive into two partitions
Replies
18
Views
738
barreleye
B
ONN usb 28gb seems to be broken
Replies
13
Views
460
sdowney717
S
How to investigate this generic "Drive Error" message?
Replies
17
Views
618
zbook
Z
DriverStoreExplorer Shows Many Entries. How to Remove Non-essential Drivers?
Replies
14
Views
656
zbook
Z

Latest Support Threads

Latest Tutorials

Back
Top Bottom
