Solved Need Help With Hyper V & External Drives

Steven_1958

New member
Local time
10:35 AM
Posts
9
Hi There

I am running Windows 11 in a VM. All is working fine expect that I cannot see how to show my external hard drives in File Explorer.

When I first ran the VM I clicked on something (!) and they appeared. That VM was accidently deleted and now I cannot recall how I got the VM to see the drives!! Any help would be gratefully received.


My Computer

johnlgalt

Antidisestablishmentarianistentarianist
Power User
VIP
Local time
5:35 AM
Posts
1,873
Location
3rd Rock
In the VM, when it is running, try disabling the View --> Enhanced Session (or something like that - sorry, I have to rebuild my VMs, let me see if I can get one up really quickly done) to get that dialog to show again so you can add local drives.


My Computers

System One System Two

  • Operating System
    Windows 10 Pro X64
    Computer type
    PC/Desktop
    Manufacturer/Model
    HomeBrew
    CPU
    AMD Ryzen 9 3950X
    Motherboard
    MSI MEG X570 GODLIKE
    Memory
    4 * Corsair Vengeance 32 GB 3600 MHz
    Graphics Card(s)
    eVGA GeForce GTX 970 SSC ACX 2.0 (04G-P4-3979-KB)
    Sound Card
    Realtek® ALC1220 Codec
    Monitor(s) Displays
    2 * Lenovo LT2323pwA Widescreeen
    Screen Resolution
    2* 1920*1080
    Hard Drives
    3x Sabrent Rocket PCIe Gen4 NVMe M.2 1 TB SSD (SB-ROCKET-NVMe4-1TB)
    SanDisk Ultra SDSSDHII-960G-G25 960 GB SATA III SSD
    Crucial MX100 CT256MX100SSD1 256GB SATA III SSD
    2 * Seagate Barracuda 7200.12 ST31000528AS 1TB 7200 RPM --> RAID1
    PSU
    PC Power & Cooling’s Silencer Series 1050 Watt, 80 Plus Platinum
    Case
    Fractal Design Define 7 XL Dark ATX Full Tower Case
  • Operating System
    Windows 10 x64 Pro build 21H1
    Computer type
    Laptop
    Manufacturer/Model
    Dell Latitude E5470
    CPU
    Intel(R) Core(TM) i5-6300U CPU @ 2.40GHz, 2501 Mhz, 2 Core(s), 4 Logical Processor(s)
    Motherboard
    Dell
    Memory
    16 GB
    Graphics card(s)
    Intel(R) HD Graphics 520
    Sound Card
    Intel(R) HD Graphics 520 + RealTek Audio
    Monitor(s) Displays
    Dell laptop display 15"
    Screen Resolution
    1920 * 1080
    Hard Drives
    Toshiba 128GB M.2 22300 drive
    INTEL Cherryvill 520 Series SSDSC2CW180A 180 GB SATA III SSD
    PSU
    Dell
    Case
    Dell
    Cooling
    Dell
    Mouse
    Logitech MX Master (shared) | Dell TouchPad
    Keyboard
    Dell
    Internet Speed
    AT&T LightSpeed Gigabit Duplex
    Browser
    Edge Chromium | Chrome | Firefox Nightly | Brave
    Antivirus
    Defender + MB4

NavyLCDR

Well-known member
Member
VIP
Local time
2:35 AM
Posts
279
If you are using Windows Hyper-V you have to connect to the VM using an Enhanced Session, select the options tab when connecting, and there you can specify which physical drives connected to the host computer get shared with the VM.

There is actually another way to do it, but you have to set your drives offline on the host machine and then attach them to a virtual drive controller in the settings for the VM, but that is more complicated and permanent.


My Computers

System One System Two

  • Operating System
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    Homebuilt
    CPU
    AMD Ryzen 7 3800XT
    Motherboard
    ASUS ROG Crosshair VII Hero (WiFi)
    Memory
    32GB
    Graphics Card(s)
    EVGA GeForce GTX 1080 Ti
  • Operating System
    Windows 11 Education
    Computer type
    Laptop
    Manufacturer/Model
    Dell Inspiron 7773
    CPU
    Intel i7-8550U
    Memory
    32GB
    Graphics card(s)
    Nvidia Geforce MX150
    Sound Card
    Realtek
    Monitor(s) Displays
    17"
    Screen Resolution
    1920 x 1080
    Hard Drives
    Toshiba 512GB NVMe SSD
    SK Hynix 512GB SATA SSD
    Internet Speed
    Fast!

johnlgalt

Antidisestablishmentarianistentarianist
Power User
VIP
Local time
5:35 AM
Posts
1,873
Location
3rd Rock
right - but if you already set the 'screen size' dialog (which is also used for peripheral access) then it does not show again, unless you uncheck enhanced session, at which point it shows again and you can set both size and peripheral access.


My Computers

System One System Two

  • Operating System
    Windows 10 Pro X64
    Computer type
    PC/Desktop
    Manufacturer/Model
    HomeBrew
    CPU
    AMD Ryzen 9 3950X
    Motherboard
    MSI MEG X570 GODLIKE
    Memory
    4 * Corsair Vengeance 32 GB 3600 MHz
    Graphics Card(s)
    eVGA GeForce GTX 970 SSC ACX 2.0 (04G-P4-3979-KB)
    Sound Card
    Realtek® ALC1220 Codec
    Monitor(s) Displays
    2 * Lenovo LT2323pwA Widescreeen
    Screen Resolution
    2* 1920*1080
    Hard Drives
    3x Sabrent Rocket PCIe Gen4 NVMe M.2 1 TB SSD (SB-ROCKET-NVMe4-1TB)
    SanDisk Ultra SDSSDHII-960G-G25 960 GB SATA III SSD
    Crucial MX100 CT256MX100SSD1 256GB SATA III SSD
    2 * Seagate Barracuda 7200.12 ST31000528AS 1TB 7200 RPM --> RAID1
    PSU
    PC Power & Cooling’s Silencer Series 1050 Watt, 80 Plus Platinum
    Case
    Fractal Design Define 7 XL Dark ATX Full Tower Case
  • Operating System
    Windows 10 x64 Pro build 21H1
    Computer type
    Laptop
    Manufacturer/Model
    Dell Latitude E5470
    CPU
    Intel(R) Core(TM) i5-6300U CPU @ 2.40GHz, 2501 Mhz, 2 Core(s), 4 Logical Processor(s)
    Motherboard
    Dell
    Memory
    16 GB
    Graphics card(s)
    Intel(R) HD Graphics 520
    Sound Card
    Intel(R) HD Graphics 520 + RealTek Audio
    Monitor(s) Displays
    Dell laptop display 15"
    Screen Resolution
    1920 * 1080
    Hard Drives
    Toshiba 128GB M.2 22300 drive
    INTEL Cherryvill 520 Series SSDSC2CW180A 180 GB SATA III SSD
    PSU
    Dell
    Case
    Dell
    Cooling
    Dell
    Mouse
    Logitech MX Master (shared) | Dell TouchPad
    Keyboard
    Dell
    Internet Speed
    AT&T LightSpeed Gigabit Duplex
    Browser
    Edge Chromium | Chrome | Firefox Nightly | Brave
    Antivirus
    Defender + MB4

z3r010

Administrator
Staff member
Local time
10:35 AM
Posts
1,063
Location
Worsley, Manchester, UK
I think it may have been helpful if we know what sort of VM it is.


My Computers

System One System Two

  • Operating System
    Windows 11 Workstation
    Computer type
    PC/Desktop
    Manufacturer/Model
    doofenshmirtz evil incorporated
    CPU
    Ryzen 9 5950X
    Motherboard
    Asus ROG Crosshair VIII Formula
    Memory
    Corsair Vengeance RGB PRO Black 32GB (2x16GB) 3600MHz AMD Ryzen Tuned DDR4
    Graphics Card(s)
    ASUS AMD Radeon RX 6900 XT 16GB ROG Strix LC OC
    Sound Card
    Sound BlasterX Katana
    Monitor(s) Displays
    3 x27" Dell U2714H & 1 x 34" Dell
    Hard Drives
    Samsung 980 Pro 1TB M.2 2280 PCI-e 4.0 x4 NVMe Solid State
    Drive
    PSU
    ASUS ROG THOR 850W 80 Plus Platinum
    Case
    ASUS ROG Strix Helios Midi-Tower ARGB Gaming Case
    Cooling
    ASUS ROG Strix LC Performance RGB AIO CPU Liquid Cooler - 360mm
    Keyboard
    Logi Ergo
    Mouse
    Logitech MX Vertical
    Internet Speed
    900/100 Mbps
    Browser
    Chrome
    Antivirus
    Windows Defender, Malwarebytes Pro
    Other Info
    HP M281 Printer
    Logitech Brio Stream webcam
    Yeti X mic
  • Operating System
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    Surface Laptop
    CPU
    i7

Kari

PhD in Malt Based Liquids
Power User
VIP
Local time
11:35 AM
Posts
569
Location
Expat from Finland in Leipzig Germany
I am running Windows 11 in a VM. All is working fine expect that I cannot see how to show my external hard drives in File Explorer.
First, you must use so called Enhanced Session Mode in Hyper-V. See the tutorial on our sister site Ten Forums:


"Mini tutorial": When switching to Enhanced Mode, select Show Options in prompt:

Enhanced Mode 1.jpg

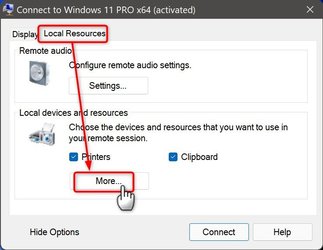

Select Local Resources tab, click More:

Enhanced Mode 2.jpg

Select Drives, click OK:

Enhanced Mode 3.jpg

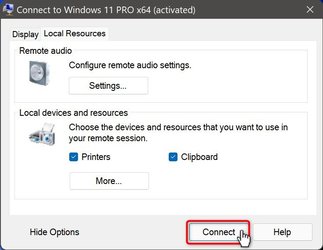

Click Connect to start Enhanced Mode:

Enhanced Mode 4.jpg

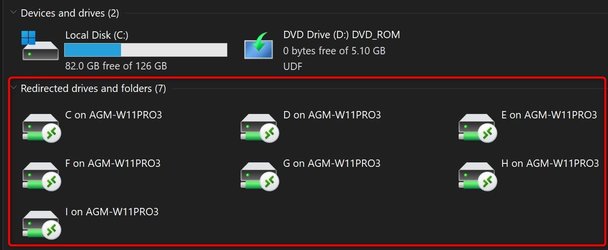

All host drives, both internal and external, will now be shown on VM's File Explorer under Redirected drives and folders:

Enhanced Mode 5.jpg
