Solved Power cable question for GPU Card


BunnyJ

Python Programmer
Pro User
VIP
Local time
5:49 PM
Posts
5,299
Location
USA TN
OS
Windows 11 Home 25145.1011 - Dev Channel

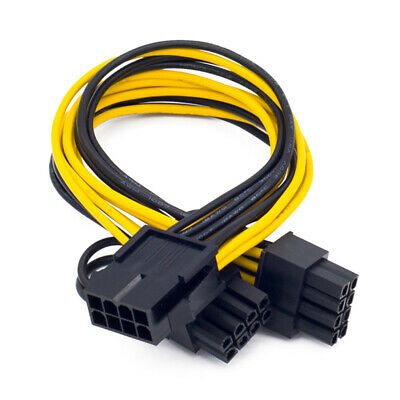

Will using a non mfg power cable to a GPU cause issues? Like destroy/damage the PSU or the GPU?
TIA


My Computer

System One

  • OS
    Windows 11 Home 25145.1011 - Dev Channel
    Computer type
    PC/Desktop
    Manufacturer/Model
    Banna Junior 7000 - X Series
    CPU
    Ryzen 7 2700X
    Motherboard
    Asus Crosshair VII Hero, X470
    Memory
    Gskill 32GB, 16GBX2 PC3000
    Graphics Card(s)
    GeForce GTX TITAN X 12GB
    Sound Card
    Realtek (R) Audio
    Monitor(s) Displays
    ASUS VP28UQG 28" 4K, Viotek 32" 1080p
    Screen Resolution
    4K 3840 x 2160
    Hard Drives
    Primary Samsung 256 SSD
    PSU
    EVGA BQ 700w 80+ Bronze
    Case
    NZXT 510
    Cooling
    Stock AMD cooler
    Keyboard
    Corsair
    Mouse
    Amazon Generic with Cord
    Internet Speed
    Download: 350.50 mbps Upload: 12.02 mbps Ping: 15ms
    Browser
    Firefox, Chrome and Edge
    Antivirus
    MS - Defender

pparks1

Well-known member
Member
VIP
Local time
5:49 PM
Posts
320
OS
Windows 11 Pro
No, as long as you have the right number of pins, you are just fine. Many replace the cables that their power supplies come with and go with custom sleeved cables for a cleaner look.


My Computer

System One

  • OS
    Windows 11 Pro
    Computer type
    PC/Desktop
    Manufacturer/Model
    Beelink SEI8
    CPU
    Intel Core i5-8279u
    Motherboard
    AZW SEI
    Memory
    32GB DDR4 2666Mhz
    Graphics Card(s)
    Intel Iris Plus 655
    Sound Card
    Intel SST
    Monitor(s) Displays
    Asus ProArt PA278QV
    Screen Resolution
    2560x1440
    Hard Drives
    512GB NVMe
    PSU
    NA
    Case
    NA
    Cooling
    NA
    Keyboard
    NA
    Mouse
    NA
    Internet Speed
    500/50
    Browser
    Edge
    Antivirus
    Defender
    Other Info
    Mini PC used for testing Windows 11.

jh30uk

Banned
Local time
10:49 PM
Posts
219
OS
Windows 10
Depends, Corsair have different cable for their own PSU's like Type 3 and Type 4 etc and some cannot be swapped even Corsair to Corsair so same would be case for custom made ones so need be careful when you order.

Example: PSU CABLE COMPATIBILITY


My Computer

System One

  • OS
    Windows 10
    Computer type
    PC/Desktop
    Manufacturer/Model
    Self Built
    CPU
    Intel i7-4790k @ 5GHZ
    Motherboard
    Asus Maximus VI Extreme
    Memory
    32GB Corsair Dominator Platinum 2400Mhz @ 10-12-11-27-1T
    Graphics Card(s)
    Nvidia RTX 3090FE @ Core 2200 MHZ / Memory 21 GHZ
    Sound Card
    Creative SoundBlaster ZxR
    Monitor(s) Displays
    LG 32GN600 (G-Sync Comp)
    Screen Resolution
    1440p
    Hard Drives
    C: Primary SSD > Samsung 860 PRO 512GB
    G: Gaming SSD > Samsung 860 PRO 1TB
    S: Storage SSD > Samsung 860 EVO 4TB x2 (Windows Storage Spaces = 8TB)
    X: Ext Backup > IcyBox+WD Red 4TB x4 (Raid 10)
    PSU
    Corsair AX1600i
    Case
    NZXT Phantom 630 (Black)
    Cooling
    Noctua NH-D15S Chromax Black
    Keyboard
    Logitech G613
    Mouse
    Logitech G903 LS (Hero)+PowerPlay Wireless Charge Pad
    Internet Speed
    VM 1Gb/s
    Browser
    Edge
    Antivirus
    Eset

badrobot

Well-known member
MVP
Power User
VIP
Local time
5:49 PM
Posts
816
Location
Toronto, CANADA
OS
Windows 11 Pro
Definitely not. You can even buy 3rd party braided cables or strimmer for "looks".


My Computers

System One System Two

  • OS
    Windows 11 Pro
    Computer type
    PC/Desktop
    CPU
    AMD Ryzen 9 3900X
    Motherboard
    MSI MPG Gaming Edge Wifi (X570)
    Memory
    32GB Adata XPG DDR4
    Graphics Card(s)
    ASUS GTX 1070 8GB ROG
    Monitor(s) Displays
    LG Ultrawide 34"
    Screen Resolution
    3440x1440
    Hard Drives
    Main Boot Drive : 512GB Adata XPG RGB Gen3x4 NVMe M.2 SSD
    PSU
    EVGA 600 Watts Gold
    Case
    Deepcool Genome II
    Cooling
    Deepcool Fryzen
    Internet Speed
    1Gbps
    Browser
    Chrome
    Antivirus
    "Moderna"
  • Operating System
    Windows 11 Pro
    Computer type
    PC/Desktop
    CPU
    i7-4790K
    Motherboard
    ASRock Xtreme6 Z97
    Memory
    16GB Corsair Vengeance Pro
    Graphics card(s)
    MSI R9 290
    Monitor(s) Displays
    LG Ultrawide 34"
    Screen Resolution
    3440x1440
    Hard Drives
    Samsung M.2
    PSU
    Thermaltake 475 Watts 80 Bronze
    Case
    Thermaltake Commander I Snow Edition
    Cooling
    Deep Cool Archer Air Cooler
    Mouse
    Logitech G402
    Keyboard
    Armageddon MKA-5R RGB-Hornet
    Internet Speed
    1Gbps
    Browser
    Chrome
    Antivirus
    Moderna :)

Ghot

Well-known member
Pro User
VIP
Local time
5:49 PM
Posts
3,115
Location
PA, USA
OS
Win 11 Home ♦♦♦22000.778
As long as they're not some ridiculously tiny wires, you'll be fine. :)


My Computers

System One System Two

  • OS
    Win 11 Home ♦♦♦22000.778
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot® [May 2020]
    CPU
    AMD Ryzen 7 3700X
    Motherboard
    Asus Pro WS X570-ACE
    Memory
    G.Skill (F4-3200C14D-16GTZKW)
    Graphics Card(s)
    EVGA RTX 2070 (08G-P4-2171-KR)
    Sound Card
    (onboard) Realtek ALC1220P / ALC S1220A
    Monitor(s) Displays
    Dell U3011 30"
    Screen Resolution
    2560 x 1600
    Hard Drives
    2x Samsung 860 EVO 500GB,
    WD 4TB Black FZBX - SATA III,
    WD 8TB Black FZBX - SATA III,
    LG GH22LS30 CD/DVD Burner
    PSU
    PC Power & Cooling 750W Quad EPS12V
    Case
    COOLER MASTER ATCS 840 Full Tower
    Cooling
    CM Hyper 212 EVO (push/pull)
    Keyboard
    Ducky DK9008 Shine II Blue LED
    Mouse
    Logitech Optical M-100
    Internet Speed
    100/100
    Browser
    Firefox (latest)
    Antivirus
    Bitdefender Internet Security (latest)
    Other Info
    Speakers: Klipsch Pro Media 2.1
  • Operating System
    Windows XP Pro 32bit w/SP3
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot®
    CPU
    AMD Athlon 64 X2 5000+ (OC'd @ 3.2Ghz)
    Motherboard
    ASUS M2N32-SLI Deluxe Wireless Edition
    Memory
    TWIN2X2048-6400C4DHX (2 x 1GB, DDR2 800)
    Graphics card(s)
    EVGA 256-P2-N758-TR GeForce 8600GT SSC
    Sound Card
    Onboard
    Monitor(s) Displays
    ViewSonic G90FB Black 19" Professional (CRT)
    Screen Resolution
    up to 2048 x 1536
    Hard Drives
    WD 36GB 10,000rpm Raptor SATA
    Seagate 80GB 7200rpm SATA
    Lite-On LTR-52246S CD/RW
    Lite-On LH-18A1P CD/DVD Burner
    PSU
    PC Power & Cooling Silencer 750 Quad EPS12V
    Case
    Generic Beige case, 80mm fans
    Cooling
    ZALMAN 9500A 92mm CPU Cooler
    Mouse
    Logitech Optical M-BT96a
    Keyboard
    Logitech Classic Keybooard 200
    Internet Speed
    100/100
    Browser
    Firefox 3.x ??
    Antivirus
    Symantec (Norton)
    Other Info
    Still assembled, still runs. Haven't turned it on for 13 years?

    http://www.xtremesystems.org/forums/showthread.php?183088-5000-B-E-on-M2N32-SLI-Dlx-Overclocked&p=2891724#post2891724

jh30uk

Banned
Local time
10:49 PM
Posts
219
OS
Windows 10
If the pins are bad fit it causes heat and can melt the connectors.

In the case of my PSU, Corsair AXi1600 I would buy from one of the well know rep modders who make them for my PSU and they specify type 3/4 etc if I wanted them.


My Computer

System One

  • OS
    Windows 10
    Computer type
    PC/Desktop
    Manufacturer/Model
    Self Built
    CPU
    Intel i7-4790k @ 5GHZ
    Motherboard
    Asus Maximus VI Extreme
    Memory
    32GB Corsair Dominator Platinum 2400Mhz @ 10-12-11-27-1T
    Graphics Card(s)
    Nvidia RTX 3090FE @ Core 2200 MHZ / Memory 21 GHZ
    Sound Card
    Creative SoundBlaster ZxR
    Monitor(s) Displays
    LG 32GN600 (G-Sync Comp)
    Screen Resolution
    1440p
    Hard Drives
    C: Primary SSD > Samsung 860 PRO 512GB
    G: Gaming SSD > Samsung 860 PRO 1TB
    S: Storage SSD > Samsung 860 EVO 4TB x2 (Windows Storage Spaces = 8TB)
    X: Ext Backup > IcyBox+WD Red 4TB x4 (Raid 10)
    PSU
    Corsair AX1600i
    Case
    NZXT Phantom 630 (Black)
    Cooling
    Noctua NH-D15S Chromax Black
    Keyboard
    Logitech G613
    Mouse
    Logitech G903 LS (Hero)+PowerPlay Wireless Charge Pad
    Internet Speed
    VM 1Gb/s
    Browser
    Edge
    Antivirus
    Eset

BunnyJ

Python Programmer
Pro User
VIP
Thread Starter
Local time
5:49 PM
Posts
5,299
Location
USA TN
OS
Windows 11 Home 25145.1011 - Dev Channel
Ok.. I have an EVGA PSU will that make a difference?


My Computer

System One

  • OS
    Windows 11 Home 25145.1011 - Dev Channel
    Computer type
    PC/Desktop
    Manufacturer/Model
    Banna Junior 7000 - X Series
    CPU
    Ryzen 7 2700X
    Motherboard
    Asus Crosshair VII Hero, X470
    Memory
    Gskill 32GB, 16GBX2 PC3000
    Graphics Card(s)
    GeForce GTX TITAN X 12GB
    Sound Card
    Realtek (R) Audio
    Monitor(s) Displays
    ASUS VP28UQG 28" 4K, Viotek 32" 1080p
    Screen Resolution
    4K 3840 x 2160
    Hard Drives
    Primary Samsung 256 SSD
    PSU
    EVGA BQ 700w 80+ Bronze
    Case
    NZXT 510
    Cooling
    Stock AMD cooler
    Keyboard
    Corsair
    Mouse
    Amazon Generic with Cord
    Internet Speed
    Download: 350.50 mbps Upload: 12.02 mbps Ping: 15ms
    Browser
    Firefox, Chrome and Edge
    Antivirus
    MS - Defender

jh30uk

Banned
Local time
10:49 PM
Posts
219
OS
Windows 10
Not sure if all their cable are same for each PSU, check on their site and the good mod sites and see if they actual list a specific set of cable for EVGA models or same as any other ones.


My Computer

System One

  • OS
    Windows 10
    Computer type
    PC/Desktop
    Manufacturer/Model
    Self Built
    CPU
    Intel i7-4790k @ 5GHZ
    Motherboard
    Asus Maximus VI Extreme
    Memory
    32GB Corsair Dominator Platinum 2400Mhz @ 10-12-11-27-1T
    Graphics Card(s)
    Nvidia RTX 3090FE @ Core 2200 MHZ / Memory 21 GHZ
    Sound Card
    Creative SoundBlaster ZxR
    Monitor(s) Displays
    LG 32GN600 (G-Sync Comp)
    Screen Resolution
    1440p
    Hard Drives
    C: Primary SSD > Samsung 860 PRO 512GB
    G: Gaming SSD > Samsung 860 PRO 1TB
    S: Storage SSD > Samsung 860 EVO 4TB x2 (Windows Storage Spaces = 8TB)
    X: Ext Backup > IcyBox+WD Red 4TB x4 (Raid 10)
    PSU
    Corsair AX1600i
    Case
    NZXT Phantom 630 (Black)
    Cooling
    Noctua NH-D15S Chromax Black
    Keyboard
    Logitech G613
    Mouse
    Logitech G903 LS (Hero)+PowerPlay Wireless Charge Pad
    Internet Speed
    VM 1Gb/s
    Browser
    Edge
    Antivirus
    Eset

BunnyJ

Python Programmer
Pro User
VIP
Thread Starter
Local time
5:49 PM
Posts
5,299
Location
USA TN
OS
Windows 11 Home 25145.1011 - Dev Channel
Not sure if all their cable are same, check on their site and the good mod site and see if they actual list a specific set of cable for EVGA models or same as any other ones.
Well.. it will fit or it's not going to. Time will tell


My Computer

System One

  • OS
    Windows 11 Home 25145.1011 - Dev Channel
    Computer type
    PC/Desktop
    Manufacturer/Model
    Banna Junior 7000 - X Series
    CPU
    Ryzen 7 2700X
    Motherboard
    Asus Crosshair VII Hero, X470
    Memory
    Gskill 32GB, 16GBX2 PC3000
    Graphics Card(s)
    GeForce GTX TITAN X 12GB
    Sound Card
    Realtek (R) Audio
    Monitor(s) Displays
    ASUS VP28UQG 28" 4K, Viotek 32" 1080p
    Screen Resolution
    4K 3840 x 2160
    Hard Drives
    Primary Samsung 256 SSD
    PSU
    EVGA BQ 700w 80+ Bronze
    Case
    NZXT 510
    Cooling
    Stock AMD cooler
    Keyboard
    Corsair
    Mouse
    Amazon Generic with Cord
    Internet Speed
    Download: 350.50 mbps Upload: 12.02 mbps Ping: 15ms
    Browser
    Firefox, Chrome and Edge
    Antivirus
    MS - Defender

jh30uk

Banned
Local time
10:49 PM
Posts
219
OS
Windows 10

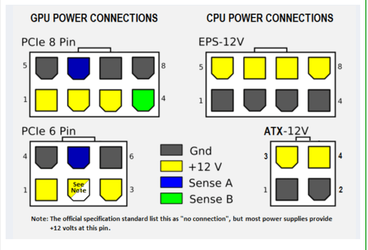

Remember at device end they need all be 100% same so we can fit with our Mobos/GPU etc, but at the PSU end they can be proprietary.

Regardless of above some cheap cables can be a poor fit at either end and that is a risk you can take, you can look up photos of rigs ruined by cheap PSU leads extensions etc.


My Computer

System One

  • OS
    Windows 10
    Computer type
    PC/Desktop
    Manufacturer/Model
    Self Built
    CPU
    Intel i7-4790k @ 5GHZ
    Motherboard
    Asus Maximus VI Extreme
    Memory
    32GB Corsair Dominator Platinum 2400Mhz @ 10-12-11-27-1T
    Graphics Card(s)
    Nvidia RTX 3090FE @ Core 2200 MHZ / Memory 21 GHZ
    Sound Card
    Creative SoundBlaster ZxR
    Monitor(s) Displays
    LG 32GN600 (G-Sync Comp)
    Screen Resolution
    1440p
    Hard Drives
    C: Primary SSD > Samsung 860 PRO 512GB
    G: Gaming SSD > Samsung 860 PRO 1TB
    S: Storage SSD > Samsung 860 EVO 4TB x2 (Windows Storage Spaces = 8TB)
    X: Ext Backup > IcyBox+WD Red 4TB x4 (Raid 10)
    PSU
    Corsair AX1600i
    Case
    NZXT Phantom 630 (Black)
    Cooling
    Noctua NH-D15S Chromax Black
    Keyboard
    Logitech G613
    Mouse
    Logitech G903 LS (Hero)+PowerPlay Wireless Charge Pad
    Internet Speed
    VM 1Gb/s
    Browser
    Edge
    Antivirus
    Eset

bobkn

Well-known member
Power User
VIP
Local time
5:49 PM
Posts
744
Location
Danbury, CT, USA
OS
Windows 11 22000.708
Well.. it will fit or it's not going to. Time will tell
What's your exact PSU model? (Not given in My Computer.)

Are you asking whether you can use a third-party cable with a modular PSU?

I'm doing that, now, with a Seasonic PSU. MB power cable If you're concerned, it may be possible to check the pinouts with a DVM (digital voltmeter). I didn't do that.

There are many third party cables for sale on Amazon. Fairly cheap.


My Computers

System One System Two

  • OS
    Windows 11 22000.708
    Computer type
    PC/Desktop
    Manufacturer/Model
    homebuilt
    CPU
    Intel I9-12900K
    Motherboard
    Asus Prime Z690-A
    Memory
    64GB Kingston DDR5-5600
    Graphics Card(s)
    Gigabyte RTX 3090 ti
    Sound Card
    none (USB to speakers), Realtek
    Monitor(s) Displays
    Viewsonic XG320U
    Screen Resolution
    3840 X 2160 @ 144Hz
    Hard Drives
    WB Black SN850 1TB M.2 NVME SSD
    Seagate Iron Wolf 8TB
    PSU
    eVGA SuperNOVA 1300 GT
    Case
    Corsair 5000D AIrflow
    Cooling
    Corsair iCUE H150i ELITE CAPELLIX Liquid CPU Cooler
    Internet Speed
    1200 Mbps
  • Operating System
    windows 11 22000.708
    Computer type
    PC/Desktop
    Manufacturer/Model
    homebuilt
    CPU
    Ryzen 9 5950X
    Motherboard
    Asus Tuf Gaming X570-Plus
    Memory
    64GB DDR4 3800 (@ 3600)
    Graphics card(s)
    Zotac RTX 3080
    Sound Card
    built in Realtek
    Monitor(s) Displays
    Asus PA329C
    Screen Resolution
    3840 X 2160
    Hard Drives
    Sabrent 1 TB PCI-E 4.0 X4 NVME M.2
    4 GB Seagate Ironwolf
    PSU
    eVGA SuperNOVA 850 G6
    Case
    Phanteks ENTHOO Pro M
    Cooling
    iCUE H115i RGB PRO XT Liquid CPU Cooler

BunnyJ

Python Programmer
Pro User
VIP
Thread Starter
Local time
5:49 PM
Posts
5,299
Location
USA TN
OS
Windows 11 Home 25145.1011 - Dev Channel
What's your exact PSU model? (Not given in My Computer.)

Are you asking whether you can use a third-party cable with a modular PSU?

I'm doing that, now, with a Seasonic PSU. MB power cable If you're concerned, it may be possible to check the pinouts with a DVM (digital voltmeter). I didn't do that.

There are many third party cables for sale on Amazon. Fairly cheap.
I'll get the model number as soon as possible.


My Computer

System One

  • OS
    Windows 11 Home 25145.1011 - Dev Channel
    Computer type
    PC/Desktop
    Manufacturer/Model
    Banna Junior 7000 - X Series
    CPU
    Ryzen 7 2700X
    Motherboard
    Asus Crosshair VII Hero, X470
    Memory
    Gskill 32GB, 16GBX2 PC3000
    Graphics Card(s)
    GeForce GTX TITAN X 12GB
    Sound Card
    Realtek (R) Audio
    Monitor(s) Displays
    ASUS VP28UQG 28" 4K, Viotek 32" 1080p
    Screen Resolution
    4K 3840 x 2160
    Hard Drives
    Primary Samsung 256 SSD
    PSU
    EVGA BQ 700w 80+ Bronze
    Case
    NZXT 510
    Cooling
    Stock AMD cooler
    Keyboard
    Corsair
    Mouse
    Amazon Generic with Cord
    Internet Speed
    Download: 350.50 mbps Upload: 12.02 mbps Ping: 15ms
    Browser
    Firefox, Chrome and Edge
    Antivirus
    MS - Defender

BunnyJ

Python Programmer
Pro User
VIP
Thread Starter
Local time
5:49 PM
Posts
5,299
Location
USA TN
OS
Windows 11 Home 25145.1011 - Dev Channel
Here's the PSU:

And the cable I ordered

If that fails I'll get this

Worst case.. I'll get a new PSU with 750w.


My Computer

System One

  • OS
    Windows 11 Home 25145.1011 - Dev Channel
    Computer type
    PC/Desktop
    Manufacturer/Model
    Banna Junior 7000 - X Series
    CPU
    Ryzen 7 2700X
    Motherboard
    Asus Crosshair VII Hero, X470
    Memory
    Gskill 32GB, 16GBX2 PC3000
    Graphics Card(s)
    GeForce GTX TITAN X 12GB
    Sound Card
    Realtek (R) Audio
    Monitor(s) Displays
    ASUS VP28UQG 28" 4K, Viotek 32" 1080p
    Screen Resolution
    4K 3840 x 2160
    Hard Drives
    Primary Samsung 256 SSD
    PSU
    EVGA BQ 700w 80+ Bronze
    Case
    NZXT 510
    Cooling
    Stock AMD cooler
    Keyboard
    Corsair
    Mouse
    Amazon Generic with Cord
    Internet Speed
    Download: 350.50 mbps Upload: 12.02 mbps Ping: 15ms
    Browser
    Firefox, Chrome and Edge
    Antivirus
    MS - Defender

badrobot

Well-known member
MVP
Power User
VIP
Local time
5:49 PM
Posts
816
Location
Toronto, CANADA
OS
Windows 11 Pro
Here's the PSU:

And the cable I ordered

If that fails I'll get this

Worst case.. I'll get a new PSU with 750w.
My two cents, don't go cheap on a psu cable. Specially if it is for a graphics card.


My Computers

System One System Two

  • OS
    Windows 11 Pro
    Computer type
    PC/Desktop
    CPU
    AMD Ryzen 9 3900X
    Motherboard
    MSI MPG Gaming Edge Wifi (X570)
    Memory
    32GB Adata XPG DDR4
    Graphics Card(s)
    ASUS GTX 1070 8GB ROG
    Monitor(s) Displays
    LG Ultrawide 34"
    Screen Resolution
    3440x1440
    Hard Drives
    Main Boot Drive : 512GB Adata XPG RGB Gen3x4 NVMe M.2 SSD
    PSU
    EVGA 600 Watts Gold
    Case
    Deepcool Genome II
    Cooling
    Deepcool Fryzen
    Internet Speed
    1Gbps
    Browser
    Chrome
    Antivirus
    "Moderna"
  • Operating System
    Windows 11 Pro
    Computer type
    PC/Desktop
    CPU
    i7-4790K
    Motherboard
    ASRock Xtreme6 Z97
    Memory
    16GB Corsair Vengeance Pro
    Graphics card(s)
    MSI R9 290
    Monitor(s) Displays
    LG Ultrawide 34"
    Screen Resolution
    3440x1440
    Hard Drives
    Samsung M.2
    PSU
    Thermaltake 475 Watts 80 Bronze
    Case
    Thermaltake Commander I Snow Edition
    Cooling
    Deep Cool Archer Air Cooler
    Mouse
    Logitech G402
    Keyboard
    Armageddon MKA-5R RGB-Hornet
    Internet Speed
    1Gbps
    Browser
    Chrome
    Antivirus
    Moderna :)

BunnyJ

Python Programmer
Pro User
VIP
Thread Starter
Local time
5:49 PM
Posts
5,299
Location
USA TN
OS
Windows 11 Home 25145.1011 - Dev Channel
My two cents, don't go cheap on a psu cable. Specially if it is for a graphics card.
I can just use that one for a short time and then get a better one or a new PSU in Sept for my bDay


My Computer

System One

  • OS
    Windows 11 Home 25145.1011 - Dev Channel
    Computer type
    PC/Desktop
    Manufacturer/Model
    Banna Junior 7000 - X Series
    CPU
    Ryzen 7 2700X
    Motherboard
    Asus Crosshair VII Hero, X470
    Memory
    Gskill 32GB, 16GBX2 PC3000
    Graphics Card(s)
    GeForce GTX TITAN X 12GB
    Sound Card
    Realtek (R) Audio
    Monitor(s) Displays
    ASUS VP28UQG 28" 4K, Viotek 32" 1080p
    Screen Resolution
    4K 3840 x 2160
    Hard Drives
    Primary Samsung 256 SSD
    PSU
    EVGA BQ 700w 80+ Bronze
    Case
    NZXT 510
    Cooling
    Stock AMD cooler
    Keyboard
    Corsair
    Mouse
    Amazon Generic with Cord
    Internet Speed
    Download: 350.50 mbps Upload: 12.02 mbps Ping: 15ms
    Browser
    Firefox, Chrome and Edge
    Antivirus
    MS - Defender

badrobot

Well-known member
MVP
Power User
VIP
Local time
5:49 PM
Posts
816
Location
Toronto, CANADA
OS
Windows 11 Pro
I can just use that one for a short time and then get a better one or a new PSU in Sept for my bDay
I actually haven't notice the difference in pins, but because my cables are labelled like the one on your link (mine is also EVGA), I am not sure if CPU and GPU cables are the same.
You were asking about GPU cable from your first post, but the link of the one you ordered is for CPU?


My Computers

System One System Two

  • OS
    Windows 11 Pro
    Computer type
    PC/Desktop
    CPU
    AMD Ryzen 9 3900X
    Motherboard
    MSI MPG Gaming Edge Wifi (X570)
    Memory
    32GB Adata XPG DDR4
    Graphics Card(s)
    ASUS GTX 1070 8GB ROG
    Monitor(s) Displays
    LG Ultrawide 34"
    Screen Resolution
    3440x1440
    Hard Drives
    Main Boot Drive : 512GB Adata XPG RGB Gen3x4 NVMe M.2 SSD
    PSU
    EVGA 600 Watts Gold
    Case
    Deepcool Genome II
    Cooling
    Deepcool Fryzen
    Internet Speed
    1Gbps
    Browser
    Chrome
    Antivirus
    "Moderna"
  • Operating System
    Windows 11 Pro
    Computer type
    PC/Desktop
    CPU
    i7-4790K
    Motherboard
    ASRock Xtreme6 Z97
    Memory
    16GB Corsair Vengeance Pro
    Graphics card(s)
    MSI R9 290
    Monitor(s) Displays
    LG Ultrawide 34"
    Screen Resolution
    3440x1440
    Hard Drives
    Samsung M.2
    PSU
    Thermaltake 475 Watts 80 Bronze
    Case
    Thermaltake Commander I Snow Edition
    Cooling
    Deep Cool Archer Air Cooler
    Mouse
    Logitech G402
    Keyboard
    Armageddon MKA-5R RGB-Hornet
    Internet Speed
    1Gbps
    Browser
    Chrome
    Antivirus
    Moderna :)

badrobot

Well-known member
MVP
Power User
VIP
Local time
5:49 PM
Posts
816
Location
Toronto, CANADA
OS
Windows 11 Pro
I can just use that one for a short time and then get a better one or a new PSU in Sept for my bDay
3rd party cables may not necessarily damage your GPU, but cheap ones may do.


My Computers

System One System Two

  • OS
    Windows 11 Pro
    Computer type
    PC/Desktop
    CPU
    AMD Ryzen 9 3900X
    Motherboard
    MSI MPG Gaming Edge Wifi (X570)
    Memory
    32GB Adata XPG DDR4
    Graphics Card(s)
    ASUS GTX 1070 8GB ROG
    Monitor(s) Displays
    LG Ultrawide 34"
    Screen Resolution
    3440x1440
    Hard Drives
    Main Boot Drive : 512GB Adata XPG RGB Gen3x4 NVMe M.2 SSD
    PSU
    EVGA 600 Watts Gold
    Case
    Deepcool Genome II
    Cooling
    Deepcool Fryzen
    Internet Speed
    1Gbps
    Browser
    Chrome
    Antivirus
    "Moderna"
  • Operating System
    Windows 11 Pro
    Computer type
    PC/Desktop
    CPU
    i7-4790K
    Motherboard
    ASRock Xtreme6 Z97
    Memory
    16GB Corsair Vengeance Pro
    Graphics card(s)
    MSI R9 290
    Monitor(s) Displays
    LG Ultrawide 34"
    Screen Resolution
    3440x1440
    Hard Drives
    Samsung M.2
    PSU
    Thermaltake 475 Watts 80 Bronze
    Case
    Thermaltake Commander I Snow Edition
    Cooling
    Deep Cool Archer Air Cooler
    Mouse
    Logitech G402
    Keyboard
    Armageddon MKA-5R RGB-Hornet
    Internet Speed
    1Gbps
    Browser
    Chrome
    Antivirus
    Moderna :)

BunnyJ

Python Programmer
Pro User
VIP
Thread Starter
Local time
5:49 PM
Posts
5,299
Location
USA TN
OS
Windows 11 Home 25145.1011 - Dev Channel
I actually haven't notice the difference in pins, but because my cables are labelled like the one on your link (mine is also EVGA), I am not sure if CPU and GPU cables are the same.
You were asking about GPU cable from your first post, but the link of the one you ordered is for CPU?
I want a GPU cable and the one I ordered today looks like a GPU cable. If it's not what I need I'll simply get a new cable or just get a new PSU that has all of the cables I need, plus a new warranty.


My Computer

System One

  • OS
    Windows 11 Home 25145.1011 - Dev Channel
    Computer type
    PC/Desktop
    Manufacturer/Model
    Banna Junior 7000 - X Series
    CPU
    Ryzen 7 2700X
    Motherboard
    Asus Crosshair VII Hero, X470
    Memory
    Gskill 32GB, 16GBX2 PC3000
    Graphics Card(s)
    GeForce GTX TITAN X 12GB
    Sound Card
    Realtek (R) Audio
    Monitor(s) Displays
    ASUS VP28UQG 28" 4K, Viotek 32" 1080p
    Screen Resolution
    4K 3840 x 2160
    Hard Drives
    Primary Samsung 256 SSD
    PSU
    EVGA BQ 700w 80+ Bronze
    Case
    NZXT 510
    Cooling
    Stock AMD cooler
    Keyboard
    Corsair
    Mouse
    Amazon Generic with Cord
    Internet Speed
    Download: 350.50 mbps Upload: 12.02 mbps Ping: 15ms
    Browser
    Firefox, Chrome and Edge
    Antivirus
    MS - Defender

BunnyJ

Python Programmer
Pro User
VIP
Thread Starter
Local time
5:49 PM
Posts
5,299
Location
USA TN
OS
Windows 11 Home 25145.1011 - Dev Channel
3rd party cables may not necessarily damage your GPU, but cheap ones may do.
Chances are I'll get a new PSU in Sept. That way I'll know I have the right cables for the PSU.


My Computer

System One

  • OS
    Windows 11 Home 25145.1011 - Dev Channel
    Computer type
    PC/Desktop
    Manufacturer/Model
    Banna Junior 7000 - X Series
    CPU
    Ryzen 7 2700X
    Motherboard
    Asus Crosshair VII Hero, X470
    Memory
    Gskill 32GB, 16GBX2 PC3000
    Graphics Card(s)
    GeForce GTX TITAN X 12GB
    Sound Card
    Realtek (R) Audio
    Monitor(s) Displays
    ASUS VP28UQG 28" 4K, Viotek 32" 1080p
    Screen Resolution
    4K 3840 x 2160
    Hard Drives
    Primary Samsung 256 SSD
    PSU
    EVGA BQ 700w 80+ Bronze
    Case
    NZXT 510
    Cooling
    Stock AMD cooler
    Keyboard
    Corsair
    Mouse
    Amazon Generic with Cord
    Internet Speed
    Download: 350.50 mbps Upload: 12.02 mbps Ping: 15ms
    Browser
    Firefox, Chrome and Edge
    Antivirus
    MS - Defender

badrobot

Well-known member
MVP
Power User
VIP
Local time
5:49 PM
Posts
816
Location
Toronto, CANADA
OS
Windows 11 Pro
I want a GPU cable and the one I ordered today looks like a GPU cable. If it's not what I need I'll simply get a new cable or just get a new PSU that has all of the cables I need, plus a new warranty.
The description says "CPU" cable.
PSU cables have different pin shape configuration. It may not work,



My Computers

System One System Two

  • OS
    Windows 11 Pro
    Computer type
    PC/Desktop
    CPU
    AMD Ryzen 9 3900X
    Motherboard
    MSI MPG Gaming Edge Wifi (X570)
    Memory
    32GB Adata XPG DDR4
    Graphics Card(s)
    ASUS GTX 1070 8GB ROG
    Monitor(s) Displays
    LG Ultrawide 34"
    Screen Resolution
    3440x1440
    Hard Drives
    Main Boot Drive : 512GB Adata XPG RGB Gen3x4 NVMe M.2 SSD
    PSU
    EVGA 600 Watts Gold
    Case
    Deepcool Genome II
    Cooling
    Deepcool Fryzen
    Internet Speed
    1Gbps
    Browser
    Chrome
    Antivirus
    "Moderna"
  • Operating System
    Windows 11 Pro
    Computer type
    PC/Desktop
    CPU
    i7-4790K
    Motherboard
    ASRock Xtreme6 Z97
    Memory
    16GB Corsair Vengeance Pro
    Graphics card(s)
    MSI R9 290
    Monitor(s) Displays
    LG Ultrawide 34"
    Screen Resolution
    3440x1440
    Hard Drives
    Samsung M.2
    PSU
    Thermaltake 475 Watts 80 Bronze
    Case
    Thermaltake Commander I Snow Edition
    Cooling
    Deep Cool Archer Air Cooler
    Mouse
    Logitech G402
    Keyboard
    Armageddon MKA-5R RGB-Hornet
    Internet Speed
    1Gbps
    Browser
    Chrome
    Antivirus
    Moderna :)
Top Bottom
