Solved What partitions do I really need on my boot drive?


R

rpetruzz

Well-known member
Member
Local time
2:12 AM
Posts
12
OS
Windows 11 Pro X64 - always current.
I'm running Windows 11 Pro 22H2. 22621.1928. Over time I've migrated my boot drive from HDDs to SSD. Using both Macrium and Aomei to do the migrations. I've always been able to rely on either product to get me where I need to go without really knowing what's what. Today I opened Aomei and saw that I have 4 partitions on my boot drive with the trailing partition showing "red" in that it is nearly full. Below I show Aomei's view and Windows Disk Manager's view. I'm wondering just what partitions I need and can I remove the last partition?




My Computers

System One System Two

  • OS
    Windows 11 Pro X64 - always current.
    Computer type
    PC/Desktop
    Manufacturer/Model
    DIY Build
    CPU
    AMD Ryzen 9 3950X
    Motherboard
    ASUS ROG STRIX X570-E GAMING
    Memory
    Corsair DDR4-2132 4x16gb Dual Channel
    Graphics Card(s)
    NVIDIA GeForce RTX 3080TI
    Sound Card
    On motherboard
    Monitor(s) Displays
    2 - NEC PA241W
    Screen Resolution
    1920X1200
    Hard Drives
    1 - WD_BLACK 1TB SN850X NVMe Internal Gaming SSD Solid State Drive - Gen4 PCIe, M.2 2280
    1 - WD_BLACK 2TB SN850X NVMe Internal Gaming SSD Solid State Drive - Gen4 PCIe, M.2 2280
    PSU
    850 Watt Corsair® RM850x 80+
    Case
    Corsair 7000D AirFlow
    Cooling
    Corsair iCUE H150i Elite CAPELLIX XT Liquid CPU Cooler
    Keyboard
    Microsoft Sidewinder
    Mouse
    Logitech
    Internet Speed
    Spectrum - 300mbs
    Browser
    Chrome
    Antivirus
    Windows Defender
  • Operating System
    Windows 10 Pro X64 - always current
    Computer type
    Laptop
    Manufacturer/Model
    Maingear Element
    CPU
    Intel Core i7 9750H
    Motherboard
    Intel LAPQC71B
    Memory
    32gb - Kingston DDR4 1333 Mhz Dual channel
    Graphics card(s)
    NVIDIA GeForce RTX 2070 Max Q
    Sound Card
    On board
    Monitor(s) Displays
    LCD
    Screen Resolution
    1920x1080
    Hard Drives
    2tb INTEL SSD PEKNW020T8
    PSU
    On board
    Case
    Laptop
    Cooling
    Fans
    Mouse
    TeckNet
    Keyboard
    On Board
    Internet Speed
    Spectrum 300mbps
    Browser
    Chrome
    Antivirus
    Windows Defender
@rpetruzz

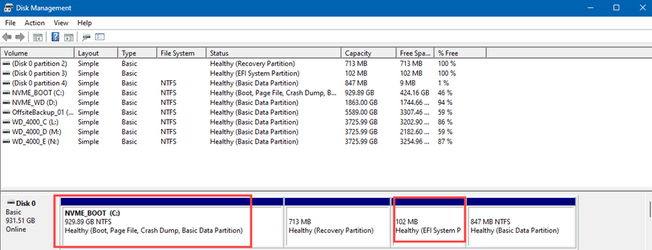

The bare minimum needed are these two... you need both to be able to boot Windows...


Personally, I get rid of the Recovery partition and use backup software instead.
The 713MB is your Recovery partition, and I don't know what the 847MB partition is or what it's for.
You can assign a drive letter to the 847MB partition, then look at it in File Explorer, to see what's on it.


You can get Minitool Partition Wizard (free), which will give you more info/abilities than Disk Management...

Best Free Partition Manager for Windows | MiniTool Partition Wizard Free

As an all-in-one free partition manager and disk manager software, MiniTool Partition Wizard Free helps manage disk space safely on Windows 11/10/8/7.
www.partitionwizard.com www.partitionwizard.com





Recovery Partition info...
www.tenforums.com

How to Delete Recovery Partition in Windows 10

How to Delete Recovery Partition in Windows 10 In Windows 10, there can be a Windows recovery partition or computer manufacturer OEM factory recovery partition available on the Windows disk. The Windows Recovery Partition allows you to boot into Windows r
www.tenforums.com www.tenforums.com

Last edited:

My Computers

System One System Two

  • OS
    Win 11 Home ♦♦♦22631.3527 ♦♦♦♦♦♦♦23H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot® [May 2020]
    CPU
    AMD Ryzen 7 3700X
    Motherboard
    Asus Pro WS X570-ACE (BIOS 4702)
    Memory
    G.Skill (F4-3200C14D-16GTZKW)
    Graphics Card(s)
    EVGA RTX 2070 (08G-P4-2171-KR)
    Sound Card
    Realtek ALC1220P / ALC S1220A
    Monitor(s) Displays
    Dell U3011 30"
    Screen Resolution
    2560 x 1600
    Hard Drives
    2x Samsung 860 EVO 500GB,
    WD 4TB Black FZBX - SATA III,
    WD 8TB Black FZBX - SATA III,
    DRW-24B1ST CD/DVD Burner
    PSU
    PC Power & Cooling 750W Quad EPS12V
    Case
    Cooler Master ATCS 840 Tower
    Cooling
    CM Hyper 212 EVO (push/pull)
    Keyboard
    Ducky DK9008 Shine II Blue LED
    Mouse
    Logitech Optical M-100
    Internet Speed
    300/300
    Browser
    Firefox (latest)
    Antivirus
    Bitdefender Internet Security
    Other Info
    Speakers: Klipsch Pro Media 2.1
  • Operating System
    Windows XP Pro 32bit w/SP3
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot® (not in use)
    CPU
    AMD Athlon 64 X2 5000+ (OC'd @ 3.2Ghz)
    Motherboard
    ASUS M2N32-SLI Deluxe Wireless Edition
    Memory
    TWIN2X2048-6400C4DHX (2 x 1GB, DDR2 800)
    Graphics card(s)
    EVGA 256-P2-N758-TR GeForce 8600GT SSC
    Sound Card
    Onboard
    Monitor(s) Displays
    ViewSonic G90FB Black 19" Professional (CRT)
    Screen Resolution
    up to 2048 x 1536
    Hard Drives
    WD 36GB 10,000rpm Raptor SATA
    Seagate 80GB 7200rpm SATA
    Lite-On LTR-52246S CD/RW
    Lite-On LH-18A1P CD/DVD Burner
    PSU
    PC Power & Cooling Silencer 750 Quad EPS12V
    Case
    Generic Beige case, 80mm fans
    Cooling
    ZALMAN 9500A 92mm CPU Cooler
    Mouse
    Logitech Optical M-BT96a
    Keyboard
    Logitech Classic Keybooard 200
    Internet Speed
    300/300
    Browser
    Firefox 3.x ??
    Antivirus
    Symantec (Norton)
    Other Info
    Still assembled, still runs. Haven't turned it on for 13 years?
Thank you that is very helpful
