Can I use a ATX12VO Motherboard with a Lenovo PSU with 14-pin connector?


Futurdreamz

Active member
Member
Local time
2:10 AM
Posts
122
OS
Windows 11
I have an old Lenovo ThinkServer TS440 that has a PSU with a proprietary connections, which is a 4-pin cpu connector and a 14-pin motherboard connector. I was thinking I would have to replace the PSU when I swap put the motherboard for a modern Intel system, but it seems that MSI plans to commit to ATX12VO power in, which uses a 10-pin connector instead of a 24-pin connector. I'm looking at the pinouts of the Lenovo PSU and the ATX12VO spec and it seems like i should be able to make an adapter that works...
14-pin-out-wire-colors-300x200.jpg the Lenovo 14-pin connector

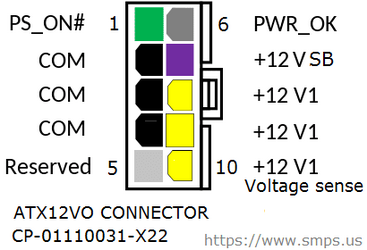

ATX12VO-10pin-connector.pngthe ATX12VO connector
it seems I can make a short adapter that removes the -12 and +5 wires and splits one of the +12 wires and merges two grounds...
it does have a 4-pin CPU header, but making that an 8-pin cpu header seems easy enough
