Does SATA III to USB 3.0 cable slow down a SSD significantly?


TheMystic

Well-known member
Power User
VIP
Local time
7:58 PM
Posts
752
OS
Windows 11
I purchased a SiliconPower A55 internal SSD and using it with a SATA III to USB 3.0 adaptor cable to connect to my laptop's USB 3.0 port.

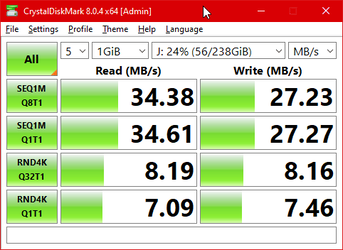

Crystal DiskMark test shows very low read/ write speeds.



Is this a problem because of the cable?

If I connect my Samsung T5 or T7, they have very good speeds of over 400 MBPS.

I tried copying a large Windows image file of size 12 GB and the copy window shows a speed of about 111 MBPS. This is still very low compared to the claimed speed of 500 MBPS.

Is the Silicon Power SSD faulty or is it being severely limited by the cable?

Last edited:

My Computer

System One

  • OS
    Windows 11
    Computer type
    Laptop
    Manufacturer/Model
    HP Envy dv7
    CPU
    Intel Core i7 3630QM
    Motherboard
    HP
    Memory
    16 GB
    Graphics Card(s)
    Intel HD Graphics 4000 & Nvidia GeForce GT 635M
    Sound Card
    IDT High Definition
    Screen Resolution
    1080p
    Hard Drives
    1 TB Crucial MX500 on bay 1.
    1 TB Seagate HDD on bay 2.
    Antivirus
    Windows Defender
If I connect my Samsung T5 or T7, they have very good speeds of over 400 MBPS.
Does it connect to the USB 3.1 jack?
I tried copying a large Windows image file of size 12 GB and the copy window shows a speed of about 111 MBPS. This is still very low compared to the claimed speed of 500 MBPS.
The SSD speed is reduced by the USB connection. I have used several of that brand and have no issues internally.


My Computer

System One

  • OS
    Windows 10
Does it connect to the USB 3.1 jack?

The SSD speed is reduced by the USB connection. I have used several of that brand and have no issues internally.
My USB ports are all 3.0.

Can the speed indeed be reduced by that much because of the cable?

I wanted to buy a small capacity SSD. Since I already had this SATA to USB cable, I opted for an internal SSD since all external SSD were only available in 500 GB or more sizes.

But the speeds are just too low. I still have time to return it if this is a faulty SSD. But I want to confirm that first because it could also be because of the cable.


My Computer

System One

  • OS
    Windows 11
    Computer type
    Laptop
    Manufacturer/Model
    HP Envy dv7
    CPU
    Intel Core i7 3630QM
    Motherboard
    HP
    Memory
    16 GB
    Graphics Card(s)
    Intel HD Graphics 4000 & Nvidia GeForce GT 635M
    Sound Card
    IDT High Definition
    Screen Resolution
    1080p
    Hard Drives
    1 TB Crucial MX500 on bay 1.
    1 TB Seagate HDD on bay 2.
    Antivirus
    Windows Defender
I've never had high speeds on external drives. Simply the USB thumb drives which I use daily (I use San Disk Extreme Pro, rather fast on paper) in real use show relatively slow speeds (I never bother with benchmarks). Partially this can be attributed to the antivirus, partially to the way Windows is treating USB drives.

Moreover, USB 3 ports are now labeled strangely - the 3.0, 3.1, and 3.2 ports are now 3.2 Gen 1, 3.2 Gen 2, and 3.2 Gen 2x2. The actual speed can be affected by the controller, etc. If you think cable is at fault - you can always change the cable, but as far as I know "digital" cables either work or they don't.

Take a look at this:



My Computer

System One

  • OS
    Windows 10
    Computer type
    PC/Desktop
    CPU
    i5-10600K
    Motherboard
    Asus Rog Strix Z490-A Gaming
    Memory
    16 GB
    Graphics Card(s)
    GeForce GTX 1650
    Monitor(s) Displays
    Samsung U32J59x 32" 4K
    Screen Resolution
    3840x2160
Hi there

@TheMystic

on the whole not as far as a user would actually notice it -- even running Windows on physical "Virtual Drives" - note NOT VM's - and booting / running entirely from external devices response is perfectly OK.

Copying the odd file or two it might be a tad slower but I'm sure most people aren't regularly copying 40 GB or bigger files around. !!

Running via a "Multi Hub" port might slow them down but so far I think provided there's enough power (and SSD's consume very little) they should be fine. I wouldn't share them on a Multi-port USB hub if you have "standard" external HDD's connedted as well --especially those self powered "passport" type HDD's - unless the hub is powered.

Speed also can be limited by the I/O bus on the mobo - so it's not always the fault of the SATA->USB connector. Some USB systems are better than others -- depends on quality of MOBO.

Don't bother with any 3rd party A/V either these days --certainly not on W11 --WD is about as good as it gets for HOME computers -- not corporates or other types of large LANS -- assuming here just on domestic computers.

Cheers
jimbo


My Computer

System One

  • OS
    Windows XP,7,10,11 Linux Arch Linux
    Computer type
    PC/Desktop
    CPU
    2 X Intel i7
Don't bother with any 3rd party A/V either these days --certainly not on W11 --WD is about as good as it gets for HOME computers -- not corporates or other types of large LANS -- assuming here just on domestic computers.
Can't say I agree with that, although what I really care about is not the antivirus but rather the firewall. The third-party firewall (I use ESET myself) allows me to control which programs on my computer access the internet in real time. I don't think WD gives me enough capabilities in that respect.


My Computer

System One

  • OS
    Windows 10
    Computer type
    PC/Desktop
    CPU
    i5-10600K
    Motherboard
    Asus Rog Strix Z490-A Gaming
    Memory
    16 GB
    Graphics Card(s)
    GeForce GTX 1650
    Monitor(s) Displays
    Samsung U32J59x 32" 4K
    Screen Resolution
    3840x2160

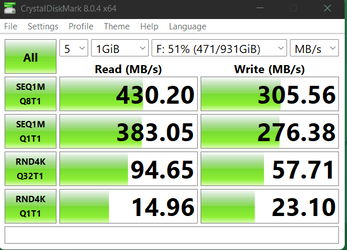

Just ran the test using USB 3.1 to SSD cable on a SanDisk 1TB drive. Just for info.



My Computers

System One System Two

  • OS
    Win 11 Home & 🐥.
    Computer type
    Laptop
    Manufacturer/Model
    ACER Nitro AN16-41
    CPU
    AMD Ryzen™ 7 7735HS Processor 3.2Ghz
    Motherboard
    RB Sierra_PEH (FP7)
    Memory
    32 GB DDR5 4800MHz
    Graphics Card(s)
    NVIDIA GeForce RTX 4060 8GB GDDR6
    Monitor(s) Displays
    16" QHD+ 165Hz 16:10 IPS Technology
    Screen Resolution
    1920 X 1200
    Hard Drives
    Samsung 990 PRO 2TB
    PSU
    330 Watts
    Mouse
    Lenovo Bluetooth.
    Internet Speed
    500 Mbps
    Browser
    Edge
    Antivirus
    Defender
  • Operating System
    Windows 11
    Computer type
    Laptop
    Manufacturer/Model
    ACER NITRO
    CPU
    AMD Ryzen 7 5800H / 3.2 GHz
    Motherboard
    CZ Scala_CAS (FP6)
    Memory
    32 GB DDR4 SDRAM 3200 MHz
    Graphics card(s)
    NVIDIA GeForce RTX 3060 6 GB GDDR6 SDRAM
    Sound Card
    Realtek Audio. NVIDIA High Definition Audio
    Monitor(s) Displays
    15.6" LED backlight 1920 x 1080 (Full HD) 144 Hz
    Screen Resolution
    1920 x 1080 (Full HD)
    Hard Drives
    Samsung 970 Evo Plus 2TB NVMe M.2
    PSU
    180 Watt, 19.5 V
    Mouse
    Lenovo Bluetooth
    Internet Speed
    500 Mbps
    Browser
    Edge
    Antivirus
    Defender
As I said before, I am not very impressed by benchmarks. My typical copying task involves copying a bunch of folders between an internal SSD and an external USB thumb drive. If the overall size is few GBs and the number of files is in tens of thousands, then this can take a while. Windows provides some animation to demonstrate the speed and this fluctuates all the time from next to zero to fairly fast, but never as fast as the benchmarks show, which is why I am not impressed by benchmarks.


My Computer

System One

  • OS
    Windows 10
    Computer type
    PC/Desktop
    CPU
    i5-10600K
    Motherboard
    Asus Rog Strix Z490-A Gaming
    Memory
    16 GB
    Graphics Card(s)
    GeForce GTX 1650
    Monitor(s) Displays
    Samsung U32J59x 32" 4K
    Screen Resolution
    3840x2160
The speed of access to any external device to a computer is dependent on many parameters, the connection is one of the main ones but cable type and connecter type and quality can dramatically change real speeds

USB3 gives a maximum Throughput of 4.8Mb/s ( a salesman's 5Mb/s :wink: ), whereas USB3.1 Gives a maximum throughput of 10Gb/s
These are the original designations and Speeds - Note they are is MegaBits/s whereas yours are shown in MegaBytes/s so to compare you need to multiply/divide by 8

The fastest connection currently easily available is Intel's Thunderbolt 3 which gives a maximum throughput of 40Gb/s

Doing the calculations on the first reading (some of the others will always be slower as other factors also apply to random reads/writes you are getting 4.3 Mb/s which is acceptable for a setup with a theoretical maximum of 4.8Mb/s


My Computers

System One System Two

  • OS
    Windows 11 Pro x64 [Latest Release Preview] [Win11 PRO HighEnd MUP-00005 DD]
    Computer type
    PC/Desktop
    Manufacturer/Model
    Scan 3XS to my design
    CPU
    AMD RYZEN 9 7950X OEM
    Motherboard
    *3XS*ASUS TUF B650 PLUS WIFI
    Memory
    64GB [2x32GB Corsair Vengeance 560 AMD DDR5]
    Graphics Card(s)
    3XS* ASUS DUAL RTX 4060 OC 8G
    Sound Card
    On motherboard Feeding SPDiF 5.1 system [plus local sound to each monitor]
    Monitor(s) Displays
    32" UHD 32 Bit HDR Monitor + 43" UHD 4K 32Bit HDR TV
    Screen Resolution
    2 x 3840 x 2160
    Hard Drives
    3XS Samsung 980Pro 2TB M.2 PCIe4 4 x 8TB Data + Various Externals from 1TB to 8TB, 10TB NAS
    PSU
    3XS Corsair RM850x 850w Fully Modular
    Case
    FDesign Define 7 XL BK TGL Case - Black
    Cooling
    3XS iCUE H150i ELITE Liquid Cool, Quiet Case fans
    Keyboard
    Wireless Logitec MX Keys + K830 [Depending on where I'm Sat]
    Mouse
    Wireless Logitec - MX Master 3S +
    Internet Speed
    950 MB Down 55 MB Up
    Browser
    Latest Chrome
    Antivirus
    BitDefender Total Security [Latest]
    Other Info
    Also run...
    Dell XPS 17 Laptop
    HP Laptop 8GB - Windows 10 Pro x64 HP 15.2"
    Nexus 7 Android tablet [x2]
    Samsung 10.2" tablet
    Blackview 10.2 Tablet
    Sony Z3 Android Smartphone
    Samsung S9 Plus Smartphone
    Wacom Pro Medium Pen Pad
    Wacom Pro Small Pen Pad
    Wacom ExpressKey Remote
    Loopdeck+ Graphics Controller
    Shuttle Pro v2 Control Pad
  • Operating System
    Windows 11 Pro x64 [Latest release]
    Computer type
    Laptop
    Manufacturer/Model
    Dell XPS 17 9700
    CPU
    i7 10750H
    Motherboard
    Stock
    Memory
    32 GB
    Graphics card(s)
    Stock Intel + GTX 1650 Ti
    Sound Card
    Stock 4 speaker
    Monitor(s) Displays
    Stock 17" + 32" 4K 3840 x 2160 HDR-10
    Screen Resolution
    3840 x 2400 HDR touchscreen
    Hard Drives
    2TB M2 NVMe
    PSU
    Stock
    Case
    Stock Aluminium / Carbon Fibre
    Cooling
    Stock + 2 fan cooling pad
    Mouse
    Stock Trackpad +Logi Mx Master 3 or MX Ergo Trackball
    Keyboard
    Stock Illuminated + Logi - MX Keys
    Internet Speed
    950 MB Down 55 MB Up
    Browser
    Latest Chrome
    Antivirus
    BitDefender Total Security 2021
    Other Info
    Also use an Adjustable Support for Laptop and Adjustable stand for monitor

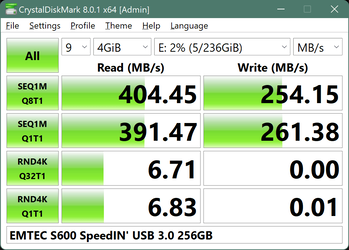

This is just a simple flash drive. I have it plugged into my Uni 3-port USB 3.0 hub:

EMTEC S600.png


My Computers

System One System Two

  • OS
    11 Home
    Computer type
    Laptop
    Manufacturer/Model
    Asus TUF Gaming F16 (2024)
    CPU
    i7 13650HX
    Memory
    16GB DDR5
    Graphics Card(s)
    GeForce RTX 4060 Mobile
    Sound Card
    Eastern Electric MiniMax DAC Supreme; Emotiva UMC-200; Astell & Kern AK240
    Monitor(s) Displays
    Sony Bravia XR-55X90J
    Screen Resolution
    3840×2160
    Hard Drives
    512GB SSD internal
    37TB external
    PSU
    Li-ion
    Cooling
    2× Arc Flow Fans, 4× exhaust vents, 5× heatpipes
    Keyboard
    Logitech K800
    Mouse
    Logitech G402
    Internet Speed
    20Mbit/s up, 250Mbit/s down
    Browser
    FF
  • Operating System
    11 Home
    Computer type
    Laptop
    Manufacturer/Model
    Medion S15450
    CPU
    i5 1135G7
    Memory
    16GB DDR4
    Graphics card(s)
    Intel Iris Xe
    Sound Card
    Eastern Electric MiniMax DAC Supreme; Emotiva UMC-200; Astell & Kern AK240
    Monitor(s) Displays
    Sony Bravia XR-55X90J
    Screen Resolution
    3840×2160
    Hard Drives
    2TB SSD internal
    37TB external
    PSU
    Li-ion
    Mouse
    Logitech G402
    Keyboard
    Logitech K800
    Internet Speed
    20Mbit/s up, 250Mbit/s down
    Browser
    FF
Agree with Barman58.

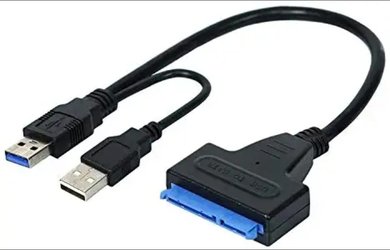

With that I'm curious as to what cable the OP is using? And as Barman points out cable type (USB 2.0 vs. 3.0) can also affect speeds.


My Computers

System One System Two

  • OS
    Windows 11 Pro 23H2 (Build 22631.3296)
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom built
    CPU
    Intel i9-9900K
    Motherboard
    Gigabyte Aorus Z390 Xtreme
    Memory
    32G (4x8) DDR4 Corsair RGB Dominator Platinum (3600Mhz)
    Graphics Card(s)
    Radeon VII
    Sound Card
    Onboard (ESS Sabre HiFi using Realtek drivers)
    Monitor(s) Displays
    NEC PA242w (24 inch)
    Screen Resolution
    1920 x 1200
    Hard Drives
    5 Samsung SSD drives: 2X 970 NVME (512 & 1TB), 3X EVO SATA (2X 2TB, 1X 1TB)
    PSU
    EVGA Super Nova I000 G2 (1000 watt)
    Case
    Cooler Master H500M
    Cooling
    Corsair H115i RGB Platinum
    Keyboard
    Logitech Craft
    Mouse
    Logitech MX Master 3
    Internet Speed
    500mb Download. 11mb Upload
    Browser
    Microsoft Edge Chromium
    Antivirus
    Windows Security
    Other Info
    System used for gaming, photography, music, school.
  • Operating System
    Win 10 Pro 22H2 (build 19045.2130)
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom Built
    CPU
    Intel i7-7700K
    Motherboard
    Gigabyte GA-Z270X-GAMING 8
    Memory
    32G (4x8) DDR4 Corsair Dominator Platinum (3333Mhz)
    Graphics card(s)
    AMD Radeon R9 Fury
    Sound Card
    Onboard (Creative Sound Blaster certified ZxRi)
    Monitor(s) Displays
    Dell U2415 (24 inch)
    Screen Resolution
    1920 x 1200
    Hard Drives
    3 Samsung SSD drives: 1x 512gig 950 NVMe drive (OS drive), 1 x 512gig 850 Pro, 1x 256gig 840 Pro.
    PSU
    EVGA Super Nova 1000 P2 (1000 watt)
    Case
    Phantek Enthoo Luxe
    Cooling
    Corsair H100i
    Mouse
    Logitech MX Master
    Keyboard
    Logitech MK 710
    Internet Speed
    100MB
    Browser
    Edge Chromium
    Antivirus
    Windows Security
    Other Info
    This is my backup system.
I've never had high speeds on external drives. Simply the USB thumb drives which I use daily (I use San Disk Extreme Pro, rather fast on paper) in real use show relatively slow speeds (I never bother with benchmarks). Partially this can be attributed to the antivirus, partially to the way Windows is treating USB drives.

Moreover, USB 3 ports are now labeled strangely - the 3.0, 3.1, and 3.2 ports are now 3.2 Gen 1, 3.2 Gen 2, and 3.2 Gen 2x2. The actual speed can be affected by the controller, etc. If you think cable is at fault - you can always change the cable, but as far as I know "digital" cables either work or they don't.

Take a look at this:

Both the SSD and the cable are working fine. Only the speed is the issue.

My question is if the cable can SIGNIFICANTLY slow down the transfer speeds? It is a SATA III to USB 3.0 cable purchased 3 years back.


My Computer

System One

  • OS
    Windows 11
    Computer type
    Laptop
    Manufacturer/Model
    HP Envy dv7
    CPU
    Intel Core i7 3630QM
    Motherboard
    HP
    Memory
    16 GB
    Graphics Card(s)
    Intel HD Graphics 4000 & Nvidia GeForce GT 635M
    Sound Card
    IDT High Definition
    Screen Resolution
    1080p
    Hard Drives
    1 TB Crucial MX500 on bay 1.
    1 TB Seagate HDD on bay 2.
    Antivirus
    Windows Defender
Hi there

@TheMystic

on the whole not as far as a user would actually notice it -- even running Windows on physical "Virtual Drives" - note NOT VM's - and booting / running entirely from external devices response is perfectly OK.

Copying the odd file or two it might be a tad slower but I'm sure most people aren't regularly copying 40 GB or bigger files around. !!

Running via a "Multi Hub" port might slow them down but so far I think provided there's enough power (and SSD's consume very little) they should be fine. I wouldn't share them on a Multi-port USB hub if you have "standard" external HDD's connedted as well --especially those self powered "passport" type HDD's - unless the hub is powered.

Speed also can be limited by the I/O bus on the mobo - so it's not always the fault of the SATA->USB connector. Some USB systems are better than others -- depends on quality of MOBO.

Don't bother with any 3rd party A/V either these days --certainly not on W11 --WD is about as good as it gets for HOME computers -- not corporates or other types of large LANS -- assuming here just on domestic computers.

Cheers
jimbo
I'm just using Windows Defender. And connecting directly to the USB 3.0 port without using a hub.

I don't have another cable or another SATA SSD to test. So I want to know if the speeds can be severely limited by the cable.


My Computer

System One

  • OS
    Windows 11
    Computer type
    Laptop
    Manufacturer/Model
    HP Envy dv7
    CPU
    Intel Core i7 3630QM
    Motherboard
    HP
    Memory
    16 GB
    Graphics Card(s)
    Intel HD Graphics 4000 & Nvidia GeForce GT 635M
    Sound Card
    IDT High Definition
    Screen Resolution
    1080p
    Hard Drives
    1 TB Crucial MX500 on bay 1.
    1 TB Seagate HDD on bay 2.
    Antivirus
    Windows Defender
Can't say I agree with that, although what I really care about is not the antivirus but rather the firewall. The third-party firewall (I use ESET myself) allows me to control which programs on my computer access the internet in real time. I don't think WD gives me enough capabilities in that respect.
I use the Windows Defender Default BLOCK setting. And I manually allow apps I install to connect to the internet, if it is required.


My Computer

System One

  • OS
    Windows 11
    Computer type
    Laptop
    Manufacturer/Model
    HP Envy dv7
    CPU
    Intel Core i7 3630QM
    Motherboard
    HP
    Memory
    16 GB
    Graphics Card(s)
    Intel HD Graphics 4000 & Nvidia GeForce GT 635M
    Sound Card
    IDT High Definition
    Screen Resolution
    1080p
    Hard Drives
    1 TB Crucial MX500 on bay 1.
    1 TB Seagate HDD on bay 2.
    Antivirus
    Windows Defender
The speed of access to any external device to a computer is dependent on many parameters, the connection is one of the main ones but cable type and connecter type and quality can dramatically change real speeds

USB3 gives a maximum Throughput of 4.8Mb/s ( a salesman's 5Mb/s :wink: ), whereas USB3.1 Gives a maximum throughput of 10Gb/s
These are the original designations and Speeds - Note they are is MegaBits/s whereas yours are shown in MegaBytes/s so to compare you need to multiply/divide by 8

The fastest connection currently easily available is Intel's Thunderbolt 3 which gives a maximum throughput of 40Gb/s

Doing the calculations on the first reading (some of the others will always be slower as other factors also apply to random reads/writes you are getting 4.3 Mb/s which is acceptable for a setup with a theoretical maximum of 4.8Mb/s
Given the speed numbers in OP, something is definitely not right. Either the SSD or the cable isn't supporting the required speeds. Using the same ports, I get expected speeds of over 400 MBPS on both my Samsung T5 & T7 Touch. So the port or the connection to the motherboard isn't a problem.

Is there any other way to test the SSD? I wanted to buy an SSD for its speed, but don't want an HDD in the name of SSD. This particular SSD shows up as HDD in Windows Disk Defragmentation. That is another problem.


My Computer

System One

  • OS
    Windows 11
    Computer type
    Laptop
    Manufacturer/Model
    HP Envy dv7
    CPU
    Intel Core i7 3630QM
    Motherboard
    HP
    Memory
    16 GB
    Graphics Card(s)
    Intel HD Graphics 4000 & Nvidia GeForce GT 635M
    Sound Card
    IDT High Definition
    Screen Resolution
    1080p
    Hard Drives
    1 TB Crucial MX500 on bay 1.
    1 TB Seagate HDD on bay 2.
    Antivirus
    Windows Defender

My Computer

System One

  • OS
    Windows 11
    Computer type
    Laptop
    Manufacturer/Model
    HP Envy dv7
    CPU
    Intel Core i7 3630QM
    Motherboard
    HP
    Memory
    16 GB
    Graphics Card(s)
    Intel HD Graphics 4000 & Nvidia GeForce GT 635M
    Sound Card
    IDT High Definition
    Screen Resolution
    1080p
    Hard Drives
    1 TB Crucial MX500 on bay 1.
    1 TB Seagate HDD on bay 2.
    Antivirus
    Windows Defender
Agree with Barman58.

With that I'm curious as to what cable the OP is using? And as Barman points out cable type (USB 2.0 vs. 3.0) can also affect speeds.

Something like this.


My Computer

System One

  • OS
    Windows 11
    Computer type
    Laptop
    Manufacturer/Model
    HP Envy dv7
    CPU
    Intel Core i7 3630QM
    Motherboard
    HP
    Memory
    16 GB
    Graphics Card(s)
    Intel HD Graphics 4000 & Nvidia GeForce GT 635M
    Sound Card
    IDT High Definition
    Screen Resolution
    1080p
    Hard Drives
    1 TB Crucial MX500 on bay 1.
    1 TB Seagate HDD on bay 2.
    Antivirus
    Windows Defender
If I copy a file from one partition to another on the same disk, will it still involve the cable?

Can this method be used to test the actual speed of the SSD?


My Computer

System One

  • OS
    Windows 11
    Computer type
    Laptop
    Manufacturer/Model
    HP Envy dv7
    CPU
    Intel Core i7 3630QM
    Motherboard
    HP
    Memory
    16 GB
    Graphics Card(s)
    Intel HD Graphics 4000 & Nvidia GeForce GT 635M
    Sound Card
    IDT High Definition
    Screen Resolution
    1080p
    Hard Drives
    1 TB Crucial MX500 on bay 1.
    1 TB Seagate HDD on bay 2.
    Antivirus
    Windows Defender
Not all cables advertised as USB3 are, depends on where you get them from, there are dodgy suppliers out there USB3 has extra wires to USB2, fakes mainly from Ebay often look correct with the blue insert but don't have the extra wires in the cable.

You could test the drive by connecting it as an internal drive in the PC, assuming it's not a laptop and you have a spare SATA cable, most PCs will have sufficient power connectors.


My Computers

System One System Two

  • OS
    Windows 11 22H2 OS Build 22623.1095
    Computer type
    PC/Desktop
    Manufacturer/Model
    Self Build
    CPU
    AMD Ryzen 7 3800X
    Motherboard
    Asus PRIME B350-PLUS
    Memory
    16GB Corsair Vengeance LPX DDR4 @3000Mhz
    Graphics Card(s)
    ASUS - GeForce RTX 3070 Ti 8 GB TUF GAMING OC
    Sound Card
    On Board Realtec
    Monitor(s) Displays
    Acer KA241
    Screen Resolution
    1920 x 1080 @60Hz
    Hard Drives
    240GB PNY CS900 SSD - OS
    2 x 1TB Crucial MX500 SSD
    1 x 500GB Crucial MX300 SSD
    2TB Seagate ST2000DM001-1ER164
    2TB Seagate ST2000DM008-2FR102
    PSU
    750 Watt Corsair TX750 Plus
    Case
    Cooler Master 690 III
    Cooling
    Akasa AK98 5 Case Fans
    Keyboard
    Logitech K270 - wireless
    Mouse
    Logitech - M185 wireless
    Internet Speed
    BT Fibre 75 Mbps
    Browser
    Firefox
    Antivirus
    Windows Defender
    Other Info
    Use hardware KVM to switch monitors on three PCs and software (input director) to use mouse and keyboard on all 4 PCs.
  • Operating System
    Windows 11 Pro 22H2 build 22621.900
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Inspiron 3881 - modified with SFX PSU fitted internally
    CPU
    Intel i5 - 10400
    Motherboard
    Dell 032w55 version A00
    Memory
    16GB of HyperX Fury @ 2133 Mhz
    Graphics card(s)
    EVGA 6GB GTX 1060.
    Sound Card
    Builtin
    Monitor(s) Displays
    ACER KA241
    Screen Resolution
    1920x 1080 @60Hz
    Hard Drives
    256GB SK hynix NVMe
    1TB Western Digital WD10EZEX-75WN4A1
    PSU
    Modular 450 Watt Corsair SF450 Platinum ( Mod to replace the Dell 265 Watt PSU)
    Case
    Inspiron Small Desktop
    Cooling
    Dell stock cooler
    Mouse
    Dell
    Keyboard
    Dell
    Internet Speed
    BT Fibre 75 Mbps
    Browser
    Firefox
    Antivirus
    Windows Defender
    Other Info
    Use hardware KVM to switch monitors on three PCs and software (input director) to use mouse and keyboard on all 4 PCs.

My Computers

System One System Two

  • OS
    Windows 11 Pro 23H2 (Build 22631.3296)
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom built
    CPU
    Intel i9-9900K
    Motherboard
    Gigabyte Aorus Z390 Xtreme
    Memory
    32G (4x8) DDR4 Corsair RGB Dominator Platinum (3600Mhz)
    Graphics Card(s)
    Radeon VII
    Sound Card
    Onboard (ESS Sabre HiFi using Realtek drivers)
    Monitor(s) Displays
    NEC PA242w (24 inch)
    Screen Resolution
    1920 x 1200
    Hard Drives
    5 Samsung SSD drives: 2X 970 NVME (512 & 1TB), 3X EVO SATA (2X 2TB, 1X 1TB)
    PSU
    EVGA Super Nova I000 G2 (1000 watt)
    Case
    Cooler Master H500M
    Cooling
    Corsair H115i RGB Platinum
    Keyboard
    Logitech Craft
    Mouse
    Logitech MX Master 3
    Internet Speed
    500mb Download. 11mb Upload
    Browser
    Microsoft Edge Chromium
    Antivirus
    Windows Security
    Other Info
    System used for gaming, photography, music, school.
  • Operating System
    Win 10 Pro 22H2 (build 19045.2130)
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom Built
    CPU
    Intel i7-7700K
    Motherboard
    Gigabyte GA-Z270X-GAMING 8
    Memory
    32G (4x8) DDR4 Corsair Dominator Platinum (3333Mhz)
    Graphics card(s)
    AMD Radeon R9 Fury
    Sound Card
    Onboard (Creative Sound Blaster certified ZxRi)
    Monitor(s) Displays
    Dell U2415 (24 inch)
    Screen Resolution
    1920 x 1200
    Hard Drives
    3 Samsung SSD drives: 1x 512gig 950 NVMe drive (OS drive), 1 x 512gig 850 Pro, 1x 256gig 840 Pro.
    PSU
    EVGA Super Nova 1000 P2 (1000 watt)
    Case
    Phantek Enthoo Luxe
    Cooling
    Corsair H100i
    Mouse
    Logitech MX Master
    Keyboard
    Logitech MK 710
    Internet Speed
    100MB
    Browser
    Edge Chromium
    Antivirus
    Windows Security
    Other Info
    This is my backup system.

Latest Support Threads

Latest Tutorials

Back
Top Bottom
