PCIe SSD issues


SamuelBastable

New member
Local time
1:11 AM
Posts
5
OS
Windows 11
Hi.

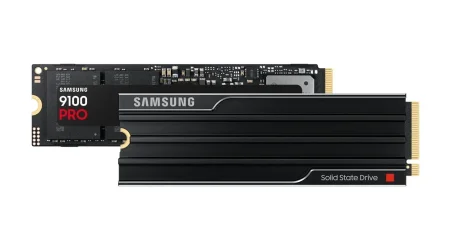

I recently bought a Samsung PCIe M.2 2280 NvME 4TB SSD for my laptop, as my current 1TB drive is dying (ridiculously slow speeds - the usual).

Laptop is an Alienware M15:

(Not the more modern R5/6/7 etc)

I upgraded to 32Gb RAM too.

I’ve been trying to get it to install in the laptop and set up Windows 11 on it, but no matter what I try it will not accept it.

I did the USB boot stick, image file, even copying the files over.

Even had a drive from Crucial and that didn’t work either.

Bought a PCIe adapter for USB and set the new Samsung drive up on a different (desktop) PC and it works fine when used as a USB, but as soon as I try to plug it into the PCIe slot, it just comes up with BSOD.

It just makes no sense whatsoever.

Samsung and Crucial both said the drives are compatible with my laptop, but neither seem to work and what should be a simple ‘plug and play’ is turning into a nightmare.

Their ‘support’ service is useless as it’s based in the Netherlands and not open a lot of the time so all done by email.

Can anyone help………?

Windows Build/Version
Windows 11

My Computer

System One

  • OS
    Windows 11
    Computer type
    Laptop
    Manufacturer/Model
    Alienware M15 (Original, not R4/5/6/7 etc) with 32GB RAM and intel i7
If there is no installed operating system on SSD then the BSOD could be caused by faulty RAM module try one RAM module stick at a time to see problem resolves.


My Computer

System One

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    HP Pavilion
    CPU
    AMD Ryzen 7 5700G
    Motherboard
    Erica6
    Memory
    Micron Technology DDR4-3200 16GB
    Graphics Card(s)
    NVIDIA GeForce RTX 3060
    Sound Card
    Realtek ALC671
    Monitor(s) Displays
    Samsung SyncMaster U28E590
    Screen Resolution
    3840 x 2160
    Hard Drives
    SAMSUNG MZVLQ1T0HALB-000H1
Hi.


I’ve been trying to get it to install in the laptop and set up Windows 11 on it, but no matter what I try it will not accept it.

I did the USB boot stick, image file, even copying the files over.
What do you mean above? Get what to install? The drive itself or installing the OS?


My Computer

System One

  • OS
    Win 7/10/11
    Computer type
    PC/Desktop
    Other Info
    I'm a computer enthusiast so have quite a few systems that I run. More like an advanced hobby.
If there is no installed operating system on SSD then the BSOD could be caused by faulty RAM module try one RAM module stick at a time to see problem resolves.
The RAM has been working for a number of years with no issue.

It’s the PCIe SSD that won’t connect to the laptop.

You’re meant to be able to just plug the SSD in and boot from a USB to install windows that way, but it doesn’t work.

I don’t see how the RAM has any bearing on installation……..?


My Computer

System One

  • OS
    Windows 11
    Computer type
    Laptop
    Manufacturer/Model
    Alienware M15 (Original, not R4/5/6/7 etc) with 32GB RAM and intel i7
What do you mean above? Get what to install? The drive itself or installing the OS?
Either.

If the SSD drive is connected internally it just goes to BSOD.

If I use it with an adaptor and connect it via USB it works, but only at USB speeds and not internal speeds.


My Computer

System One

  • OS
    Windows 11
    Computer type
    Laptop
    Manufacturer/Model
    Alienware M15 (Original, not R4/5/6/7 etc) with 32GB RAM and intel i7
Last edited:

My Computers

System One System Two

  • OS
    Win7
    Computer type
    PC/Desktop
    CPU
    i5-8400
    Motherboard
    gigabyte b365m ds3h
    Memory
    2x8gb 3200mhz
    Monitor(s) Displays
    benq gw2480
    PSU
    bequiet pure power 11 400CM
    Cooling
    cryorig m9i
  • Operating System
    win7
    Computer type
    PC/Desktop
    CPU
    pentium g5400
    Motherboard
    gigabyte b365m ds3h
    Memory
    1x8gb 2400
    PSU
    xfx pro 450
What exactly is happening is somewhat vague to me. Also your computer specs are not complete so I can only surmise.
If the link you provided to your system specs is correct, iit says what your motherboard will support. If an m.2 drive is installed it is your primary drive and cannot exceed 1 tb.
It also says that an additional m.2 drive can be added also not to exceed 1 tb.
Even if you add a 2.5 ssd, it also can not exceed 1 tb.
Any configuration of multiple drives you choose can not exceed a total of 2 tb.

If you are trying to replace a dying m.2 system drive with a 4tb drive, that will not work due to motherboard limitations.


My Computers

System One System Two

  • OS
    Windows 11 Pro 23H2 22631.3593
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Optiplex 7080
    CPU
    i9-10900 10 core 20 threads
    Motherboard
    DELL 0J37VM
    Memory
    32 gb
    Graphics Card(s)
    none-Intel UHD Graphics 630
    Sound Card
    Integrated Realtek
    Monitor(s) Displays
    Benq 27
    Screen Resolution
    2560x1440
    Hard Drives
    1tb Solidigm m.2 +256gb ssd+512 gb usb m.2 sata
    PSU
    500w
    Case
    MT
    Cooling
    Dell Premium
    Keyboard
    Logitech wired
    Mouse
    Logitech wireless
    Internet Speed
    so slow I'm too embarrassed to tell
    Browser
    Firefox
    Antivirus
    Defender+MWB Premium
  • Operating System
    Windows 10 Pro 22H2 19045.3930
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Optiplex 9020
    CPU
    i7-4770
    Memory
    24 gb
    Monitor(s) Displays
    Benq 27
    Screen Resolution
    2560x1440
    Hard Drives
    256 gb Toshiba BG4 M.2 NVE SSB and 1 tb hdd
    PSU
    500w
    Case
    MT
    Cooling
    Dell factory
    Mouse
    Logitech wireless
    Keyboard
    Logitech wired
    Internet Speed
    still not telling
    Browser
    Firefox
    Antivirus
    Defender+MWB Premium
What exactly is happening is somewhat vague to me. Also your computer specs are not complete so I can only surmise.
If the link you provided to your system specs is correct, iit says what your motherboard will support. If an m.2 drive is installed it is your primary drive and cannot exceed 1 tb.
It also says that an additional m.2 drive can be added also not to exceed 1 tb.
Even if you add a 2.5 ssd, it also can not exceed 1 tb.
Any configuration of multiple drives you choose can not exceed a total of 2 tb.

If you are trying to replace a dying m.2 system drive with a 4tb drive, that will not work due to motherboard limitations.
Thank you. This is really helpful.

I think this is probably (unfortunately) the answer.

I’ll have to look at getting a new laptop then, as the software I used has substantial size and needs the high transfer speeds.

Time to start shopping for a reasonable deal.


My Computer

System One

  • OS
    Windows 11
    Computer type
    Laptop
    Manufacturer/Model
    Alienware M15 (Original, not R4/5/6/7 etc) with 32GB RAM and intel i7
You’re meant to be able to just plug the SSD in and boot from a USB to install windows that way, but it doesn’t work.
With the 4tb drive plugged into the main m.2 slot, Are you saying you can't boot from an installation usb using the f12 boot menu because of bsod? If so, yes I would think it's due to the size of the drive. The mobo doesn't like it and is squawking loudly.

Even if you attempt to replace the existing drive with one of same size, keep in mind that Dell sets Alienware bios by default to be raid. For the drive to be recognized by the installation process, you must either change sata operation to AHCI in bios OR install the Intel Rapid Storage Controller Driver during the "install driver" step of a clean install.


My Computers

System One System Two

  • OS
    Windows 11 Pro 23H2 22631.3593
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Optiplex 7080
    CPU
    i9-10900 10 core 20 threads
    Motherboard
    DELL 0J37VM
    Memory
    32 gb
    Graphics Card(s)
    none-Intel UHD Graphics 630
    Sound Card
    Integrated Realtek
    Monitor(s) Displays
    Benq 27
    Screen Resolution
    2560x1440
    Hard Drives
    1tb Solidigm m.2 +256gb ssd+512 gb usb m.2 sata
    PSU
    500w
    Case
    MT
    Cooling
    Dell Premium
    Keyboard
    Logitech wired
    Mouse
    Logitech wireless
    Internet Speed
    so slow I'm too embarrassed to tell
    Browser
    Firefox
    Antivirus
    Defender+MWB Premium
  • Operating System
    Windows 10 Pro 22H2 19045.3930
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Optiplex 9020
    CPU
    i7-4770
    Memory
    24 gb
    Monitor(s) Displays
    Benq 27
    Screen Resolution
    2560x1440
    Hard Drives
    256 gb Toshiba BG4 M.2 NVE SSB and 1 tb hdd
    PSU
    500w
    Case
    MT
    Cooling
    Dell factory
    Mouse
    Logitech wireless
    Keyboard
    Logitech wired
    Internet Speed
    still not telling
    Browser
    Firefox
    Antivirus
    Defender+MWB Premium
Someone on another forum told me about the AHCI vs RAID thing before glasskuter…..

…..but that was the solution that worked in the end.

I now have:

- the 4TB as main (C) drive
- The original C drive is now the D drive
- And the 2.5 SATA is now an extra add on drive, but I’ll only use it as a last resort because the speeds are almost nothing.

…and all of them on AHCI.

Nowhere near the speeds that the SSD advertises because it’s an older computer and throttles the output, but still far better than what I had.

Only took an afternoon to download over 1.5TB of BBC symphony orchestra composition software onto my new drive, so I can finally get back to working on my music again!

Thanks for the advice. :)
