What is this unmounted drive?


PeterL

Member
Local time
2:41 AM
Posts
27
OS
Windows 11 64bit
WINver 21H2


Attachments

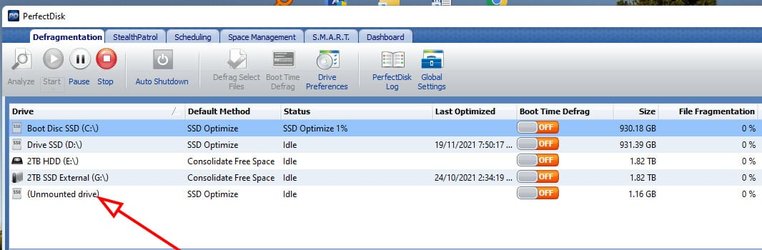

  • unmounted drive.jpg
    unmounted drive.jpg
    48.8 KB · Views: 6
Last edited:

My Computer

System One

  • OS
    Windows 11 64bit
    Computer type
    PC/Desktop
    Manufacturer/Model
    Bespoke
    CPU
    3.70 gigahertz Intel core i7-8700K
    Motherboard
    MSI 7B22
    Memory
    16GB
    Graphics Card(s)
    Nvidia GTX 1050
    Sound Card
    on board
    Monitor(s) Displays
    Dell 27" Ultrasharp
    Screen Resolution
    2560 x1440
    Hard Drives
    Drive c: 1tb SSD
    DriveD: 1TB SSD
    DriveE: 2tb HDD
    External drive Samsung T7 2TBSSD
    Cooling
    no
    Antivirus
    MalwareBytes & Norton 360

Lucas North

Well-known member
Member
VIP
Local time
4:41 AM
Posts
48
OS
Dual Boot 10 & 11
I had a similar thing happen to me, the fault with mine though was just simply a loose cable to that drive in particular.


My Computer

System One

  • OS
    Dual Boot 10 & 11

Ghot

Well-known member
Pro User
VIP
Local time
2:41 PM
Posts
2,765
Location
PA, USA
OS
Win 11 Home ♦♦♦22000.675

My Computers

System One System Two

  • OS
    Win 11 Home ♦♦♦22000.675
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot® [May 2020]
    CPU
    AMD Ryzen 7 3700X
    Motherboard
    Asus Pro WS X570-ACE
    Memory
    G.Skill (F4-3200C14D-16GTZKW)
    Graphics Card(s)
    EVGA RTX 2070 (08G-P4-2171-KR)
    Sound Card
    (onboard) Realtek ALC1220P / ALC S1220A
    Monitor(s) Displays
    Dell U3011 30"
    Screen Resolution
    2560 x 1600
    Hard Drives
    2x Samsung 860 EVO 500GB,
    WD 4TB Black FZBX - SATA III,
    WD 8TB Black FZBX - SATA III,
    LG GH22LS30 CD/DVD Burner
    PSU
    PC Power & Cooling 750W Quad EPS12V
    Case
    COOLER MASTER ATCS 840 Full Tower
    Cooling
    CM Hyper 212 EVO (push/pull)
    Keyboard
    Ducky DK9008 Shine II Blue LED
    Mouse
    Logitech Optical M-100
    Internet Speed
    100/100
    Browser
    Firefox (latest)
    Antivirus
    Bitdefender Internet Security (latest)
    Other Info
    Speakers: Klipsch Pro Media 2.1
  • Operating System
    Windows XP Pro 32bit w/SP3
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot®
    CPU
    AMD Athlon 64 X2 5000+ (OC'd @ 3.2Ghz)
    Motherboard
    ASUS M2N32-SLI Deluxe Wireless Edition
    Memory
    TWIN2X2048-6400C4DHX (2 x 1GB, DDR2 800)
    Graphics card(s)
    EVGA 256-P2-N758-TR GeForce 8600GT SSC
    Sound Card
    Onboard
    Monitor(s) Displays
    ViewSonic G90FB Black 19" Professional (CRT)
    Screen Resolution
    up to 2048 x 1536
    Hard Drives
    WD 36GB 10,000rpm Raptor SATA
    Seagate 80GB 7200rpm SATA
    Lite-On LTR-52246S CD/RW
    Lite-On LH-18A1P CD/DVD Burner
    PSU
    PC Power & Cooling Silencer 750 Quad EPS12V
    Case
    Generic Beige case, 80mm fans
    Cooling
    ZALMAN 9500A 92mm CPU Cooler
    Mouse
    Logitech Optical M-BT96a
    Keyboard
    Logitech Classic Keybooard 200
    Internet Speed
    100/100
    Browser
    Firefox 3.x ??
    Antivirus
    Symantec (Norton)
    Other Info
    Still assembled, still runs. Haven't turned it on for 13 years?

    http://www.xtremesystems.org/forums/showthread.php?183088-5000-B-E-on-M2N32-SLI-Dlx-Overclocked&p=2891724#post2891724

Spunk

Member
Local time
11:41 AM
Posts
14
OS
Windows 11 Pro 64 bit 21H2
As stated, press the Windows key +X and choose Disk Management, please show screenshot of the lower pane showing all of your drives. You can also use a 3rd party app like Minitool Partition Manager


My Computer

System One

  • OS
    Windows 11 Pro 64 bit 21H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Gigabyte Z390 UD
    CPU
    Intel Core i7 77000 3.60
    Motherboard
    Gigabyte Z390 UD
    Memory
    16 GB
    Graphics Card(s)
    nVidia GEForce RTX 2060 Super
    Sound Card
    onboard
    Monitor(s) Displays
    Two 27" Dell 4K monitors
    Screen Resolution
    3840 x 2160
    Hard Drives
    M.2 NVME SSD, 500 GB; Two 2TB Mechanical HDD's
    PSU
    850w PSU
    Case
    Cyberpower PC
    Cooling
    Water cooled
    Keyboard
    Backlit Cyberpower gamiong keyboard
    Mouse
    Backlit Cyberpower gaming mouse
    Internet Speed
    1 GB mbps
    Browser
    Brave
    Antivirus
    Windows Security

PeterL

Member
Thread Starter
Local time
2:41 AM
Posts
27
OS
Windows 11 64bit

Attachments

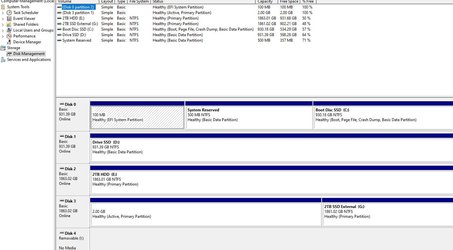

  • diskmanagement1.jpg
    100.1 KB · Views: 3

My Computer

System One

  • OS
    Windows 11 64bit
    Computer type
    PC/Desktop
    Manufacturer/Model
    Bespoke
    CPU
    3.70 gigahertz Intel core i7-8700K
    Motherboard
    MSI 7B22
    Memory
    16GB
    Graphics Card(s)
    Nvidia GTX 1050
    Sound Card
    on board
    Monitor(s) Displays
    Dell 27" Ultrasharp
    Screen Resolution
    2560 x1440
    Hard Drives
    Drive c: 1tb SSD
    DriveD: 1TB SSD
    DriveE: 2tb HDD
    External drive Samsung T7 2TBSSD
    Cooling
    no
    Antivirus
    MalwareBytes & Norton 360

NavyLCDR

Well-known member
Power User
VIP
Local time
11:41 AM
Posts
816
OS
Windows 11
Looks like a humongous system reserved partition to me.


My Computers

System One System Two

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    Homebuilt
    CPU
    AMD Ryzen 7 3800XT
    Motherboard
    ASUS ROG Crosshair VII Hero (WiFi)
    Memory
    32GB
    Graphics Card(s)
    EVGA GeForce GTX 1080 Ti
  • Operating System
    Windows 11 Education
    Computer type
    Laptop
    Manufacturer/Model
    Dell Inspiron 7773
    CPU
    Intel i7-8550U
    Memory
    32GB
    Graphics card(s)
    Nvidia Geforce MX150
    Sound Card
    Realtek
    Monitor(s) Displays
    17"
    Screen Resolution
    1920 x 1080
    Hard Drives
    Toshiba 512GB NVMe SSD
    SK Hynix 512GB SATA SSD
    Internet Speed
    Fast!

Berton

Well-known member
Member
VIP
Local time
12:41 PM
Posts
563
Location
Wyoming
OS
Win11 Pro RTM x64
The Title of Optimize would suggest it is spare space to be used when the drive is checked and bad spots found, something similar to Defrag used with HDDs.


My Computers

System One System Two

  • OS
    Win11 Pro RTM x64
    Computer type
    Laptop
    Manufacturer/Model
    Dell Vostro 3400
    CPU
    Intel Core i5
    Memory
    8GB
    Hard Drives
    256GB SSD NVMe
  • Operating System
    Windows 11 Pro
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Vostro 5890
    CPU
    Intel Core i5
    Memory
    8GB [16GB on order]
    Monitor(s) Displays
    21"
    Hard Drives
    512GB SSD NVMe
    Browser
    Firefox, Edge
    Antivirus
    Windows Defender/Microsoft Security

NavyLCDR

Well-known member
Power User
VIP
Local time
11:41 AM
Posts
816
OS
Windows 11
The unmounted volume is a partition that is marked as active indicating that at one time it was a partition that the computer booted from in legacy BIOS mode. You can probably just assign it a drive letter and see what was on it.


My Computers

System One System Two

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    Homebuilt
    CPU
    AMD Ryzen 7 3800XT
    Motherboard
    ASUS ROG Crosshair VII Hero (WiFi)
    Memory
    32GB
    Graphics Card(s)
    EVGA GeForce GTX 1080 Ti
  • Operating System
    Windows 11 Education
    Computer type
    Laptop
    Manufacturer/Model
    Dell Inspiron 7773
    CPU
    Intel i7-8550U
    Memory
    32GB
    Graphics card(s)
    Nvidia Geforce MX150
    Sound Card
    Realtek
    Monitor(s) Displays
    17"
    Screen Resolution
    1920 x 1080
    Hard Drives
    Toshiba 512GB NVMe SSD
    SK Hynix 512GB SATA SSD
    Internet Speed
    Fast!

zbook

Well-known member
Power User
VIP
Local time
1:41 PM
Posts
920
OS
Windows 10
As NavyLCDR commented it looks like it was a modified or enlarged MSR.

MiniTool Partition Wizard has a right click option to view files within a partition.



Open administrative command prompt and type or copy and paste: (all at one time the commands within the code brackets)

Code:
reagentc /info
bcdedit /enum all


When these have completed > right click on the the top bar or title bar of the administrative command prompt box > left click on edit then select all > right click on the top bar again > left click on edit then copy > paste into this thread



Open administrative command prompt and type or copy and paste: (all at one time the commands within the code brackets)

Code:
diskpart
lis dis
lis vol
sel dis 0
det dis
lis par
sel par 1
det par
sel par 2
det par
sel par 3
det par
sel par 4
det par
sel par 5
det par
sel dis 1
det dis
lis par
sel par 1
det par
sel par 2
det par
sel par 3
det par
sel par 4
det par
sel par 5
det par
sel dis 2
det dis
lis par
sel par 1
det par
sel par 2
det par
sel par 3
det par
sel par 4
det par
sel par 5
det par
sel dis 3
det dis
lis par
sel par 1
det par
sel par 2
det par
sel par 3
det par
sel par 4
det par
sel par 5
det par
sel dis 4
det dis
lis par
sel par 1
det par
sel par 2
det par
sel par 3
det par
sel par 4
det par
sel par 5
det par


When these have completed > right click on the the top bar or title bar of the administrative command prompt box > left click on edit then select all > right click on the top bar again > left click on edit then copy > paste into this thread

Last edited:

My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation

NavyLCDR

Well-known member
Power User
VIP
Local time
11:41 AM
Posts
816
OS
Windows 11
As NavyLCDR commented it looks like it was a MSR.
Respectfully, it could not have been an MSR. Microsoft Reserved Partitions are only allowed on GPT disks. Since the partition in question is marked as Active, the disk must be MBR. The term system reserved partition is what Microsoft uses to describe an active partition created on an MBR disk solely dedicated to containing the boot files to boot the computer from. MSR is something completely different.


My Computers

System One System Two

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    Homebuilt
    CPU
    AMD Ryzen 7 3800XT
    Motherboard
    ASUS ROG Crosshair VII Hero (WiFi)
    Memory
    32GB
    Graphics Card(s)
    EVGA GeForce GTX 1080 Ti
  • Operating System
    Windows 11 Education
    Computer type
    Laptop
    Manufacturer/Model
    Dell Inspiron 7773
    CPU
    Intel i7-8550U
    Memory
    32GB
    Graphics card(s)
    Nvidia Geforce MX150
    Sound Card
    Realtek
    Monitor(s) Displays
    17"
    Screen Resolution
    1920 x 1080
    Hard Drives
    Toshiba 512GB NVMe SSD
    SK Hynix 512GB SATA SSD
    Internet Speed
    Fast!

zbook

Well-known member
Power User
VIP
Local time
1:41 PM
Posts
920
OS
Windows 10
Agree that the current disk 3 is currently MBR as it has the active partition.

Sorry for the earlier comment.

Consider these:

If it were MBR from the start then it would have had to be a system partition that was enlarged.

If it were GPT that had been converted to MBR then it could have been either System or MSR.


My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation

NavyLCDR

Well-known member
Power User
VIP
Local time
11:41 AM
Posts
816
OS
Windows 11
Actually, disk management shows that it has no filesystem on it. So it's hard to say what it was at one time.


My Computers

System One System Two

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    Homebuilt
    CPU
    AMD Ryzen 7 3800XT
    Motherboard
    ASUS ROG Crosshair VII Hero (WiFi)
    Memory
    32GB
    Graphics Card(s)
    EVGA GeForce GTX 1080 Ti
  • Operating System
    Windows 11 Education
    Computer type
    Laptop
    Manufacturer/Model
    Dell Inspiron 7773
    CPU
    Intel i7-8550U
    Memory
    32GB
    Graphics card(s)
    Nvidia Geforce MX150
    Sound Card
    Realtek
    Monitor(s) Displays
    17"
    Screen Resolution
    1920 x 1080
    Hard Drives
    Toshiba 512GB NVMe SSD
    SK Hynix 512GB SATA SSD
    Internet Speed
    Fast!

Spunk

Member
Local time
11:41 AM
Posts
14
OS
Windows 11 Pro 64 bit 21H2
You can get more options to work with this drive using a free partitioning software like Minitool Partition Wizard, EaseUs or Aoemi Partition Assistant


My Computer

System One

  • OS
    Windows 11 Pro 64 bit 21H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Gigabyte Z390 UD
    CPU
    Intel Core i7 77000 3.60
    Motherboard
    Gigabyte Z390 UD
    Memory
    16 GB
    Graphics Card(s)
    nVidia GEForce RTX 2060 Super
    Sound Card
    onboard
    Monitor(s) Displays
    Two 27" Dell 4K monitors
    Screen Resolution
    3840 x 2160
    Hard Drives
    M.2 NVME SSD, 500 GB; Two 2TB Mechanical HDD's
    PSU
    850w PSU
    Case
    Cyberpower PC
    Cooling
    Water cooled
    Keyboard
    Backlit Cyberpower gamiong keyboard
    Mouse
    Backlit Cyberpower gaming mouse
    Internet Speed
    1 GB mbps
    Browser
    Brave
    Antivirus
    Windows Security
Top Bottom
