Solved Lost HD resolution after upgrade


Turtleman

Member
Local time
9:36 PM
Posts
13
OS
Windows 10 Pro 64-bit

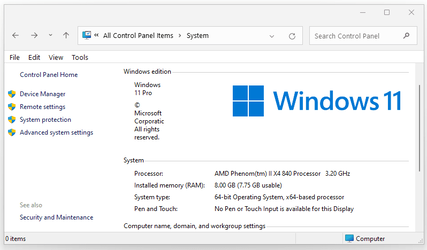

I just upgraded from Win10 to 11 on my old standby AMD Phenom machine with integrated graphics: Motherboard: MSI 785GT- E63 with ATI Radeon HD 4200. Amazingly, the upgrade seems to have been successful … EXCEPT it now offers only 3 display resolutions: 1280 x 1024, 1024 x 768 (recommended), and 800 x 600. Before upgrading, I had a dozen selections and always used the recommended 1920 x 1080. (The monitor still displays HD correctly from another computer.)

Yeah, I know the computer's a dinosaur, but it's still a great secondary computer, which is why I installed Win11 on it before upgrading my relatively new Intel machine. I tried a variety of drivers, the latest being 30.0.13025.5005 dated 10/5/2021, but the three display resolutions haven't changed. Likewise, there are no optional updates on Windows Update.

I've installed Win10 on several much older machines using 1920 x 1080 no difficulties and don't have a clue what else to do. Before I give up and try restoring to Win10 or doing a fresh Win10 install, can someone suggest something else? Thanks!!!


My Computer

System One

  • OS
    Windows 10 Pro 64-bit
    Computer type
    PC/Desktop
    Manufacturer/Model
    PowerSpec B740
    CPU
    Intel® Core™ i7-7700K CPU @ 4.20GHz
    Motherboard
    MSI Model Z270 PC MATE (MS-7A72)
    Memory
    16GB 2- 8192MB DDR4/3000 DIMMS
    Graphics Card(s)
    Integrated Intel® HD Graphics 630
    Sound Card
    Integrated 6 Channel HD Audio CODEC ALC887
    Monitor(s) Displays
    Acer 27" IPS
    Screen Resolution
    1920 x 1080
    Hard Drives
    480GB SATA SSD
    2 TB Hard drive
    Two 1 TB External Hard drives
    PSU
    600 Watt 80 Plus
    Internet Speed
    280 Mbps
    Browser
    At least 8 different browsers
    Antivirus
    Avast

Ghot

Well-known member
Pro User
VIP
Local time
9:36 PM
Posts
2,778
Location
PA, USA
OS
Win 11 Home ♦♦♦22000.675
Last edited:

My Computers

System One System Two

  • OS
    Win 11 Home ♦♦♦22000.675
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot® [May 2020]
    CPU
    AMD Ryzen 7 3700X
    Motherboard
    Asus Pro WS X570-ACE
    Memory
    G.Skill (F4-3200C14D-16GTZKW)
    Graphics Card(s)
    EVGA RTX 2070 (08G-P4-2171-KR)
    Sound Card
    (onboard) Realtek ALC1220P / ALC S1220A
    Monitor(s) Displays
    Dell U3011 30"
    Screen Resolution
    2560 x 1600
    Hard Drives
    2x Samsung 860 EVO 500GB,
    WD 4TB Black FZBX - SATA III,
    WD 8TB Black FZBX - SATA III,
    LG GH22LS30 CD/DVD Burner
    PSU
    PC Power & Cooling 750W Quad EPS12V
    Case
    COOLER MASTER ATCS 840 Full Tower
    Cooling
    CM Hyper 212 EVO (push/pull)
    Keyboard
    Ducky DK9008 Shine II Blue LED
    Mouse
    Logitech Optical M-100
    Internet Speed
    100/100
    Browser
    Firefox (latest)
    Antivirus
    Bitdefender Internet Security (latest)
    Other Info
    Speakers: Klipsch Pro Media 2.1
  • Operating System
    Windows XP Pro 32bit w/SP3
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot®
    CPU
    AMD Athlon 64 X2 5000+ (OC'd @ 3.2Ghz)
    Motherboard
    ASUS M2N32-SLI Deluxe Wireless Edition
    Memory
    TWIN2X2048-6400C4DHX (2 x 1GB, DDR2 800)
    Graphics card(s)
    EVGA 256-P2-N758-TR GeForce 8600GT SSC
    Sound Card
    Onboard
    Monitor(s) Displays
    ViewSonic G90FB Black 19" Professional (CRT)
    Screen Resolution
    up to 2048 x 1536
    Hard Drives
    WD 36GB 10,000rpm Raptor SATA
    Seagate 80GB 7200rpm SATA
    Lite-On LTR-52246S CD/RW
    Lite-On LH-18A1P CD/DVD Burner
    PSU
    PC Power & Cooling Silencer 750 Quad EPS12V
    Case
    Generic Beige case, 80mm fans
    Cooling
    ZALMAN 9500A 92mm CPU Cooler
    Mouse
    Logitech Optical M-BT96a
    Keyboard
    Logitech Classic Keybooard 200
    Internet Speed
    100/100
    Browser
    Firefox 3.x ??
    Antivirus
    Symantec (Norton)
    Other Info
    Still assembled, still runs. Haven't turned it on for 13 years?

    http://www.xtremesystems.org/forums/showthread.php?183088-5000-B-E-on-M2N32-SLI-Dlx-Overclocked&p=2891724#post2891724

Ghot

Well-known member
Pro User
VIP
Local time
9:36 PM
Posts
2,778
Location
PA, USA
OS
Win 11 Home ♦♦♦22000.675

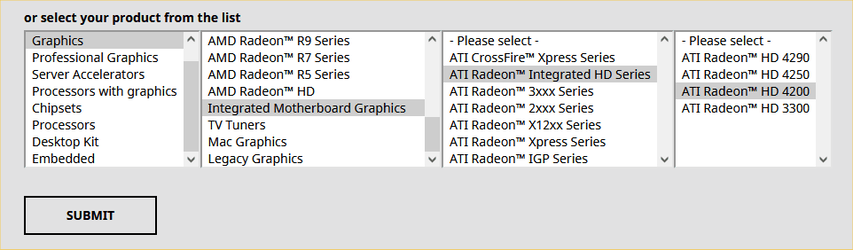

I also checked here...






And clicking on "Submit", took me here...








I'm guessing this driver, with the instruction from the Ten Forums post above, will do the trick.
You may also have to prevent Windows Update from updating your drivers.
This should prevent Microsoft from overwriting the AMD driver you just went to all the trouble to install.






Short version:

1. Download the AMD driver and save it to your desktop.
2. Do the "Disable include drivers..." thing just above.
3. Copy that post from Ten Forums that I linked, to a text file. Save it to your desktop.
4. Disconnect the internet.
5. Follow the directions in the text file you just made.
6. Restart the computer.
7. Re-connect the internet.
8. After you get it all working... go online and buy a modern computer. :)







Last edited:

My Computers

System One System Two

  • OS
    Win 11 Home ♦♦♦22000.675
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot® [May 2020]
    CPU
    AMD Ryzen 7 3700X
    Motherboard
    Asus Pro WS X570-ACE
    Memory
    G.Skill (F4-3200C14D-16GTZKW)
    Graphics Card(s)
    EVGA RTX 2070 (08G-P4-2171-KR)
    Sound Card
    (onboard) Realtek ALC1220P / ALC S1220A
    Monitor(s) Displays
    Dell U3011 30"
    Screen Resolution
    2560 x 1600
    Hard Drives
    2x Samsung 860 EVO 500GB,
    WD 4TB Black FZBX - SATA III,
    WD 8TB Black FZBX - SATA III,
    LG GH22LS30 CD/DVD Burner
    PSU
    PC Power & Cooling 750W Quad EPS12V
    Case
    COOLER MASTER ATCS 840 Full Tower
    Cooling
    CM Hyper 212 EVO (push/pull)
    Keyboard
    Ducky DK9008 Shine II Blue LED
    Mouse
    Logitech Optical M-100
    Internet Speed
    100/100
    Browser
    Firefox (latest)
    Antivirus
    Bitdefender Internet Security (latest)
    Other Info
    Speakers: Klipsch Pro Media 2.1
  • Operating System
    Windows XP Pro 32bit w/SP3
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot®
    CPU
    AMD Athlon 64 X2 5000+ (OC'd @ 3.2Ghz)
    Motherboard
    ASUS M2N32-SLI Deluxe Wireless Edition
    Memory
    TWIN2X2048-6400C4DHX (2 x 1GB, DDR2 800)
    Graphics card(s)
    EVGA 256-P2-N758-TR GeForce 8600GT SSC
    Sound Card
    Onboard
    Monitor(s) Displays
    ViewSonic G90FB Black 19" Professional (CRT)
    Screen Resolution
    up to 2048 x 1536
    Hard Drives
    WD 36GB 10,000rpm Raptor SATA
    Seagate 80GB 7200rpm SATA
    Lite-On LTR-52246S CD/RW
    Lite-On LH-18A1P CD/DVD Burner
    PSU
    PC Power & Cooling Silencer 750 Quad EPS12V
    Case
    Generic Beige case, 80mm fans
    Cooling
    ZALMAN 9500A 92mm CPU Cooler
    Mouse
    Logitech Optical M-BT96a
    Keyboard
    Logitech Classic Keybooard 200
    Internet Speed
    100/100
    Browser
    Firefox 3.x ??
    Antivirus
    Symantec (Norton)
    Other Info
    Still assembled, still runs. Haven't turned it on for 13 years?

    http://www.xtremesystems.org/forums/showthread.php?183088-5000-B-E-on-M2N32-SLI-Dlx-Overclocked&p=2891724#post2891724

Bree

Well-known member
Pro User
VIP
Local time
2:36 AM
Posts
2,297
Location
S/E England, UK
OS
Windows 11 Home
can someone suggest something else?


Welcome to Eleven Forum.

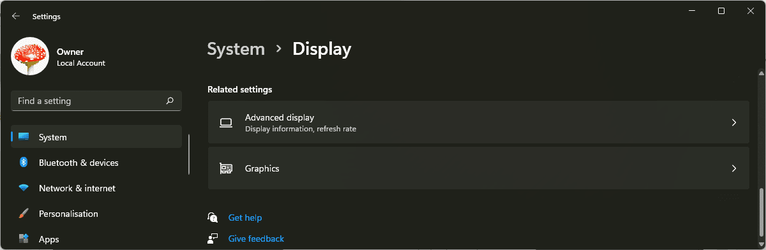

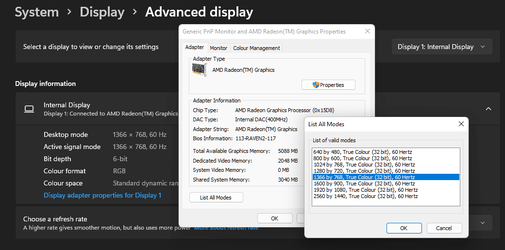

As Ghot says, try going to AMD and installing their AMD Radeon software/drivers. That's what I did for my System One.


My Computers

System One System Two

  • OS
    Windows 11 Home
    Computer type
    Laptop
    Manufacturer/Model
    Acer Aspire 3 A315-23
    CPU
    AMD Athlon Silver 3050U
    Memory
    8GB
    Graphics Card(s)
    Radeon Graphics
    Monitor(s) Displays
    laptop screen
    Screen Resolution
    1366x768 native resolution, up to 2560x1440 with Radeon Virtual Super Resolution
    Hard Drives
    1TB HDD
    Browser
    Edge, Firefox
    Antivirus
    Defender
    Other Info
    fully 'Windows 11 ready' laptop. Windows 10 C: partition migrated from my old unsupported 'main machine' then upgraded to 11. A test migration ran Insider builds for 2 months. When 11 was released on 5th October it was re-imaged back to 10 and was offered the upgrade in Windows Update on 20th October.


    My SYSTEM THREE is a Dell Latitude 5410, i7-10610U, 32GB RAM, 512GB ssd, Windows 11 Pro.
  • Operating System
    Windows 11 Pro
    Computer type
    Laptop
    Manufacturer/Model
    Dell Lattitude E4310
    CPU
    i5 M 520
    Motherboard
    0T6M8G
    Memory
    4GB
    Screen Resolution
    1366x768
    Hard Drives
    500GB HDD
    Browser
    Firefox, Edge
    Antivirus
    Defender
    Other Info
    unsupported machine: Legacy bios, MBR, TPM 1.2, upgraded from W10 to W11 using W10/W11 hybrid install media workaround.


    My SYSTEM THREE is a Dell Latitude 5410, i7-10610U, 32GB RAM, 512GB ssd, Windows 11 Pro.

Devlin1888

"RockHardSemi"
Power User
VIP
Local time
2:36 AM
Posts
830
Location
Scotland
OS
Windows 11 Education Build 22483.1011 Developer Build

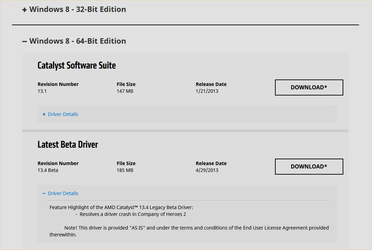

Id probably use the windows 7 catalyst considering it seem to be newer. Might be able to pull drivers through that.
Also im not sure if AMD have the same thing, But on Nvidia's control panel i can add custom resolutions and make the profiles myself, Is this possible on AMD?


My Computer

System One

  • OS
    Windows 11 Education Build 22483.1011 Developer Build
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom
    CPU
    i7 10700k@5.2
    Motherboard
    Gigabyte Gaming X Z490
    Memory
    16GB Viper Steel Series 3200mhz
    Graphics Card(s)
    Gigabyte RTX2070 Super X OC Windforce
    Monitor(s) Displays
    ASUS TUF Gaming 3840X2160 Benq Gl2250 1920x1080
    Screen Resolution
    4K/1600/1440/1080
    Hard Drives
    M.2 - ADATA SX8200 Pro 1TB
    SSD - Samsung 860 evo
    PSU
    Corsair 650w
    Case
    NZXT S340 Elite
    Cooling
    Cooler Master Hyper 212 RGB Black Edition
    Keyboard
    Razer Ornata Chroma
    Mouse
    Steel Series Rival 710
    Internet Speed
    50mbs
    Browser
    Opera GX
    Antivirus
    Windows Defender
    Other Info
    Logitech g29+Pedals+Shifter

Turtleman

Member
Thread Starter
Local time
9:36 PM
Posts
13
OS
Windows 10 Pro 64-bit
Thanks everyone, your help is much appreciated. Unfortunately, still no success and I'm still clueless. And as sometimes happens, I'm now so confused I can't tell up from down and will try again later and post back.

It's tempting to say the heck with it; but after installing a substitute for the Classic Shell start menu I was using with Win10, at least I can now navigate around Win11 with a minimal amount of frustration.


My Computer

System One

  • OS
    Windows 10 Pro 64-bit
    Computer type
    PC/Desktop
    Manufacturer/Model
    PowerSpec B740
    CPU
    Intel® Core™ i7-7700K CPU @ 4.20GHz
    Motherboard
    MSI Model Z270 PC MATE (MS-7A72)
    Memory
    16GB 2- 8192MB DDR4/3000 DIMMS
    Graphics Card(s)
    Integrated Intel® HD Graphics 630
    Sound Card
    Integrated 6 Channel HD Audio CODEC ALC887
    Monitor(s) Displays
    Acer 27" IPS
    Screen Resolution
    1920 x 1080
    Hard Drives
    480GB SATA SSD
    2 TB Hard drive
    Two 1 TB External Hard drives
    PSU
    600 Watt 80 Plus
    Internet Speed
    280 Mbps
    Browser
    At least 8 different browsers
    Antivirus
    Avast

mackie

Member
Local time
9:36 PM
Posts
89
Location
Maryland U.S.
OS
Windows 11/Linux Mint
Try this:

Start
Device Manager
Click to expand the display device
Rt-click the device and select Properties
Click Driver tab
Click Roll Back Driver

You may have to restart.

Hopefully that gets you back to your previous display driver.


My Computer

System One

  • OS
    Windows 11/Linux Mint
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Optiplex 960
    CPU
    Intel Core 2 Duo CPU E8400 @ 3.00 GHz x 2
    Memory
    8 GB
    Graphics Card(s)
    Intel 4 Series Chipset Integrated Graphics Controller
    Monitor(s) Displays
    HP x22LED
    Hard Drives
    Crucial 250 GB SSD

Devlin1888

"RockHardSemi"
Power User
VIP
Local time
2:36 AM
Posts
830
Location
Scotland
OS
Windows 11 Education Build 22483.1011 Developer Build

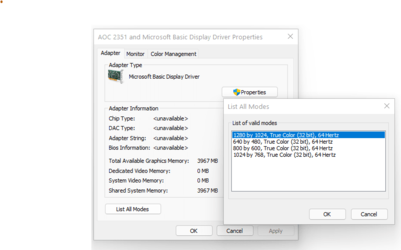

When you click on List All Modes it should then allow you to add the resolution from there.


My Computer

System One

  • OS
    Windows 11 Education Build 22483.1011 Developer Build
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom
    CPU
    i7 10700k@5.2
    Motherboard
    Gigabyte Gaming X Z490
    Memory
    16GB Viper Steel Series 3200mhz
    Graphics Card(s)
    Gigabyte RTX2070 Super X OC Windforce
    Monitor(s) Displays
    ASUS TUF Gaming 3840X2160 Benq Gl2250 1920x1080
    Screen Resolution
    4K/1600/1440/1080
    Hard Drives
    M.2 - ADATA SX8200 Pro 1TB
    SSD - Samsung 860 evo
    PSU
    Corsair 650w
    Case
    NZXT S340 Elite
    Cooling
    Cooler Master Hyper 212 RGB Black Edition
    Keyboard
    Razer Ornata Chroma
    Mouse
    Steel Series Rival 710
    Internet Speed
    50mbs
    Browser
    Opera GX
    Antivirus
    Windows Defender
    Other Info
    Logitech g29+Pedals+Shifter

Turtleman

Member
Thread Starter
Local time
9:36 PM
Posts
13
OS
Windows 10 Pro 64-bit
I'm convinced that the driver alone isn't responsible for the resolution problem. Likewise, AMD's Catalyst Control Center only shows settings for CPU Power, nothing for display resolution. I vaguely remember using the Control Center several years ago to change resolution for Win 10 on another old clunker, and suspect it just isn't compatible with Win 11. Or possibly, it's just not compatible with the integrated graphics. (My main computer on Win10 uses an i7-7700K CPU @ 4.20GHz with HD630 integrated graphics. What can I say, I don't play video games!)

I'll devote another day or two toward increasing my level of frustration, and then probably try reverting to Win 10. If that's unsuccessful, I may try a clean install of Win 11 before going back to a clean install of 10. (The poor machine has gone through hell auditioning and removing a zillion apps, so it's hardly in pristine condition. But that's the point of having a standby computer! I only wanted to see Win 11 for myself; and discounting the resolution problem, am not impressed. The only advantage I see is the ability to run native Android apps whenever that feature becomes available.

Meanwhile, has anyone achieved HD resolution using AMD HD4200 integrated graphics? And thanks again for everyone's assistance!


My Computer

System One

  • OS
    Windows 10 Pro 64-bit
    Computer type
    PC/Desktop
    Manufacturer/Model
    PowerSpec B740
    CPU
    Intel® Core™ i7-7700K CPU @ 4.20GHz
    Motherboard
    MSI Model Z270 PC MATE (MS-7A72)
    Memory
    16GB 2- 8192MB DDR4/3000 DIMMS
    Graphics Card(s)
    Integrated Intel® HD Graphics 630
    Sound Card
    Integrated 6 Channel HD Audio CODEC ALC887
    Monitor(s) Displays
    Acer 27" IPS
    Screen Resolution
    1920 x 1080
    Hard Drives
    480GB SATA SSD
    2 TB Hard drive
    Two 1 TB External Hard drives
    PSU
    600 Watt 80 Plus
    Internet Speed
    280 Mbps
    Browser
    At least 8 different browsers
    Antivirus
    Avast

Bree

Well-known member
Pro User
VIP
Local time
2:36 AM
Posts
2,297
Location
S/E England, UK
OS
Windows 11 Home
AMD's Catalyst Control Center only shows settings for CPU Power, nothing for display resolution.
Rather than Catalyst Control Center, you should use the AMD Radeon Software, as Ghot suggested in post #3.





My Computers

System One System Two

  • OS
    Windows 11 Home
    Computer type
    Laptop
    Manufacturer/Model
    Acer Aspire 3 A315-23
    CPU
    AMD Athlon Silver 3050U
    Memory
    8GB
    Graphics Card(s)
    Radeon Graphics
    Monitor(s) Displays
    laptop screen
    Screen Resolution
    1366x768 native resolution, up to 2560x1440 with Radeon Virtual Super Resolution
    Hard Drives
    1TB HDD
    Browser
    Edge, Firefox
    Antivirus
    Defender
    Other Info
    fully 'Windows 11 ready' laptop. Windows 10 C: partition migrated from my old unsupported 'main machine' then upgraded to 11. A test migration ran Insider builds for 2 months. When 11 was released on 5th October it was re-imaged back to 10 and was offered the upgrade in Windows Update on 20th October.


    My SYSTEM THREE is a Dell Latitude 5410, i7-10610U, 32GB RAM, 512GB ssd, Windows 11 Pro.
  • Operating System
    Windows 11 Pro
    Computer type
    Laptop
    Manufacturer/Model
    Dell Lattitude E4310
    CPU
    i5 M 520
    Motherboard
    0T6M8G
    Memory
    4GB
    Screen Resolution
    1366x768
    Hard Drives
    500GB HDD
    Browser
    Firefox, Edge
    Antivirus
    Defender
    Other Info
    unsupported machine: Legacy bios, MBR, TPM 1.2, upgraded from W10 to W11 using W10/W11 hybrid install media workaround.


    My SYSTEM THREE is a Dell Latitude 5410, i7-10610U, 32GB RAM, 512GB ssd, Windows 11 Pro.

Turtleman

Member
Thread Starter
Local time
9:36 PM
Posts
13
OS
Windows 10 Pro 64-bit
Thanks Bree, but I've already tried that!


My Computer

System One

  • OS
    Windows 10 Pro 64-bit
    Computer type
    PC/Desktop
    Manufacturer/Model
    PowerSpec B740
    CPU
    Intel® Core™ i7-7700K CPU @ 4.20GHz
    Motherboard
    MSI Model Z270 PC MATE (MS-7A72)
    Memory
    16GB 2- 8192MB DDR4/3000 DIMMS
    Graphics Card(s)
    Integrated Intel® HD Graphics 630
    Sound Card
    Integrated 6 Channel HD Audio CODEC ALC887
    Monitor(s) Displays
    Acer 27" IPS
    Screen Resolution
    1920 x 1080
    Hard Drives
    480GB SATA SSD
    2 TB Hard drive
    Two 1 TB External Hard drives
    PSU
    600 Watt 80 Plus
    Internet Speed
    280 Mbps
    Browser
    At least 8 different browsers
    Antivirus
    Avast

Devlin1888

"RockHardSemi"
Power User
VIP
Local time
2:36 AM
Posts
830
Location
Scotland
OS
Windows 11 Education Build 22483.1011 Developer Build
I'm convinced that the driver alone isn't responsible for the resolution problem. Likewise, AMD's Catalyst Control Center only shows settings for CPU Power, nothing for display resolution. I vaguely remember using the Control Center several years ago to change resolution for Win 10 on another old clunker, and suspect it just isn't compatible with Win 11. Or possibly, it's just not compatible with the integrated graphics. (My main computer on Win10 uses an i7-7700K CPU @ 4.20GHz with HD630 integrated graphics. What can I say, I don't play video games!)

I'll devote another day or two toward increasing my level of frustration, and then probably try reverting to Win 10. If that's unsuccessful, I may try a clean install of Win 11 before going back to a clean install of 10. (The poor machine has gone through hell auditioning and removing a zillion apps, so it's hardly in pristine condition. But that's the point of having a standby computer! I only wanted to see Win 11 for myself; and discounting the resolution problem, am not impressed. The only advantage I see is the ability to run native Android apps whenever that feature becomes available.

Meanwhile, has anyone achieved HD resolution using AMD HD4200 integrated graphics? And thanks again for everyone's assistance!
It supports up to 2560 x 1600 digital resolution and 2048 x 1536 VGA resolution.
Did you try adding the resolution through the method in post #8?


My Computer

System One

  • OS
    Windows 11 Education Build 22483.1011 Developer Build
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom
    CPU
    i7 10700k@5.2
    Motherboard
    Gigabyte Gaming X Z490
    Memory
    16GB Viper Steel Series 3200mhz
    Graphics Card(s)
    Gigabyte RTX2070 Super X OC Windforce
    Monitor(s) Displays
    ASUS TUF Gaming 3840X2160 Benq Gl2250 1920x1080
    Screen Resolution
    4K/1600/1440/1080
    Hard Drives
    M.2 - ADATA SX8200 Pro 1TB
    SSD - Samsung 860 evo
    PSU
    Corsair 650w
    Case
    NZXT S340 Elite
    Cooling
    Cooler Master Hyper 212 RGB Black Edition
    Keyboard
    Razer Ornata Chroma
    Mouse
    Steel Series Rival 710
    Internet Speed
    50mbs
    Browser
    Opera GX
    Antivirus
    Windows Defender
    Other Info
    Logitech g29+Pedals+Shifter

Turtleman

Member
Thread Starter
Local time
9:36 PM
Posts
13
OS
Windows 10 Pro 64-bit
I would if I could, but "Display" > "Advanced Display" doesn't appear under "System" on my machine; nor anything else for changing resolution. The screenshot on post #8 is evidently from a graphics card.


My Computer

System One

  • OS
    Windows 10 Pro 64-bit
    Computer type
    PC/Desktop
    Manufacturer/Model
    PowerSpec B740
    CPU
    Intel® Core™ i7-7700K CPU @ 4.20GHz
    Motherboard
    MSI Model Z270 PC MATE (MS-7A72)
    Memory
    16GB 2- 8192MB DDR4/3000 DIMMS
    Graphics Card(s)
    Integrated Intel® HD Graphics 630
    Sound Card
    Integrated 6 Channel HD Audio CODEC ALC887
    Monitor(s) Displays
    Acer 27" IPS
    Screen Resolution
    1920 x 1080
    Hard Drives
    480GB SATA SSD
    2 TB Hard drive
    Two 1 TB External Hard drives
    PSU
    600 Watt 80 Plus
    Internet Speed
    280 Mbps
    Browser
    At least 8 different browsers
    Antivirus
    Avast

Bree

Well-known member
Pro User
VIP
Local time
2:36 AM
Posts
2,297
Location
S/E England, UK
OS
Windows 11 Home
The screenshot on post #8 is evidently from a graphics card.
No, I have it for my integrated Radeon graphics too. Go to System > Display, scroll down to the bottom and click 'Advanced display' under 'Related settings'.




My Computers

System One System Two

  • OS
    Windows 11 Home
    Computer type
    Laptop
    Manufacturer/Model
    Acer Aspire 3 A315-23
    CPU
    AMD Athlon Silver 3050U
    Memory
    8GB
    Graphics Card(s)
    Radeon Graphics
    Monitor(s) Displays
    laptop screen
    Screen Resolution
    1366x768 native resolution, up to 2560x1440 with Radeon Virtual Super Resolution
    Hard Drives
    1TB HDD
    Browser
    Edge, Firefox
    Antivirus
    Defender
    Other Info
    fully 'Windows 11 ready' laptop. Windows 10 C: partition migrated from my old unsupported 'main machine' then upgraded to 11. A test migration ran Insider builds for 2 months. When 11 was released on 5th October it was re-imaged back to 10 and was offered the upgrade in Windows Update on 20th October.


    My SYSTEM THREE is a Dell Latitude 5410, i7-10610U, 32GB RAM, 512GB ssd, Windows 11 Pro.
  • Operating System
    Windows 11 Pro
    Computer type
    Laptop
    Manufacturer/Model
    Dell Lattitude E4310
    CPU
    i5 M 520
    Motherboard
    0T6M8G
    Memory
    4GB
    Screen Resolution
    1366x768
    Hard Drives
    500GB HDD
    Browser
    Firefox, Edge
    Antivirus
    Defender
    Other Info
    unsupported machine: Legacy bios, MBR, TPM 1.2, upgraded from W10 to W11 using W10/W11 hybrid install media workaround.


    My SYSTEM THREE is a Dell Latitude 5410, i7-10610U, 32GB RAM, 512GB ssd, Windows 11 Pro.

Turtleman

Member
Thread Starter
Local time
9:36 PM
Posts
13
OS
Windows 10 Pro 64-bit
Thanks again Bree, but my screens aren't the same!


Attachments

  • System.png
    13.9 KB · Views: 1
  • Advanced system settings.png
    Advanced system settings.png
    8.3 KB · Views: 1

My Computer

System One

  • OS
    Windows 10 Pro 64-bit
    Computer type
    PC/Desktop
    Manufacturer/Model
    PowerSpec B740
    CPU
    Intel® Core™ i7-7700K CPU @ 4.20GHz
    Motherboard
    MSI Model Z270 PC MATE (MS-7A72)
    Memory
    16GB 2- 8192MB DDR4/3000 DIMMS
    Graphics Card(s)
    Integrated Intel® HD Graphics 630
    Sound Card
    Integrated 6 Channel HD Audio CODEC ALC887
    Monitor(s) Displays
    Acer 27" IPS
    Screen Resolution
    1920 x 1080
    Hard Drives
    480GB SATA SSD
    2 TB Hard drive
    Two 1 TB External Hard drives
    PSU
    600 Watt 80 Plus
    Internet Speed
    280 Mbps
    Browser
    At least 8 different browsers
    Antivirus
    Avast

Bree

Well-known member
Pro User
VIP
Local time
2:36 AM
Posts
2,297
Location
S/E England, UK
OS
Windows 11 Home
Thanks again Bree, but my screens aren't the same!
You're looking in Control Panel, my screens are to be found in the Settings app.


My Computers

System One System Two

  • OS
    Windows 11 Home
    Computer type
    Laptop
    Manufacturer/Model
    Acer Aspire 3 A315-23
    CPU
    AMD Athlon Silver 3050U
    Memory
    8GB
    Graphics Card(s)
    Radeon Graphics
    Monitor(s) Displays
    laptop screen
    Screen Resolution
    1366x768 native resolution, up to 2560x1440 with Radeon Virtual Super Resolution
    Hard Drives
    1TB HDD
    Browser
    Edge, Firefox
    Antivirus
    Defender
    Other Info
    fully 'Windows 11 ready' laptop. Windows 10 C: partition migrated from my old unsupported 'main machine' then upgraded to 11. A test migration ran Insider builds for 2 months. When 11 was released on 5th October it was re-imaged back to 10 and was offered the upgrade in Windows Update on 20th October.


    My SYSTEM THREE is a Dell Latitude 5410, i7-10610U, 32GB RAM, 512GB ssd, Windows 11 Pro.
  • Operating System
    Windows 11 Pro
    Computer type
    Laptop
    Manufacturer/Model
    Dell Lattitude E4310
    CPU
    i5 M 520
    Motherboard
    0T6M8G
    Memory
    4GB
    Screen Resolution
    1366x768
    Hard Drives
    500GB HDD
    Browser
    Firefox, Edge
    Antivirus
    Defender
    Other Info
    unsupported machine: Legacy bios, MBR, TPM 1.2, upgraded from W10 to W11 using W10/W11 hybrid install media workaround.


    My SYSTEM THREE is a Dell Latitude 5410, i7-10610U, 32GB RAM, 512GB ssd, Windows 11 Pro.

Turtleman

Member
Thread Starter
Local time
9:36 PM
Posts
13
OS
Windows 10 Pro 64-bit
That was fun, but still no HD setting! :)


Attachments

  • List All Modes.png
    List All Modes.png
    21 KB · Views: 1

My Computer

System One

  • OS
    Windows 10 Pro 64-bit
    Computer type
    PC/Desktop
    Manufacturer/Model
    PowerSpec B740
    CPU
    Intel® Core™ i7-7700K CPU @ 4.20GHz
    Motherboard
    MSI Model Z270 PC MATE (MS-7A72)
    Memory
    16GB 2- 8192MB DDR4/3000 DIMMS
    Graphics Card(s)
    Integrated Intel® HD Graphics 630
    Sound Card
    Integrated 6 Channel HD Audio CODEC ALC887
    Monitor(s) Displays
    Acer 27" IPS
    Screen Resolution
    1920 x 1080
    Hard Drives
    480GB SATA SSD
    2 TB Hard drive
    Two 1 TB External Hard drives
    PSU
    600 Watt 80 Plus
    Internet Speed
    280 Mbps
    Browser
    At least 8 different browsers
    Antivirus
    Avast

Turtleman

Member
Thread Starter
Local time
9:36 PM
Posts
13
OS
Windows 10 Pro 64-bit
I notice under "Adapter" that yours is "AMD Radeon" while mine says "Microsoft Basic Display Driver." Maybe that's the problem, but changing the drivers doesn't seem to affect the adapter type. ??? The mystery continues!


My Computer

System One

  • OS
    Windows 10 Pro 64-bit
    Computer type
    PC/Desktop
    Manufacturer/Model
    PowerSpec B740
    CPU
    Intel® Core™ i7-7700K CPU @ 4.20GHz
    Motherboard
    MSI Model Z270 PC MATE (MS-7A72)
    Memory
    16GB 2- 8192MB DDR4/3000 DIMMS
    Graphics Card(s)
    Integrated Intel® HD Graphics 630
    Sound Card
    Integrated 6 Channel HD Audio CODEC ALC887
    Monitor(s) Displays
    Acer 27" IPS
    Screen Resolution
    1920 x 1080
    Hard Drives
    480GB SATA SSD
    2 TB Hard drive
    Two 1 TB External Hard drives
    PSU
    600 Watt 80 Plus
    Internet Speed
    280 Mbps
    Browser
    At least 8 different browsers
    Antivirus
    Avast

Bree

Well-known member
Pro User
VIP
Local time
2:36 AM
Posts
2,297
Location
S/E England, UK
OS
Windows 11 Home
I notice under "Adapter" that yours is "AMD Radeon" while mine says "Microsoft Basic Display Driver." Maybe that's the problem, but changing the drivers doesn't seem to affect the adapter type. ??? The mystery continues!
Yes, the MS Basic Adapter is what Windows uses if there are no other suitable drivers it can find. I got my AMD drivers by installing AMD Radeon Software, they come as part of the package.


My Computers

System One System Two

  • OS
    Windows 11 Home
    Computer type
    Laptop
    Manufacturer/Model
    Acer Aspire 3 A315-23
    CPU
    AMD Athlon Silver 3050U
    Memory
    8GB
    Graphics Card(s)
    Radeon Graphics
    Monitor(s) Displays
    laptop screen
    Screen Resolution
    1366x768 native resolution, up to 2560x1440 with Radeon Virtual Super Resolution
    Hard Drives
    1TB HDD
    Browser
    Edge, Firefox
    Antivirus
    Defender
    Other Info
    fully 'Windows 11 ready' laptop. Windows 10 C: partition migrated from my old unsupported 'main machine' then upgraded to 11. A test migration ran Insider builds for 2 months. When 11 was released on 5th October it was re-imaged back to 10 and was offered the upgrade in Windows Update on 20th October.


    My SYSTEM THREE is a Dell Latitude 5410, i7-10610U, 32GB RAM, 512GB ssd, Windows 11 Pro.
  • Operating System
    Windows 11 Pro
    Computer type
    Laptop
    Manufacturer/Model
    Dell Lattitude E4310
    CPU
    i5 M 520
    Motherboard
    0T6M8G
    Memory
    4GB
    Screen Resolution
    1366x768
    Hard Drives
    500GB HDD
    Browser
    Firefox, Edge
    Antivirus
    Defender
    Other Info
    unsupported machine: Legacy bios, MBR, TPM 1.2, upgraded from W10 to W11 using W10/W11 hybrid install media workaround.


    My SYSTEM THREE is a Dell Latitude 5410, i7-10610U, 32GB RAM, 512GB ssd, Windows 11 Pro.

Turtleman

Member
Thread Starter
Local time
9:36 PM
Posts
13
OS
Windows 10 Pro 64-bit
I downloaded and installed AMD's recommended driver, and although the driver version changes, the adapter type never does. ???? Maybe it will load through the CMD function. Sure glad I haven't given up drinking!


My Computer

System One

  • OS
    Windows 10 Pro 64-bit
    Computer type
    PC/Desktop
    Manufacturer/Model
    PowerSpec B740
    CPU
    Intel® Core™ i7-7700K CPU @ 4.20GHz
    Motherboard
    MSI Model Z270 PC MATE (MS-7A72)
    Memory
    16GB 2- 8192MB DDR4/3000 DIMMS
    Graphics Card(s)
    Integrated Intel® HD Graphics 630
    Sound Card
    Integrated 6 Channel HD Audio CODEC ALC887
    Monitor(s) Displays
    Acer 27" IPS
    Screen Resolution
    1920 x 1080
    Hard Drives
    480GB SATA SSD
    2 TB Hard drive
    Two 1 TB External Hard drives
    PSU
    600 Watt 80 Plus
    Internet Speed
    280 Mbps
    Browser
    At least 8 different browsers
    Antivirus
    Avast
Top Bottom
