Windows 11 Sometimes Freezes During Boot.


Flame Red

Active member
Local time
2:51 AM
Posts
7
OS
Windows 11
I have a problem for many months that has been frustrating me. Seems to remain over many windows version iterations. No BSOD. System is very stable, does not seem to crash, except for this random boot freeze.

Sometimes when I either cold start or restart Windows 11 on my desktop, it will freeze during the first spinning torrent on the initial boot phase. The torrent just stops spinning and it sits there forever. It does it about 3-4 times out of 10 I would say.

If I pull the power cord, it will cleanly boot the next time!

If I don't pull the power cord, it will usually continue to freeze at the same first spinning torrent during boot until it gives me a recovery menu or lets me boot into safe mode which it usually will. Not finding any viruses. Holding the power boot to force it to hard power off will NOT help - the power cord must be removed from the PC and then it comes back every single time.

I knew enough to disable hibernate mode, but that did not help.

I have reinstalled windows a few times, but usually not the clean install. I did do a clean install once, but it seemed to come back. Tried the usual things, like chkdsk, doing clean boot by disabling all non-MS stuff, unplugging all connected peripherals, ran SFC, etc.

I am guessing there is some hardware component that might be failing, but I have no idea which one. Is there a way to get a log file that might give me clues?

At one point I did buy a two memory modules and remove the old ones but the problem started to occur with the new ones. I have also replaced the video card as an upgrade and it continues with the new card.

If I can get some log indicating what hardware, or software, is causing it to freeze, it would be much better than just throwing parts at it!

Thanks in advance!

Code:
OS Name    Microsoft Windows 11 Pro
Version    10.0.22631 Build 22631
Other OS Description     Not Available
OS Manufacturer    Microsoft Corporation

System Manufacturer    Gigabyte Technology Co., Ltd.
System Model    X299 DESIGNARE EX
System Type    x64-based PC
System SKU    Default string
Processor    Intel(R) Core(TM) i9-7900X CPU @ 3.30GHz, 3312 Mhz, 10 Core(s), 20 Logical Processor(s)
BIOS Version/Date    American Megatrends Inc. F7h, 12/6/2021
SMBIOS Version    3.0
Embedded Controller Version    255.255
BIOS Mode    UEFI
BaseBoard Manufacturer    Gigabyte Technology Co., Ltd.
BaseBoard Product    X299 DESIGNARE EX-CF
BaseBoard Version    Default string
Platform Role    Desktop
Secure Boot State    Off
PCR7 Configuration    Elevation Required to View
Windows Directory    C:\WINDOWS
System Directory    C:\WINDOWS\system32
Boot Device    \Device\HarddiskVolume5
Locale    United States
Hardware Abstraction Layer    Version = "10.0.22621.2506"
User Name    Base\Bruce
Time Zone    Eastern Standard Time
Installed Physical Memory (RAM)    24.0 GB
Total Physical Memory    23.7 GB
Available Physical Memory    13.8 GB
Total Virtual Memory    25.2 GB
Available Virtual Memory    8.47 GB
Page File Space    1.50 GB
Page File    C:\pagefile.sys
Kernel DMA Protection    Off
Virtualization-based security    Running
Virtualization-based security Required Security Properties
Virtualization-based security Available Security Properties    Base Virtualization Support, DMA Protection, UEFI Code Readonly, SMM Security Mitigations 1.0, Mode Based Execution Control, APIC Virtualization
Virtualization-based security Services Configured    Hypervisor enforced Code Integrity
Virtualization-based security Services Running    Credential Guard, Hypervisor enforced Code Integrity
Windows Defender Application Control policy    Enforced
Windows Defender Application Control user mode policy    Off
Device Encryption Support    Elevation Required to View
A hypervisor has been detected. Features required for Hyper-V will not be displayed.


My Computer

System One

  • OS
    Windows 11
I have a problem for many months that has been frustrating me. Seems to remain over many windows version iterations. No BSOD. System is very stable, does not seem to crash, except for this random boot freeze.

Sometimes when I either cold start or restart Windows 11 on my desktop, it will freeze during the first spinning torrent on the initial boot phase. The torrent just stops spinning and it sits there forever. It does it about 3-4 times out of 10 I would say.

If I pull the power cord, it will cleanly boot the next time!

If I don't pull the power cord, it will usually continue to freeze at the same first spinning torrent during boot until it gives me a recovery menu or lets me boot into safe mode which it usually will. Not finding any viruses. Holding the power boot to force it to hard power off will NOT help - the power cord must be removed from the PC and then it comes back every single time.

I knew enough to disable hibernate mode, but that did not help.

I have reinstalled windows a few times, but usually not the clean install. I did do a clean install once, but it seemed to come back. Tried the usual things, like chkdsk, doing clean boot by disabling all non-MS stuff, unplugging all connected peripherals, ran SFC, etc.

I am guessing there is some hardware component that might be failing, but I have no idea which one. Is there a way to get a log file that might give me clues?

At one point I did buy a two memory modules and remove the old ones but the problem started to occur with the new ones. I have also replaced the video card as an upgrade and it continues with the new card.

If I can get some log indicating what hardware, or software, is causing it to freeze, it would be much better than just throwing parts at it!

Thanks in advance!

Code:
OS Name    Microsoft Windows 11 Pro
Version    10.0.22631 Build 22631
Other OS Description     Not Available
OS Manufacturer    Microsoft Corporation

System Manufacturer    Gigabyte Technology Co., Ltd.
System Model    X299 DESIGNARE EX
System Type    x64-based PC
System SKU    Default string
Processor    Intel(R) Core(TM) i9-7900X CPU @ 3.30GHz, 3312 Mhz, 10 Core(s), 20 Logical Processor(s)
BIOS Version/Date    American Megatrends Inc. F7h, 12/6/2021
SMBIOS Version    3.0
Embedded Controller Version    255.255
BIOS Mode    UEFI
BaseBoard Manufacturer    Gigabyte Technology Co., Ltd.
BaseBoard Product    X299 DESIGNARE EX-CF
BaseBoard Version    Default string
Platform Role    Desktop
Secure Boot State    Off
PCR7 Configuration    Elevation Required to View
Windows Directory    C:\WINDOWS
System Directory    C:\WINDOWS\system32
Boot Device    \Device\HarddiskVolume5
Locale    United States
Hardware Abstraction Layer    Version = "10.0.22621.2506"
User Name    Base\Bruce
Time Zone    Eastern Standard Time
Installed Physical Memory (RAM)    24.0 GB
Total Physical Memory    23.7 GB
Available Physical Memory    13.8 GB
Total Virtual Memory    25.2 GB
Available Virtual Memory    8.47 GB
Page File Space    1.50 GB
Page File    C:\pagefile.sys
Kernel DMA Protection    Off
Virtualization-based security    Running
Virtualization-based security Required Security Properties
Virtualization-based security Available Security Properties    Base Virtualization Support, DMA Protection, UEFI Code Readonly, SMM Security Mitigations 1.0, Mode Based Execution Control, APIC Virtualization
Virtualization-based security Services Configured    Hypervisor enforced Code Integrity
Virtualization-based security Services Running    Credential Guard, Hypervisor enforced Code Integrity
Windows Defender Application Control policy    Enforced
Windows Defender Application Control user mode policy    Off
Device Encryption Support    Elevation Required to View
A hypervisor has been detected. Features required for Hyper-V will not be displayed.
Hello,
Is it happening at the BIOS load time (larger spinning circle) or the Windows HAL load time (smaller spinning circle)?


My Computers

System One System Two

  • OS
    Win11 All /Debian/Arch
    Computer type
    Laptop
    Manufacturer/Model
    ASUSTeK COMPUTER INC. TUF Gaming FX705GM
    CPU
    2.20 gigahertz Intel i7-8750H Hyper-threaded 12 cores
    Motherboard
    ASUSTeK COMPUTER INC. FX705GM 1.0
    Memory
    24428 Megabytes
    Graphics Card(s)
    Intel(R) UHD Graphics 630 / NVIDIA GeForce GTX 1060
    Sound Card
    Intel(R) Display Audio / Realtek(R) Audio
    Monitor(s) Displays
    Integrated Monitor (17.3"vis)
    Screen Resolution
    FHD 1920X1080 16:9
    Hard Drives
    2 SSD SATA/NVM Express 1.3
    WDS500G2B0A-00SM50 500.1 GB
    WDCSDAPNUW-1002 256 GB
    PSU
    19V DC 6.32 A 120 W
    Cooling
    Dual Fans
    Mouse
    MS Bluetooth
    Internet Speed
    Fiber 1GB Cox -us & ADSL Bouygues -fr
    Browser
    Edge Canary- Firefox Nightly
    Antivirus
    Windows Defender
    Other Info
    VMs of Windows 11 stable/Beta/Dev/Canary
    VM of XeroLinux- Arch based & Debian 12
  • Operating System
    Windows 11 Insider Canary
    Computer type
    Laptop
    Manufacturer/Model
    ASUS X751BP
    CPU
    AMD Dual Core A6-9220
    Motherboard
    ASUS
    Memory
    8 GB
    Graphics card(s)
    AMD Radeon R5 M420
    Sound Card
    Realtek
    Monitor(s) Displays
    17.3
    Screen Resolution
    1600X900 16:9
    Hard Drives
    1TB 5400RPM
Hello,
Is it happening at the BIOS load time (larger spinning circle) or the Windows HAL load time (smaller spinning circle)?

  • I get plain text messages that the Bios loads, with the bios version. date. etc - that has no spinning circle.
  • The first spinning circle I get is where it freezes.
  • The second spinning circle, if it does not freeze, says windows loading and has a blurred profile picture. It will boot normally if I get that.
So if I understand correctly, it freezes during the BIOS load time, first spinning circle.


My Computer

System One

  • OS
    Windows 11
  • I get plain text messages that the Bios loads, with the bios version. date. etc - that has no spinning circle.
  • The first spinning circle I get is where it freezes.
  • The second spinning circle, if it does not freeze, says windows loading and has a blurred profile picture. It will boot normally if I get that.
So if I understand correctly, it freezes during the BIOS load time, first spinning circle.
That seems to be the case.
Any BIOS update from the manufacturer? yours is dated:
Code:
BIOS Version/Date    American Megatrends Inc. F7h, 12/6/2021

It seems you have the latest.


My Computers

System One System Two

  • OS
    Win11 All /Debian/Arch
    Computer type
    Laptop
    Manufacturer/Model
    ASUSTeK COMPUTER INC. TUF Gaming FX705GM
    CPU
    2.20 gigahertz Intel i7-8750H Hyper-threaded 12 cores
    Motherboard
    ASUSTeK COMPUTER INC. FX705GM 1.0
    Memory
    24428 Megabytes
    Graphics Card(s)
    Intel(R) UHD Graphics 630 / NVIDIA GeForce GTX 1060
    Sound Card
    Intel(R) Display Audio / Realtek(R) Audio
    Monitor(s) Displays
    Integrated Monitor (17.3"vis)
    Screen Resolution
    FHD 1920X1080 16:9
    Hard Drives
    2 SSD SATA/NVM Express 1.3
    WDS500G2B0A-00SM50 500.1 GB
    WDCSDAPNUW-1002 256 GB
    PSU
    19V DC 6.32 A 120 W
    Cooling
    Dual Fans
    Mouse
    MS Bluetooth
    Internet Speed
    Fiber 1GB Cox -us & ADSL Bouygues -fr
    Browser
    Edge Canary- Firefox Nightly
    Antivirus
    Windows Defender
    Other Info
    VMs of Windows 11 stable/Beta/Dev/Canary
    VM of XeroLinux- Arch based & Debian 12
  • Operating System
    Windows 11 Insider Canary
    Computer type
    Laptop
    Manufacturer/Model
    ASUS X751BP
    CPU
    AMD Dual Core A6-9220
    Motherboard
    ASUS
    Memory
    8 GB
    Graphics card(s)
    AMD Radeon R5 M420
    Sound Card
    Realtek
    Monitor(s) Displays
    17.3
    Screen Resolution
    1600X900 16:9
    Hard Drives
    1TB 5400RPM
Did you check Reliability Monitor / History ? There you usually get more infos.

Code:
Boot Device    \Device\HarddiskVolume5

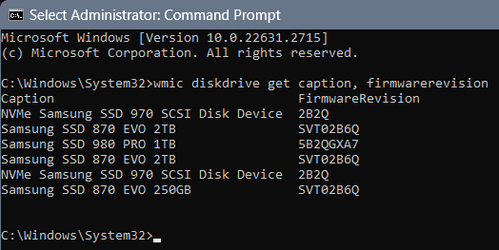

How many disks?

Last edited:

My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP ZBook
    CPU
    Intel 6700HQ
    Motherboard
    HP
    Memory
    24
    Graphics Card(s)
    AMD FirePro 5170M
    Hard Drives
    Samsung SSD 860 Pro
    Keyboard
    yes
    Mouse
    yes
    Other Info
    19045.3803
    some Red Hat workhorses
This is a bit beyond my knowledge as I am an OS software guy.
I suspect a hardware issue but I will leave it to someone more qualified.


My Computers

System One System Two

  • OS
    Win11 All /Debian/Arch
    Computer type
    Laptop
    Manufacturer/Model
    ASUSTeK COMPUTER INC. TUF Gaming FX705GM
    CPU
    2.20 gigahertz Intel i7-8750H Hyper-threaded 12 cores
    Motherboard
    ASUSTeK COMPUTER INC. FX705GM 1.0
    Memory
    24428 Megabytes
    Graphics Card(s)
    Intel(R) UHD Graphics 630 / NVIDIA GeForce GTX 1060
    Sound Card
    Intel(R) Display Audio / Realtek(R) Audio
    Monitor(s) Displays
    Integrated Monitor (17.3"vis)
    Screen Resolution
    FHD 1920X1080 16:9
    Hard Drives
    2 SSD SATA/NVM Express 1.3
    WDS500G2B0A-00SM50 500.1 GB
    WDCSDAPNUW-1002 256 GB
    PSU
    19V DC 6.32 A 120 W
    Cooling
    Dual Fans
    Mouse
    MS Bluetooth
    Internet Speed
    Fiber 1GB Cox -us & ADSL Bouygues -fr
    Browser
    Edge Canary- Firefox Nightly
    Antivirus
    Windows Defender
    Other Info
    VMs of Windows 11 stable/Beta/Dev/Canary
    VM of XeroLinux- Arch based & Debian 12
  • Operating System
    Windows 11 Insider Canary
    Computer type
    Laptop
    Manufacturer/Model
    ASUS X751BP
    CPU
    AMD Dual Core A6-9220
    Motherboard
    ASUS
    Memory
    8 GB
    Graphics card(s)
    AMD Radeon R5 M420
    Sound Card
    Realtek
    Monitor(s) Displays
    17.3
    Screen Resolution
    1600X900 16:9
    Hard Drives
    1TB 5400RPM
One place you might look for help is under Windows Logs in Event Viewer. Look under System and you might see a hang being logged and what it might be specifically tied to. I'm unsure at that point something might be logged but you might get lucky.
My gut is suggesting this is a hardware issue. Unless you have parts to swap this becomes harder to troubleshoot.
Pull some of the ram to see if that helps. Tweak the bios. Reflash to the latest bios, although I see this is an X299 motherboard. GPU issue. Graphics driver issue.


My Computer

System One

  • OS
    Win 7/10/11
    Computer type
    PC/Desktop
    Other Info
    I'm a computer enthusiast so have quite a few systems that I run. More like an advanced hobby.
One place you might look for help is under Windows Logs in Event Viewer. Look under System and you might see a hang being logged and what it might be specifically tied to. I'm unsure at that point something might be logged but you might get lucky.
My gut is suggesting this is a hardware issue. Unless you have parts to swap this becomes harder to troubleshoot.
Pull some of the ram to see if that helps. Tweak the bios. Reflash to the latest bios, although I see this is an X299 motherboard. GPU issue. Graphics driver issue.
I totally agree with the assumption & suggestions.
I do believe however, based on the description, that the 'freeze' happens even before HAL is implemented.
I have my doubt that the OS has even started but as stated, you might get lucky.
There are a few good diagnostics tools listed in the forum. Use them or post in a new thread as a BSOD.
That is where the experts live.


My Computers

System One System Two

  • OS
    Win11 All /Debian/Arch
    Computer type
    Laptop
    Manufacturer/Model
    ASUSTeK COMPUTER INC. TUF Gaming FX705GM
    CPU
    2.20 gigahertz Intel i7-8750H Hyper-threaded 12 cores
    Motherboard
    ASUSTeK COMPUTER INC. FX705GM 1.0
    Memory
    24428 Megabytes
    Graphics Card(s)
    Intel(R) UHD Graphics 630 / NVIDIA GeForce GTX 1060
    Sound Card
    Intel(R) Display Audio / Realtek(R) Audio
    Monitor(s) Displays
    Integrated Monitor (17.3"vis)
    Screen Resolution
    FHD 1920X1080 16:9
    Hard Drives
    2 SSD SATA/NVM Express 1.3
    WDS500G2B0A-00SM50 500.1 GB
    WDCSDAPNUW-1002 256 GB
    PSU
    19V DC 6.32 A 120 W
    Cooling
    Dual Fans
    Mouse
    MS Bluetooth
    Internet Speed
    Fiber 1GB Cox -us & ADSL Bouygues -fr
    Browser
    Edge Canary- Firefox Nightly
    Antivirus
    Windows Defender
    Other Info
    VMs of Windows 11 stable/Beta/Dev/Canary
    VM of XeroLinux- Arch based & Debian 12
  • Operating System
    Windows 11 Insider Canary
    Computer type
    Laptop
    Manufacturer/Model
    ASUS X751BP
    CPU
    AMD Dual Core A6-9220
    Motherboard
    ASUS
    Memory
    8 GB
    Graphics card(s)
    AMD Radeon R5 M420
    Sound Card
    Realtek
    Monitor(s) Displays
    17.3
    Screen Resolution
    1600X900 16:9
    Hard Drives
    1TB 5400RPM
Did you check Reliability Monitor / History ? There you usually get more infos.

Code:
Boot Device    \Device\HarddiskVolume5
How many disks?

Not seeing anything much for today, when this last happened. And not really much for other past days where it did not freeze. For today, when it did occur, just a couple messages for PowerENGUAGE, Successfully application reconfiguration" - which is for a Brother printer I have connected. Seems to be the same message every day even when it does not occur.

It has:
  • Samsung 2TB M.2 EVO for Windows system
  • an 8TB hard disk for data
  • a 1TB hard disk, really just spare space.
All NTFS - all marked Healthy.

I see this message in the event log, which makes me think it knew it did not come up properly: The system has rebooted without cleanly shutting down first. This error could be caused if the system stopped responding, crashed, or lost power unexpectedly.


My Computer

System One

  • OS
    Windows 11
Not seeing anything much for today, when this last happened. And not really much for other past days where it did not freeze. For today, when it did occur, just a couple messages for PowerENGUAGE, Successfully application reconfiguration" - which is for a Brother printer I have connected. Seems to be the same message every day even when it does not occur.

It has:
  • Samsung 2TB M.2 EVO for Windows system
  • an 8TB hard disk for data
  • a 1TB hard disk, really just spare space.
All NTFS - all marked Healthy.

I see this message in the event log, which makes me think it knew it did not come up properly: The system has rebooted without cleanly shutting down first. This error could be caused if the system stopped responding, crashed, or lost power unexpectedly.

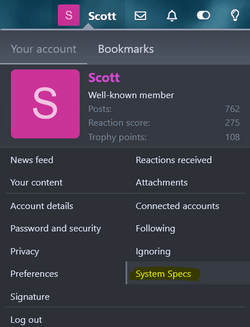

Can you please take the time, if you have it, to fill in your specs in your profile with as much detail as possible.


My Computers

System One System Two

  • OS
    Win11 All /Debian/Arch
    Computer type
    Laptop
    Manufacturer/Model
    ASUSTeK COMPUTER INC. TUF Gaming FX705GM
    CPU
    2.20 gigahertz Intel i7-8750H Hyper-threaded 12 cores
    Motherboard
    ASUSTeK COMPUTER INC. FX705GM 1.0
    Memory
    24428 Megabytes
    Graphics Card(s)
    Intel(R) UHD Graphics 630 / NVIDIA GeForce GTX 1060
    Sound Card
    Intel(R) Display Audio / Realtek(R) Audio
    Monitor(s) Displays
    Integrated Monitor (17.3"vis)
    Screen Resolution
    FHD 1920X1080 16:9
    Hard Drives
    2 SSD SATA/NVM Express 1.3
    WDS500G2B0A-00SM50 500.1 GB
    WDCSDAPNUW-1002 256 GB
    PSU
    19V DC 6.32 A 120 W
    Cooling
    Dual Fans
    Mouse
    MS Bluetooth
    Internet Speed
    Fiber 1GB Cox -us & ADSL Bouygues -fr
    Browser
    Edge Canary- Firefox Nightly
    Antivirus
    Windows Defender
    Other Info
    VMs of Windows 11 stable/Beta/Dev/Canary
    VM of XeroLinux- Arch based & Debian 12
  • Operating System
    Windows 11 Insider Canary
    Computer type
    Laptop
    Manufacturer/Model
    ASUS X751BP
    CPU
    AMD Dual Core A6-9220
    Motherboard
    ASUS
    Memory
    8 GB
    Graphics card(s)
    AMD Radeon R5 M420
    Sound Card
    Realtek
    Monitor(s) Displays
    17.3
    Screen Resolution
    1600X900 16:9
    Hard Drives
    1TB 5400RPM
In diskmanagement the OS-disk is probably listed as disk 2.
Is that a M.2 SATA disk?


My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP ZBook
    CPU
    Intel 6700HQ
    Motherboard
    HP
    Memory
    24
    Graphics Card(s)
    AMD FirePro 5170M
    Hard Drives
    Samsung SSD 860 Pro
    Keyboard
    yes
    Mouse
    yes
    Other Info
    19045.3803
    some Red Hat workhorses
In diskmanagement the OS-disk is probably listed as disk 2.
Is that a M.2 SATA disk?

Actually Disk 1 - listed as Samsung SSD 980 2TB. I updated that disk a while ago and the problem was occurring before that swap.


My Computer

System One

  • OS
    Windows 11

My Computers

System One System Two

  • OS
    Win 11 Pro 23H2 22631.3527
    Computer type
    PC/Desktop
    Manufacturer/Model
    Self Built
    CPU
    Intel® Core™ i7-14700F
    Motherboard
    ASUS TUF GAMING Z690-PLUS WIFI
    Memory
    G.SKILL Ripjaws S5 Series 64GB (2 x 32GB) DDR5
    Graphics Card(s)
    EVGA GeForce RTX 3050 XC Black Gaming
    Sound Card
    Sound Blaster AE-5 Plus
    Monitor(s) Displays
    ASUS TUF Gaming 27" 2K HDR Gaming
    Screen Resolution
    2560 x 1440
    Hard Drives
    Samsung 990 Pro 1TB NVMe (Win 11)
    SK hynix P41 500GB NVMe (Win 10)
    SK hynix P41 2TB NVMe (x3)
    Crucial P3 Plus 4TB
    PSU
    Corsair RM850x Shift
    Case
    Antec Dark Phantom DP502 FLUX
    Cooling
    Noctua NH-U12A chromax.black + 7 Phantek T-30's
    Keyboard
    Logitech MK 320
    Mouse
    Razer Basilisk V3
    Internet Speed
    350Mbs
    Browser
    Firefox
    Antivirus
    Winows Security
    Other Info
    Windows 10 22H2 19045.4291
    On System One
  • Operating System
    Win 11 Pro 23H2 22631.3527
    Computer type
    PC/Desktop
    Manufacturer/Model
    Self Built
    CPU
    Intel Core i7-11700F
    Motherboard
    Asus TUF Gaming Z590 Plus WiFi
    Memory
    64 GB DDR4
    Graphics card(s)
    EVGA RTX 2060 KO Ultra Gaming
    Sound Card
    SoundBlaster X-Fi Titanium
    Monitor(s) Displays
    Samsung F27T350
    Screen Resolution
    1920x1080
    Hard Drives
    Samsung 980 Pro 1TB
    Samsung 970 EVO Plus 2TB
    Samsung 870 EVO 500GB SSD
    PSU
    Corsair HX750
    Case
    Cougar MX330-G Window
    Cooling
    Hyper 212 EVO
    Internet Speed
    350Mbps
    Browser
    Firefox
    Antivirus
    Windows Security
1. A diskmanagement screenshot is needed, showing all relevant details.
2. Is your Device Manager (storage controller) showing a NVMe Contoller?
3. run cmd (admin) and type
C:\Windows\system32>sc qc stornvme
4. firmware Samsung_SSD_980 3B4QFXO7 ?

Last edited:

My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP ZBook
    CPU
    Intel 6700HQ
    Motherboard
    HP
    Memory
    24
    Graphics Card(s)
    AMD FirePro 5170M
    Hard Drives
    Samsung SSD 860 Pro
    Keyboard
    yes
    Mouse
    yes
    Other Info
    19045.3803
    some Red Hat workhorses

My Computers

System One System Two

  • OS
    Windows 11 Pro 23H2 22631.3447
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Optiplex 7080
    CPU
    i9-10900 10 core 20 threads
    Motherboard
    DELL 0J37VM
    Memory
    32 gb
    Graphics Card(s)
    none-Intel UHD Graphics 630
    Sound Card
    Integrated Realtek
    Monitor(s) Displays
    Benq 27
    Screen Resolution
    2560x1440
    Hard Drives
    1tb Solidigm m.2 +256gb ssd+512 gb usb m.2 sata
    PSU
    500w
    Case
    MT
    Cooling
    Dell Premium
    Keyboard
    Logitech wired
    Mouse
    Logitech wireless
    Internet Speed
    so slow I'm too embarrassed to tell
    Browser
    Firefox
    Antivirus
    Defender+MWB Premium
  • Operating System
    Windows 10 Pro 22H2 19045.3930
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Optiplex 9020
    CPU
    i7-4770
    Memory
    24 gb
    Monitor(s) Displays
    Benq 27
    Screen Resolution
    2560x1440
    Hard Drives
    256 gb Toshiba BG4 M.2 NVE SSB and 1 tb hdd
    PSU
    500w
    Case
    MT
    Cooling
    Dell factory
    Mouse
    Logitech wireless
    Keyboard
    Logitech wired
    Internet Speed
    still not telling
    Browser
    Firefox
    Antivirus
    Defender+MWB Premium
3. run cmd (admin) and type
C:\Windows\system32>sc qc stornvme
4. firmware Samsung_SSD_980 3B4QFXO7 ?
That command won't show firmware version, at least not for me.

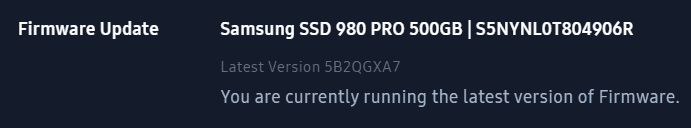

Samsung Magician

Hwinfo


My Computers

System One System Two

  • OS
    Win 11 Pro 23H2 22631.3527
    Computer type
    PC/Desktop
    Manufacturer/Model
    Self Built
    CPU
    Intel® Core™ i7-14700F
    Motherboard
    ASUS TUF GAMING Z690-PLUS WIFI
    Memory
    G.SKILL Ripjaws S5 Series 64GB (2 x 32GB) DDR5
    Graphics Card(s)
    EVGA GeForce RTX 3050 XC Black Gaming
    Sound Card
    Sound Blaster AE-5 Plus
    Monitor(s) Displays
    ASUS TUF Gaming 27" 2K HDR Gaming
    Screen Resolution
    2560 x 1440
    Hard Drives
    Samsung 990 Pro 1TB NVMe (Win 11)
    SK hynix P41 500GB NVMe (Win 10)
    SK hynix P41 2TB NVMe (x3)
    Crucial P3 Plus 4TB
    PSU
    Corsair RM850x Shift
    Case
    Antec Dark Phantom DP502 FLUX
    Cooling
    Noctua NH-U12A chromax.black + 7 Phantek T-30's
    Keyboard
    Logitech MK 320
    Mouse
    Razer Basilisk V3
    Internet Speed
    350Mbs
    Browser
    Firefox
    Antivirus
    Winows Security
    Other Info
    Windows 10 22H2 19045.4291
    On System One
  • Operating System
    Win 11 Pro 23H2 22631.3527
    Computer type
    PC/Desktop
    Manufacturer/Model
    Self Built
    CPU
    Intel Core i7-11700F
    Motherboard
    Asus TUF Gaming Z590 Plus WiFi
    Memory
    64 GB DDR4
    Graphics card(s)
    EVGA RTX 2060 KO Ultra Gaming
    Sound Card
    SoundBlaster X-Fi Titanium
    Monitor(s) Displays
    Samsung F27T350
    Screen Resolution
    1920x1080
    Hard Drives
    Samsung 980 Pro 1TB
    Samsung 970 EVO Plus 2TB
    Samsung 870 EVO 500GB SSD
    PSU
    Corsair HX750
    Case
    Cougar MX330-G Window
    Cooling
    Hyper 212 EVO
    Internet Speed
    350Mbps
    Browser
    Firefox
    Antivirus
    Windows Security
wmic diskdrive get caption, firmwarerevision


/hijack

Last edited:

My Computers

System One System Two

  • OS
    Win 11 Pro 23H2 22631.3527
    Computer type
    PC/Desktop
    Manufacturer/Model
    Self Built
    CPU
    Intel® Core™ i7-14700F
    Motherboard
    ASUS TUF GAMING Z690-PLUS WIFI
    Memory
    G.SKILL Ripjaws S5 Series 64GB (2 x 32GB) DDR5
    Graphics Card(s)
    EVGA GeForce RTX 3050 XC Black Gaming
    Sound Card
    Sound Blaster AE-5 Plus
    Monitor(s) Displays
    ASUS TUF Gaming 27" 2K HDR Gaming
    Screen Resolution
    2560 x 1440
    Hard Drives
    Samsung 990 Pro 1TB NVMe (Win 11)
    SK hynix P41 500GB NVMe (Win 10)
    SK hynix P41 2TB NVMe (x3)
    Crucial P3 Plus 4TB
    PSU
    Corsair RM850x Shift
    Case
    Antec Dark Phantom DP502 FLUX
    Cooling
    Noctua NH-U12A chromax.black + 7 Phantek T-30's
    Keyboard
    Logitech MK 320
    Mouse
    Razer Basilisk V3
    Internet Speed
    350Mbs
    Browser
    Firefox
    Antivirus
    Winows Security
    Other Info
    Windows 10 22H2 19045.4291
    On System One
  • Operating System
    Win 11 Pro 23H2 22631.3527
    Computer type
    PC/Desktop
    Manufacturer/Model
    Self Built
    CPU
    Intel Core i7-11700F
    Motherboard
    Asus TUF Gaming Z590 Plus WiFi
    Memory
    64 GB DDR4
    Graphics card(s)
    EVGA RTX 2060 KO Ultra Gaming
    Sound Card
    SoundBlaster X-Fi Titanium
    Monitor(s) Displays
    Samsung F27T350
    Screen Resolution
    1920x1080
    Hard Drives
    Samsung 980 Pro 1TB
    Samsung 970 EVO Plus 2TB
    Samsung 870 EVO 500GB SSD
    PSU
    Corsair HX750
    Case
    Cougar MX330-G Window
    Cooling
    Hyper 212 EVO
    Internet Speed
    350Mbps
    Browser
    Firefox
    Antivirus
    Windows Security
That command won't show firmware version, at least not for me.
1. I know that it is not the command for the firmware. It shows just the driver being loaded.
2. He doesn't have the PRO version of the 980
3. The 980 is not on the list of the supported SSDs


My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP ZBook
    CPU
    Intel 6700HQ
    Motherboard
    HP
    Memory
    24
    Graphics Card(s)
    AMD FirePro 5170M
    Hard Drives
    Samsung SSD 860 Pro
    Keyboard
    yes
    Mouse
    yes
    Other Info
    19045.3803
    some Red Hat workhorses

My Computers

System One System Two

  • OS
    Win 11 Pro 23H2 22631.3527
    Computer type
    PC/Desktop
    Manufacturer/Model
    Self Built
    CPU
    Intel® Core™ i7-14700F
    Motherboard
    ASUS TUF GAMING Z690-PLUS WIFI
    Memory
    G.SKILL Ripjaws S5 Series 64GB (2 x 32GB) DDR5
    Graphics Card(s)
    EVGA GeForce RTX 3050 XC Black Gaming
    Sound Card
    Sound Blaster AE-5 Plus
    Monitor(s) Displays
    ASUS TUF Gaming 27" 2K HDR Gaming
    Screen Resolution
    2560 x 1440
    Hard Drives
    Samsung 990 Pro 1TB NVMe (Win 11)
    SK hynix P41 500GB NVMe (Win 10)
    SK hynix P41 2TB NVMe (x3)
    Crucial P3 Plus 4TB
    PSU
    Corsair RM850x Shift
    Case
    Antec Dark Phantom DP502 FLUX
    Cooling
    Noctua NH-U12A chromax.black + 7 Phantek T-30's
    Keyboard
    Logitech MK 320
    Mouse
    Razer Basilisk V3
    Internet Speed
    350Mbs
    Browser
    Firefox
    Antivirus
    Winows Security
    Other Info
    Windows 10 22H2 19045.4291
    On System One
  • Operating System
    Win 11 Pro 23H2 22631.3527
    Computer type
    PC/Desktop
    Manufacturer/Model
    Self Built
    CPU
    Intel Core i7-11700F
    Motherboard
    Asus TUF Gaming Z590 Plus WiFi
    Memory
    64 GB DDR4
    Graphics card(s)
    EVGA RTX 2060 KO Ultra Gaming
    Sound Card
    SoundBlaster X-Fi Titanium
    Monitor(s) Displays
    Samsung F27T350
    Screen Resolution
    1920x1080
    Hard Drives
    Samsung 980 Pro 1TB
    Samsung 970 EVO Plus 2TB
    Samsung 870 EVO 500GB SSD
    PSU
    Corsair HX750
    Case
    Cougar MX330-G Window
    Cooling
    Hyper 212 EVO
    Internet Speed
    350Mbps
    Browser
    Firefox
    Antivirus
    Windows Security
Hi,

No luck with "wmic diskdrive get caption, firmwarerevision"

Code:
PS C:\Users\flame> wmic diskdrive get caption, firmwarerevision
Invalid GET Expression.
PS C:\Users\flame>


My Computer

System One

  • OS
    Windows 11

Latest Support Threads

Back
Top Bottom
